Medical-Grade TPU Film for Wound Care, Wearables & Skin-Contact Device Bonding
A biocompatible-grade thermoplastic polyurethane film engineered to laminate, bond and breathe against skin — with the sterilization route, MVTR tier, and ISO 10993 documentation mapped to your contact class before you commit to tooling.
Request a Quote & Free Samples
The Skin-Contact Bonding Problem — and Where a Medical-Grade TPU Film Fits
A medical-grade TPU film earns its place the moment a device touches skin: the bond has to survive sterilization, breathe at the right rate, and pass biocompatibility — all at once. Solvent adhesives leave residues that fail cytotoxicity. High-temperature laminating scorches the nonwovens, hydrocolloids and sensors underneath.
A thermoplastic polyurethane film solves this as a solvent-free, heat-activated bonding and barrier layer. It laminates breathable membranes to nonwovens, carries a skin-safe adhesive and lets water vapor diffuse through-no micro-pores, no wet-glue chemistry. That’s the category. The engineering question isn’t “what’s TPU film”-it’s which grade, which MVTR, and which sterilization route match your contact class.
Tengyang builds these films in-house across our own extrusion, casting, and coating lines, backed by years of hot-melt film manufacturing-and unlike a trading house, we can put grade, sample, and test-report files on the same table.
What actually breaks on the assembly line
-
01
Residue & cytotoxicity: solvent-based glue outgasses and can fail ISO 10993-5 cytotoxicity on the finished part.
-
02
Heat damage: substrate-melting activation temperatures deform heat-sensitive wound-care layers and flex circuits.
-
03
Sterilization mismatch: a film chosen on price can warp or hydrolyze in the customer’s autoclave or gamma line – discovered only at validation.
Scoping a skin-contact bond?
Request free samples and a detailed grade recommendation →
Tengyang Medical-Grade TPU Film Range — Grades & Selection
We manufacture four functional families, all as unsupported film on rolls that you can die-cut, adhesive-coat, or laminate in-line. Numbers below are industry-typical selection ranges for scoping-final values are confirmed per grade on your sample.
Mechanical properties that matter on skin
The reason TPU wins for skin-contact work is its blend of elasticity and toughness: it stretches with the body, then recovers. Grades carry high puncture resistance and abrasion resistance so a thin dressing or catheter-securement film survives handling, while breathable grades stay comfortable through long wear.

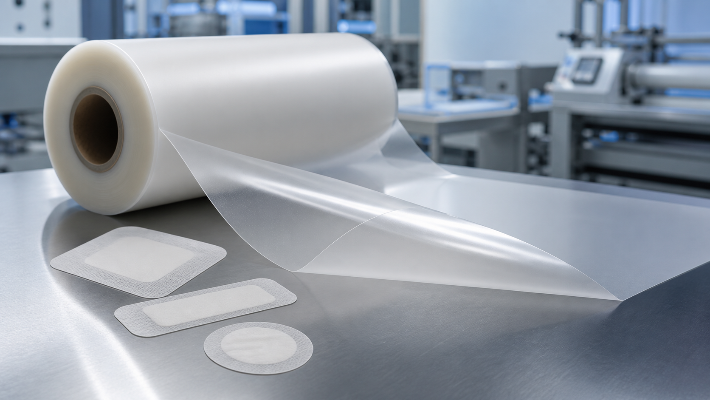

Bonding / Adhesive Grade
Low-temperature heat-seal film that assembles dressings, patches, and wearables without solvent glue or substrate scorching.

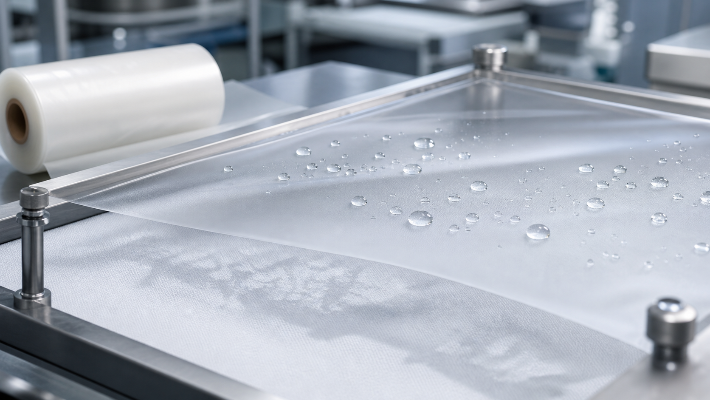

Breathable Barrier Grade
Monolithic film tuned for a target MVTR window, liquid and microbial barrier that still let moisture vapor escape.

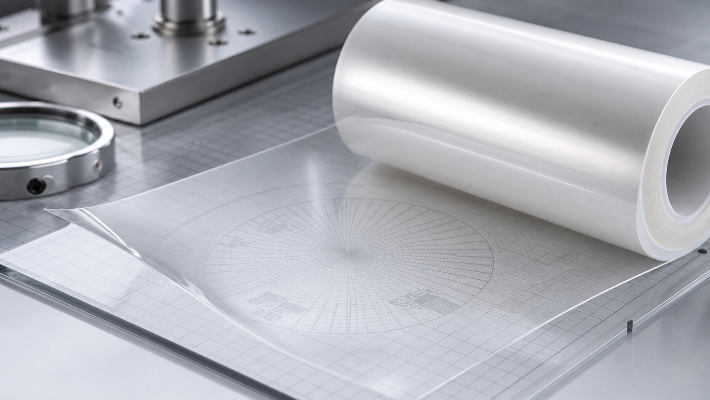

Clear / Optical Grade
Transparent, low-haze film for wound-visualization dressings and see-through fixation layers.

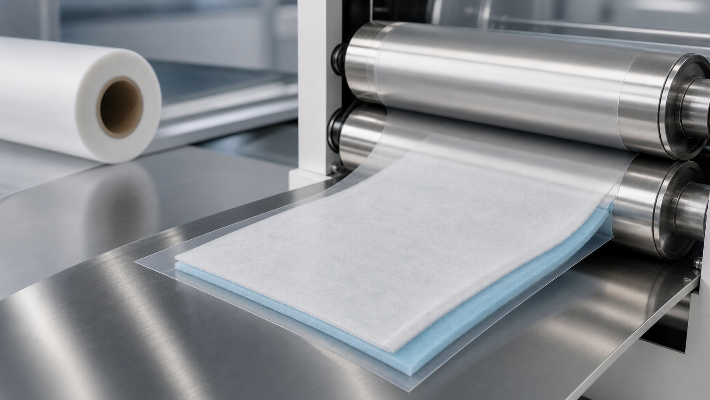

Double-Sided / Laminating Grade
Film-to-fabric and film-to-foam construction for multi-layer medical textiles and inflatable components.
Selection reference — industry-typical ranges, confirmed on sample
| Parameter | Typical Range | Selection Note |
|---|---|---|
| Thickness | ~15–200 µm (0.015–0.20 mm) | Thinner films tend to breathe more; thicker films favor handling and barrier. |
| Base chemistry | Polyether or polyester TPU | Polyether resists hydrolysis (humid / moist-wound / steam-adjacent); polyester adds abrasion. |
| Hardness | ~80A–95A Shore | Softer for second-skin comfort; firmer for structural lamination. |
| Activation temp | ~90–150 °C (grade-dependent) | Low-activation grades protect heat-sensitive nonwovens and electronics. |
| MVTR (monolithic) | ~200–1,200 g/m²/24h | Matched to contact class — see the MVTR tiers below. |
| Surface | Clear, matte, or textured | Matte lowers friction and reflection for drapes and skin patches. |
| Format | Custom width, color, release liner | OEM thickness/width/color and adhesive-and-liner options. |
Selection is not “pick the thinnest, cheapest roll”-that is a rule of thumb that does not always hold. It is a chain: contact class MVTR tier sterilization route ISO 10993 endpoints. Because Tengyang extrudes these grades in-house, we can tune thickness, activation temperature, and base chemistry to your point on that chain rather than sell you the nearest stock roll.
Need a specific thickness and activation temperature?
Get a custom spec and free sample →

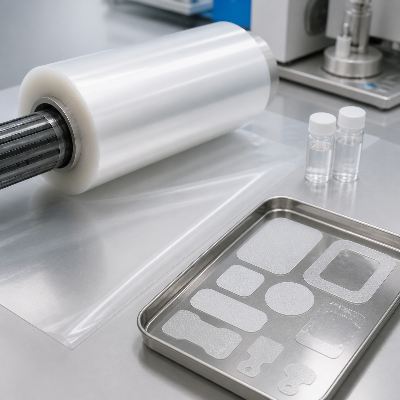

The Medical-Grade Qualification Stack
Biocompatibility is decided by how and how long a device contacts the body — not by the words “medical grade” on a datasheet. ISO 10993-1 drives endpoint selection from contact category and duration. We map that to film selection in one table so nothing is discovered late.
The Medical-Grade Qualification Stack — contact class × duration × ISO 10993 endpoints × MVTR tier × sterilization route
| Application | Contact class | Duration | Core ISO 10993 endpoints | MVTR tier | Typical sterilization |
|---|---|---|---|---|---|
| Wearable sensor / monitor patch | Intact skin | Limited – prolonged | -5 cytotoxicity; -10 sensitization; -23 irritation | High (comfort) | EtO or none (device-level) |
| Transdermal / fixation patch | Intact skin | Prolonged | -5; -10; -23; -18 characterization | Mid–High | EtO / gamma (dose-qualified) |
| Transparent wound-contact / cover film | Breached skin | Limited – prolonged | -5; -10; -23; -18 (E&L) | High (exudate) | EtO / e-beam |
| Advanced / chronic wound dressing layer | Breached skin | Prolonged | -5; -10; -23; -18; extended per risk | High | EtO / gamma (aliphatic) |
| Surgical drape / incision film | Intact / surgical skin | Limited | -5; -10; -23 | Mid | EtO / gamma |
| Ostomy barrier film | Breached / peristomal | Prolonged | -5; -10; -23; -18 | Mid–High | EtO |
| Blood-pressure cuff / airbag bladder | Intact skin (indirect) | Limited | -5; (-10 if direct) | Low (barrier) | EtO / none |
| Medical textile / gown lamination | Intact skin | Limited | -5; -10 | Mid | EtO / gamma |
| Inflatable positioning / mattress film | Intact skin (indirect) | Prolonged | -5; -10 | Low | EtO / VHP |
How to read the ISO 10993 columns
-
-5
Cytotoxicity: the baseline screen for any skin-contact material.
-
-10
Sensitization: the 2021 revision now covers skin sensitization only.
-
-23
Irritation: irritation moved out of -10 into its own standard in 2021 (reconstructed-human-epidermis method) — a distinction older supplier datasheets still blur.
-
-18
Chemical characterization / E&L: extractables & leachables data (ISO 10993-18) that reviewers increasingly request for breached-skin and prolonged contact, consistent with FDA’s ISO 10993-1 guidance.
Here’s the honest version of “medical grade”: it is a starting point, not a pass. Tengyang provides the material plus the ISO 10993 test data package and certificate records that support these endpoints — unlike suppliers who print a “medical grade” sticker and leave you to assemble the file. Only the finished device, not the film alone, gets cleared, and final biological evaluation stays with your regulatory team.

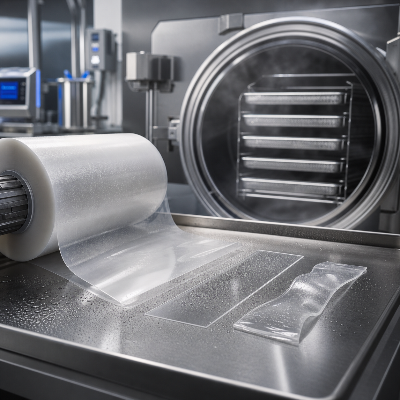

The Sterilization Tolerance Envelope
The single costliest error in medical film sourcing: you selected based on price, only to have the film fail on your customer’s sterilization line during validation. TPU’s thermal and radiation envelopes have their limits – here’s how they perform and break.
The Sterilization Tolerance Envelope — method vs. TPU behavior
| Method | Temp / mechanism | TPU compatibility | Engineering caveat |
|---|---|---|---|
| Ethylene oxide (EtO) | ~37–55 °C, gas | Compatible | Workhorse for heat-sensitive TPU (see CDC sterilization guidance); requires residual aeration and residual limits per device. |
| Gamma irradiation | Ionizing, ambient | Dose-dependent | Aliphatic TPU resists; aromatic TPU can yellow and chain-scission at higher dose — qualify the dose. |
| E-beam | Ionizing, ambient | Dose-dependent | Faster, lower penetration than gamma; same oxidation/chain-scission considerations. |
| Vaporized H₂O₂ (VHP) | Low-temp gas | Generally friendly | Low-temperature route that treats TPU gently; confirm material and cycle. |
| Steam autoclave | ~121–134 °C, moist heat | Generally incompatible | Exceeds many low-activation film melt points; moist heat drives hydrolysis, warping, and strength loss — polyester TPU is most at risk. |
The autoclave trap
Steam sterilization, while the most affordable, is the most destructive for a heat-seal TPU film. At 121 °C, the moist heat will hydrolyze the polymer and force it to the point of activation, beyond the adhesive strength that made it useful to begin with. If your device requires autoclaving, this parameter need to be set before you choose the film’s grade.
This is where you hit a very real cost, and it is the trap that catches price-first buyers: pick the wrong TPU-to-sterilization pairing and the material warps or degrades only after you’ve already tooled up and submitted the file — months of wasted effort. Unlike a trader shipping a stock roll, Tengyang controls resin selection and extrusion in-house, so the envelope we quote is the one you get in production. Biological testing and residuals testing are finalized at the finished-device level, per material and per process. We do our homework at Tengyang to supply you a grade that already has a compatible envelope: a polyether to tolerate high humidity, an aliphatic to with stand irradiation, and low-activation only when steam is off the table. We control both the resin selection and the extrusion on-site, so you get a consistent product, sample to sample, and order to order.
Medical-Grade TPU Film vs. the Alternatives
Any film decision is a choice between four incumbents. This honest comparison, one that every materials engineer makes, includes our own material data.
| Approach | Biocompatibility | Breathability | Heat / substrate risk | Best for |
|---|---|---|---|---|
| Medical-grade TPU film | Solvent-free, ISO 10993-supportable | Tunable monolithic MVTR | Low-activation grades protect substrates | Skin-contact bonding, breathable dressings, wearables |
| Solvent-based adhesive | Residue / cytotoxicity risk | Depends on coat weight | Solvent handling, drying ovens | Non-skin structural bonds |
| PVC film | Plasticizer migration concerns | Low | Moderate | Low-cost fluid barriers |
| Silicone adhesive | Gentle, atraumatic | High (gas-permeable) | Low, but higher cost | Sensitive-skin gentle-removal dressings |
These values are backed by years of experience running hot-melt films here at Tengyang: we operate the grades we list on our production lines, so the comparisons aren’t just theoretical marketing but real test data reflecting actual production output.
And higher MVTR is not automatically better
For moist-wound healing, a moderate MVTR is required, falling between about 800 and 2000+ g/m²/24h depending on the specific stage and test methods used. Too little will retain exudate and macerate; too much will dry the wound out and impede healing. We’ll always work with you to specify a tiered value based on your specific dressing and application requirements, not just report an arbitrary top number.
Monolithic vs. micro-porous — the breathability myth
It’s a common misconception that films need pores to allow for vapor transmission. A non-porous or monolithic TPU film achieves a high MVTR by transporting vapor through the material’s molecules, effectively creating a continuous liquid and microbial barrier while breathing. Ultimately, any barrier properties – including a viral-barrier rating – depend on the specific grade, its thickness, and how it’s used in the final device, and must be tested at the device level.
- Monolithic: No pores to clog or carry pathogens, so unlike a micro-porous membrane the barrier stays constant over the laminate’s life; vapor diffuses through the polymer molecules themselves (the monolithic-vs-microporous distinction is set out in patent EP1148082A1).
- Micro-porous: Allows vapor through open pores; can “breathe” effectively, but prone to pore blockage or contamination.
Want the monolithic barrier data side-by-side with your current film?
Request a Custom Comparison →
Medical Applications — From Wound Dressings to Wearables
The same core chemistry serves very different classes of use. Patent activity from 2023-2025, for example, highlights perforated wound-contact layers and sensor-equipped bandages (US12114994B2, US20240009035A1), perfectly aligning with the market Tengyang’s bonding-and-barrier films occupy. Unlike a one-size stock roll, each film we manufacture in-house is matched to a grade whose activation temperature protects the substrate and whose MVTR tier fits the wear time. Each of these share the same fundamental failure point: a film that allow too much or too little moisture, or that over-heats and scorches the layer underneath. Because we run all of our lamination and extrusion on-site, every application below is custom-selected with an activation temp that protects the underlying material and an MVTR level matched to wear time-we don’t put the same stock-issue film onto a cuff bladder and a bandage, like you would with a trader who move standard inventory.
APP 01

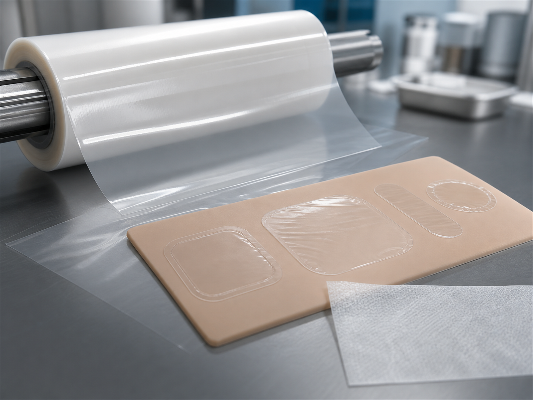

Wound Dressings
Transparent film covers, advanced and chronic dressing backings, and wound-contact layers where MVTR tier and gentle skin adhesion decide performance.
APP 02

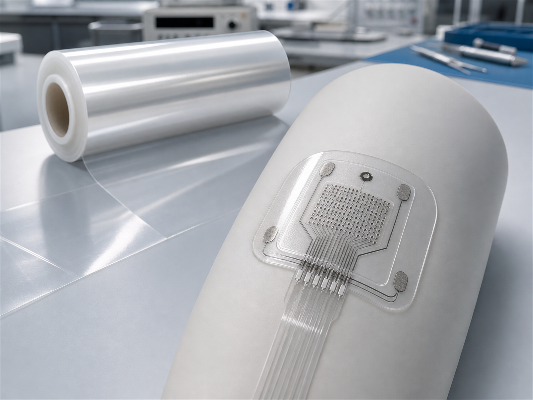

Wearable & Sensor Devices
Second-skin substrates for skin patches, biosensors, and flexible printed electronics, low-activation bonding protects the circuitry.
APP 03

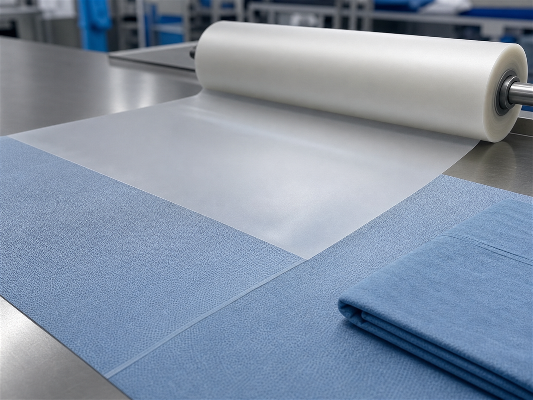

Surgical Drapes & Incision Films
Matte, low-reflection films that stay put in the operating field and laminate cleanly to nonwovens.
APP 04

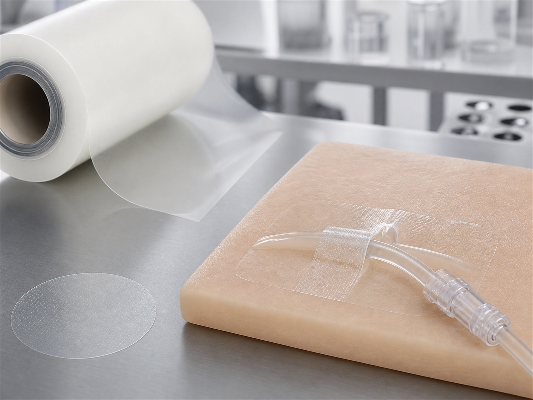

Ostomy, Catheter & Fixation
Breathable barrier and catheter-securement films for peristomal and fixation use, where puncture resistance, abrasion resistance, and wear time decide skin comfort.
APP 05

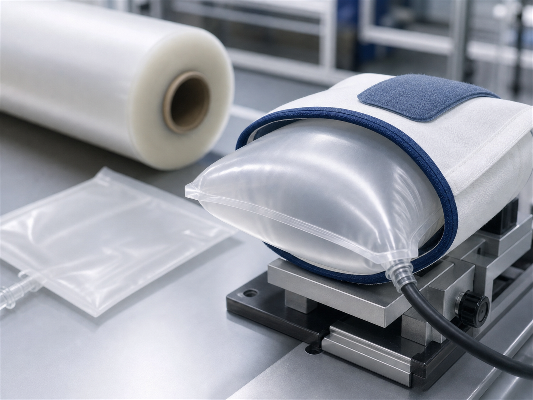

Airbags & Bladders
Airtight, skin-friendly films for blood-pressure cuffs and inflatable positioning components.
APP 06

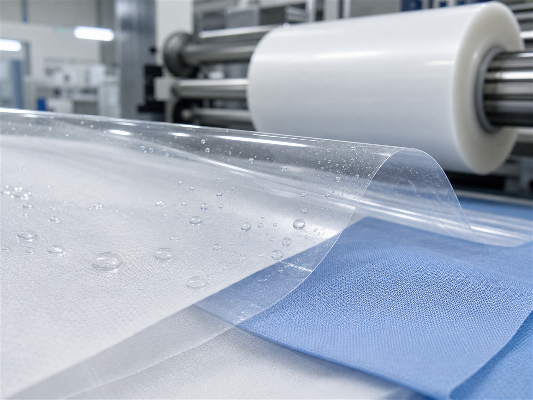

Medical Textiles
Waterproof-breathable lamination for gowns, covers, and reusable protective medical fabrics.

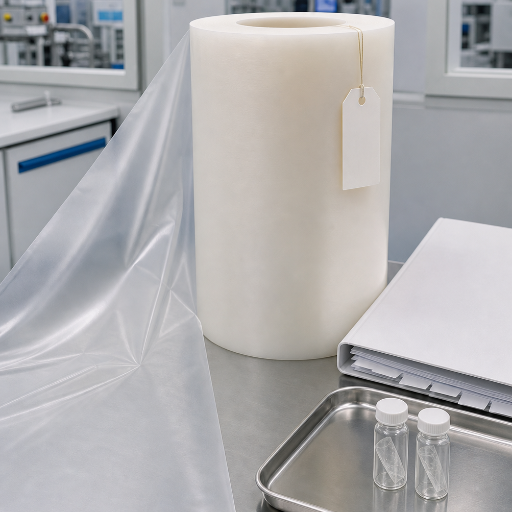

Sourcing Medical-Grade TPU Film — Specs, Documentation & Supply Discipline
If your program is building a device, the film itself is only half the delivery package — the documentation and supply chain are the other half. A supplier with weak documentation is a non-starter no matter how good the polymer is — without extractables/leachables, CofAs, and Lot IDs in hand, you can’t bring any new material to the product development table. Unlike a distributor who simply provides a supplier’s boilerplate spec sheet, Tengyang – as an in-house hot melt manufacturer with years of experience – includes the paperwork as an intrinsic part of the product, preventing months-long delays in qualification.
- The particulars: Thickness, width, color, hardness, activation temperature, surface finish, and release liner selection.
- Polyether or polyester-based films, engineered to your unique moisture environment and sterilization protocol.
- Free samples for your evaluation, offered either as a complete converted unit with adhesive-and-liner or die-cut.
- ISO 10993 test data (-5, -10, and -23) that directly supports biological evaluation.
- ISO 10993-18 chemical characterization and extractables/leachables testing for any extended-term or breached-skin applications.
- RoHS, REACH, and material declarations for your regulatory file.
- Optional, confidential, master-file-type support enabling submission of material data without public disclosure.
- Lot traceability and certificates of analysis on delivered rolls.
- Change control notification: When a resin or pigment supplier silently changes their manufacturing or process, it can significantly impact cytotoxicity, sensitization, and irritation. Instead of passively shipping such changes, we actively flag them to prevent costly revalidation cycles.
- Resin-supplier consistency so your re-validation burden stays predictable.
Tengyang provides biocompatible-grade adhesive films and polymers designed for external surface-contact applications, not internal or long-term implantation. Please note that only the finished medical device, not the material itself, can be “FDA cleared.” We supply and support our material and test data with your submission; however, the ultimate responsibility for sterilization validation, biocompatibility testing, and regulatory compliance lies with the manufacturer of the finished device. If a specific numerical target cannot be definitively set for a new grade, we will explicitly state that and mark it on your samples instead of providing an unsubstantiated spec.
Engineering Support Tools
Access our technical calculators and selection matrices. These utilities assist materials engineers in specifying TPU film grades based on regulatory endpoints, MVTR targets, and sterilization compatibility limits.
TOOL_01
Sterilization Route Compatibility Checker
Cross-reference TPU material tolerance against EtO, Gamma, E-beam, VHP, and Steam sterilization routes to prevent validation failures.
Launch Tool ↗TOOL_02
ISO 10993 Endpoint Finder
Map your medical device’s contact category and duration directly to the required ISO 10993 testing endpoints (-5, -10, -23, -18).
Launch Tool ↗TOOL_03
MVTR Tier Selector
Calculate and determine the optimal monolithic Moisture Vapor Transmission Rate (MVTR) window for specific wound care and wearable applications.
Launch Tool ↗
KNOWLEDGE BASE
Medical-Grade TPU Film FAQ
It means a thermoplastic polyurethane made and documented for medical use, biocompatible-grade chemistry with ISO 10993 test data behind it. It does not automatically mean the film is biocompatible for your device — unlike a blanket claim, the required endpoints depend on contact type and duration under ISO 10993-1, which is exactly why we map grade to contact class rather than sell a one-size roll.
The FDA clears or approves finished devices, not individual materials. We supply biocompatible-grade material plus ISO 10993, RoHS, and REACH data to support your device submission; final clearance and validation belong to the finished-device manufacturer.
A monolithic TPU film transmits water vapor by molecular diffusion through the polymer, not through holes. That’s how it stays a full liquid and microbial barrier while still reaching a high moisture-vapor-transmission rate, often an advantage over micro-porous films that can clog.
Usually not. Steam at ~121 °C exceeds the melt/activation point of many low-activation heat-seal films and drives hydrolysis, so autoclave is generally incompatible. EtO, VHP, and dose-qualified gamma or e-beam are the compatible routes, set the sterilization constraint before selecting a grade.
Aim for a window, not a maximum. Reported values vary with wound phase and test method, commonly cited film-dressing figures span roughly 800 to 2,000+ g/m²/24h. Too low macerates the wound; too high dries it out. We tune the grade to the tier your application needs rather than chase a headline number.
ISO 10993 test data (-5 / -10 / -23), ISO 10993-18 chemical characterization with extractables/leachables, RoHS, REACH, material declarations, lot traceability, and change-control notification, plus confidential formulation support so your file can reference material data without public disclosure.
We support OEM custom thickness, width, color, activation temperature, surface, and release liner, with free samples for your lamination trial. Share your application, contact class, and target MVTR, and we’ll recommend a grade and confirm a minimum order for your program.
