Automotive Interior TPU Hot Melt Adhesive Film
TPU Hot Melt Adhesive Film for Automotive Interiors – Clean, Solvent-Free Interior Bonding This adhesive film bonds headliner, door panel, seat, and trim substrates using a clean, solvent-free, heat-activated layer engineered around cabin heat survival, low-fogging emissions, and the flammability requirements that differentiate an automotive-grade supplier from a generic film exporter.
3 grades
Low / Med / High activation temperature
0.01–0.4 mm
Custom thickness range
Solvent-free
No VOC solvent, no drying line
FMVSS 302
Flammability testing support
Low-fogging
VDA 278 VOC/FOG framework
Custom OEM
Width · melt point · carrier

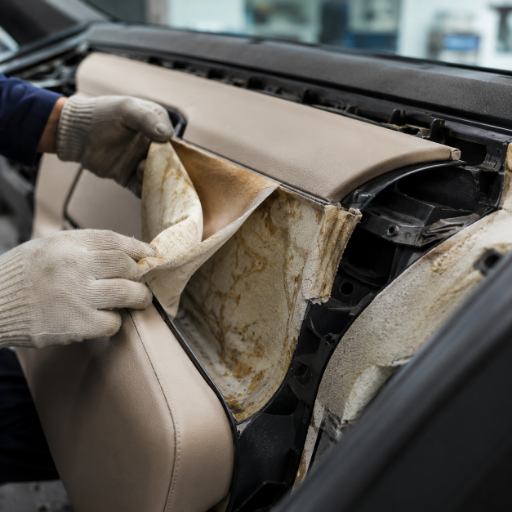

Why Solvent Glue and Spray Adhesive Fall Short in Interior Lamination
The most expensive mistake in interior bonding is choosing an adhesive based on unit price only. Lines still using solvent-based contact glue or aerosol spray bear three hidden costs the per-kilogram number never reveals. Solvent adhesives fail the housekeeping test due to the need for forced ventilation and precise control of drying time, slowing production and increasing overhead for handling volatile organic compounds (VOCs). Variable coverage among operators causes the bond strength and finish to vary over the course of a shift, representing a significant risk to yield. And an adhesive selected only for its initial grip can creep or delaminate when exposed to actual cabin heat over 90°C.
Unlike solvent contact glue or a wet-applied polyurethane film adhesive, TPU hot melt adhesive film eliminates solvents. Tengyang develops this film as a consistent, non-tacky layer of thermoplastic polyurethane that remains inert at room temperature but becomes fluid when heated and pressurized to wet and adhere to both surfaces as it cools. This film is ideal for interior lines due to its clean processing and elastic bond without drying time or messy glue beads. The combination of clean production and durable bonding makes TPU hot melt film – along with associated TPU film laminates – a preferred alternative to liquid glues for many automotive interior components that need to remain soft to the touch and withstand the heat of a summer dashboard.
How the bond forms
TPU hot melt adhesive film is a thermoplastic polyurethane layer that’s activated by heat. Simply place the film between two materials, apply heat and pressure using a heat press or roller laminator, and then allow it to cool to form a continuous adhesive with high peel and shear strength – free of solvents, mixing, and curing. This same principle of solvent-free, heat-activated bonding appears in US patent literature on polyurethane laminations for automotive interior and exterior parts.
Grades and Temperature Selection, Activation vs Service Heat
One temperature specification is the most prevalent error in material selection. For a TPU hot melt adhesive film, two distinct temperature variables exist, and confusion between them leads to bond failures in the field.
Activation temp is a processing spec – the heat window at which the film melts and wets the substrate on your press or laminator. Service temp resistance is a durability spec – if the cured bond hold up under the heat the part will actually see in service. That trap — choosing by activation alone — bites hard: the interior air of a parked car can hit about 70 °C, a sun-heated dashboard could approach 100C, so an instrument panel laminate delaminates even when the grade activates on the line easily – because it wasn’t tested at that service heat. Given this dichotomy, Tengyang designs each grade to a target service-heat range first, then works on activating at the window you’ve on the line – a honest compromise is a family of grades, rather than one global film.
01 DECODER
02 SPECS

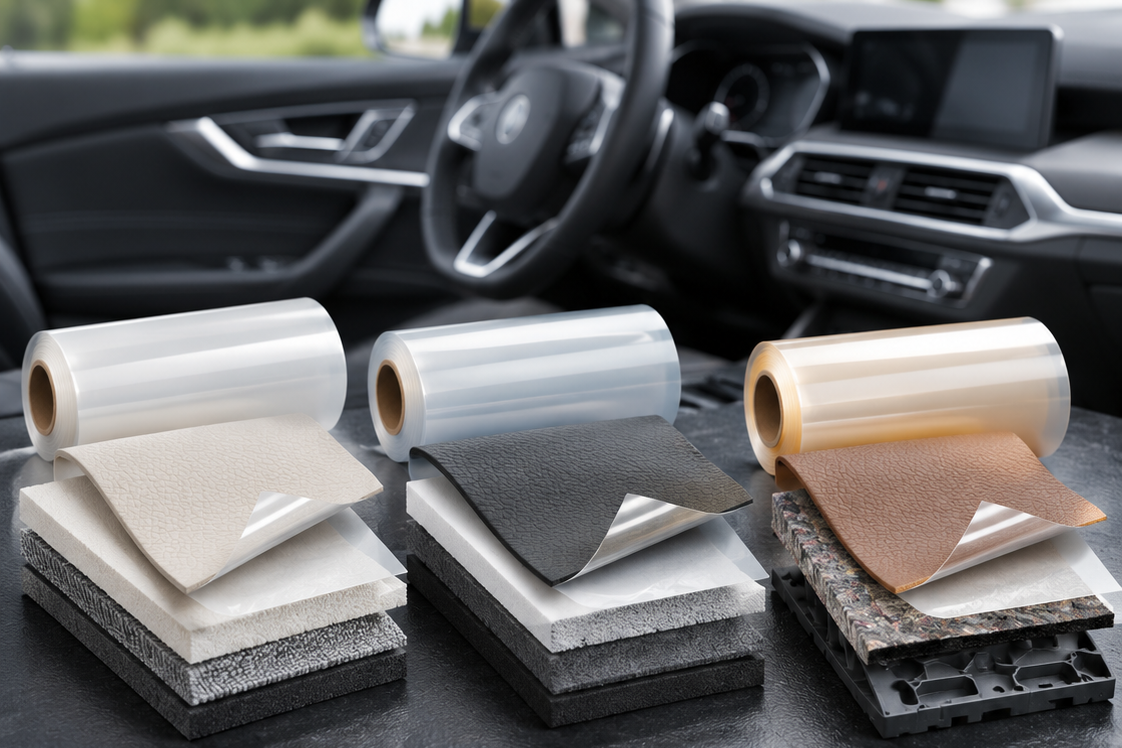

Cabin Heat-Zone Grade Decoder
Tengyang sorts its auto interior TPU films into three grades based on the cabin heat zone where the end-use part will endure. Activation windows below represent general directional bands, and each production grade is finalized at its specific melting point on your substrate via sample validation.
Grade
Typical activation window
Service-heat target
Best-fit interior zone
Low-temp
~70–90 °C
Cool / shaded zones
Heat-sensitive substrates, PU-skin, foam-backed panels where high press heat would deform or discolor the face
Medium-temp
~110–140 °C
Cabin-body zones (~70 °C)
Door panels, pillar trim, seat-back fabric-to-foam lamination
High-temp
~150–180 °C
Sun-loaded zones (~90–100 °C)
Instrument panel, sun visor, parcel shelf, wash-durable trim near glass
Temperature ranges apply to TPU hot melt films. Grade codes follow the underlying thermoplastic polyurethane crystallization chemistry; typically a quality TPU layer holds strong adhesion over a wide range (roughly −40 to 120 °C) in use. Low-temperature films have a very narrow activation temperature which allow low temperatures to be used for laminating onto heat sensitive textile & PU-skin faces, which avoids scorching of delicate surfaces. Higher temperature TPU layers give increased durability at high temperatures & wash-resistance but sacrifice this softness at low temperature.
Purchasing specification table
Item
Direction
Why it matters
Material
Thermoplastic polyurethane (TPU) adhesive film
Elastic, soft hand feel; clean lamination for soft-touch interior parts
Thickness
~0.01–0.4 mm, by bond strength and substrate texture
Too thin fails to fill fabric or foam texture; too thick stiffens the part and adds weight
Width / carrier
Full-width or slit roll; release paper, release film, or carrier-free
Carrier choice drives positioning, peel, storage and line workflow
Activation
Low / medium / high, confirmed after substrate test
Heat must activate the film without scorching fabric, foam or a printed face
Performance
Elasticity, wash resistance, low-fogging, peel strength priority
One grade cannot fit every zone; the priority order sets the grade
“We tell interior buyers to send us the finished-part heat zone before the press temperature. A grade that activates cleanly but softens on a 95 °C dashboard is the wrong grade, service heat picks the film, activation only tunes the line.”
— Application Engineering Team, Tengyang

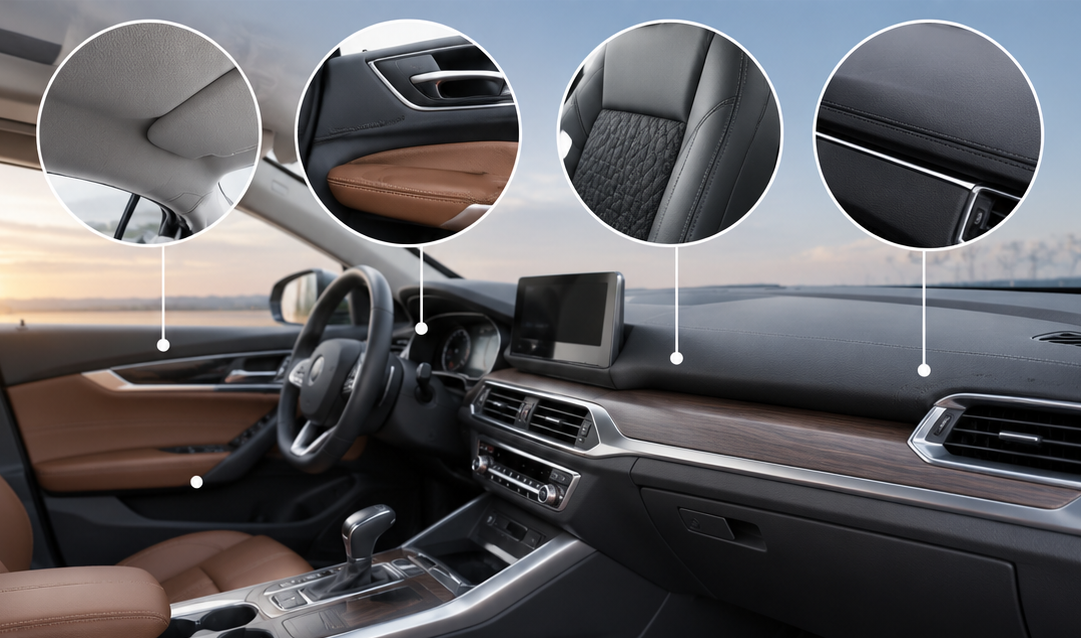

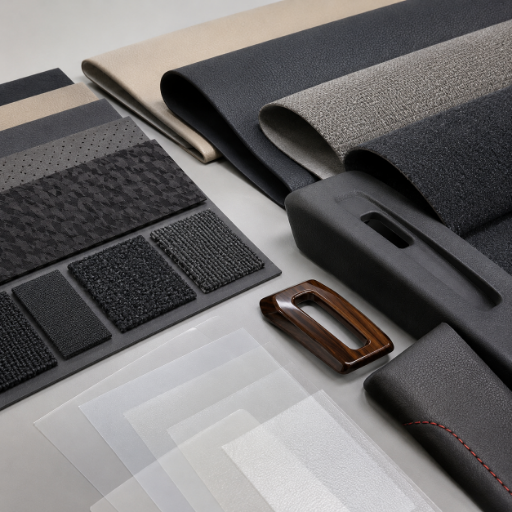

Interior Component Application Matrix, Substrate and Grade
Most spec sheets do a poor job by putting “automotive” as one bullet covering the entire interior — the industry short hand which forces a laminator to make an assumption. Instead of that one bullet, Tengyang’s approach ties the film choice directly to the part. Why? Because every interior part is a combination of a face material, backed with material and then heated to a specific hot zone, and every combination of face material, backing and heat zone needs a unique TPU hot melt adhesive film.
And, the reason is important: A 0.05mm film that will attach nicely to a knit headliner won’t hold up against the hot zones around a coarse carpet. The Interior Substrate-Match Register, below, helps the interior converter locate his specific part and start to look for the film for that application rather than just guessing.
Interior part
Typical substrate pair
Starting grade
What to watch
Headliner
Knit / non-woven fabric + PU foam + backing board
Medium-temp
Soft hand feel; even bond across large area without foam crush
Door panel
Woven fabric / PVC skin + foam + ABS carrier
Medium / high-temp
Adhesion to ABS and PVC skin; edge-wrap peel strength
Instrument panel
TPO / PVC skin + PU foam
High-temp
Service heat near 100 °C; anti-delamination under sun load
Seat cover & foam
Fabric / leather + PU foam
Medium-temp
Elastic bond that flexes with the seat; wash / cleaning durability
Pillar (A/B/C) trim
Fabric + injection-molded carrier
Medium-temp
Clean edges; must pass flammability with the assembled part
Floor carpet
Tufted carpet + backing / foam
Medium / high-temp
Peel under foot traffic; heat and moisture resistance
Sun visor
Fabric / vinyl + board / foam
High-temp
Sits against glass; highest service heat and UV exposure
Parcel shelf
Non-woven + fiberboard
High-temp
Rear-window solar load; dimensional stability of the bond
This same TPU chemistry that allows this film to be waterproof, breathable-friendly, and abrasion-resistant also finds its way into the lamination for apparel, sportswear, and footwear – the same hot melt adhesive film for textile fabric that hems a garment can bond a seat panel, and a higher grade tpu adhesive film for metal or ABS carriers extends it to rigid trim. While those markets stop at hand feel and wash resistance, automotive interiors add a constraint that generic suppliers often omit: every one of these parts needs to clear flammability, emissions and material declaration gates — the same interior parts named in automotive interior lamination patent literature, and the topic of the next sections.
Have a part drawing or substrate sample?
Request a matched sample roll for your substrate
Automotive Interior Compliance Stack, Flammability, Emissions, Material Declaration
This is the differentiator – the layer that an interior buyer separates a real automotive supplier from a film exporter. A single emissions claim doesn’t qualify a material for a car interior in the same way that a generic low-VOC slogan might; what procurement buyers truly dread is the possibility of a non-compliant part making its way into a production audit. Four proof layers provide that reassurance and while many exporters cover one, Tengyang engineers and certifies our automotive interior TPU film to satisfy all four -flammability, emissions, declaration and service-heat aging.
01

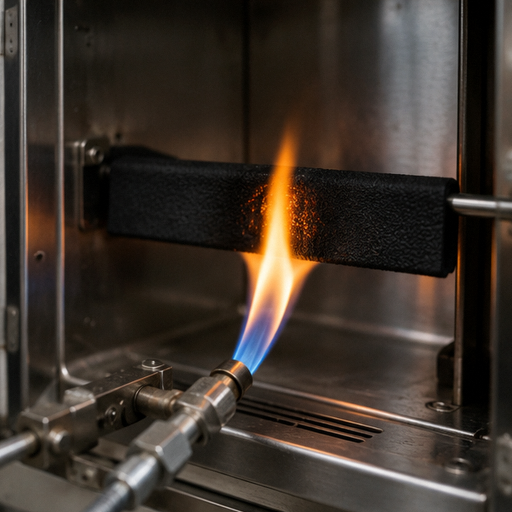

Flammability, the safety baseline
In the occupant compartment, interior materials need to retard flame. FMVSS 302 (49 CFR 571.302), which tests interior materials such as headlining, trim panels, floor coverings, and sun visors for horizontal burn rate, has a maximum rate of 102 mm/min to pass; equivalent global tests include ISO 3795 and SAE J369. As our film becomes part of a laminated assembly, we support FMVSS 302 / ISO 3795 flammability testing of the bonded construction, on request. Thus, the finished part – not the film alone – carries the evidence.
02

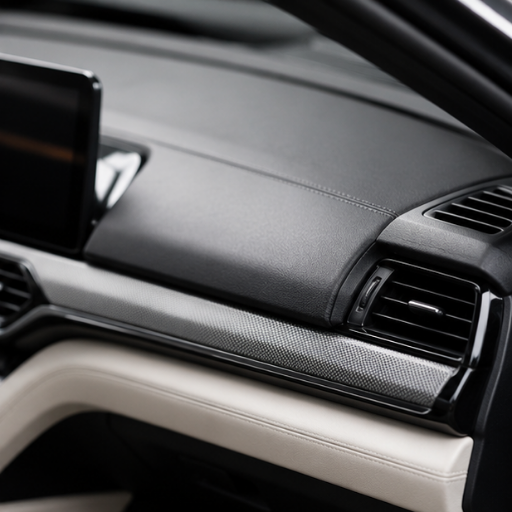

Emissions, VOC and fogging
The enclosed environment within the cabin leads to emissions standards becoming purchasing gates. VDA 278 is the automotive standard for determining the VOC (volatile) and FOG (condensable / fogging) content of non-metallic materials, with thermal desorption GC-MS testing. The ISO 6452 is another automotive standard for measuring the fogging of interior trim materials. We market our low-fogging TPU adhesive films specifically to satisfy this and we are happy to coordinate VDA 278 VOC/FOG testing to meet any OEM specification. (Whole-vehicle emissions testing standards like ISO 12219-1 will be conducted later at the assembly or vehicle level.)
03

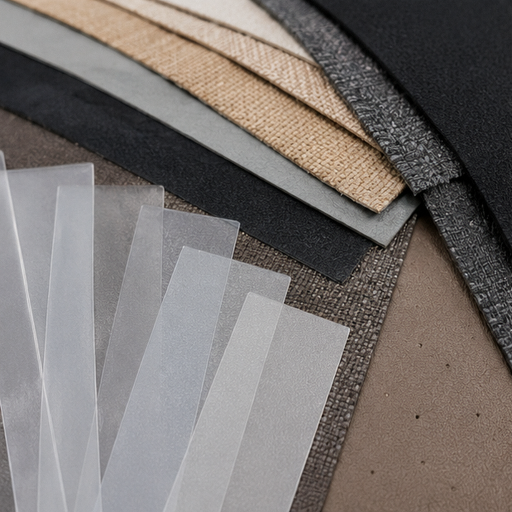

Material declaration, the automotive-native evidence
OEM supply chains are looking for a substance transparency that is beyond the simple “RoHS/REACH compliant” statement found on many goods. Under the ELV Directive (2000/53/EC), a number of restricted substances – lead, mercury, cadmium, and hexavalent chromium – are prohibited from use in passenger cars, and the Global Automotive Declarable Substance List (GADSL) governs substances used throughout the supply chain. Information on all of these materials needs to be submitted to OEMs via IMDS. Our TPU hot melt adhesive film is designed to facilitate both IMDS entry and GADSL/ELV declaration on behalf of your project.
04

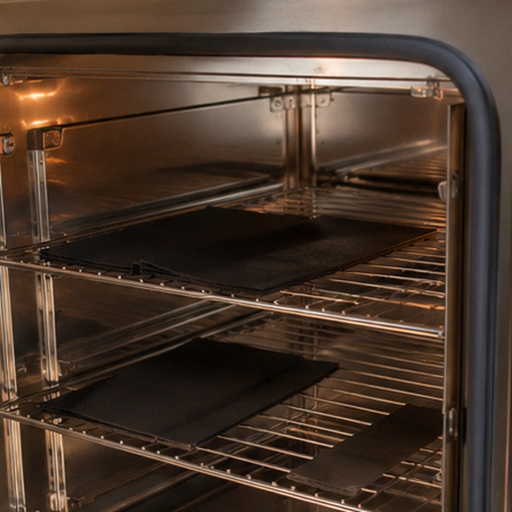

Service-heat aging
A cured bond has to survive the cabin, not just the press. Because a sun-loaded interior surface can approach 100 °C, we validate high-temp grades for heat-box aging and anti-delamination in the intended zone, using the service-heat targets set in the grade ladder above.

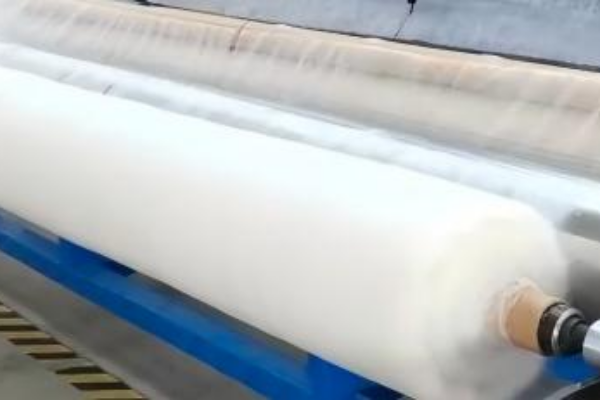

TPU Film vs Solvent Adhesive vs Spray, a Line-Level Comparison
Unit price favors solvent glue; total cost of ownership rarely does, and that gap is the trap buyers fall into. The reason is structural: once you account for VOC handling, drying-time delay, rework from uneven spray, and the housekeeping of a solvent line, a solvent-free TPU hot melt adhesive film changes the math well before the compliance advantage even enters the picture. Unlike a solvent system that bills its real cost in ventilation and waste, Tengyang delivers the bond as a clean, metered film with none of that overhead.
Factor
TPU hot melt film
Solvent contact glue
Aerosol spray
Solvent / VOC
None (solvent-free)
High — needs extraction
High — needs ventilation
Drying / cure step
None — bond on cooling
Timed drying required
Tack-time required
Coverage consistency
Uniform film, defined area
Operator-dependent
Operator-dependent
Hand feel
Soft, elastic bond
Can stiffen
Can bleed through fabric
Cabin-heat behavior
Grade-matched service heat
Creep risk
Creep risk
Line housekeeping
Clean, no solvent waste
Solvent handling / disposal
Overspray cleanup

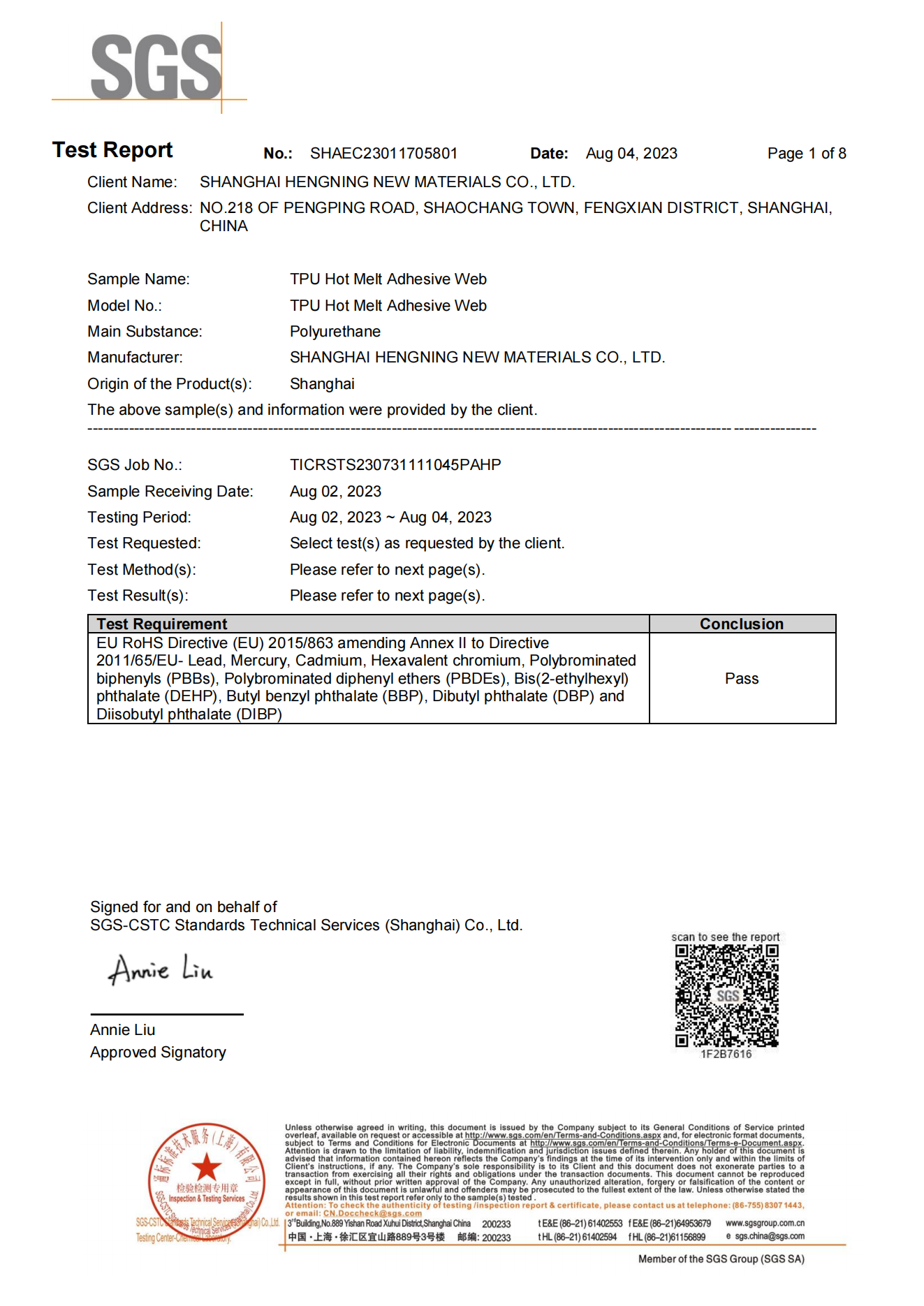

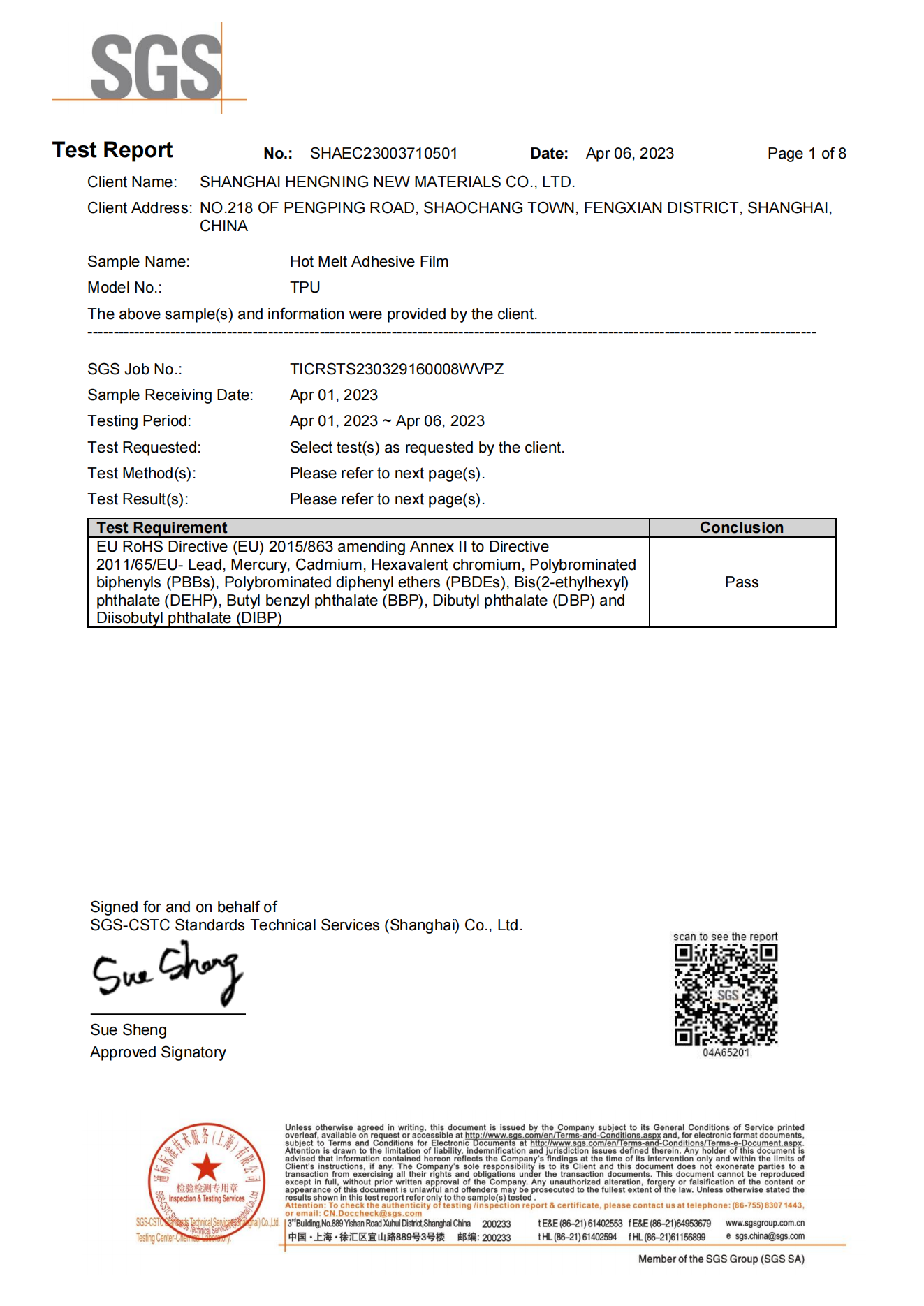

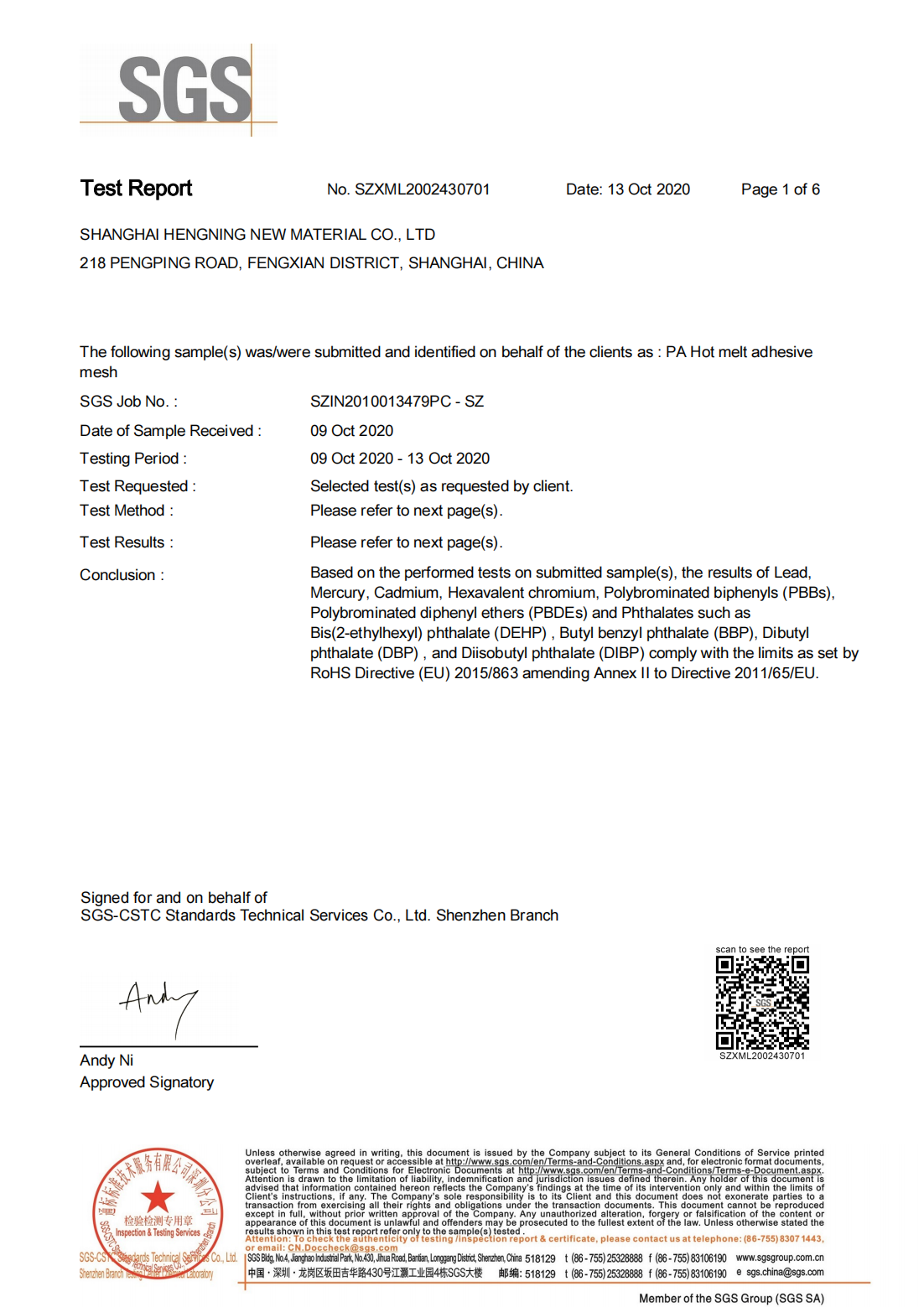

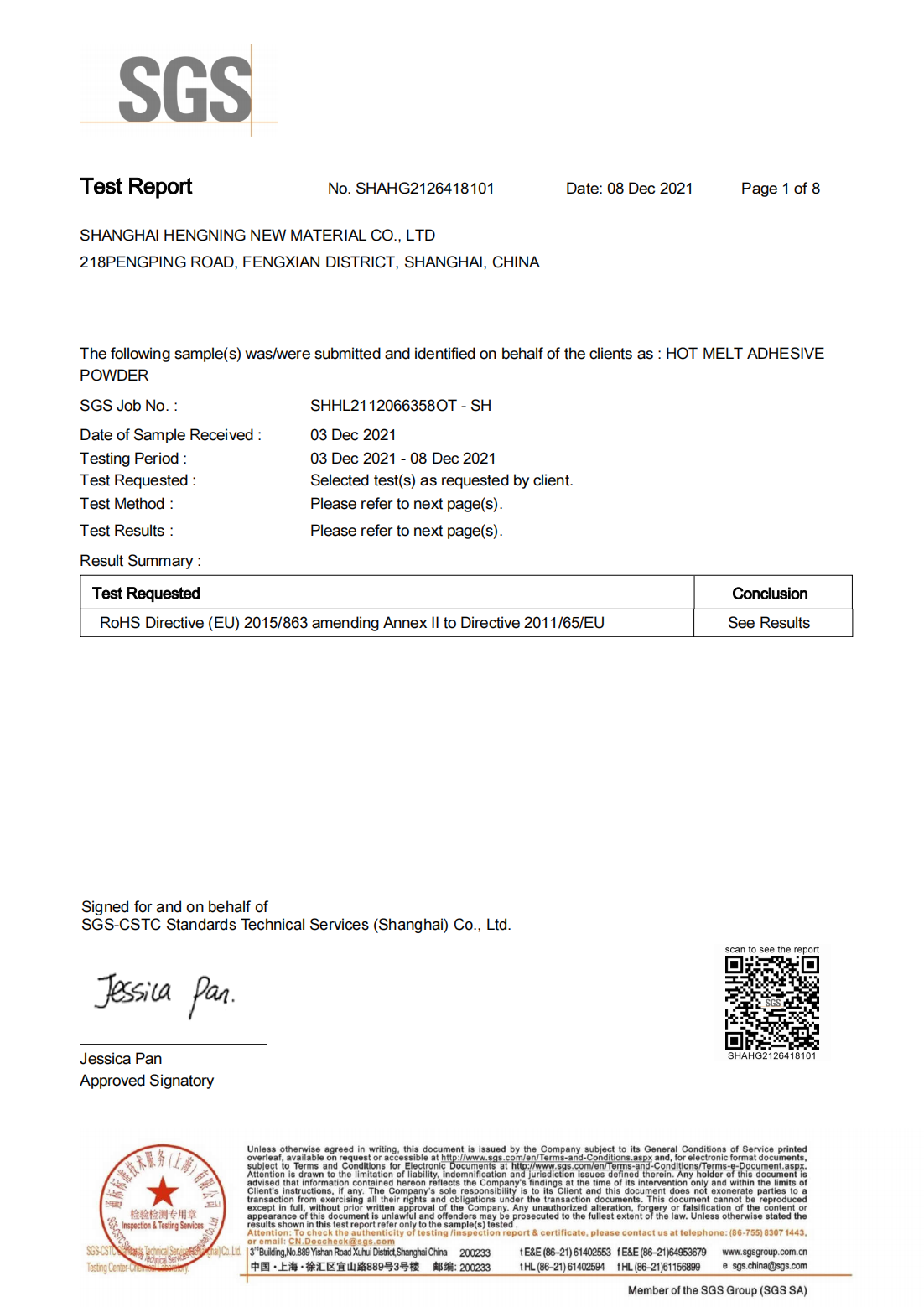

Certifications and Automotive Supplier Evidence
Objective evidence, not slogans. The mistake buyers make is trusting a badge without the certificate behind it – and unlike a supplier that lists logos it cannot document, Tengyang shows the report. Our TPU hot melt adhesive film is SGS-certified to the EU RoHS Directive – RoHS 2015/863 amending AnnexII of 2011/65/EU – with a Pass result covering lead, mercury, cadmium, hexavalent chromium, PBBs, PBDEs and the phthalates DEHP, BBP, DBP and DIBP.
Because an interior program needs more than one badge, Tengyang draws on years of hot melt adhesive experience to scope the additional evidence layers – flammability under FMVSS 302, VOC/fogging and material declaration are available for testing on request rather than assumed.
VERIFIED REPORT

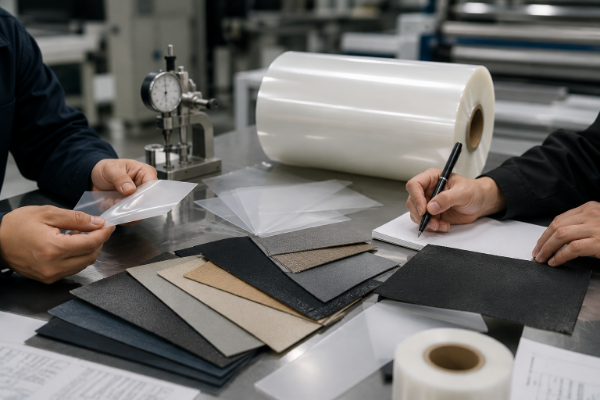

Procurement Guide, Custom Spec, Sampling and OEM Supply
A TPU hot melt adhesive film order is a spec conversation, not a catalog pick. Whereas a stock listing quotes on thickness alone, the dimensions that drive your quotation are the ones that also drive bond quality – because a 0.03mm difference or the wrong carrier can fail a part in the field. Defining them early shortens sampling and avoids a wrong-grade batch, which is why Tengyang engineers the quote around your substrate and heat zone rather than a price list.
What to confirm before quoting
Two substrate materials to be bonded finished interior part and its heat zone target thickness or hand feel roll width and length release paper / film / carrier-free preference lamination or heat-press window (temperature, time, pressure) flammability, VOC/fogging or wash-test requirement color / transparency need sample and bulk quantity.
We also support all interior specifications, including OEM specification requirements for custom roll film thickness, width, melting point, color, carrier and even custom formulations tailored for specific applications – so subsequent production batches match the first approved sample under an ISO 9001 repeatability discipline. And, since temperature and hand feel is a function of your particular substrates, we always match to a sample before quoting, rather than solely on film thickness.
Automotive Interior TPU Film Engineering Tools
Access our technical calculators and selection matrices. Evaluate Total Cost of Ownership (TCO), build compliance documentation checklists, and select the optimal TPU hot melt adhesive grade for specific cabin heat zones.
01
SELECTOR
Automotive Interior TPU Film Grade Selector
Identify the precise TPU hot melt film grade mapped to your specific cabin heat zone and substrate requirements.
LAUNCH TOOL
02
BUILDER
Automotive Interior Compliance Checklist Builder
Generate a custom documentation framework encompassing FMVSS 302, VDA 278, IMDS, and GADSL protocols.
LAUNCH TOOL
03
ESTIMATOR
Solvent-to-TPU Switch — TCO Factor Estimator
Calculate Total Cost of Ownership variables when migrating from solvent-based adhesives to clean TPU lamination.
LAUNCH TOOL
Select by service temperature in the car cabin, not by ease of use in your press. If your component is temperature- or heat-sensitive, select a low-temp film. For door panels and pillars, we offer medium-temp films, while for instrument panels, sun visors and parcel shelves, we’ve high-temp grades for parts that face solar load up to 100C. See our grade ladder above to determine by zone.
Yes – when the grade is appropriate for the application’s thermal environment. A dashboard left in a car may reach 100 °C; our high-temp films, validated by heat-box aging, are proven to hold in such conditions. When consumers report failure in heat-related adhesion, they almost always used a low-activation film without considering heat service.
Our films are formulated to minimize VOC and FOG per interior material methods, including automotive-industry standards like VDA 278 and ISO 6452. We also can arrange the appropriate tests and report in line with your OEM specification, and because our films are solvent-free, you’ll never need to factor in adhesive VOC emissions.
FMVSS 302 (49 CFR 571.302) sets a horizontal burn rate at or below 102 mm/min – the equivalent of ISO 3795 / SAE J369 – for interior automotive materials. We will assist with laminate flammability testing for your parts and report with evidence to support your assembled component.
Certainly. TPU hot melt films create a durable, washable, and flexible bond that maintains its strength over a broad temperature range, making them an ideal choice for flexible and washable laminations such as leather-to-foam, seat covers, and more.
We can customize film width, thickness, melting point, color, and carrier (including carrier-free) to meet the unique requirements of your OEM roll programs. To ensure optimal activation temperature and hand feel for your specific substrate combination, we strongly recommend testing with a matched sample before proceeding with large-volume orders.
A TPU film serves as a functional component – offering properties such as waterproofing, protective layers, or face materials. In contrast, a TPU hot melt adhesive film acts as a bonding layer that melts and joins two different substrates. In certain automotive interiors, it’s possible to use both – a functional TPU film combined with a TPU hot melt adhesive film. We also supply matching hot melt adhesive web and TPU hot melt film for textiles if an open, permeable bond line is desired instead of a fully sealed film; it functions the same way as the tpu hot melt adhesive film automotive interior teams laminate on trim pieces.
