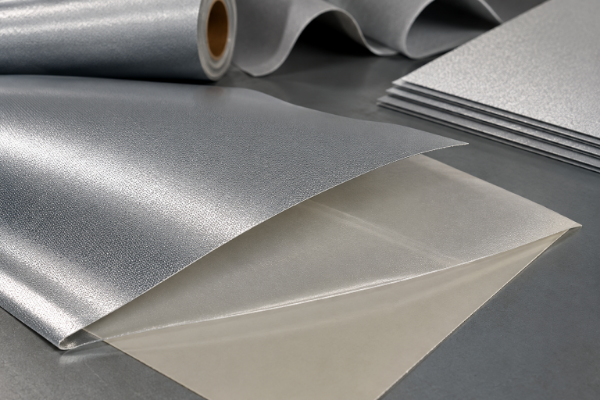

TPU Hot Melt Adhesive Film for Reflective Materials
The heat-activated bonding layer behind reflective heat-transfer film, glass-bead sheeting and microprismatic hi-vis material — engineered by Tengyang so your reflective layer stays bonded through the wash, not just off the press.
Material
Thermoplastic polyurethane (TPU)
Thickness
0.025–0.30 mm custom
Bonding temp
70–180°C by grade
Carrier
Release paper / film / none
Processing
Solvent-free, heat + pressure
Bonds
Glass-bead & microprismatic

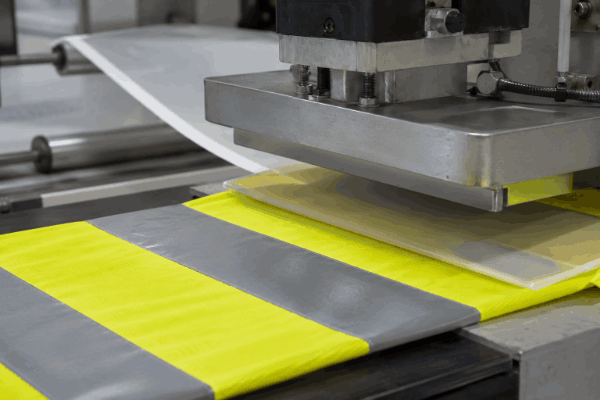

Manufacturing Capability
TPU hot melt adhesive film is a solvent-free, heat-activated layer that converts a plain retroreflective sheet into a garment-ready reflective heat-transfer film. This tpu hot melt film is custom manufactured in-house at Tengyang – on our own casting, coating, and slitting equipment – for reflective material converters laminating the glass-bead or microprismatic layers to fabric, PET and release liners day after day.
Why Reflective-Material Bonding Fails with Solvent Glue — and How TPU Hot Melt Film Fixes It
A reflective transfer looks perfect coming off the heat press, then the purchasing manager gets the complaint three weeks and about ten wash cycles later: the reflectivity has gone matte and the edges are lifting. Reflective transfers crack and peel in the wash from weak adhesion, and the failure gets blamed on the reflective sheet when the real cause sits one layer deeper — in the bond.
It comes down to structure. A reflective heat-transfer film is a stack: a retroreflective glass-bead or microprismatic layer sitting on a hot melt adhesive backing — the layered transfer construction documented in adhesive-transfer patents such as US 5047103A. When that backing is a solvent-based glue, three things go wrong at once — it carries volatile organic compounds that off-gas and demand ventilation, it cures slowly so the production line throttles to the drying step, and its bond fails a 60°C industrial wash long before the reflective layer itself wears out.
TPU hot melt film overcomes all three of the issues above, because it is a matter of chemistry, not glue. Tengyang’s hot melt thermoplastic polyurethane film will not get tacky or wet at room temp, is activated by 70 °C to 180 °C (depending on grade), cools to create a permanent wash proof elastic bond in seconds with no solvent. But “TPU hot melt film” is not a single product – a washproof bond capable of withstanding 25-50 cycles will result from selecting the correct grade, and it depends on the grade’s physics, the characteristics of your reflective layer, and the time and pressure you apply in the press. Get it wrong, and the wash complaint is unavoidable.
→ Send us your reflective substrate and press settings
We will identify the bond failure cause and match a sample grade.

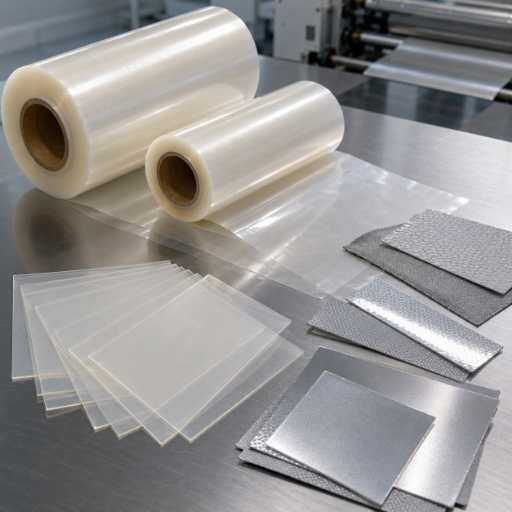

Tengyang TPU Hot Melt Adhesive Film for Reflective Materials — Grades & Specifications
Reflective converters peel away more to the wrong grade than to any manufacturing flaw; when you’re either too hot (scorched glass-beads, lost retro) or too cold (under bonded backing, peel off in the wash). What they shouldn’t be picking by is the highest bonding temperature listed on the datasheet; pick by substrate instead. We at Tengyang have our own in-house grade tiers; we cast and coat these three tiers in-house to specific target thickness with bonded tests to a specific grade – the below are thus the basic template that our app engineers design from, and then confirm on your substrate in sampling.
TPU Hot Melt Adhesive Film — Reflective-Material Grade Specifications
Grade tier
Bonding temp
Thickness
Best-fit reflective substrate
Carrier
Low-temperature TPU
70–90°C
0.025–0.08 mm
Heat-sensitive glass-bead layers, thin fabrics, PET carriers that distort under high heat
Release paper / film
Medium-temperature TPU
110–140°C
0.05–0.15 mm
Standard reflective heat-transfer film, mixed fabric blends, general hi-vis apparel
Release paper / film
High-temperature TPU
150–180°C
0.10–0.30 mm
Microprismatic sheeting, industrial-wash workwear, coated or laminated base fabrics
Release film / carrier-free
These temperature ranges are derived from published thermoplastic-polyurethane hot-melt ranges (ring-and-ball softening 80-150C; activation 150-190C by grade) from Lubrizol engineered-polymer literature and industry sources; a patented TPU hot-melt for footwear soles, for reference, activates at 150-165C for 5 minutes.

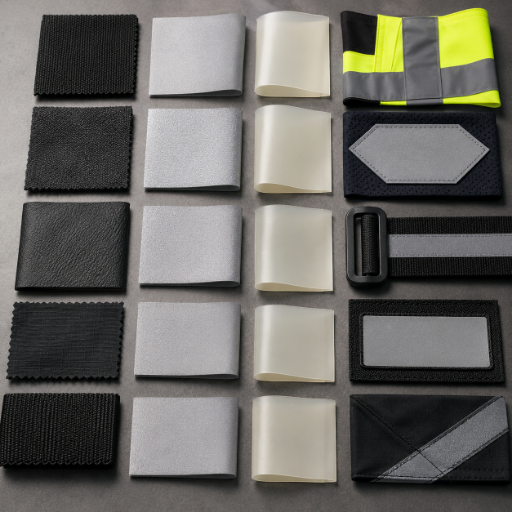

The Retroreflective Bonding Map
Two decisions set the grade, and confirming them against your material is the whole game: what retroreflective layer you are bonding, and how you apply it. Glass-bead and microprismatic layers behave differently under heat, and a direct fabric lamination tolerates more thermal budget than a heat-transfer backing that a customer will later press again onto a garment. Read your row, then validate it with a sample.
Substrate × Application → Recommended Grade
Reflective substrate
Application method
Recommended TPU grade
Why
Exposed glass-bead layer
Reflective heat-transfer film backing
Low / Medium (70–140°C)
Beads and bead-bond resin degrade above their set point; lower activation protects retroreflectivity
Microprismatic layer
Reflective heat-transfer film backing
Medium / High (110–180°C)
Prism structure tolerates higher heat and rewards a stronger, wash-durable bond
Reflective fabric / sheeting
Direct lamination to base fabric
Medium (110–140°C)
Elastic bond keeps hand-feel soft while surviving repeated flex and wash
Reflective tape / trim
Roll lamination, industrial workwear
High (150–180°C)
60°C industrial-wash retention demands the strongest bond tier
Bonding Reflective Materials — Glass-Bead vs Microprismatic Layers & Heat-Transfer Film
Every reflective material works the same way and bonds differently. Retroreflection returns light straight back to its source, either through microscopic glass beads that refract it or through microprisms that mirror it. A purchasing engineer who treats those two layers as interchangeable when choosing an adhesive is the one who ends up with delamination, because substrate incompatibility is the delamination trigger the Bostik failure analysis puts near the top of its list.
LAYER 01 GLASS-BEAD
[+] ANALYZE

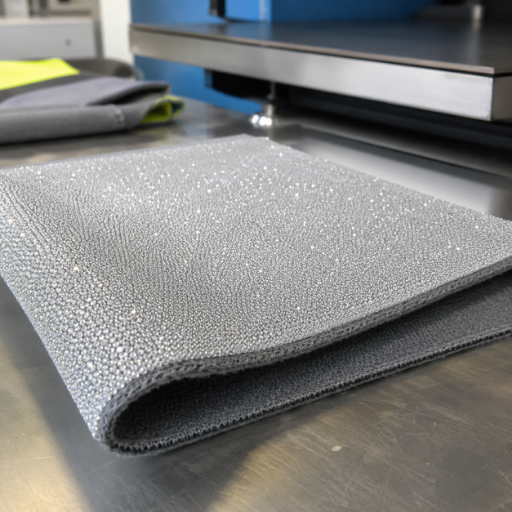

Glass-bead layers: protect the reflectivity
An exposed glass-bead layer is a lens surface, not a rugged film. Glass-bead layers scorch and lose retroreflectivity when the bead-bond resin softens past its set point and swallows the beads, dulling the exact optical performance you are selling – which is why exposed-bead work stays clear of the highest bonding tiers. That is why Tengyang routes glass-bead work to low- and medium-temperature grades between 70C and 140C: the bond has to be strong enough for a 25-wash garment yet cool enough to leave the optical layer intact. Whereas most adhesive suppliers publish one generic tpu adhesive film datasheet, this is the failure they never explain – because they do not sell into reflective production.
LAYER 02 MICROPRISMATIC
[+] ANALYZE

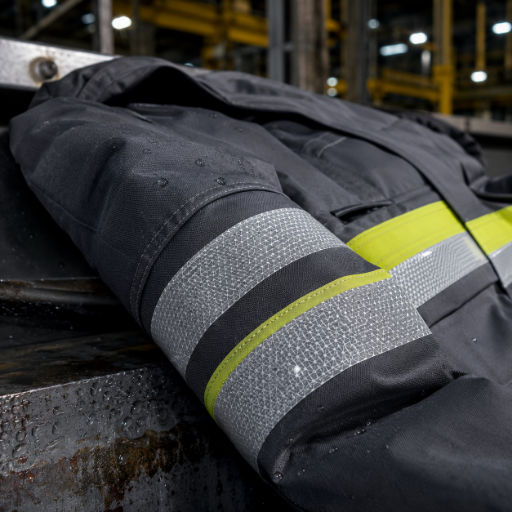

Microprismatic layers: earn the stronger bond
A microprismatic layer is a molded polymer structure — heat-tolerant up to around 180°C, more demanding on wash durability, and typical of industrial workwear and safety reflective heat transfer vinyl. Here a high-temperature TPU grade is the right call, because the prism tolerates the heat and the end product faces 60°C industrial laundering. Used for bonding these layers, Tengyang’s TPU brings an elasticity a rigid adhesive cannot: the reflective element flexes with the garment through thousands of wear cycles instead of cracking at the edge.
PROCESS APPLICATION
[+] ANALYZE
Two ways to apply it

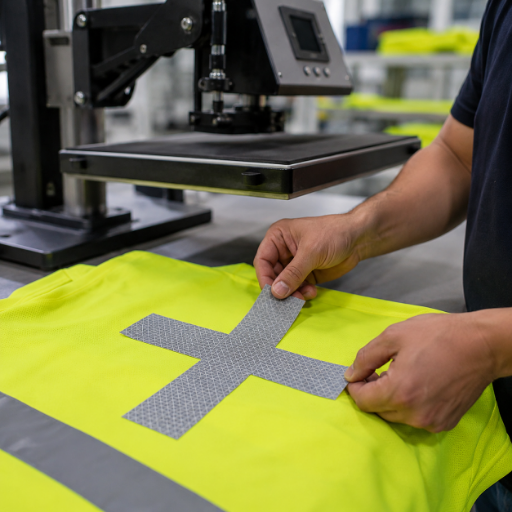

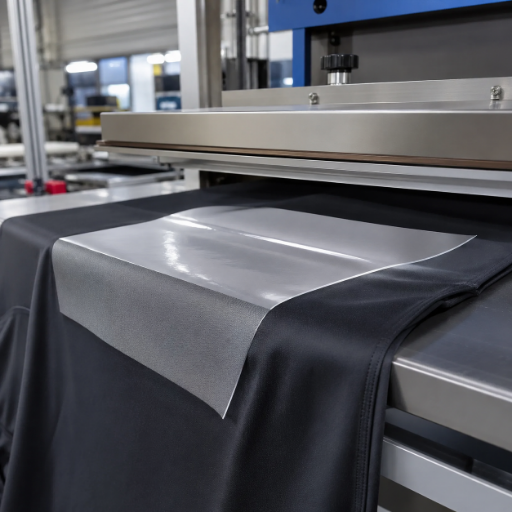

For heat transfer film, TPU is placed as the back layer against the liner–your client then applies heat to transfer the film to a shirt, so the bond must withstand two cycles of heat application. With direct lamination, the retro-reflective material is fused directly to the base textile in a single pass — one of the heat-activated bonding methods covered in adhesive-article patents like US 10471681B2. Your end-use dictates the temperature available to activate the adhesive; thus, a given retro-reflective film may require a different grade, and we will match your actual materials.
We tell reflective customers to send us the exact bead sheet or prism stock they run, not just ‘reflective material.’ We have watched a 0.10 mm high-temp film that was perfect for prismatic tape wipe out the retroreflectivity on an exposed-bead layer in a single 160°C press. The grade is not a preference — it is dictated by the optical layer, and confirming it is a five-minute sample, not a guess.
Will It Survive the Wash? Hi-Vis Wash Durability of TPU-Bonded Reflective Materials
Most complaints regarding reflective materials center on failure to hold up after washing; it’s rarely the reflective component itself that degrades, but the adhesive beneath. Under-heating will lead to a weak bond that-when combined with poor application pressure or the use of adhesives that are not certified for laundering-will crack and delaminate in fewer than 10 washes. Contrary to popular belief, more heat is not always the answer: the right adhesive can outperform a more-intense one because over-application damages the reflective material, rather than fortifying the bond. With correct pairing and application, these retro-reflective materials may exceed 50 washes.
There is a performance ceiling, and for high-vis apparel applications, hi-vis standards dictate minimum wash retention. We engineer Tengyang grades to achieve this performance.
The Hi-Vis Wash-Retention Benchmark — What the Bond Must Survive
Standard / context
Wash-retention requirement
Implication for the adhesive layer
EN ISO 20471:2013 (EU hi-vis)
Retroreflective performance must be retained after repeated laundering; the garment’s declared maximum wash count is verified (industrial programs are commonly referenced around 60°C)
Needs a high-temperature, wash-durable TPU bond; low-temp grades under-qualify for industrial workwear
ANSI/ISEA 107-2020 (US hi-vis)
Retroreflective material is tested to a declared laundering count (25 cycles is a widely cited test basis)
Medium-to-high grade, correct press cycle, verified by sample wash test
Field baseline (correctly applied transfer)
50+ wash cycles without fade or crack
Achievable when grade, temperature and pressure are matched to substrate
There’s one material condition behind the wash claim: TPU is a family, not a chemistry. The polyester vs. polyether based TPU can react differently with repeated moisture exposure-polyether grades are better at handling humidity-driven hydrolysis found in humid environments and frequent wash environments, while polyester grades are better at chemical and oil resistance. So wash performance is a result of the base fabric, the specific TPU grade and the chemistry of the laundry, all together, which is why Tengyang test to wash the specific material rather than providing a blanket number for performance. That’s the trade-off we expose instead of obscure.

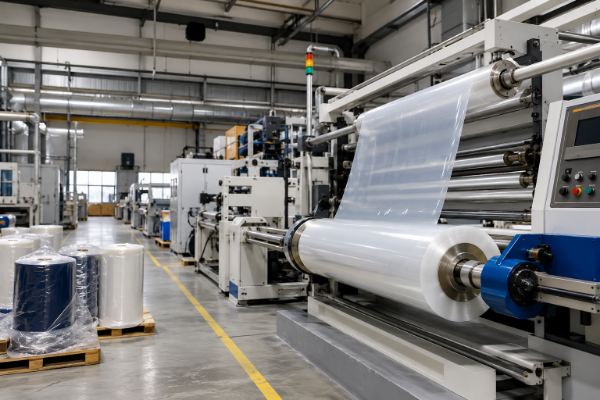

Solvent Glue vs TPU Hot Melt Film — Production Efficiency, Yield & Cost
A line manager rarely cares about the price of the glue in a solvent-based lamination process. They care about everything else. Solvent adhesives use volatile organic compounds, require handling and ventilation controls, and cure so slowly that the production line must slow to match and must accommodate a long, shared drying process that acts as the line speed bottleneck. Hot melt adhesive film for textile fabrics wins on most lines because it eliminates solvent handling, shortens cure to a quick cool-down setting and combines multiple process steps into one. This is the same film platform that Tengyang uses in the automotive and footwear industries and OEM apparel manufacturing, and therefore this benefit of hot melt film is not specific to reflective applications, it’s the primary driver of hot melt film displacing solvent adhesives across the textile industry and it’s the reason TPU hot melt adhesive film for fabric lamination is now standard on reflective production lines.
TCO View — Reflective Lamination (Silver-tier estimate)
Compared to solvent-based applications, the use of a hot melt TPU film line in your manufacturing typically causes cost shifts across four areas. Actual amounts will vary with volume and your equipment-Tengyang size these with you instead of publishing a generalized number that we cannot guarantee.
-
01
VOC & compliance (removed): VOC emissions, ventilation requirements and reporting (Zero-solvent operation)
-
02
Throughput (gain): Seconds of cure vs. slow solvent cure; lamination no longer gates production speed
-
03
Yield (gain): Matching grade to material ensures fewer returns due to wash failure – the highest cost defect in high volume reflective production
-
04
Steps (removed): eliminates glue-spread step, no solvent flash-off
This reflects a general industry trend, not a guaranteed performance. Contact Tengyang to perform a Total Cost of Ownership (TCO) analysis for your line.
Certifications & Compliance — Component-Level, Clearly Scoped
Buyers for reflective and high visibility apparel require confidence that certifications and standards are accurately represented. Buyers get into trouble when suppliers conflate material certification data with finished garment standards. Tengyang clearly differentiates the two because the former offers a better audit trail and transparency to your quality team than an array of jargon.
What Tengyang certifies
Tengyang provides individual component-level test data sheets for our hot melt adhesive films. These are the material qualifications data you need to accept incoming product into your lot control system and all are backed by our in-house lab tests and batch traceability. Tengyang will provide a copy of the specific certificate’s testing scope upon request, rather than a generic approval statement.
Component tests
Adhesive film
Test reports on request
OEKO-TEX context
Textile harmful-substance framework (verify grade scope)
REACH / SVHC
EU substance-restriction context
RoHS
On request for electronic-equipment applications
How it maps to hi-vis standards
EN ISO 20471 and ANSI/ISEA 107 standards cover high-vis apparel, and EU Regulation 2016/425 makes the PPE manufacturer — not an upstream adhesive supplier — responsible for conformity. Your job is to achieve that by specifying a reflective bond that can withstand the repeated laundering these standards require (often referred to as 25 cycles/60C industrial programs), thus ensuring tested garments pass. We’re not going to pretend the film “is certified to EN ISO 20471” (a component cannot be); instead, we tell you which of our grades will give your garments the best shot at passing.
Procurement Guide — MOQ, Custom Specs, Lead Time & OEM
Because Tengyang OEM produces its adhesive film on its own casting and coating lines, the discussion rarely starts with price; it revolves around the thoroughness of specification and sampling, ensuring the first order can be trusted. A buyer’s common error is ordering solely by thickness. We assess your specific application to quote accordingly because the retroreflective performance depends on the adhesive grade — not just the catalogue number — and a misplaced lot can result in costly returns; the multi-layer laminate behaviour behind this is described in film-laminate patents such as US 20150184038A1.
What You Can Specify
| Dimension | Options | Why it matters for reflective work |
|---|---|---|
| Thickness | 0.025–0.30 mm | Thin for glass-bead hand-feel; thicker for microprismatic wash durability |
| Melt point / grade | Low / medium / high temperature (70–180°C) | Matched to your reflective layer and press window |
| Width | Slit to your laminator / press | Reduces trimming loss and roll changes on the production line |
| Carrier | Release paper, release film, carrier-free | Controls positioning, peel and workflow |
| Color | Clear or to specification | Clear for visible bond areas under reflective layers |
Engineering Toolkits & Calculators
Access our specialized evaluation utilities to accurately match TPU adhesive films with your specific reflective substrates, verify wash-durability compliance, and estimate total application costs. Select a tool below to begin your assessment.
Retroreflective TPU Grade Selector
Identify the precise TPU hot-melt grade matched to your exposed glass-bead or microprismatic substrate based on thermal tolerance and application methods.
Launch Tool
Hi-Vis Wash-Retention Requirement Checker
Validate your reflective bond durability and cycle count against EN ISO 20471 and ANSI/ISEA 107 industrial laundering standards.
Launch Tool
TCO Factor Estimator
Calculate the Total Cost of Ownership (TCO) across your reflective bonding lifecycle, factoring in defect rates, wash failures, and material efficiency.
Launch Tool
FAQ — Bonding Reflective Materials with TPU Hot Melt Film
Why does my reflective heat-transfer film crack or peel after washing?
Almost exclusively because the bond was inadequately applied (incorrect bonding temperature, insufficient pressure, or an adhesive unsuitable for laundering), not because the retroreflective layer itself wore out. Our grade-matched TPU hot melt film, when applied within the recommended 110-180C range, consistently outlasts 50 wash cycles. A correctly matched grade delivers strong bonding that clears the wash-retention benchmarks your buyer’s garment must meet — commonly referenced as roughly 25 launderings or a 60C industrial program — and a five-minute sample test confirms it against your exact reflective stock before you commit a full production run. Send us your substrate specifications and press parameters, and we’ll pinpoint the cause and provide a matching sample.
How do I choose between low, medium and high-temperature TPU film?
Match it to your reflective substrate and press conditions, not a random number. Low- to medium-grade (70-140C) adhesives protect the retroreflectivity of exposed glass bead reflective surfaces, while high-grade (150-180C) adhesives are recommended for industrial-wash workwear and microprismatic reflectivity. Our Retroreflective Bonding Map provides a starting point, and a sample will confirm it with your specific materials.
Is TPU hot melt adhesive film with or without release paper better for reflective work?
It depends on your manufacturing process. Some applications benefit from a release-paper or release-film carrier to facilitate alignment and a clean peel for reflective heat-transfer film production, while others can accommodate a carrier-free application in continuous roll laminations. Tengyang offers all three types and will recommend the appropriate carrier based on your equipment.
Does the TPU adhesive affect the reflectivity or brightness?
Not if the adhesive grade is selected correctly. The adhesive layer is applied to the back of the reflective surface. Overheating the reflective layer above its set point during application can dull the retroreflective performance; a lower activation grade matches heat-sensitive materials without compromising reflectivity.
Is the film solvent-free and washable?
Yes. Our 100% solid thermoplastic polyurethane films require no off-gassing of VOCs. These heat and pressure-activated adhesives are specifically formulated to provide excellent adhesion that withstands the 25-wash ANSI and 60C EN ISO standards; precise wash performance varies with specific grades and substrate type. Bleach and fabric softeners are not recommended in the wash cycle, a standard instruction when washing reflective clothing.
Can Tengyang customize thickness, width and melt point, and what is the MOQ?
Yes — the OEM program covers film thickness (0.025-0.30 mm), width, melting point, carrier and color. MOQ, sampling fees and lead times follow your specification. Contact Betty Fang at Betty@hotmeltmaterial.com for a quote and a free adhesive sample.
Get the Right Reflective Bond — Before Production, Not After the Wash
To help us guide you, tell Tengyang your specific reflective substrate, press conditions, desired wash cycle target, and the expected volume of production. Our application specialists will recommend the optimal TPU hot melt adhesive film grade — matched to the hi-vis wash targets of standards like EN ISO 20471 — and provide a compatible bonding sample for testing on your material. A 5-minute test ensures the correct choice; a wrong selection risks a production run failure.
