Hot Melt Adhesive Char Buildup: Causes, Prevention and Cleanup

Direct Answer

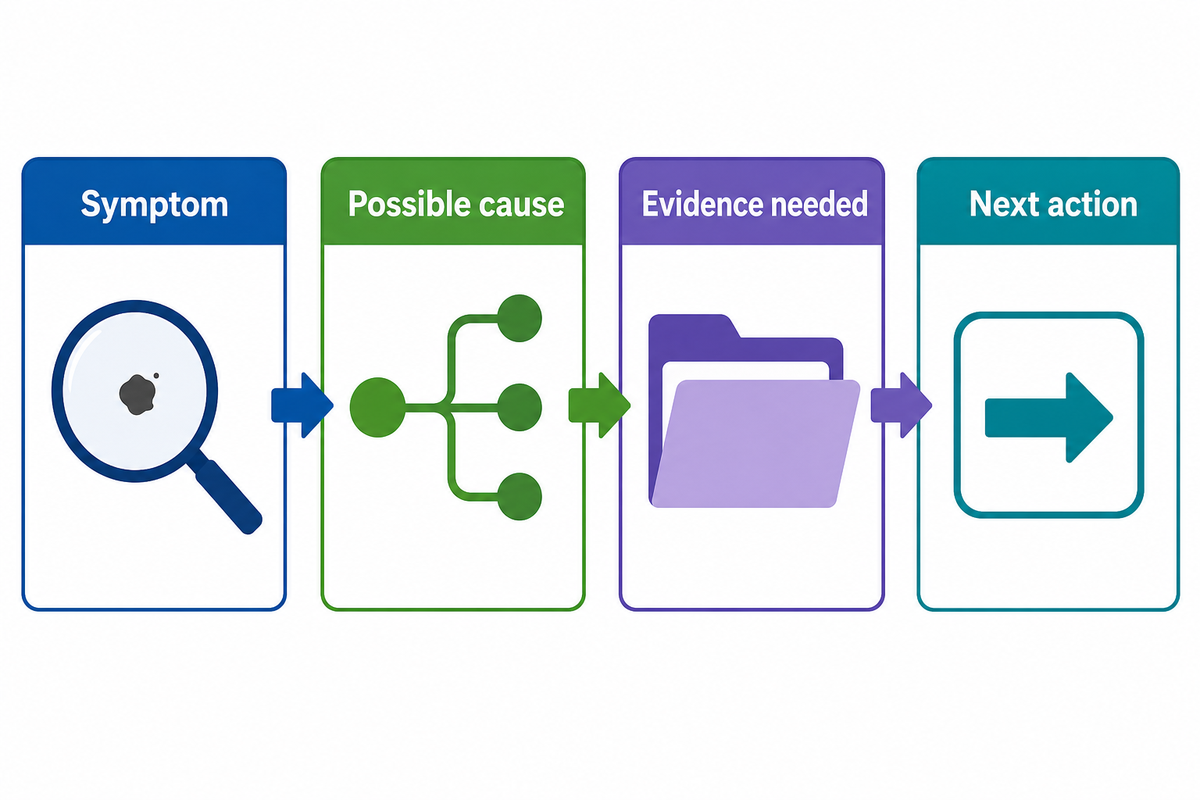

Use the matrix as a screening tool. Each row identifies a symptom, a possible cause, a low risk check, confirmatory evidence, and the next step. Each symptom earns an investigation path; it does not earn a final cause label.

Henkel indicates that darkening can occur without char, or without a change in performance. It also indicates that gel may build up in crevices and may harden to form a residue. That distinction is why the record should include texture, recurrence, location, operating history, and output behavior.

Residue can form or collect at tank walls, heater grids, filters, hoses, guns, dead zones, or the nozzle itself. The fastest path is therefore a symptom-cause-action matrix followed by a diagnostic flow, not a single-cause guess.

Brown color, burnt odor, soft gel, hard carbonized particles, skin, phase separation, and foreign material don’t indicate the same mechanism. These observations are kept separate, and the evidence required for each is explained.

Case and carton sealing is a packaging application. This means that a hot melt packaging adhesive can go through a hot melt adhesive system during a complete shift. In end-of-line packaging operations, uptime matters because downtime caused by adhesive deposits can stop a packaging line and delay consumer goods packaging. The objective isn’t eliminating downtime. Instead, the goal is to minimize downtime by removing char buildup before it becomes unplanned downtime on the production line. After carton sealing, strapping and stretch film from UD Packaging can be considered for the separate pallet-securing stage; these materials do not replace the carton adhesive.

Scope and Definitions

For a production team, the practical risk is treating every black particle as the same problem; this scope keeps diagnosis tied to the material, equipment, and evidence available.

What Is Hot Melt Adhesive Char, and Why Does It Form?

Char is blackened or burned residue present in the hot melt stream or on the surface of the heating system. Adhesives Magazine also states that apparent char may be burned foreign particulate. Hence, the color of the particles can’t provide evidence as to whether the starting material was adhesive, dust, fiber, scorched carryover, or some other contaminant.

Polymer-processing research separates thermal, thermo-mechanical, thermal-oxidative, and hydrolytic pathways. Conventional thermoplastic hot melt guidance often centers on heat and oxygen, but chemistry and mechanical history still affect how degradation appears. However, in the context of hot melt, the chemical and mechanical history of the system also influences the appearance of degradation. Formulations may darken, lose viscosity, form gel, or develop hard residue. Those phenomena shouldn’t be explained in terms of a single progressive theory.

Plant logs use several labels for the same complaint: causes of adhesive char, char in hot melt, formation of char, adhesive degradation, or burnt hot melt at the filter. The three causes most vendor guides emphasize are excessive heat, contamination, and oxidation. The causes of char can overlap, and the causes of char aren’t constrained to a controller setpoint. Long exposure to heat, low tank level, foreign debris, and adhesive properties can all change the evidence.

The 3-Factor Char Residence Window: Heat × Oxygen × Time

The 3-Factor Char Residence Window is a qualitative troubleshooting frame. Heat supplies degradation energy, time enables exposure, and oxygen enables thermo-oxidative reactions. Increasing setpoints reduces the useful window. Normal setpoints can allow adhesive to remain at a wall spot that’s either stagnating or at a hot spot. Low tank can expose a heated wall deposit to more air.

One published hot-melt study notes that formulation and stabilizer systems affect thermo-oxidative stability. This is operationally important since the three factors aren’t noted as a product-independent formula and the frame doesn’t provide a safe time or restart threshold. Use the frame to identify missing information, then apply the grade’s technical data together with the equipment manual.

Decision rule: a controller setpoint does not imply wall temperature, residence distribution, oxygen exposure, material identity, or the condition of adhesive trapped in a dead zone.

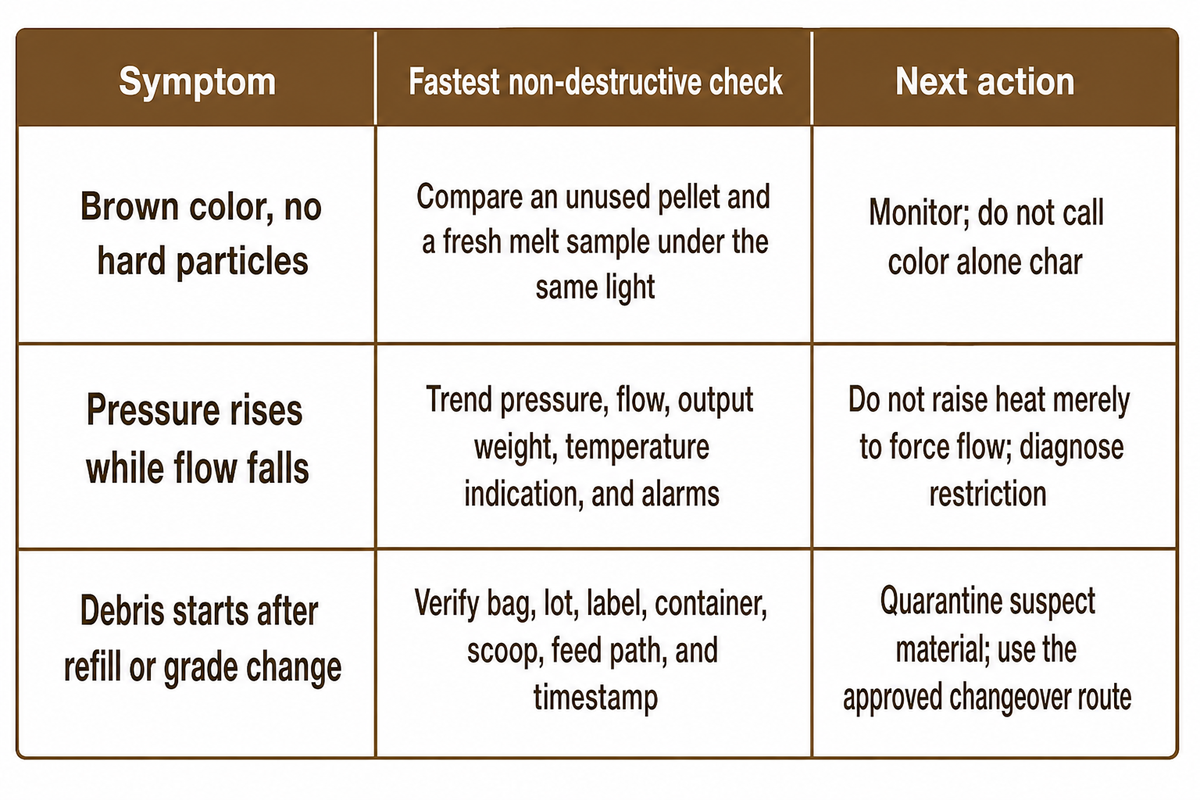

What the Hot Melt Char Matrix Points To: Three Root-Cause Paths

The matrix segregates “plausible” from “confirmed” causes. Two lines may show a black speck, and two different solutions may be required. Recurring particles after hose movement point toward an inspection location; debris immediately after a refill points toward material and housekeeping evidence. Neither should be elevated to proof without the following check.

Cause 1: Excess Heat, Hot Spots, and Long Residence in Melt Tanks

Graco describes a common sequence in tank systems: prolonged heat helps adhesive form gel, gel attaches to tank or hose surfaces, and anchored material receives more heat until it becomes harder residue. The bulk melt can have no obvious indications of a problem, while the wall layer retains a different thermal history. Corners, heater grids, bends, oversized reservoirs, and unused applicator zones deserve attention for that reason.

Increasing the temperature to restore flow is a risky shortcut. The restriction may be in a filter or hose, while increasing the temperature may accelerate degradation elsewhere and lower viscosity enough to conceal the pressure problem. Before adjusting the heat, use Tengyang’s hot melt adhesive open time versus set time guide to separate tank settings from delivered conditions, then check the grade’s approved temperature range, an authorized independent temperature check, and the pressure or output trend.

Geometry can create residence risk even with an unchanged setpoint. The trade article describes wide heads used for narrower coating widths, closed modules with adhesive trapped behind them, and other dead zones that leave material hot for days or weeks. That’s a design and use-pattern issue, not simply an operator setting mistake.

Ask three questions. In which zone is adhesive least likely to move? Of the zones, which has the greatest difference between displayed and confirmed temperature? When did the production rate, active width, or idle practice change? The answers would likely transform “too hot” into a testable hypothesis.

Cause 2: Oxidation, Low Tank Level, and an Open Lid

Low tank level changes more than available adhesive. Henkel links underfilling and inconsistent refill to temperature instability, overheating, char, and disrupted application. Adhesive or residue on a heated wall that’s in contact with air and heat can support a strong hot-spot hypothesis.

An open or damaged lid creates two risks. It increases exposure to air and gives paper dust, fibers, bag debris, and other foreign material a route into the tank. The matrix treats oxidation and contamination as separate causes, but the corrective actions are different, even though an open lid can contribute to both.

Analyze patterns as opposed to single instances. Did the line starve during a break? Was a large cold refill added after the level fell? Did the lid stay open while pellets were handled? Was there an auto-feed fault that caused several cycles of low-high? Note all events along with the output and temperature.

Do not copy a generic “keep the tank half full” rule. Tank geometry, level-sensor placement, melt rate, throughput, and adhesive instructions differ. The defendable rule is to stay in the range of the level control prescribed by the equipment manufacturer and ensure that heated surfaces aren’t unnecessarily exposed.

Cause 3: Contamination, Mixed Grades, and Poor Refill Practice

Contamination surprisingly often occurs out of the melt path. Contamination can come from open bags, used or unsealed cartons, scoops that have not been cleaned, auto-feed hoses that have not been cleaned, fibers from cleaning wipes, scorched carryover, and unidentified containers holding solids. Once a foreign material is blackened by heat, it can appear to be degraded adhesive.

When a hard speck appears after a new bag or refill practice, preserve unused pellets from that lot and inspect the handling path before changing tank temperature. Clean retained pellets and a dirty scoop tell a different story than uniform gel found on a heated wall.

When you mix grades, it creates new branches. Additionally, retained material can have unique recommended temperatures, viscosity curves, levels of compatibility, or thermal stabilities. Even though both products may be conventional thermoplastic hot melts, “same color” or “same supplier” doesn’t justify a casual top up. A documented changeover plan must be implemented with confirmation of labels, lots and lines cleared.

Tengyang’s hot melt pellet and granule selection guide contains the material-selection handoff for incoming material queries. This article stays on the operating side: retain identity, safeguard containers, control transfer equipment, and treat a material change as an event in the diagnostic timeline.

Worked Example and Diagnostic Checklist

Check in Order: Fast Visual Checks to Controlled Shutdown

This diagnostic approach commences with data that’s lost when equipment is dismantled or cleaned, and it increases the cost, disruption and exposure only when the evidence dictates that it should.

Line A Record is a hypothetical formatting example, not a recommended operating window. Suppose the log shows a 165°C controller setpoint, a 171°C verified wall reading, a 6-hour idle, a 35% indicated tank level, a 2 kg refill, pressure rising to 3.2 bar, and output falling to 24 g/min during a sample lasting 15 minutes. The important value isn’t any of these individual numbers. The important value is the change: an extended idle, increased exposed area, a temperature gradient, and a restriction signal was present before the presence of the particles. Operating values must be substituted for placeholder values by real plants.

Trace the Hot Melt System: Tank Walls, Filters, Hoses, Guns, and Nozzles

Trace in process order, but start with the site-authorized access point of least resistance. If a nozzle is clean and the gun filter has flakes, then the search can move upstream. If one gun clogs while parallel guns remain stable, then that branch requires attention. If every circuit receives particles after a long idle, then shared, upstream zones become more likely.

Maintenance guidance treats tanks, filters, pumps, hoses, guns, and nozzles as separate service points. Each can stop material generated elsewhere and several can retain material. The first dirty component indicates a distribution pathway; however, it isn’t evidence of the origin of the material.

In a hypothetical case of a Line A Record, particles appear on two guns after both being idle for 6 hours. A third branch is completely clean. That pattern would justify comparing the shared filter and the two affected hoses before dismantling every nozzle. It however can’t determine if residue was formed in the common area or was stuck in the area from a previous time.

Prevent Adhesive Char During Production and Idle Time

The best control measure is a loop, rather than a reminder in a calendar. Always maintain the correct material and tank level. Operate within the technical data and equipment range. Preventing pressure or flow drift is better than masking it with a greater degree of heat. Follow the equipment maker’s scheduled maintenance requirements, and use condition, throughput, and operating history to refine inspection or replacement frequency where the instructions allow it.

Henkel Adhesives publishes useful examples for hot melt packaging applications: setback may reduce temperature by up to 38°C (100°F); a system may warm again in less than 30 minutes, depending on the tank, equipment, and adhesive; its example recommends setback after more than 4 hours out of service and shutdown after more than 24 hours. These are attributed examples, not universal settings. The actual grade and machine instructions control, and each change should reduce the conditions that promote char formation.

Production rate matters. Large molten inventories on lightly used lines create longer average residence than the same hot melt tank at higher turnover. Using wide applicators at narrow active widths can leave hot pockets in closed zone lanes. When reviewing preventive measures, consider throughput, active width, idle pattern, and unused heated circuits.

A preventative maintenance program should incorporate hot melt equipment condition, adhesive usage, operating temperature, and production events. That maintenance program keeps the lid closed, protects the feed path, and checks whether the line running at low throughput is accumulating residence time. Its purpose is to prevent hot spots, prevent adhesive contamination, and reduce hot melt exposure before it can create char. Keeping the lid closed also reduces a direct route for paper dust and fibers.

Melt-on-demand equipment can reduce the quantity held molten and remove major tank-related exposure, but filters, hoses, guns, nozzles, material handling, and thermal-control faults remain. “Lower tank-related risk” is valid, but “char-proof” is too broad without both product and system-specific evidence.

Tankless hot melt systems might improve the residence time profile; however, a new tank-free system still depends on good feed quality, sound adhesive equipment, and a clean adhesive line. Hot melt experts should tie any recommendation to adhesive performance and the real packaging operations rather than treating equipment format as a guarantee.

Startup, Shutdown, and Material Changeover Without Another Heat Cycle

Startup should confirm identity before heat. Check the adhesive grade and lot, container condition, tank contents, required setpoints, component alarms, filter status, and last shutdown note. Rushed warm-up that adds a new grade over an unknown remainder can create a contamination question that no later temperature adjustment can answer.

In packaging work, teams may call the same material hot melt glue, industrial hot glue, packaging adhesive, or hot-melt adhesive. Use the same verified grade identity in the record. Food and beverage lines often need that material to form a strong bond and assure a strong seal for consumer goods; those outcomes still depend on the approved hot melt adhesive tank settings, clean transfer practice, and stable output.

Establish ownership for the level and idle state during shutdown. Determine whether the approved route is setback, full power-down, drain, or another documented condition. Record the time and what material remains. The next shift will need this information to determine whether a darkened sample represents a new event.

H.B. Fuller’s published conventional-hot-melt changeover procedure begins by recording pot temperature, pressure, and nozzle size. It then guides the user through material removal, tank inspection, depressurization before filter removal, and controlled purging. The sequence matters more than any isolated step: preserve the baseline, remove incompatible carryover, inspect the places that collect residue, and verify what exits.

Changeover is complete when the intended material is confirmed through the affected path and the output meets the site’s quality criteria. Opening a new bag is just one step in the changeover process. If a different product form more closely fits the process, consider hot melt adhesive film options or consult the hot melt adhesive web guide. Avoid making a form change under a contaminated melt system.

Purge, Controlled Cleanout, or Replace: Choose the Safe Cleanup Route

Purging moves compatible material through an accessible path. Controlled cleanout exposes and removes residue under an approved procedure. Replacement removes a component whose deposit, heater, sensor, lining, seal, or geometry cannot be restored reliably. Treating these as one “flush” decision can spread debris or delay the replacement that the evidence already supports.

Internal work introduces stored-energy, pressure, and burn hazards. The job is controlled by the site’s hazardous-energy control procedure, equipment manuals, adhesive safety data, cleaner safety data, cooling requirements, depressurization method and personal protective equipment. This article doesn’t provide a solvent, temperature or opening sequence.

Graco reports that a tank-system purge and cleanup can take 4 to 6 hours in its example and may use up to 10 lb of purge material on a larger tank system. According to the same source, the frequency of cleaning depends on the application, environment, and equipment. Those figures show why diagnosis before shutdown matters; they are not a promised cleanup time or quantity.

The example of a conventional changeover given by H.B. Fuller states at least 5 lb of adhesive for each 8 ft of hose until char has stopped. There are other contaminant states and other geometry of hose. The example also states that different adhesive families or OEM processes may require different procedures.

Use the Char Residence Window to Make the Stop/Restart Decision

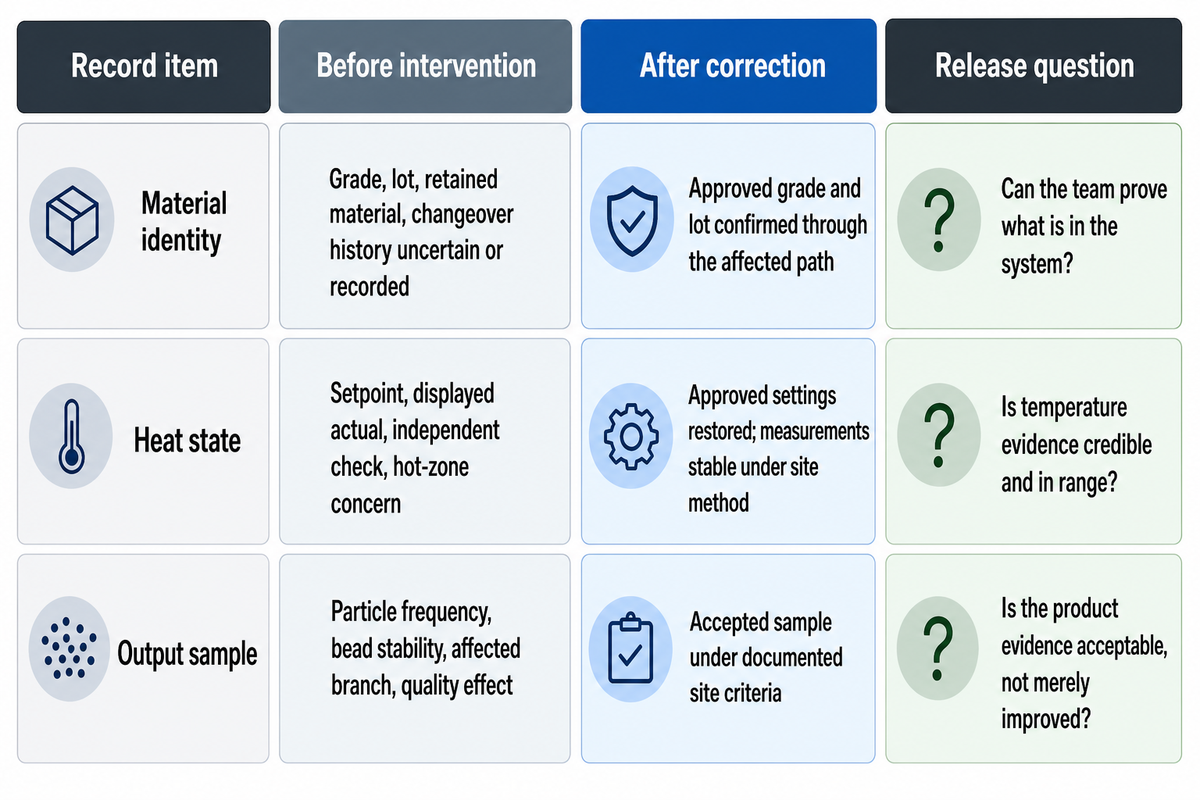

Evidence after correction should be compared to the conditions that existed before the intervention. The record structure below the Before/After Process Window isn’t a numerical equation. This prevents a clean-looking nozzle from becoming the only release criterion.

Let’s consider the hypothetical Line A Record again. Restart would not be justified merely because pressure fell from 3.2 bar after a nozzle change. The after record would need the approved material and settings, the affected path inspected, an accepted clean-output sample, stable pressure and 24 g/min output under the site’s method, and no recurring particles across the plant’s chosen observation period. The plant, not this article, owns those acceptance limits.

If the evidence instead shows recurring hard flakes from an inaccessible hose, damaged temperature sensing, or output that cannot meet site criteria, replacement or OEM escalation is the rational commercial decision. Tengyang can help compare adhesive form and process fit, but it should not overrule the equipment maker or the plant’s maintenance authority. Discuss material and process fit with Tengyang

Tengyang’s hot melt adhesive pellets and granules page compares chemistry families and process fit. Use the live Polymer-to-Process Grade Selector to frame the grade-to-process issue. For a technical discussion, bring the before and after data. Recommending some material would require knowing the failure history and equipment constraints.

Limits and Frequently Asked Questions

Scope and Safety Limits

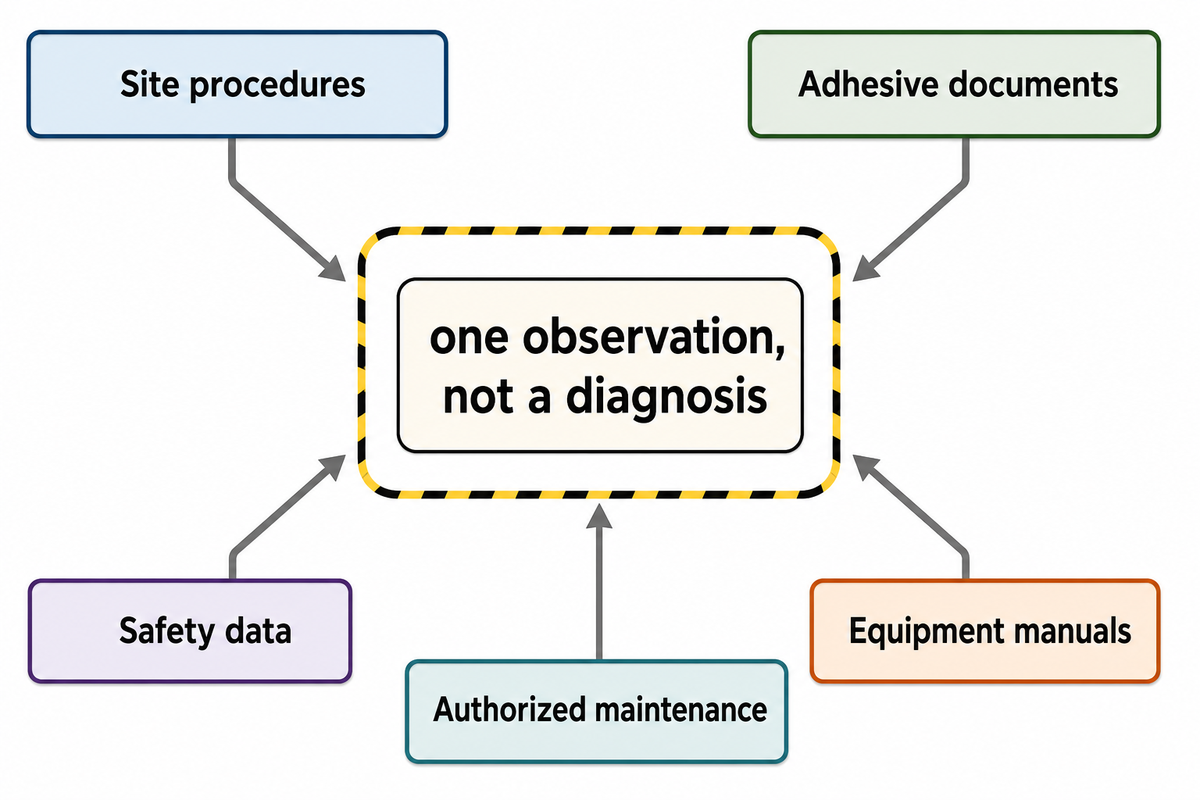

This combines peer-reviewed polymer-degradation and government safety requirements, along with adhesive supplier and equipment guidance, and a cross-source diagnostic approach. Other vendor examples are attributed. There are no claimable universal setpoint, solvent, maintenance interval, purge volume or restart threshold. Site procedures, adhesive documents, safety data, equipment manuals and authorized maintenance will take precedence.

Frequently Asked Questions

References and Sources

• NIST: thermal and oxidative polymer degradation mechanisms
• Molecules: Molecular Pathways for Polymer degradation during Processing
• OSHA 29 CFR 1910.147: control of hazardous energy
