Convert Fabric Weight Between Oz/yd² and GSM

To convert oz per square yard to GSM, multiply the avoirdupois oz/yd² value by 33.90575. Oz per square yard to GSM is a conversion between two mass-per-area unit systems. One oz/yd² is 33.90575 g/m²; for the reverse conversion, divide GSM by 33.90575.

Ounce per square yard to gram per square metre converter

Convert between ounce per square yard and gram per square metre. The unit changes; the measured quantity does not.

Value Fromoz/yd² · ounce per square yardg/m² · gram per square metre Swap Tooz/yd² · ounce per square yardg/m² · gram per square metre

Result

237.34

g/m²

7 oz/yd² = 237.34 g/m²

This oz to GSM converter also works as a fabric weight calculator and weight conversion reference. It converts ounces per square yard to grams per square meter, the US spelling of grams per square metre. One square meter and one square metre are the same area; for custom roll data, don’t replace area with a linear meter. The NIST factor is 0.03390575 kilograms per square meter for one ounce per square yard.

The arithmetic is simple. The handoff is where errors happen. A converted value isn’t purchase-ready until the document identifies whether it describes the substrate, an adhesive or coating add-on, or the finished laminate. It also needs the measurement method, conditioning and sampling basis, reporting precision, and decision rule used for acceptance.

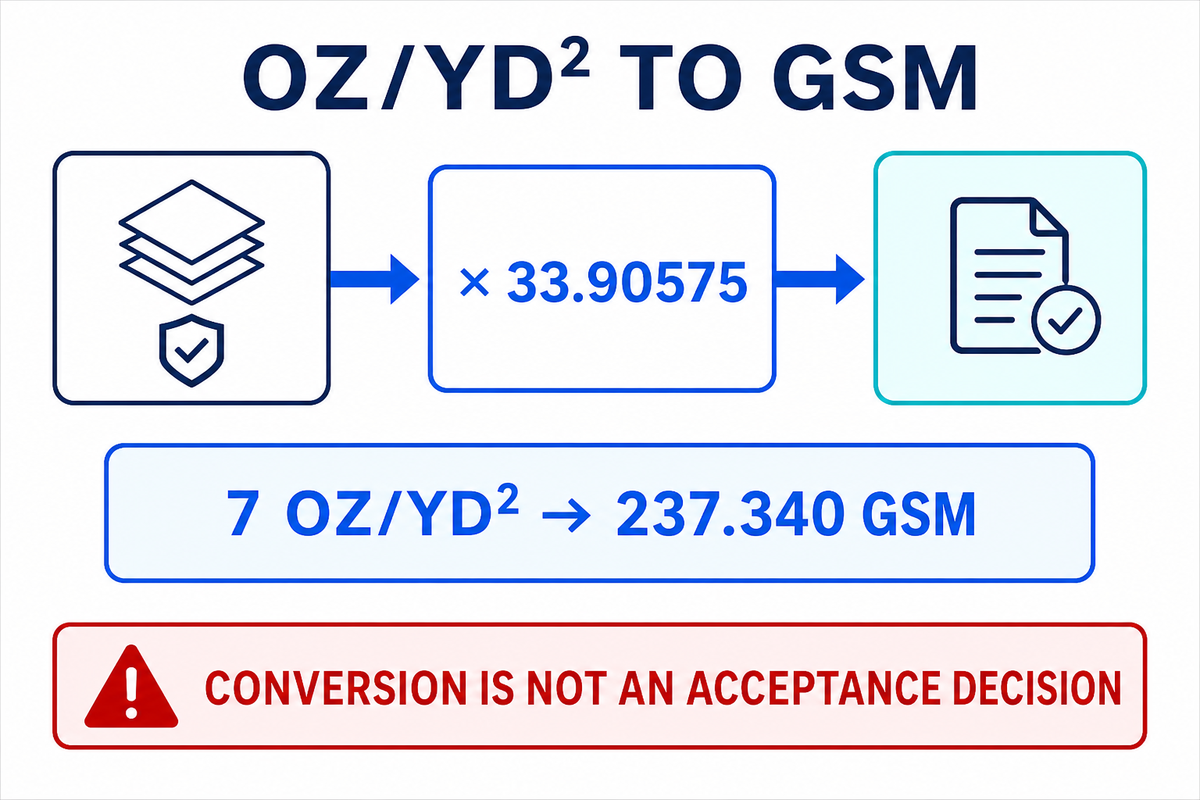

How to Convert Oz per Square Yard to GSM

Use the forward formula when a US customary fabric or coating value needs to be read in metric units:

Example: 7 oz/yd² × 33.90575 = 237.34025 GSM. The calculator displays 237.34 GSM after trimming the trailing zero; the fixed three-decimal chart shows 237.340. The NIST printed mass-per-area factor produces the same rounded value, while a purchasing document may use fewer decimals if its source measurement and acceptance procedure don’t justify thousandths.

The denominator matters. “Oz/yd²” means ounces per square yard. It isn’t an ounce per linear yard, a total ounce value for a roll or garment, or a fluid ounce. The ounce is the avoirdupois mass unit used in the NIST conversion table. [1]

1. Confirm the basis — require oz/yd², not a bare “oz” label or a linear-yard value.
2. Multiply once — use 33.90575 throughout the calculation instead of a chain of rounded constants.
3. Keep working digits — delay rounding until the final displayed result.
4. Name the layer — mark substrate, coating add-on, adhesive add-on, or finished laminate.
5. Attach the test basis — record conditioning, specimen, lot, method, uncertainty, and acceptance rule.

This sequence separates a unit calculation from a conformity decision. The calculator can prove that 7 oz/yd² corresponds to about 237.340 GSM. It can’t prove that a roll, coating run, or laminate passes a specification.

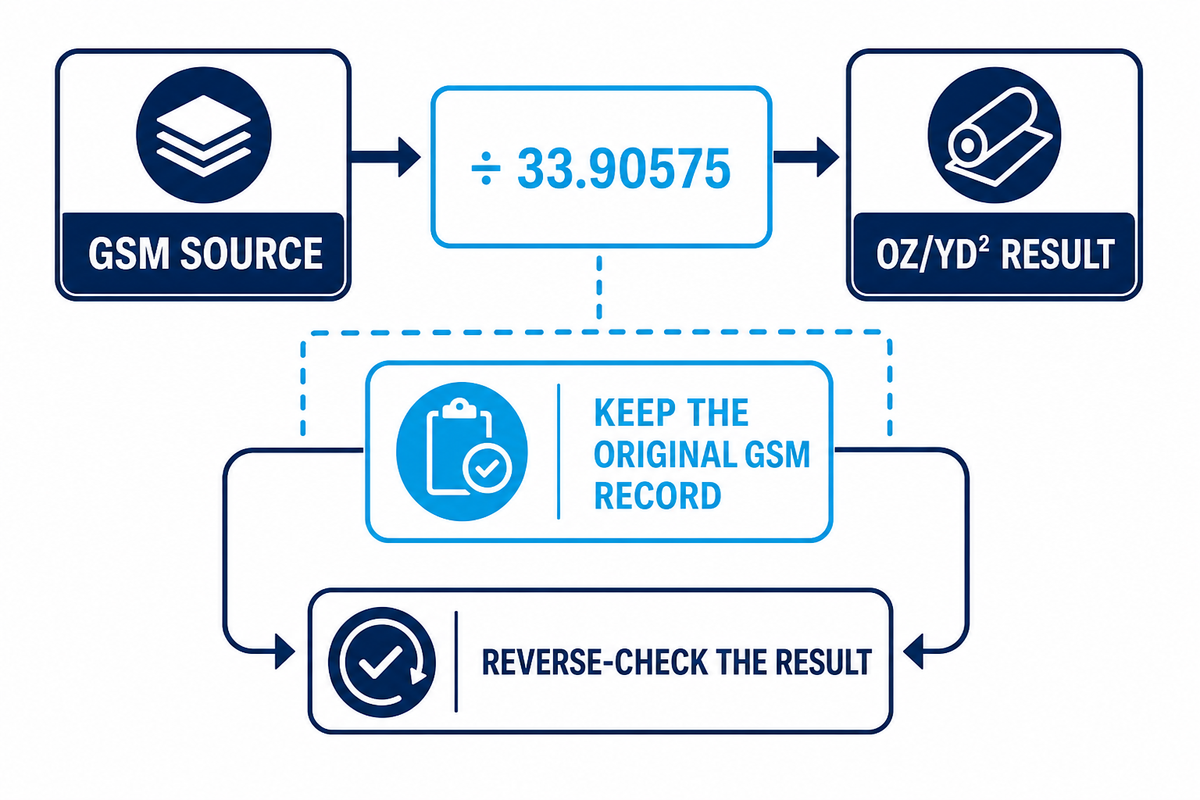

How to Convert GSM Back to Oz per Square Yard

Use the reverse formula when a metric basis-weight value must be compared with an oz/yd² drawing, data sheet, or buyer requirement:

Example: 200 GSM ÷ 33.90575 = 5.89870 oz/yd². A three-decimal display is 5.899 oz/yd².

Reversing the calculation catches a transposed factor or decimal-point error, reducing mismatch risk. If 5.899 oz/yd² is multiplied by 33.90575, the result is approximately 200.010 GSM because the reverse input was already rounded. Keep the original value as the controlling input instead of repeatedly converting a rounded number back and forth.

For spreadsheets, place the factor in one protected cell and label the input and output columns with the full denominator. That prevents one user from typing a linear-yard value into a square-yard formula and makes the rounding policy visible during review.

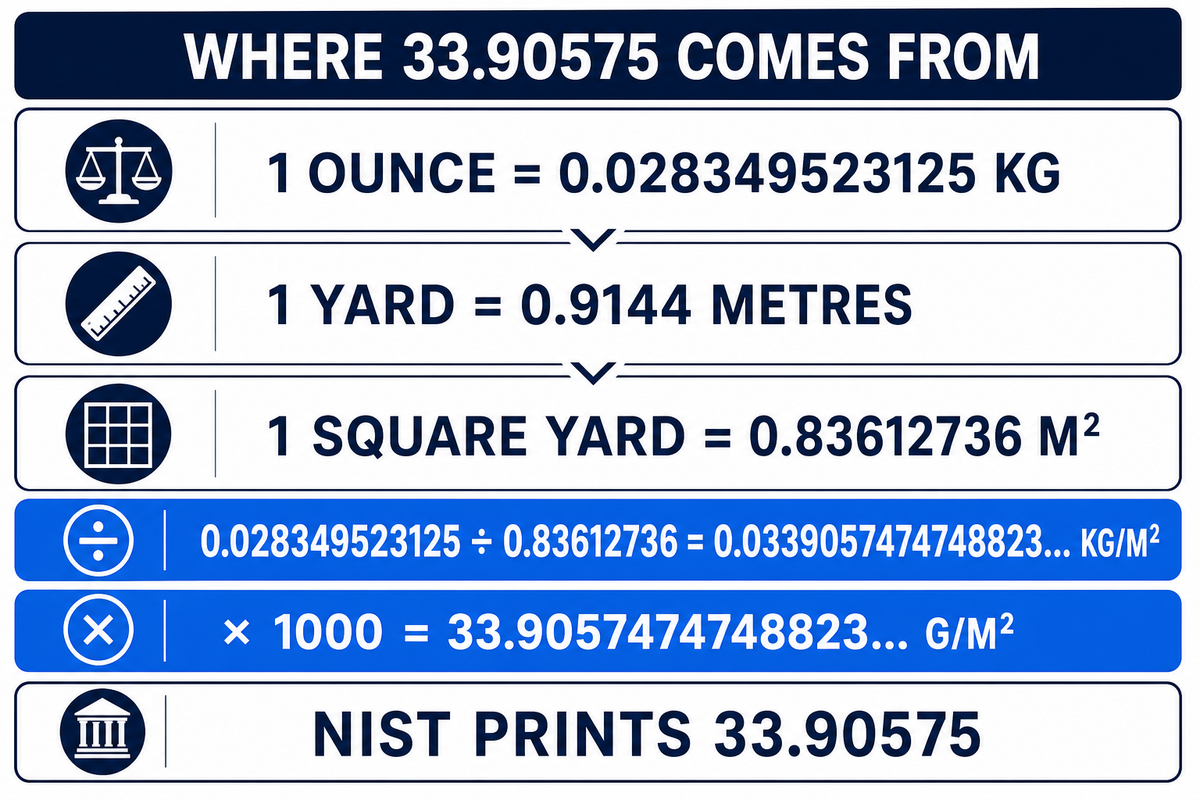

Where the 33.90575 Conversion Factor Comes From

NIST lists the conversion for an avoirdupois ounce per square yard under mass divided by area. Its public table shows 3.390575 × 10⁻² kg/m², which becomes 33.90575 g/m² after multiplying kilograms by 1,000. This printed factor is the traceable reference for the hand formula. The calculator and chart use the exact-definition derivation below, then round only the displayed result. [1]

The underlying dimensional derivation uses the exact international yard and avoirdupois-ounce relationships:

• 1 avoirdupois ounce = 0.028349523125 kilogram.
• 1 yard = 0.9144 metre, so 1 square yard = 0.83612736 square metre.
• 0.028349523125 kg ÷ 0.83612736 m² = 0.0339057474748823… kg/m².
• Multiplying by 1,000 gives 33.9057474748823… g/m².

These higher derived figures do show up in calculation software, however. When referring to the NIST chart as printed, the printed precision of 33.90575 is traceable. Extra digits from the derivation do not add accuracy to a fabric sample or coating measurement; claiming otherwise creates reporting risk.

“ounce (avoirdupois) per square yard”

Use the qualifier when the primary document is unclear. Fluid ounces measure volume, troy ounces belong to a different mass system, and a total ounce value has no area denominator. None can be inserted into this formula unchanged.

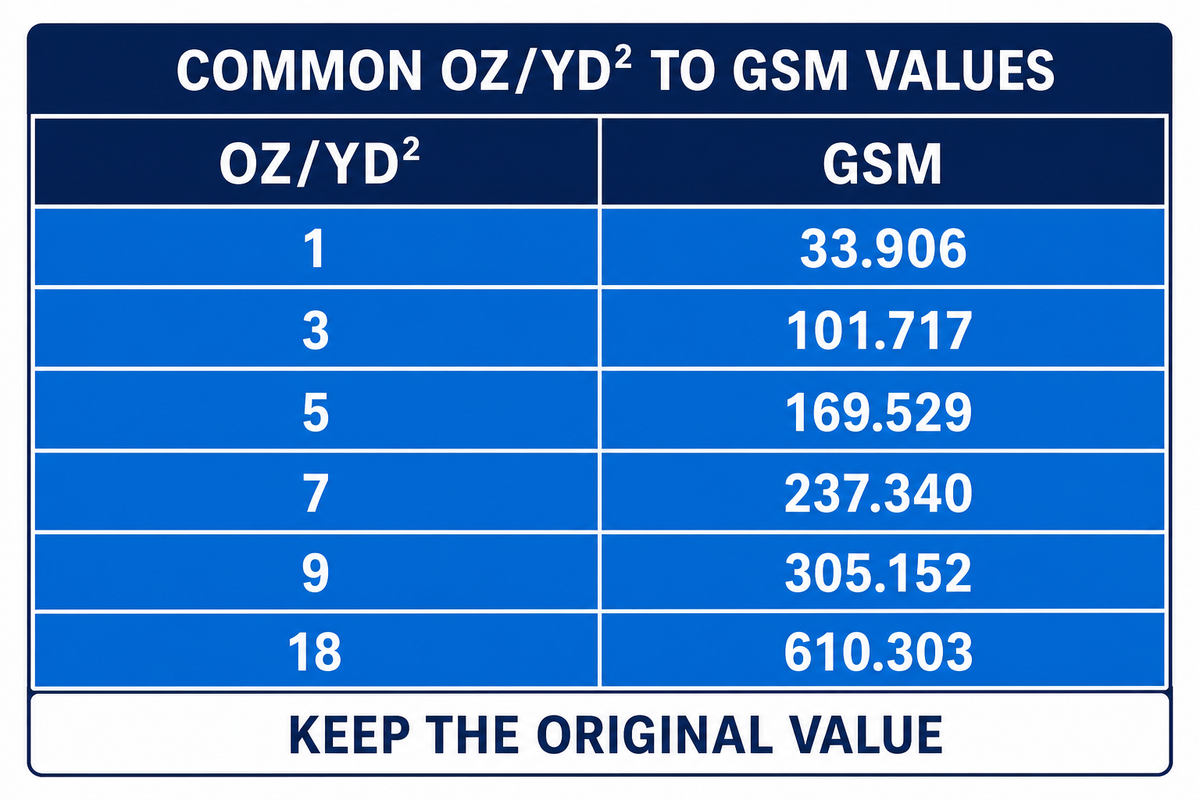

Oz/yd² to GSM Conversion Chart

The chart uses the exact-definition areal-mass ratio derived from the same units and displays three decimals. Copy the original value into a controlled calculation if it falls between rows or will feed another formula.

Common oz per square yard to GSM values

oz/yd²	GSM (3 decimals)	Use
1	33.906	Factor check
2	67.811	Lookup
3	101.717	Lookup
4	135.623	Lookup
5	169.529	Lookup
7	237.340	Worked example
8	271.246	Lookup
9	305.152	Lookup
10	339.057	Lookup
12	406.869	Lookup
18	610.303	Upper check

The chart describes mass per area only. Its labels do not indicate composition, weave, porosity, coating chemistry, adhesive distribution, performance, or thickness. Two materials can share the same GSM and behave differently because their structures are different.

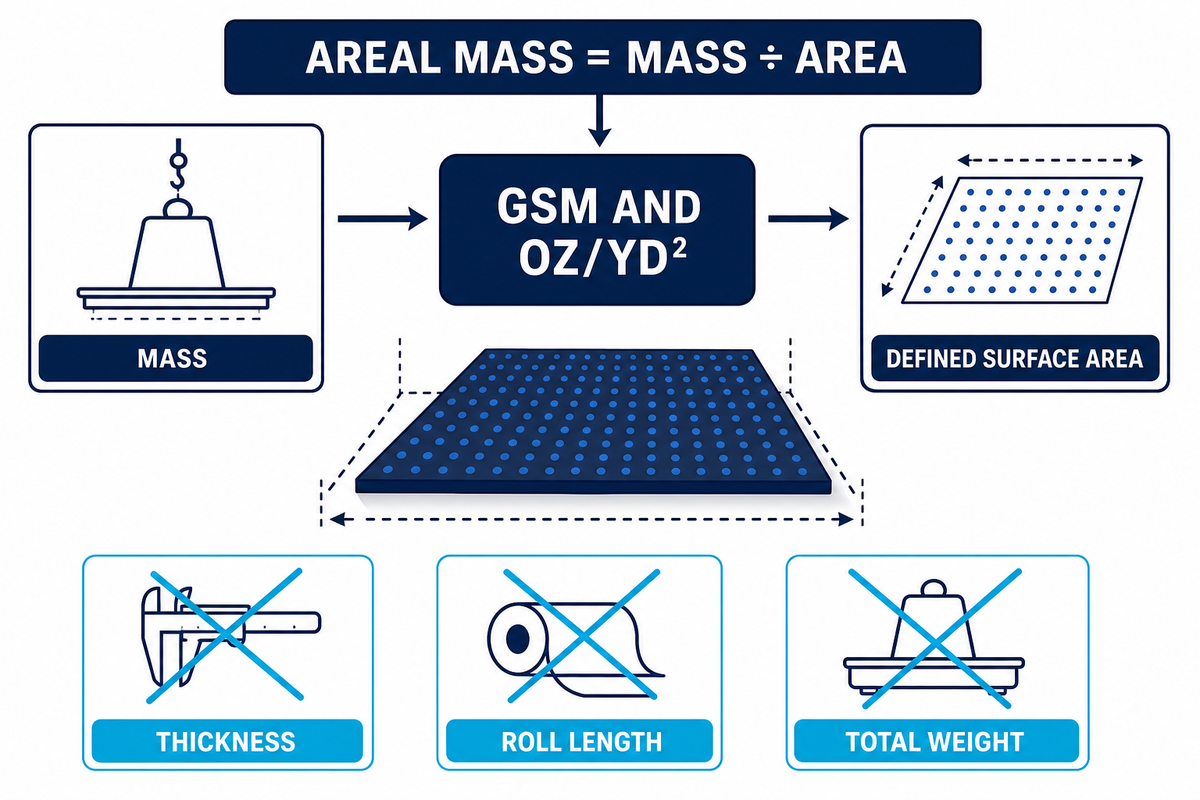

What GSM and Oz/yd² Actually Measure

GSM means grams per square metre. Oz/yd² means avoirdupois ounces per square yard. Both are areal-mass units: mass divided by area. They identify how much mass is distributed across a defined surface, not the material’s thickness, density, roll length, or total weight.

That’s why a direct GSM-to-micron or GSM-to-mil conversion isn’t available. Thickness depends on density, void fraction, compression, surface structure, layer count, and the measurement method. For porous textiles, webs, foams, adhesive dots, and multilayer laminates, a single bulk-density assumption can be especially misleading.

The public abstract for ISO 3801:1977 addresses mass per unit length and mass per unit area for woven fabrics. It also notes that width can relate the two for some fabrics while structural variation can make the distinction important for others. [2] This article uses that source only for its public woven-fabric scope; it doesn’t claim that the paywalled method applies to every nonwoven, membrane, coating, or laminate.

If a supplier gives grams for a specimen, calculate the specimen area in square metres before calling the result GSM. If a supplier gives grams per linear metre, fabric width becomes a required input. The practitioner account records a purchasing error in which “14 oz” was understood as oz/yd² but actually meant a linear-yard basis. [3]

Name the Layer Before You Quote the Weight

In textile coating and lamination, one “GSM” field can describe different physical layers. Equipment manufacturer Mahlo, in material published by Textile World, lists basis weight, add-on weight, and thickness as separate online process parameters. [4] The terminology is useful, but the source is manufacturer-supplied rather than independent testing.

The Base + Add-On + Finished Weight Stack prevents three values from being compared as if they were the same property:

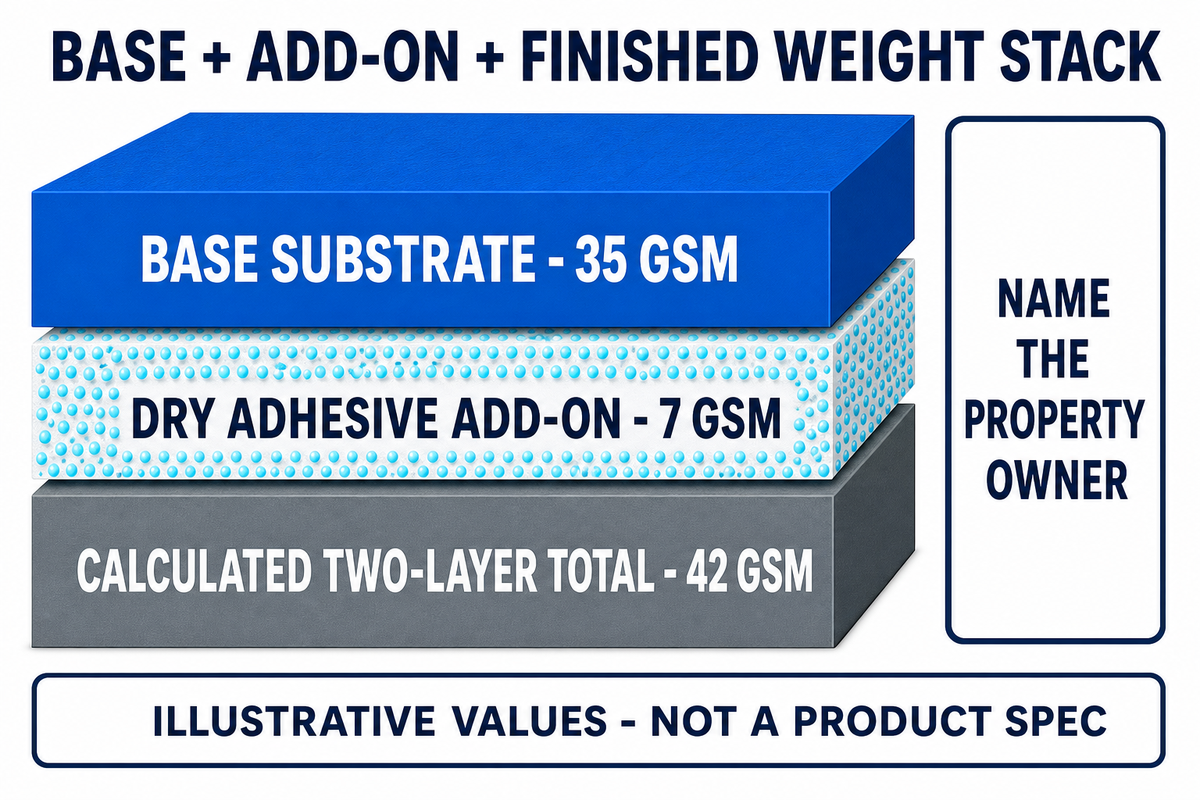

Base + Add-On + Finished Weight Stack — worked illustration

Layer	Illustrative value	What the buyer must identify
Base substrate	35 GSM	Material, construction, conditioning and test method
Dry adhesive add-on	7 GSM	Dry/wet basis, coverage pattern, application route and test point
Calculated two-layer total	42 GSM	Included layers and measured-versus-calculated status

The arithmetic 35 + 7 = 42 GSM is intentionally simple. Its value is the ownership label. If one quotation lists a 42 GSM finished construction and another lists a 7 GSM adhesive add-on, the two numbers aren’t competing offers for the same property.

Teng Yang’s current hot melt adhesive powder guide frames powder consumption by square metre and tells buyers to start from the applicator and application route. That’s first-party guidance about Teng Yang’s own product conversation, not a universal coating standard. For continuous bonding formats, review the hot melt adhesive web and hot melt adhesive film categories separately because format and layer coverage change the sourcing question.

Turn the Converted Number into a Purchase Specification

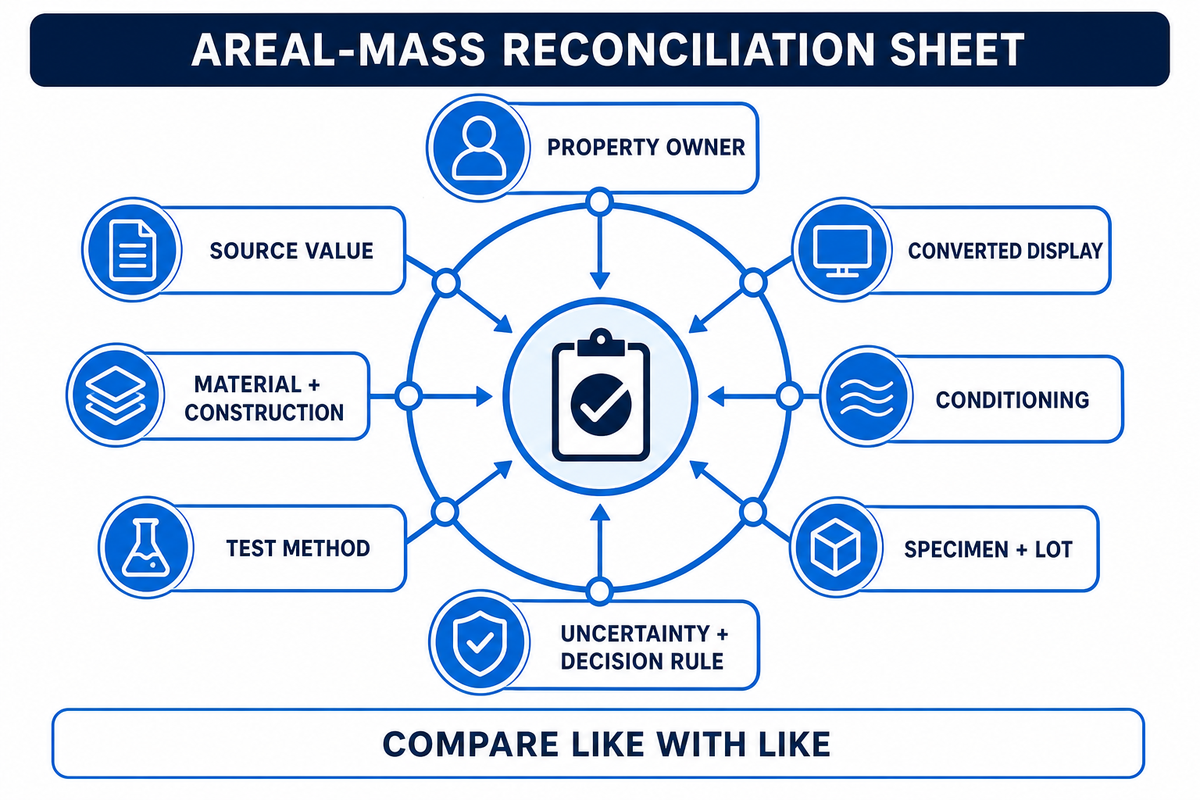

Unit conversion normalizes notation. The purchase specification also controls how the value was produced and how pass/fail is decided. The Areal-Mass Reconciliation Sheet below is designed for engineering, quality, procurement, and production to review the same handoff.

Areal-Mass Reconciliation Sheet — filled example

Field	Filled example	Decision protected
Property owner	Finished laminate, all permanent layers included	Prevents layer mismatch
Controlling source value	7.0 oz/yd²	Preserves the original record
Converted display	237.340 GSM for comparison	Normalizes supplier units
Material and construction	Buyer drawing revision and layer schedule	Defines what was weighed
Conditioning state	Atmosphere and equilibrium requirement named by contract	Controls moisture-history effects
Specimen and lot basis	Full-width or swatch; selvage treatment; lot plan declared	Prevents sample-to-lot overreach
Test method and instrument	Current method revision, balance ID and calibration status	Makes the result reproducible
Uncertainty and decision rule	Declared by the controlling inspection procedure	Defines pass/fail near a limit
Owner and approval	Buyer Quality approves; Procurement records comparison	Stops unauthorized changes

ASTM D3776/D3776M includes multiple options for determining fabric mass per unit area and identifies an option that may be used for commercial-shipment acceptance testing. Its public page also warns that SI and inch-pound values are separate standards for conformance and should not be combined. [5] That doesn’t invalidate conversion for comparison; it means the controlling test method and original unit system still govern acceptance.

Compare suppliers’ quotations by converting the display unit but keeping each original reported value. Ask both suppliers to state the same layer scope and test basis. Differences between those columns reveal that the offers are not on equal footing; a neat spreadsheet column does not create a common basis.

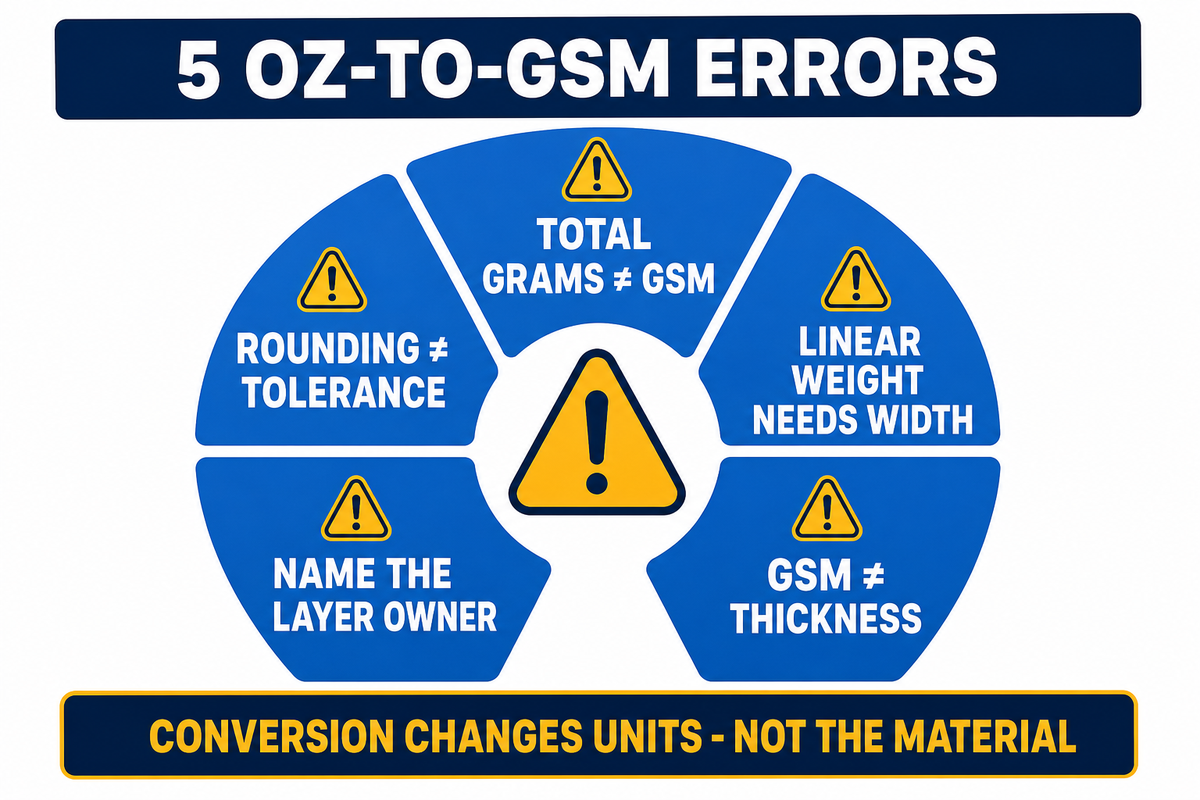

Common Oz-to-GSM Conversion Mistakes

Most failures are not multiplication errors. They’re missing-basis, missing-layer, and missing-method errors.

Error 1: regard total grams as GSM. A 10-gram sample doesn’t have a GSM of 10 unless its area is exactly one square metre. Divide sample weight by sample area in square metres.

Error 2: disregard width in linear weight. Grams per linear metre and ounces per linear yard require width and an explicit construction before they can be turned into mass per area.

Error 3: convert to thickness. It’s possible for one material to be heavier without being proportionally thicker. Density, loft, weave, compression, pores, coating pattern, and layer count all matter.

Error 4: change the property owner without saying so. A coating add-on value isn’t a total laminate value. A substrate value doesn’t include a coating unless explicitly stated.

Error 5: establish a new tolerance through rounding. Conversion factors change units. They do not widen or tighten the specification, choose a guard band, or establish measurement uncertainty.

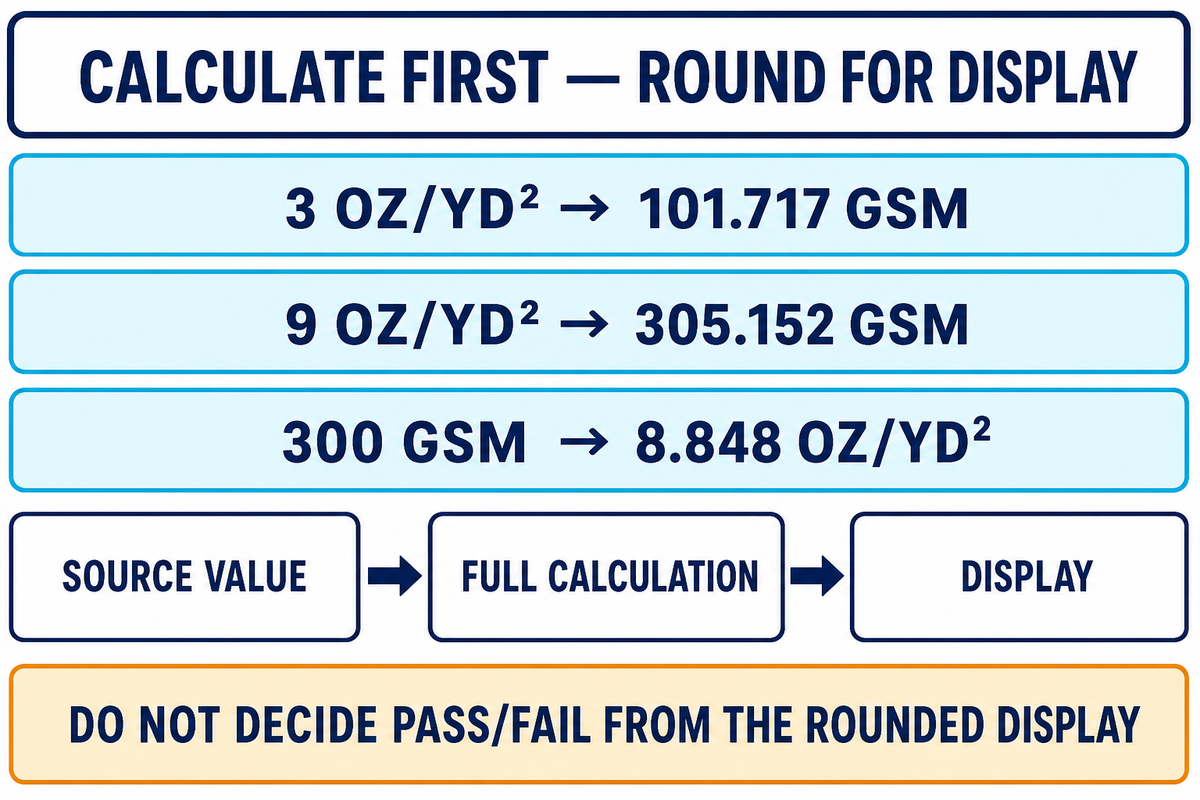

Worked Examples and Rounding Rules

Example 1: 3 oz/yd² to GSM. 3 × 33.90575 = 101.71725 GSM, displayed as 101.717 GSM.

Example 2: 9 oz/yd² to GSM. 9 × 33.90575 = 305.15175 GSM, displayed as 305.152 GSM.

Example 3: 300 GSM to oz/yd². 300 ÷ 33.90575 = 8.84806 oz/yd², displayed as 8.848 oz/yd².

There is no universal manufacturing tolerance or fixed decimal count created by these formulas. NIST guidance on conversion says the converted value should be rounded consistently with the precision and possible rounding error of the original value. NIST laboratory guidance also connects the decimal place of a reported measurement result to its evaluated uncertainty rather than to a calculator’s screen width. [6][7]

For this page, the chart uses three decimals, while the calculator shows up to three and trims trailing zeros. Neither display is a promise that the material was measured to 0.001 GSM or 0.001 oz/yd². Keep more digits in intermediate calculations; publish only the digits justified by the source record and controlling procedure.

If a converted value sits near an acceptance limit, don’t decide from the rounded display alone. Review the original measurement, uncertainty, sampling basis, and decision rule. The purchasing team may normalize units for comparison, but the document owner should approve any change to a limit or reporting rule.

Frequently Asked Questions

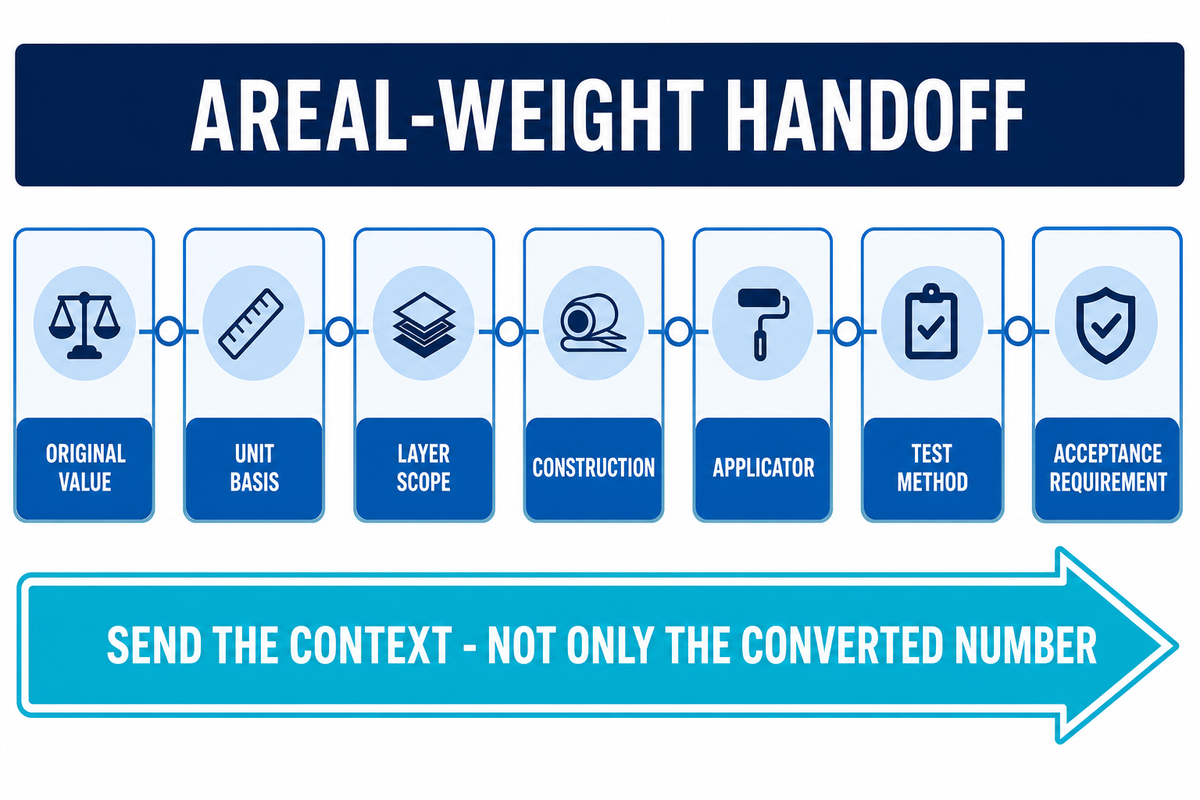

Use the Conversion Without Losing the Specification

The reliable workflow is short: normalize the unit, preserve the original value, label the physical layer, and carry the test and acceptance basis into the handoff. That turns a calculator result into something engineering, quality, procurement, and production can review together.

If your project uses hot melt adhesive powder, web, or film, send Teng Yang the material construction, application route, target layer, source and requested units, test method, and acceptance basis. The conversion can be checked instantly; the product recommendation still depends on the real bonding system.
