PES (Copolyester) Hot Melt Adhesive Powder: An Engineering Qualification Guide

PES (Copolyester) Hot Melt Adhesive Powder is a thermoplastic copolyester adhesive available in powdered form. Although the supplied name does not describe melting behavior, particle distribution, process recipe, or final bond quality, qualification must connect a specific grade and lot to the actual substrates, deposition path, bondline process, test method, exposure condition, and release criteria.

This is a qualification guide. Current specifications and commercial requests should be directed to Teng Yang’s PES copolyester hot melt adhesive powder solution page. For comparisons of PA, PES, TPU and EVA, please see the hot melt adhesive powder family guide. In this case, the goal is to convert a candidate powder to a clear engineering decision, without creating a duplicate product page.

What Does PES Hot Melt Adhesive Powder Tell You—and What Does It Not?

PES refers to a family of copolyester chemistries, while “powder” refers to the delivery form. Together they refine a search, but they do not describe a commercial formulation, particle size distribution, an activation setting, or the performance of an assembled bond. Those answers require grade-specific documentation and a controlled joint test; Bostik’s specialty hot-melt powder overview likewise distinguishes base-polymer families and powder delivery, but it is not a universal PES specification.

This separation matters because a powder can feed cleanly yet make a weak joint, or make a strong initial joint that changes after service exposure. Conversely, a result from one fabric stack cannot establish behavior on coated foam or plasticized material. The label identifies a copolyester chemistry family and the powder delivery form; the finished assembly addresses bond performance.

Search Labels Are Not a PES Specification

Search results mix chemistry families, delivery formats, application methods, commercial wording, and performance language. Treat the terms below as vocabulary to classify, not as proof of equivalence or as a substitute for a named grade, controlled process, and finished-joint test.

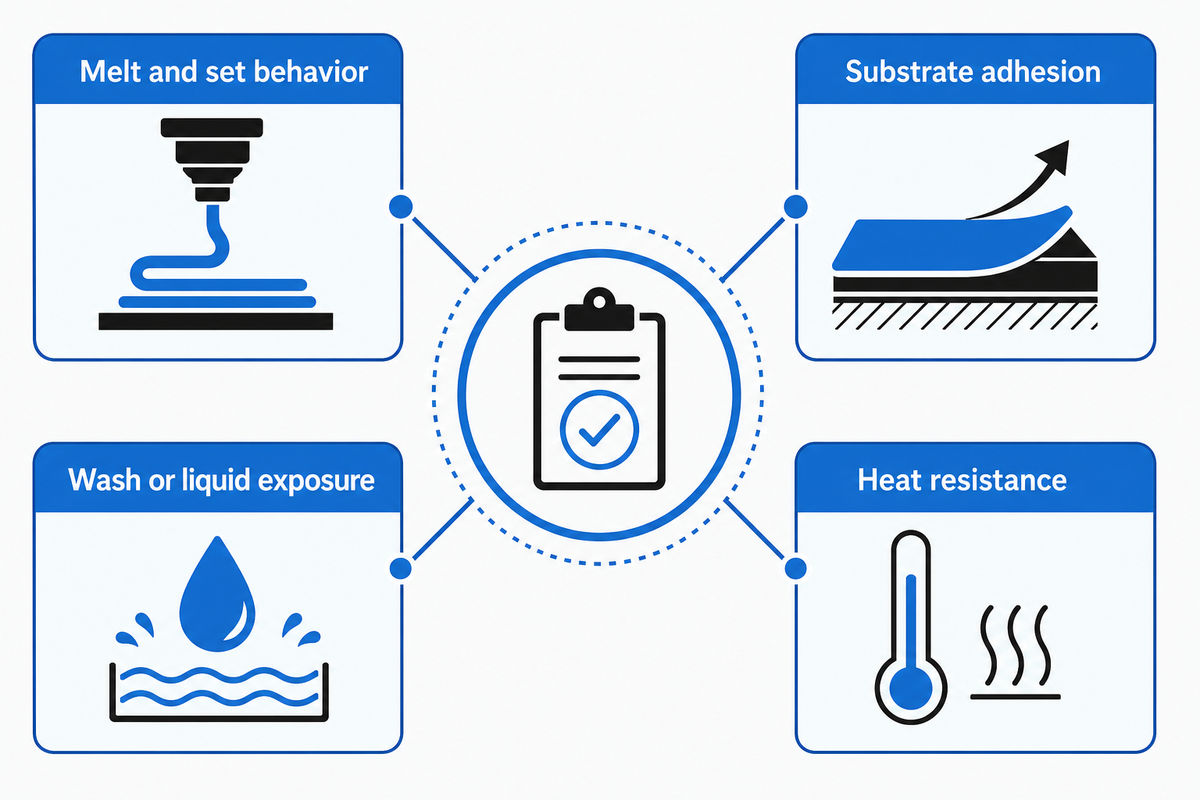

How Copolyester Chemistry Changes the Screening Questions

Two powders described as copolyester can differ because of variations in formulation and morphology. This can affect how the powders melt, how they wet a surface, their tendency to crystallize, and their resistance to environmental exposure. Chemistry can suggest general screening questions, but a grade suggestion is not proof of compatibility. However, performance claims must be made relative to the named grade, defined test method, and joint.

Bostik’s overview of copolyester technology describes the differences between amorphous and semi-crystalline copolyesters and suggests applications based on formulation. This context supports the need for grade specificity, and is not a specification for a Teng Yang grade and cannot transfer a process setting.

A peer-reviewed PBTI study describes a system with particle size, DSC, fabric, concentration and heat treatment. Its methodological value is that named material and process variables travel together. The results of the study are not to be extrapolated to generalize performance of PES powders.

The terms “polyester hot melt,” “hot melt glue” and “glue powder” may appear in search results. PES powders may also be grouped with thermoplastic polyurethane (TPU), polyamide, or EVA hot-melt adhesive powders on a heat-transfer page. Use these search terms, not equivalence, to find required information. The supplier or manufacturer should resolve each label to a controlled resin chemistry, grade, delivery form, and document revision.

Screen the Substrate, Service and Application Route Before Asking for a Grade

A useful supplier brief begins with the joint, not an identified temperature. The adherends must be defined, along with their surface conditions, the environment, the way the powder reaches the joint, the service conditions and the final part geometry. This rules out a suggestion of grade from being incorrectly interpreted as proof of compatibility, and it prevents an assumed chemical bond from being treated as a measured interfacial result.

Substrate pair and surface state

Precisely name all sides. “Fabric” could refer to fiber blend, weave, finish, moisture, coating, dye, or release contamination. Foam, leather, polyvinyl chloride (PVC), polyethylene terephthalate (PET), aluminium, and nonwoven fabric describe different surface classes, not interchangeable bond conditions. Include supplier and lot as appropriate, along with preparation, storage, direction, thickness, and whether the test surface represents the production surface.

Load, temperature, liquids, washing and flexing

Explain what types of loading the joint is required to survive: peel or shear loading, continuous or intermittent heat, humidity, water, detergents, solvents, bending, and aging. State the duration and the sequence. An initial peel test in the condition of the room doesn’t define performance under the simultaneous presence of a load and humidity, and a wash label doesn’t define the test severity.

Scatter, powder-dot, transfer and lamination routes

Describe the process of powder metering, transport, fusion, pressing, and cooling. Deposit mass and geometry can affect wetting and local stress. If application is film rather than powder, use Teng Yang’s PES hot melt adhesive film guide for film form troubleshooting; importing film form troubleshooting to a powder qualification record is inappropriate.

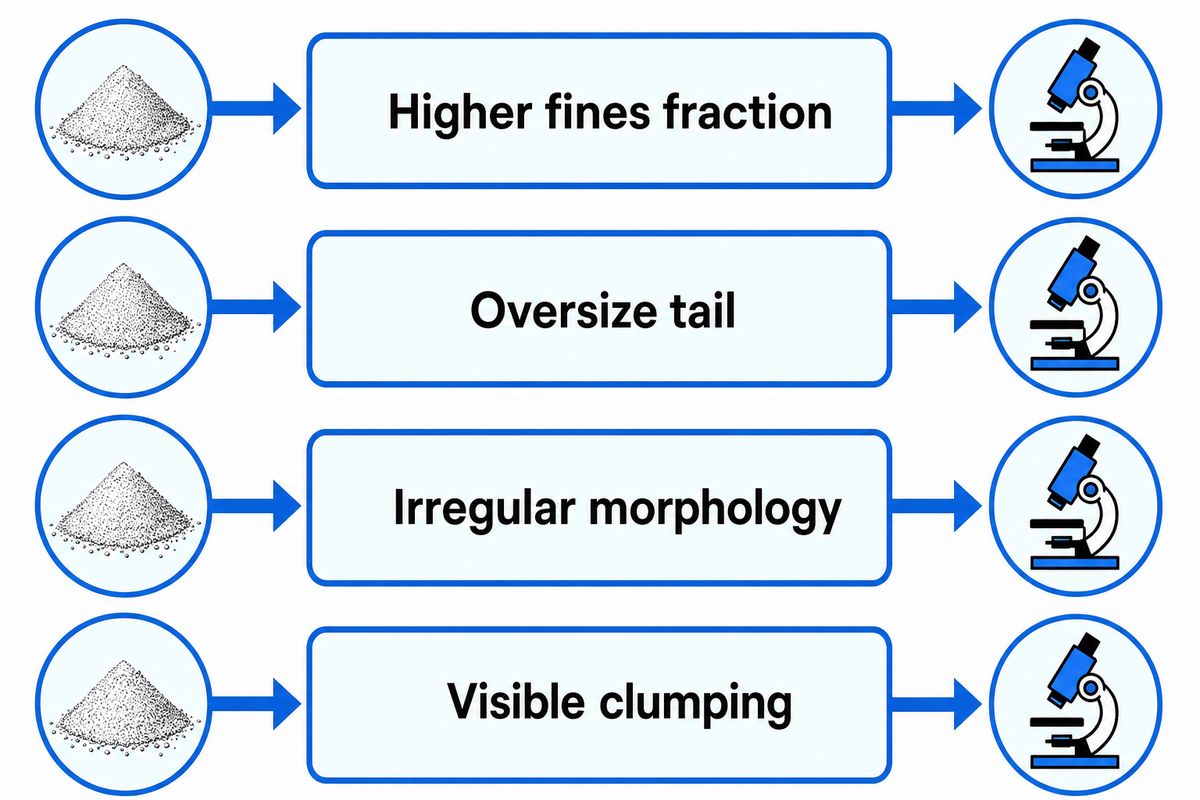

Particle Distribution as a Qualification Checkpoint

A mesh label is a convenient method for providing basic powder data. Qualification should describe how the sampling and measuring method was related to the particle size distribution, morphology, fines and oversize, the condition of the powder, deposited mass and line behavior. It should not predict finished-bond strength based on particle size.

ISO 13320:2020 provides laser-diffraction guidance and states method limitations, including considerations for non-spherical particles. A separate, non-adhesive powder study found that distribution related to powder flow and spreading while final part properties did not follow a simple linear particle-size rule. That cross-domain result supports caution, not a PES bond prediction.

In hot melt adhesive powder particle size guide, use the detailed information provided on PSD and mesh terminology. This document treats particle evidence as one aspect in a large qualification chain.

Build the Process Window Around the Bondline, Not the Heater Display

Establish a stable process window with the measured bondline temperature, dwell and pressure, deposited mass, state of the substrate, and cooling. The machine display is one of several inputs; Bostik’s textile-lamination brochure ties named hot-melt examples to combinations of pressure, time, and temperature, so its product values should not be copied as a universal PES setpoint. Develop the window for the grade of interest, and challenge with repeated observations. Set production limits only after careful consideration.

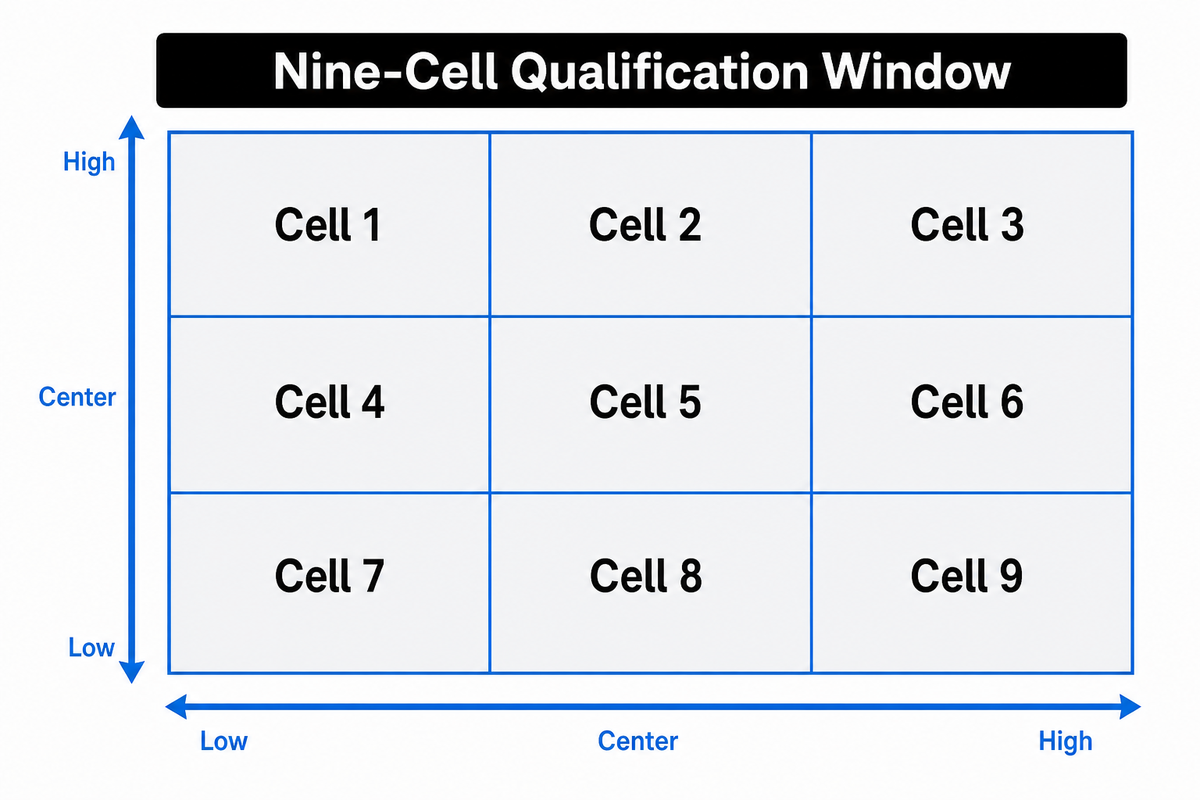

The 3 × 3 PES Process Qualification Matrix

Using the supplier’s current grade guidance and equipment and substrate safety limits, identify three levels for bondline thermal exposure and for a second controlling factor, often dwell or pressure. Justify these levels using project information (e.g. Low, center, and high levels).

For each cell, hold the powder and substrate lots constant and record measured values for bondline temperature, dwell, pressure, powder addition, deposit uniformity, stack construction, degree of restraint, initial result, and failure mode. A cell is not the “best” simply because it produces the highest force. Substrate distortion, edge damage, unstable feeding, or a narrow operating margin may disqualify a cell.

After cells are screened, repeat the center and practical edges with additional independent specimens. If a cell cannot be repeated, examine heat recovery, actual contact, feeding, and cooling, before adjusting chemistry. The reason a deterministic temperature calculator is misleading is because the system is not closed until the material, equipment, geometry, and measurement are fixed.

Take a line that initially makes good center coupons, but after a short stop starts making weaker center coupons. The default solution is not always increasing the setpoint. Keep the grade, powder lot, substrate lots, and add-on fixed; then compare the displayed temperature, a validated bondline measurement, pressure contact, deposit coverage, and cooling history before and after the stop. If bondline recovery lags behind the display, the evidence points to equipment state control. If coverage changes while the thermal path remains stable, feeding and transfer are of greater concern. This example is diagnostic logic, not a production recipe.

Also define what is meant by a failed cell. An incomplete wet-out may allow for a bounded thermal or dwell condition within safe limits. Substrate shrinkage or bleed through may set a hard upper limit. A mixed result should not be averaged to call a cell green, without evaluating each individual specimen. The usable window is the region that meets the joint criterion with tolerable variation and without appearance, handling, or safety failures.

This training-only record shows the level of detail required. Its first row might list a 25 mm coupon, a 100 mm/min test rate, a 23 °C laboratory, 50 % RH, 24 hr conditioning, a 125 °C bondline observation, 15 s dwell, 2 bar pressure, an 80 µm particle statistic, and a 0.5 mm stack. A second row might deliberately change to a 20 mm coupon, 50 mm/min, 25 °C, 60 % RH, 12 hr, 120 °C, 20 s, 3 bar, 100 µm, and 0.8 mm. These two rows must not be compared as material performance because too many fields changed.

The same teaching card could record a 40 °C exposure for 2 hr, a 24 hr recovery, a response reported per 25 mm, and a separate 3 day humidity exposure at 60 % RH. Those values certainly demonstrate units and traceability. They do not demonstrate Teng Yang grade data, acceptance limits or recommended textile settings. In a real qualification, replace every number with a justified protocol and keep only one controlled change between comparisons.

Verify the Finished Joint with Method-Linked Evidence

Peel strength only becomes comparable with its method and specimen context. Retain geometry, width, rate, conditioning, exposure, replicate count, individual results, spread, and failure mode. One average peel strength test or “strong peel” says nothing about service life or threshold release.

ISO 11339:2022 applies to T-peel testing of bonded assemblies made from two flexible adherends. Its public scope also says it “does not provide design information.” Use it when that geometry fits; choose another justified method for rigid, mixed-stiffness, or service-load assemblies. T-peel, 90-degree peel, and 180-degree peel results are not interchangeable simply because each reports force.

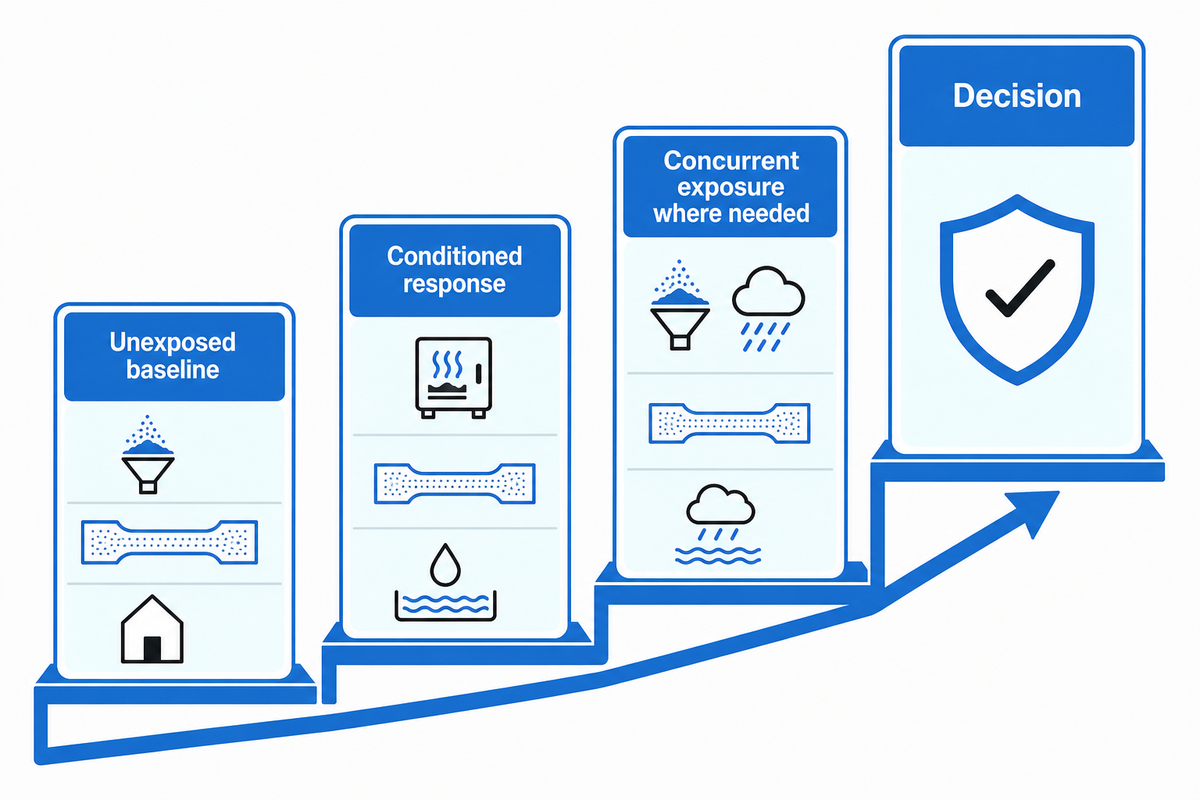

Build an evidence ladder:

1. Unexposed baseline: production-representative specimens after a fixed cooling and conditioning period.
2. Conditioned response: the same geometry after the named wash, liquid, heat, humidity, or aging procedure.
3. Concurrent exposure where needed: a test that combines sustained stress and environment when service does so.
4. Decision: compare replicate distribution and failure modes against the owner’s written acceptance rule.

ASTM D2918-99(2020) is an example within its own scope: it evaluates stressed T-peel joints during moisture or other environmental exposure. It identifies a key difference. Some questions may be answered by unloaded pre- and post-conditioning. Others may require a combination of load and exposure, as in service conditions.

Whether PES Hot Melt Adhesive Is Permanent Under a Defined Test Method

An adhesive bond can be made durable, but “permanent” is not a test method. Define loads, heat, liquids, washing, flexing, aging, and other thermal and mechanical history of the components, and test the assembled part under these conditions. Approval is only for the materials, process, joint, exposure and acceptance criterion defined.

Trace PES Bond Failures from Symptom to Controlled Test

An irregular or weak bond should not be assigned one proven cause or reworked with additional heat or a different polymer without controlled evidence. Start with the failing stage, preserve a control, change only one variable, and evaluate both fracture faces.

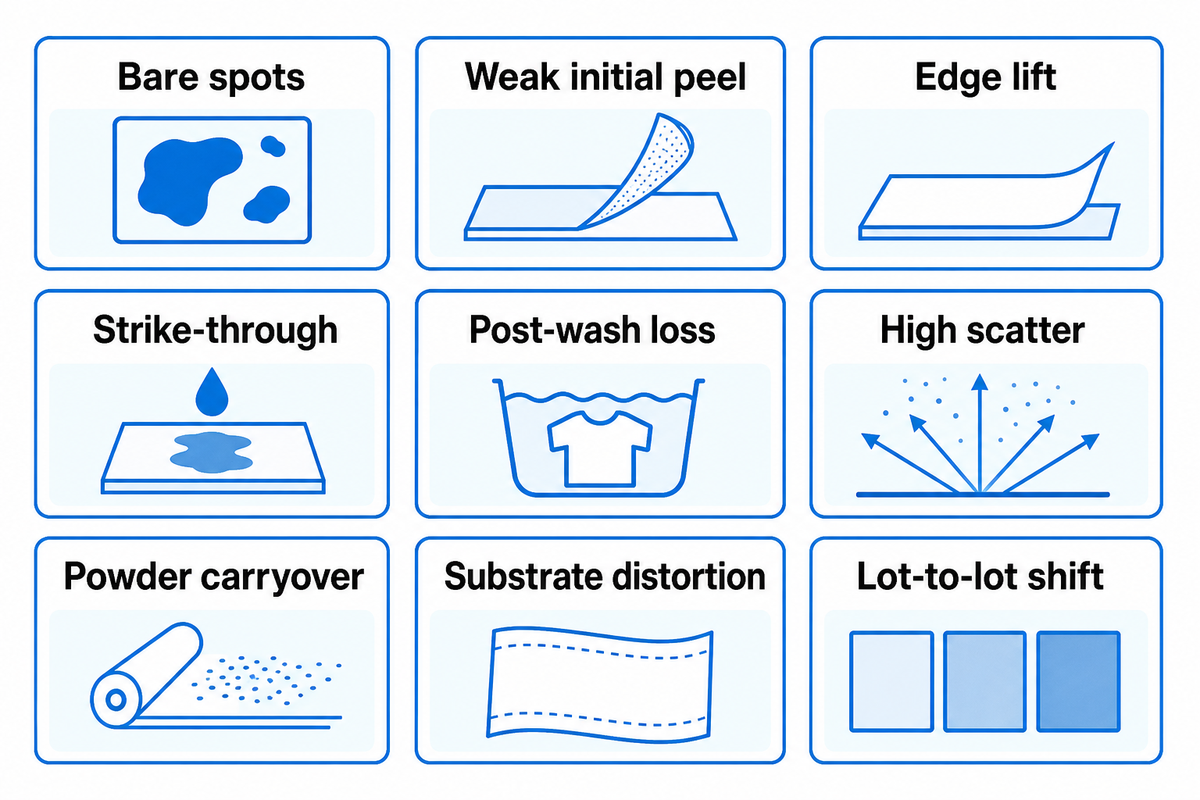

The Symptom-to-Cause Triage Map

ASTM D5573-99(2019) classifies visually observed failure surfaces in bonded FRP joints and explicitly does not determine acceptability. Its FRP scope is not a PES textile method; the transferable discipline is to separate observation from disposition. A 2025 peer-reviewed adhesive-defect review likewise describes interacting defect classes and limits to unified failure prediction.

Photograph both sides of the specimen with uniform lighting. Record whether failure is primarily interfacial, cohesive, within a substrate, or mixed, but avoid turning a photograph into a causal verdict. There may be several reasons for failure including insufficient surface preparation, deposition gap, inadequate wetting, excessive heat, damage to substrate, exposure to environment, etc. Consult the control specimen and/or process records for comparison.

Control Storage, Lot Condition and Powder Handling Before Release

The approval of incoming material should divide the status of the documents, the condition of the package and powder, the deposition behavior and evidence of bond, and the safety of the facility. A sealed label or an old SDS cannot prove the current lot’s condition, while a failed feed trial does not by itself prove a chemistry defect.

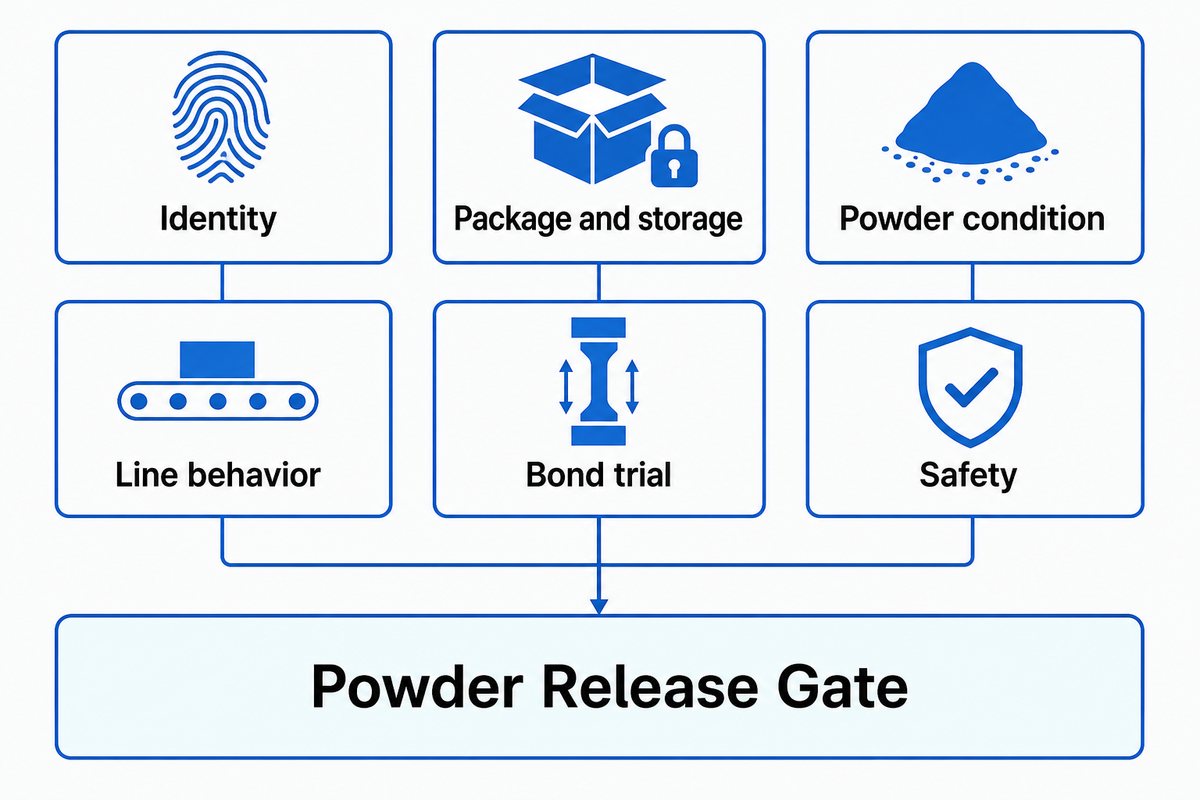

The Powder Release Gate

• Identity: match supplier, grade, lot, manufacture or retest information, TDS, SDS, CoA, and change status.
• Package and storage: inspect seals and damage; follow current grade instructions. Teng Yang’s solution page calls for sealed, cool, dry storage without establishing one universal humidity or shelf-life limit.
• Powder condition: document visible agglomeration, contamination, sampling route, distribution method, and retained sample.
• Line behavior: check transfer, sieving, feeding, deposit coverage, and mass under recorded conditions.
• Bond trial: release performance only after the process and finished-joint evidence pass their rule.
• Safety: use current material information and a site-specific dust assessment and controls.

OSHA’s combustible dust guidance connects hazard communication and controls to the actual materials and predictable dust-forming operations. This guidance does not lead to the conclusion that all PES adhesive powders are combustible, nor does it provide Kst, MIE, MEC, humidity, or storage limits.

Record the state of powder after it is transferred, sieved, recovered, and recycled, as well as its state after use. Unopened bags should not be the only record of state. Powder handling can change the dust or particle state presented to workers and equipment. If recovered or recycled powder is permitted, define the ratio and record how it was generated. Evidence of facility process state plus material evidence is required to support a safe release.

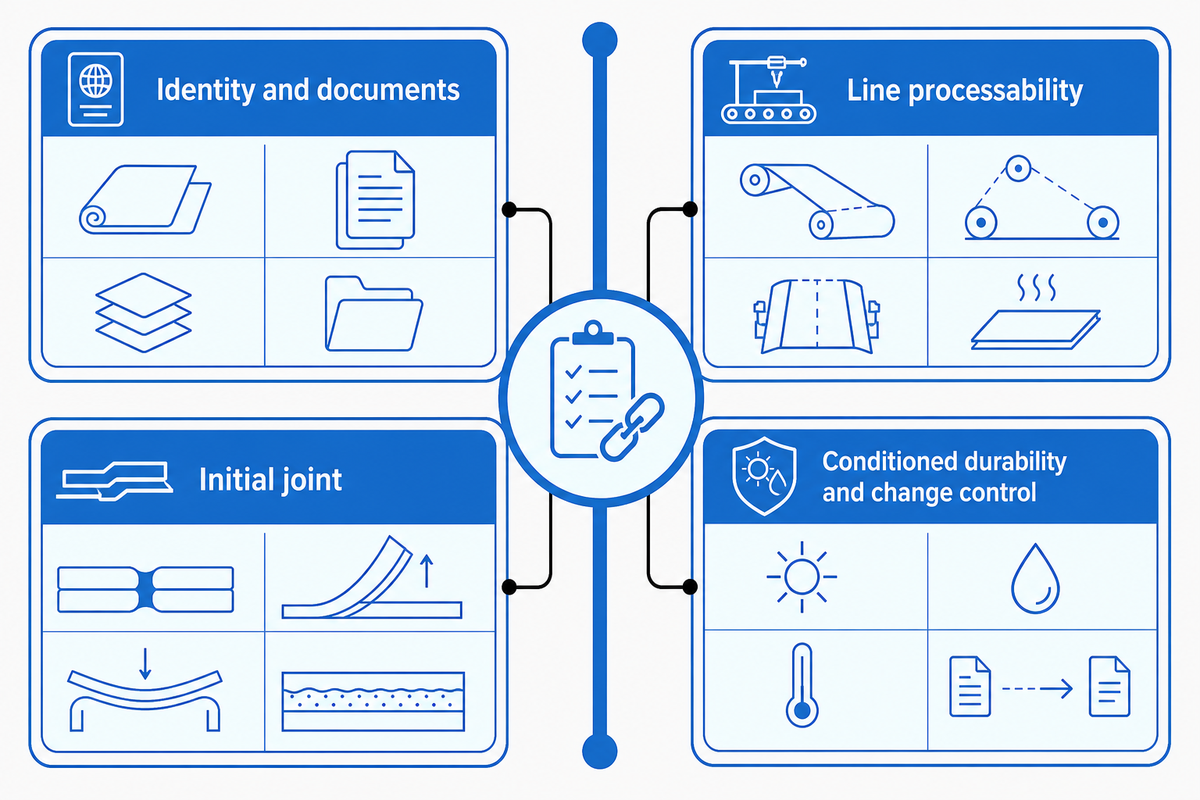

The PES Bondline Passport: One Decision Record for Engineering, QA and Procurement

The PES Bondline Passport is a single traceable record from sample request to product release, and it provides evidence of identity, process, and assessment. Engineering, QA, procurement, and the product owner should see the same evidence and verify the same fields, instead of evaluating different documents or relying on adjectival supplier statements.

1. Identity and documents: grade, lot, TDS, SDS, CoA, supplier change status, substrate identities, and retention sample.
2. Line processability: powder condition, deposition method, add-on, Nine-Cell results, practical center and edges, appearance, and equipment record.
3. Initial joint: test geometry, specimen preparation, method edition, conditioning, replicate count, individual values, spread, and failure modes.
4. Conditioned durability and change control: exposure, recovery, concurrent load where relevant, repeated response, acceptance rule, borderline disposition, approval owner, and requalification triggers.

A release result is not self-interpreting.

A release value is not self-interpreting; uncertainty and the decision rule shape risk.

According to the work by NIST on conformity decision rules, the rule selected and the amount of uncertainty influenced false-accept and false-reject risks. For the Passport, record replicate spread or justified uncertainty, the rule applied, and what happens to a borderline result.

Before launch, define requalification triggers: a grade revision, powder-source change, substrate coating change, new care exposure, altered deposition equipment, moved process limits, or an unexplained shift in variability. An empty field means “not established,” not “passed.”

The passport should distinguish three decisions. “Approve” indicates that all required fields and acceptance criteria are satisfied for the named assembly and window. “Conditionally Approve” means that use is constrained by an explicit boundary, e.g., one substrate lot or one service exposure with an owner and closure date. “Reject/investigate” indicates that a defined criterion failed, or that the comparison is not interpretable. The labels are to prevent procurement from treating a screening sample as a released production material.

Raw observations should be retained with the decision. Averages can conceal weak specimens, and a passing force can coexist with a changed failure mode or a damaged substrate. Individual values, spreads, photographs, deviations, and retest rationale should be recorded. For a repeat test, record individual values, identify the variable changed, preserve the original result, and state the rationale. That trail lets the team separate a real material shift from sampling, equipment, or measurement variation.

When to Move from Guide-Level Screening to Grade-Specific Supplier Evidence

Move to supplier evidence when the brief names both substrates, service exposures, application route, target test method, equipment limits, and open risks. Then review PES hot melt adhesive powder grade options and request current grade and lot documents for the actual trial.

Keep specifications, grade availability, pricing, MOQ, lead time, quotation and RFQ discussion on that solution page. For company scope and technical support context, see how Teng Yang supports thermoplastic adhesive projects

Discuss your substrate and qualification brief

Frequently Asked Questions About PES Hot Melt Adhesive Powder

What is PES hot melt adhesive powder made of?

PES hot melt adhesive powder is a particulate thermoplastic adhesive based on a copolyester formulation. PES identifies the polymer family, and powder identifies the delivery form; neither defines one melting point, particle distribution, or bond result. A complete specification requires the named grade along with controlled process documents, substrates, application method, and the end-joint test specification.

The formulation ingredients and proportions are specific to a grade; thus, a buyer should use the current supplier’s document as a basis and not speculate a recipe based on the polymer family. Lot identity, sampling, deposition, thermal history, cooling, and test exposure must remain attached to any performance claim.

What materials can PES hot melt adhesive powder bond?

Commercial copolyester systems are used with textiles and may be formulated for combinations involving fabrics, foams, leather, PVC, and other materials. This is an application map, not a compatibility guarantee. Factors such as service conditions, use environments, surface treatments, coatings, plasticizer migration, and the geometry of the materials may affect adhesion. For these reasons, the actual materials in question should be tested.

What temperature should I use for PES hot melt adhesive powder?

There is no universal PES application temperature. Thermal ranges are product dependent, and a product melting temperature does not define the bondline or set temperature of a heater. A bond window may depend on the joint design, the condition of the substrate, the add-on of the adhesive, the cooling rate and pressure, as well as the ultimate service temperature of the finished product.

Is PES hot melt adhesive permanent?

A qualified PES grade can make a durable thermoplastic bond. However, permanence depends on the assembly and service. Define load, temperature, liquid, washing, drying, dry cleaning, flexing, aging, and heat exposure, then test the joint against the written acceptance criteria.

Does PES powder resist washing and dry cleaning?

Some named copolyester grades are marketed for laundering or dry-cleaning applications. Treat this as a screening clue, not a broad cycle claim; record detergent, temperature, cycle count, drying, recovery, and specimen geometry. Explain the type of detergent or solvent, temperature, cycle count, drying and recovery methods, then compare the original condition of individual specimens to conditioned specimens of the same geometry and failure mode under one method and written acceptance rule; keep grade identity and exposure procedure with the result.

Is PES powder the same as DTF powder?

No. DTF refers to an application system, and not to a polymer family. Confirm the named grade, because DTF powders may consist of PES, TPU, or other polymer families; the DTF label alone does not establish adhesive chemistry or the finished bond’s service performance.

References & Sources

• Bostik: Hot Melt Copolyester Adhesives & Resins
• ISO 11339:2022, Adhesives — T-peel test for flexible-to-flexible bonded assemblies
• ISO 13320:2020, Particle size analysis — Laser diffraction methods
• ASTM D2918-99(2020), Durability assessment of adhesive joints stressed in peel
• ASTM D5573-99(2019), Failure modes in bonded FRP joints
• OSHA: Hazard Communication Guidance for Combustible Dusts
• NIST: Assessment of Conformity, Decision Rules and Risk Analysis
• Dachev et al.: review of defects and failure in adhesive joints
• Polymers: bounded PBTI copolyester particle and textile study
• Additive Manufacturing: bounded particle-size distribution and powder-behavior study

This guide uses public standards pages, government guidance, peer-reviewed research, and clearly identified manufacturer or first-party material. Cross-domain evidence is used only for the stated methodological limit; it is not presented as a PES adhesive performance result. No private client production data is claimed.
