Engineering Seamless Garments with TPU Bonding Film

Apparel bonding TPU film is a heat-activated thermoplastic polyurethane (PU) adhesive interlayer used to join textile parts without a visible stitch line. It can create a flatter, cleaner construction, but the film alone does not define the finished bond. Fabric finish, stretch direction, heat transfer, pressure, dwell, cooling, seam geometry, and the garment’s duty cycle all influence the result. This guide shows development engineers how to control those variables, document a stable bonding window, and release a bonded construction with evidence.

This is a process and qualification guide, not a grade catalogue. If your fabric pair and validation target are already defined, use the apparel bonding tpu film solution page to explore product families and request a matched sample.

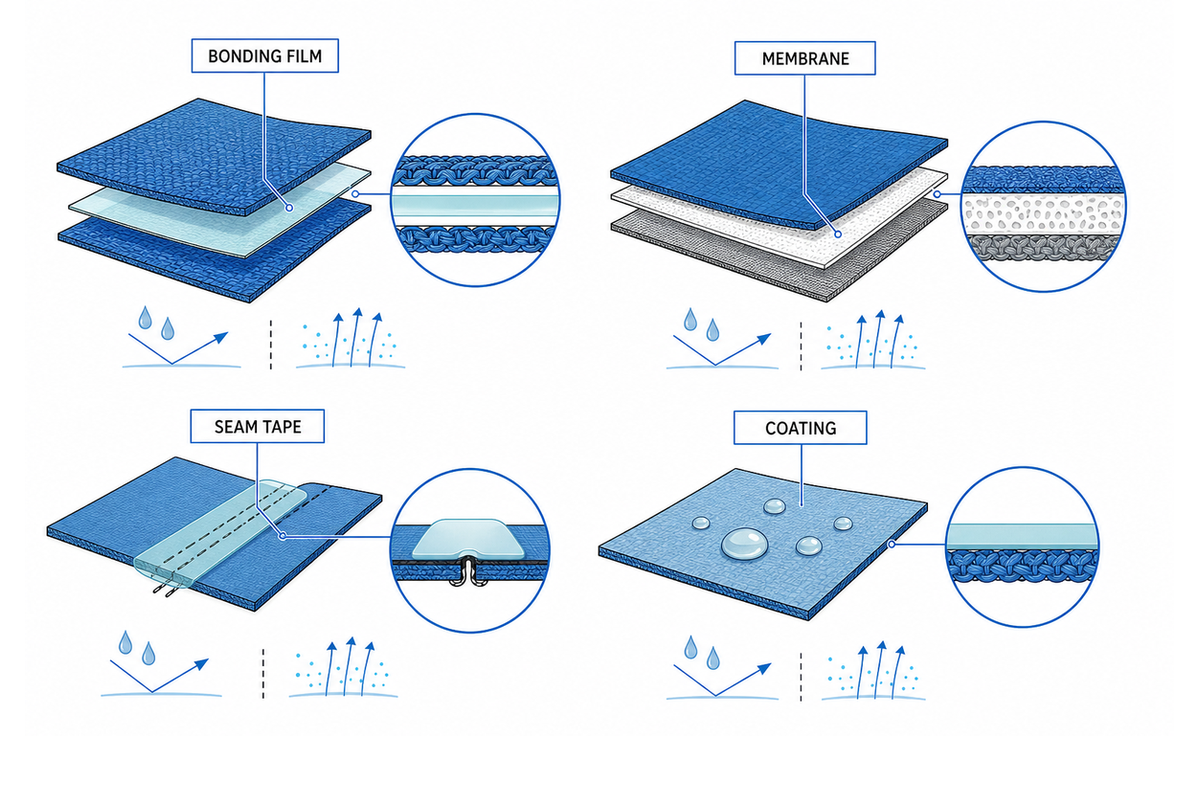

What TPU Film Changes, and Does Not Change, in a Bonded Garment

TPU hot melt film provides an alternative to sewing or gluing two textile surfaces together. Under heat and pressure, the bonding layer flows into intimate contact with both fabrics. After cooling, the assembly can form a low-profile bond, eliminating bulky seam allowances in selected regions, reducing needle holes, and presenting a clean appearance in high-performance sportswear, underwear, swimwear, and outdoor gear.

TPU film does not automatically deliver a barrier, breathable laminate, or waterproof seam. Those are construction-level functions. Breathable TPU membranes are engineered to manage moisture transport or liquid resistance; adhesive film is engineered to join adherends. Decorative TPU overlays, molded parts, hotmelt film or web formats, and textile or garment lamination structures also behave differently. Covestro’s apparel application overview similarly separates adhesive layers, barrier films, laminates, and seam-sealed constructions.

In adhesive bonding, the film acts as a dual-sided adhesive between textiles. Some sourcing documents call the same format glue film, but the label does not change its joining role. Do not confuse it with textile lamination designed around barrier or breathability requirements.

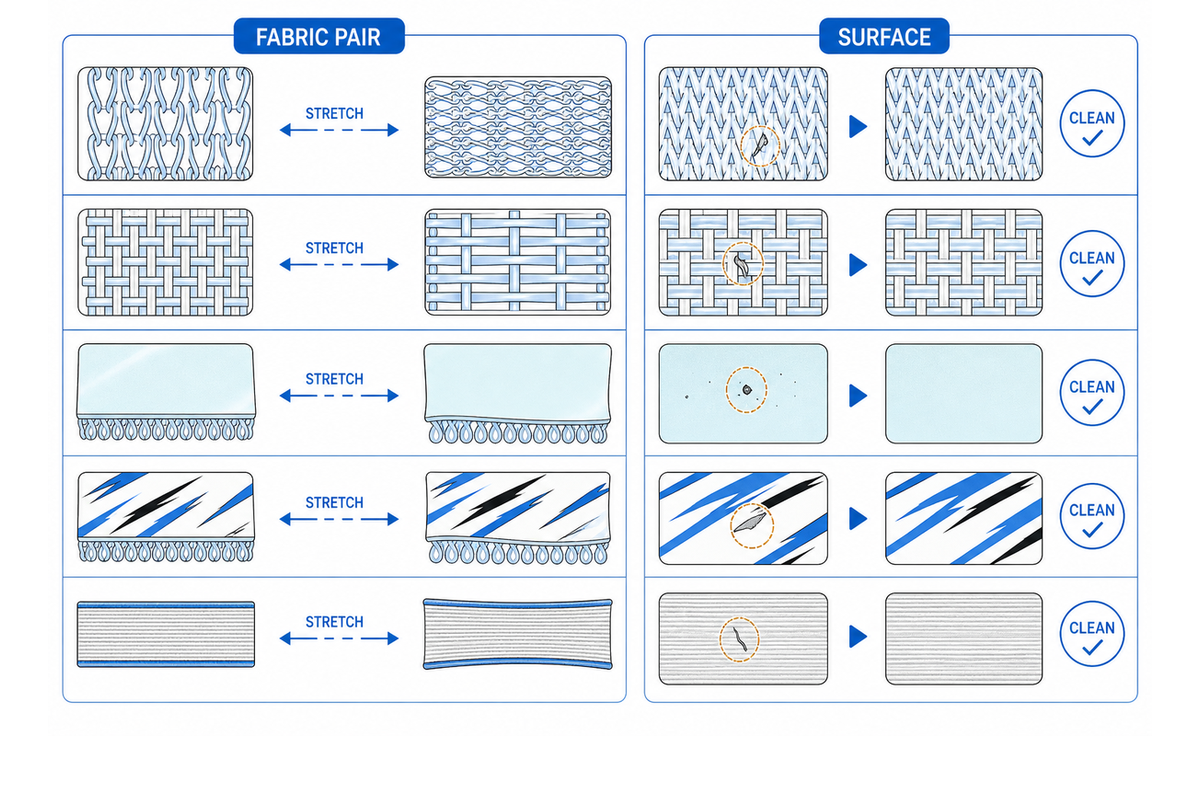

Start with the Fabric Pair and Surface State, Not the Film Datasheet

Identical TPU adhesive film can wet one fabric and release cleanly from another. Fiber labels such as “polyester” or “nylon” are not enough. When bonding fabric, record whether each textile is woven, knitted, laminated, brushed, coated, printed, or elastomeric. Add fabric weight, stretch direction, recovery, color, face and back identification, and the exact lot. Adhesive performance follows the surface it encounters, not the generic fiber name on the bill of materials.

For fabric bonding, finishes deserve their own line in the trial record. Water-repellent treatments, softeners, lubricants, release agents, silicone contamination, dye auxiliaries, and handling soil can reduce wetting or create a weak boundary layer. A peer-reviewed review of bonded laminates identifies adherend properties, geometry, preparation, environment, and loading as variables that can change failure behavior. It also warns that adding an adhesive layer does not necessarily increase joint strength.

• Freeze the pair: identify both textile faces, roll lots, stretch directions, and any backing or coating.
• Describe the surface: record finish chemistry when known, visible contamination, storage history, and whether cleaning or pre-drying was used.
• Preserve controls: keep unbonded fabric and an unwashed bonded coupon from every trial.
• Watch the hand: inspect strike-through, gloss, color change, edge imprint, and localized stiffness—not only peel resistance.

If a trial fails, do not start by asking for a stronger film. First ask whether the failure followed a particular face, finish, color, roll, or stretch direction. That comparison can separate a compatibility problem from a process problem before another material enters the study.

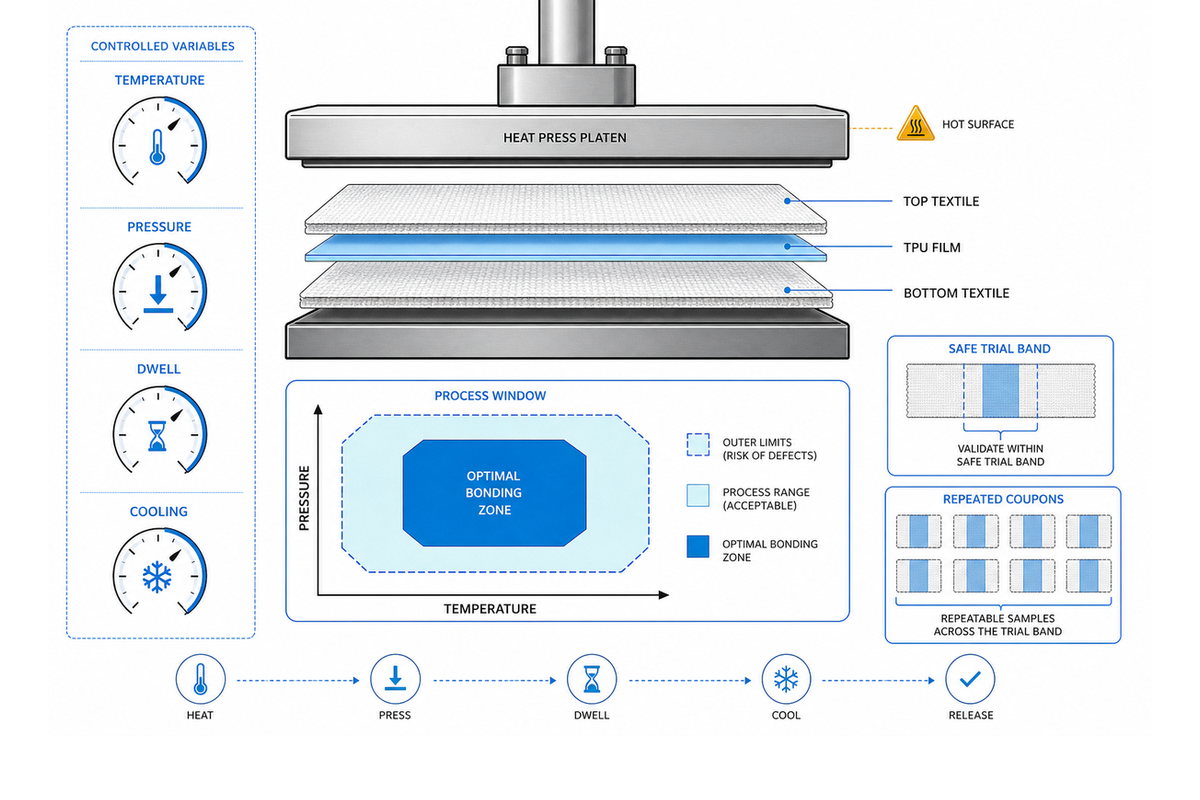

Build a Repeatable Bonding Process Window

The equipment may be a heat press, a flat lamination line, or a controlled hot air station. In each case, a supplier’s setting serves only as a point of departure. Controller temperature isn’t necessarily adhesive-line temperature; delivered heat is also influenced by fabric thickness, release paper, press loading, fixture mass, and line speed. In thermal bonding, heat activation processes combine heat and pressure at a specified dwell, with cooling dictating when the joint can be handled without creeping.

Use a small, controlled matrix. Hold the fabric pair, film, overlap, coupon dimensions, grain direction, and conditioning constant. Move one process variable at a time around the supplier’s guidance, then repeat the most promising condition. A published textile-bonding experiment used specific transfer and bonding settings for its own fabrics and equipment; those numbers show why conditions must be reported, not copied as a recipe for another plant.

1. Establish the center run — use the supplier’s recommended starting condition and record actual machine settings, stack-up, and sample orientation.
2. Challenge the edges — run a deliberately lower-energy and higher-energy condition while keeping the other inputs fixed.
3. Compare complete outcomes — check adhesion, fabric damage, strike-through, hand, dimensional change, and edge definition after cooling.
4. Repeat the candidate — reproduce the best condition on a new coupon and, ideally, another fabric roll before calling it a window.

The window is the region where the bond meets all requirements, not merely the setting with the highest apparent peel. Too little delivered energy may leave clean peel or edge lift. Too much can force adhesive through an open knit, flatten texture, create gloss, shrink the textile, or make the seam board-like. A useful production record therefore includes machine ID, operator, date, ambient condition, set values, verified measurements available at the line, stack-up, cooling method, and inspection result.

For broader chemistry context before a trial, see the TPU hot melt adhesive film overview. Final settings still need to be established on the actual construction.

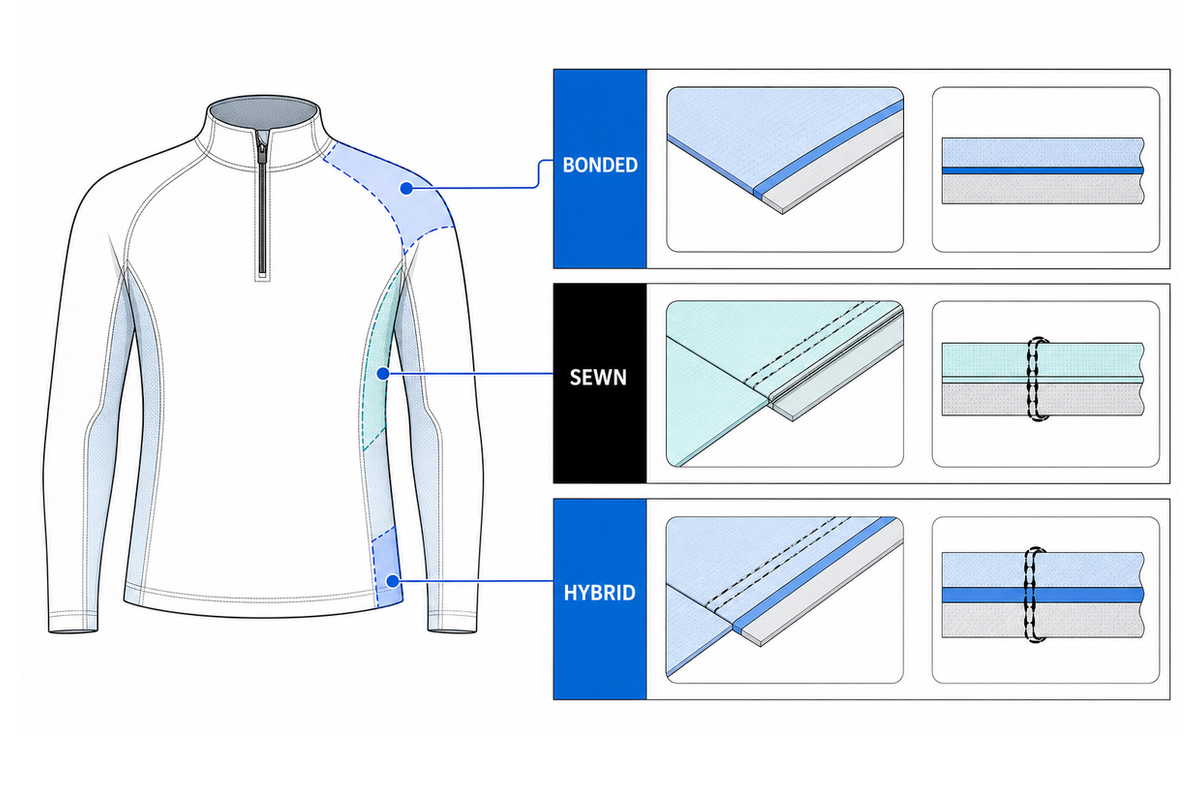

Bonded, Sewn, or Hybrid: Set the Construction Boundary

This bonding method should replace traditional stitching only where the joint’s load path and service conditions support it. Bonded-only edges can be valuable when a flat profile, controlled stretch, or clean appearance matters. Sewing remains practical where the seam carries concentrated load, must be opened for repair, or passes through variable thickness. Hybrid construction can use stitches for structural continuity and film for reinforcement, edge control, comfort, or local sealing.

Could bonding film one day replace stitching entirely?

Not across every garment or seam. Bonding can replace stitching in selected zones when the load is compatible with the bonded geometry and the complete duty cycle has been validated. Patent literature already shows zone-specific garments that combine hot-melt joining with folded fabric, dotted adhesive, optional lining, ultrasonic joining, or quilting. That is evidence of construction diversity, not proof of one universal no-sew architecture.

Use the seam construction bond blueprint to map load and geometry, or review adjacent garment accessories TPU film applications where the film’s role may be localized.

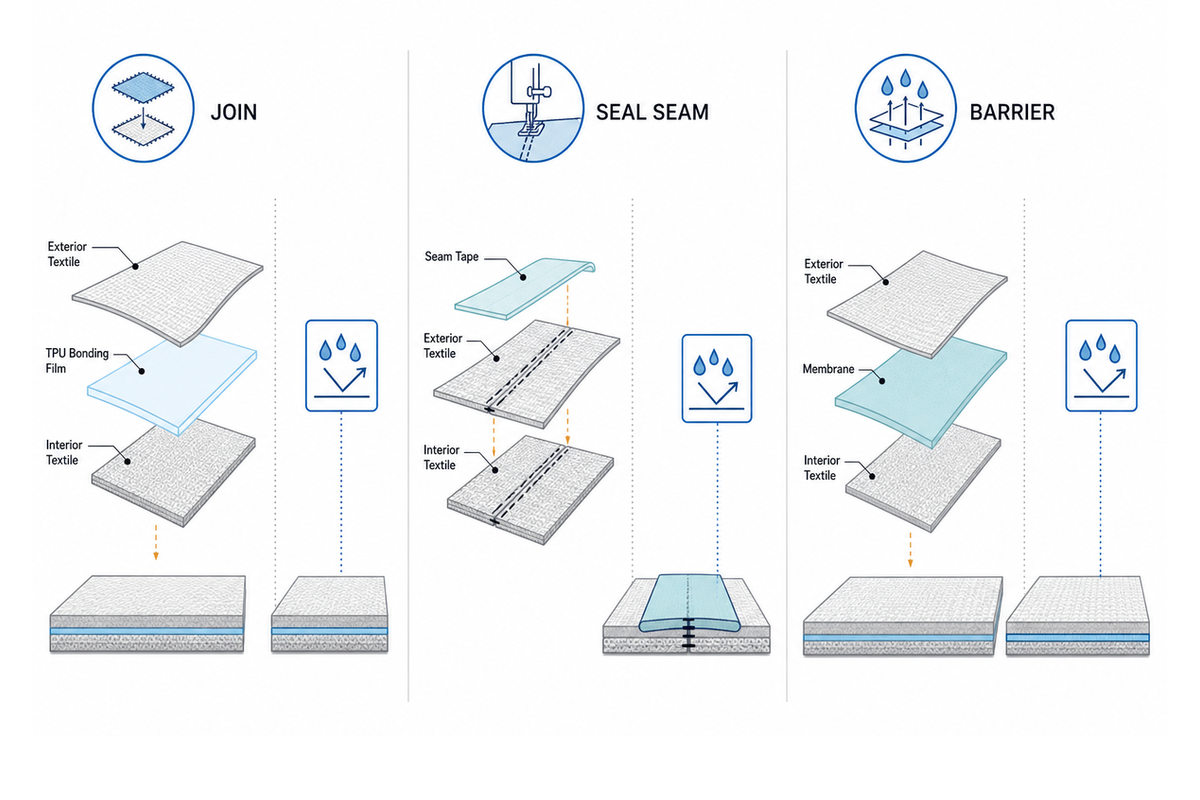

Bonding Film Is Not Automatically Waterproof Seam Tape

Structural bonding film joins textile surfaces. Seam-sealing tape covers or seals a seam path, often over needle holes. A breathable waterproof laminate combines layers whose liquid resistance and moisture-vapour behavior must be measured as a system. One TPU family may appear in more than one of these constructions, but that doesn’t make the functions interchangeable.

Is bonding film waterproof?

The film may resist water, and a properly designed bonded construction may improve leakage performance. Neither fact proves that a garment seam is waterproof. Overlap geometry, edge continuity, fabric coating, folds, stretch, and ageing can create leakage paths. Make a claim only after testing the finished construction against a defined method and acceptance criterion. A TPU membrane study likewise treats water resistance and moisture transmission as separate, formulation-specific performance questions.

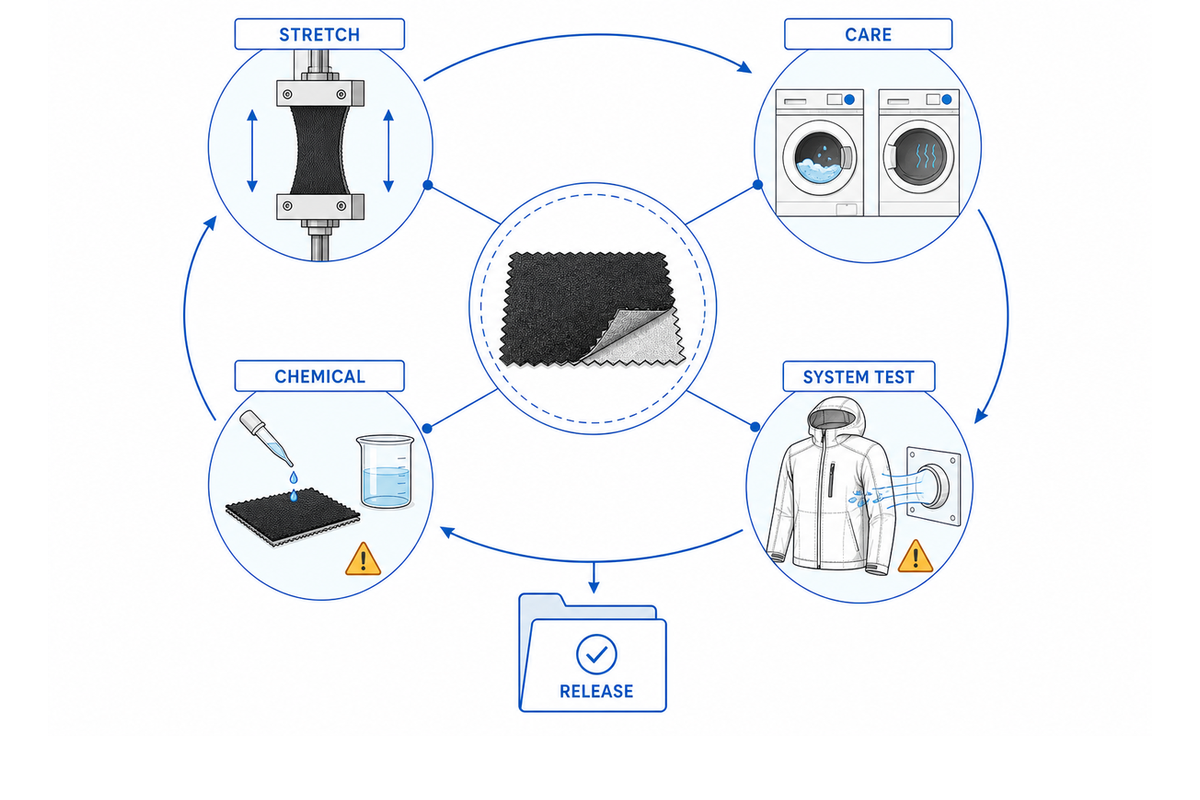

Test the Duty Cycle Before You Approve the Bond

An initial hand peel is a screening observation, not a bonding-strength result. Strong adhesion before conditioning can’t prove service life. Approval should reproduce flexing, multidirectional stretch and elasticity, sweat or chemicals, care, heat, humidity, skin contact, and appearance expectations. Define the sequence because wash resistance and adhesive strength can change after washing, hot storage, or repeated extension.

ASTM D903 is a comparative peel or stripping-strength method with defined specimen and test conditions; it does not supply a universal pass value for apparel seams. ISO 6330:2021 defines domestic washing and drying procedures, with each procedure representing one wash, but it also does not set your bond-strength limit. Use such methods to make conditions reproducible, then let the buyer define release criteria for the actual garment.

What wash temperatures can bonded garments withstand?

There is no responsible universal wash temperature for every TPU hot melt adhesive film and fabric pair. The answer depends on adhesive chemistry, film thickness, textile, finish, seam geometry, bonding window, detergent, mechanical action, drying, and the number of cycles. State the intended care label first, condition representative specimens to that procedure, and compare them with unwashed controls.

Destination-market checkpoint

Before release, add a compliance owner and target market to the qualification record. For U.S. wearing apparel, CPSC guidance describes the general flammability scope of 16 CFR Part 1610, limited exceptions, and separate standards that may apply to children’s sleepwear or vinyl plastic film. Whether a specific product or fabric is exempt from testing isn’t the same as declaring the garment outside the underlying requirement. This is a market-release checkpoint, not a TPU bonding-film performance standard or legal determination.

Also scope chemical requirements by contact level and market. OEKO-TEX® STANDARD 100, for example, uses product classes with stricter requirements for more intensive skin contact. Certification evidence addresses harmful-substance scope; it doesn’t prove seam durability, breathability, or waterproofness.

A sample has not passed because it stayed together once. It has passed only when a named construction survives a named duty cycle against a named release criterion.

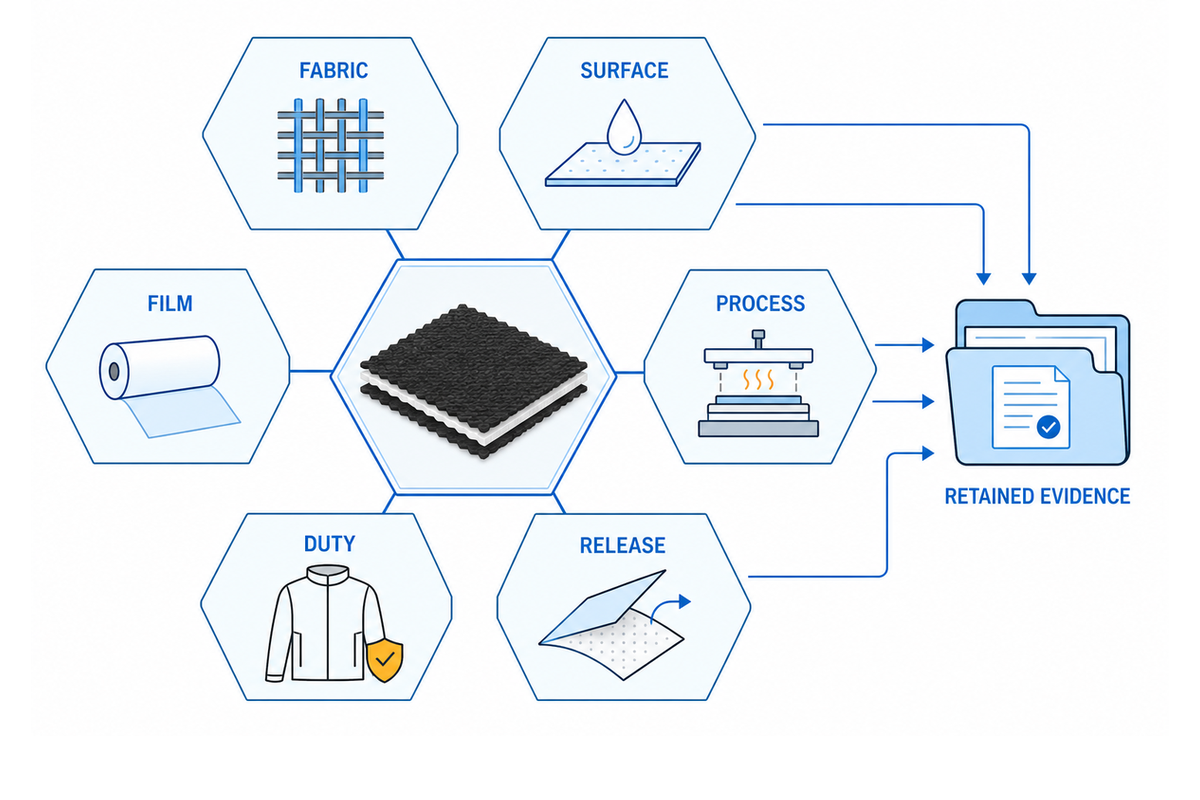

Use the 6-Cell Bond Qualification Canvas

The 6-Cell Bond Qualification Canvas is a one-page record that prevents a successful trial from turning into an unrepeatable memory. Complete it before a sample request, update it during trials, and attach the final version to production approval. The canvas does not predict a suitable grade; it makes the evidence needed for selection and reproduction explicit.

For an illustrative sports-bra edge, the pair might be a stretch knit and elastic tape, with the exact bonding faces photographed. The surface cell would record the fabric finish and whether pre-drying was used. The process cell would contain the three-run study rather than a single temperature. The duty-cycle cell would reproduce the proposed care label and extension direction. The release cell might reject visible edge lift, strike-through, gloss, or fabric rupture after conditioning while separately recording a buyer-defined peel result.

This canvas is deliberately portable. Record the exact test-method revision and any deviations, whether the team uses a comparative method such as ASTM D903 or a laundering procedure such as ISO 6330. When a colorway, mill lot, coating, press, or seam geometry changes, the team can see which cell changed and decide whether a targeted confirmation or full requalification is needed.

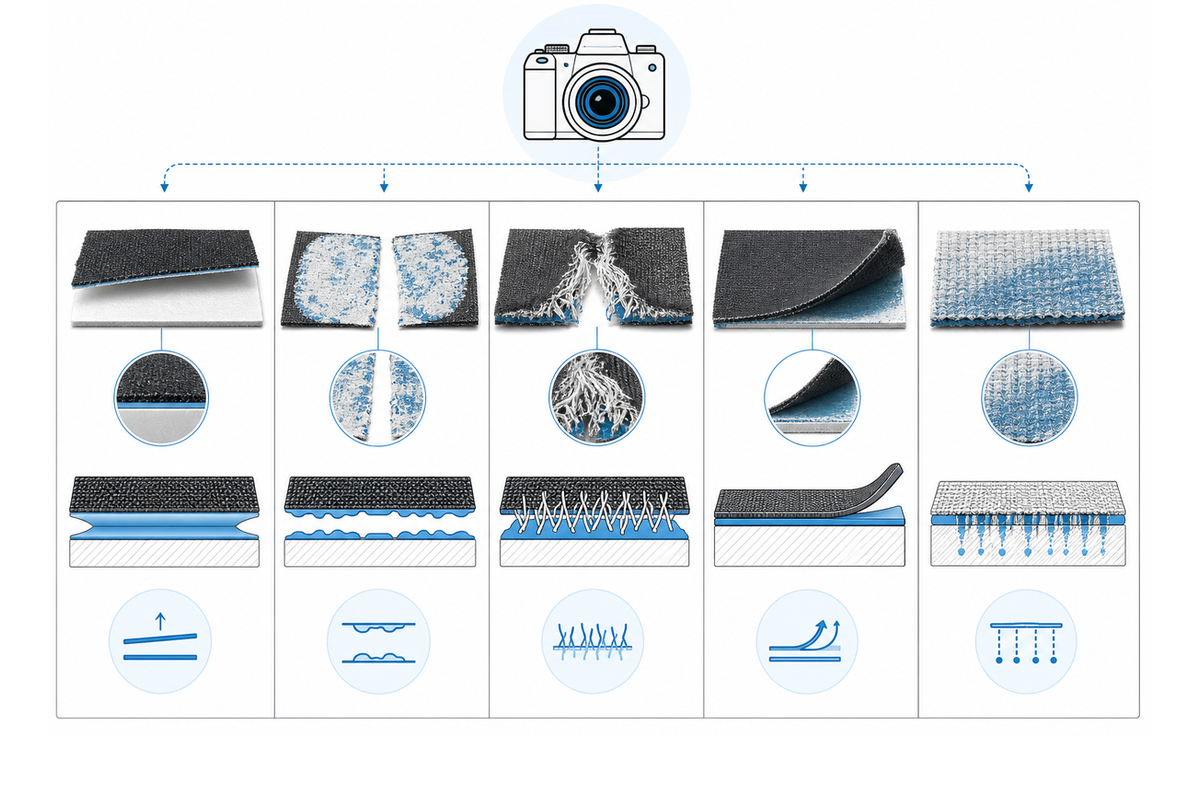

Diagnose Bond Failures by Symptom Before Changing the Film

Failure appearance is evidence. Clean separation at one interface, adhesive transfer to both sides, fabric tearing, edge-only lift, strike-through, cracking, and stiffness point toward different mechanisms. A 2025 review distinguishes adhesive, cohesive, and substrate failure and identifies surface preparation, pressure, contamination, ageing, and environment as influential variables.

A practitioner may describe a problem simply as “the waterproof fabric will not bond.” Treat that as a useful symptom prompt, not proof of cause. The diagnostic sequence should locate the failed interface, compare controls, and identify which cell in the qualification canvas changed.

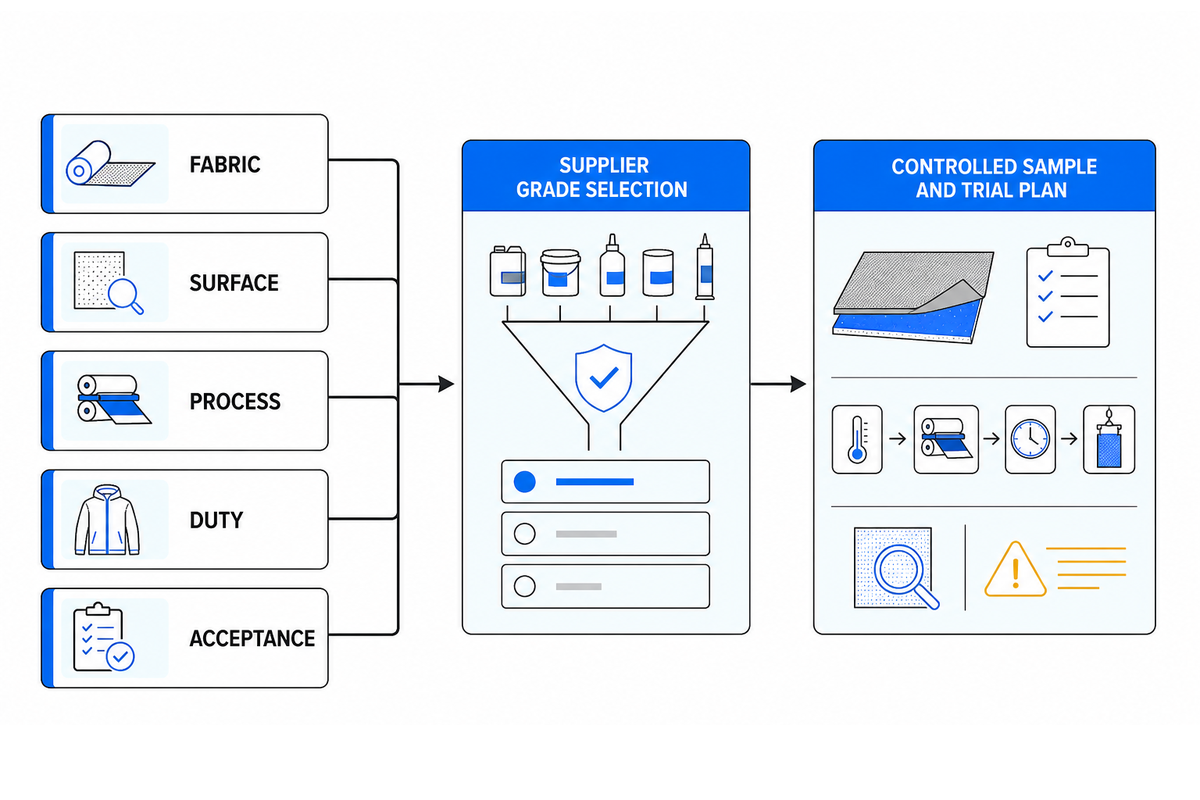

Hand the Evidence to the Grade-Selection Page

A supplier can make a more relevant garment-bonding recommendation when the request contains evidence instead of a keyword alone. Send the actual fabric pair, identify bonding faces and finishes, state the required seam function, attach the 6-Cell Canvas, and explain the intended care and market conditions. Include acceptable and unacceptable appearance, the machine type, film-roll format, and advanced bonding constraints for garment production in the garment industry.

Then evaluate Teng Yang apparel bonding TPU film grades against that brief. Product selection, sample matching, and commercial discussion belong on that solution page; the process guide remains the record for how the chosen construction will be qualified.

• Send both fabrics in production-representative lots and colors.
• Mark the intended bonding faces and stretch directions.
• State bonded-only, sewn-only, or hybrid construction.
• Specify the press, platen or roller configuration, and accessible parameters.
• Define wash, stretch, chemical, appearance, and market checkpoints.
• Ask the supplier to identify assumptions and trial boundaries.

FAQ: Frequently Asked Questions

References & Sources

Reviewed by the technical team at Shanghai Tengyang New Materials Technology Co., Ltd. This guide provides an engineering qualification framework; buyers remain responsible for product-specific testing, market requirements, and release decisions.
