TPU Film for Footwear: Selection and Testing Guide

Updated July 2026

Quick Specs to Collect Before Sampling

Film function	Bonding, waterproof membrane, reinforcement, decoration, or surface protection
Application stack	Both substrates, coatings, colors, thicknesses, stretch direction, and contact area
Production constraints	Available temperature, pressure, dwell-time control, cooling, and line speed
Use environment	Moisture, ultraviolet light, heat, low temperatures, chemicals, flexing, and abrasion
Approval evidence	Named test, specimen construction, conditioning, unit, failure mode, and buyer-defined limit

TPU film for footwear is a thin thermoplastic polyurethane layer used to bond a shoe upper, reinforce a high-stress zone, form a waterproof layer, carry a graphic, or protect a surface. Yet those jobs don’t share one ideal grade. Film that works on a smooth synthetic upper may behave differently on engineered mesh, coated leather, foam, or a flexible composite. Selection starts with the construction and the failure that the buyer needs to prevent.

TPU film for footwear should be selected by function, substrate stack, exposure, and a repeatable process window. Approve the exact grade only after mechanical and environmental tests on the production construction; a chemistry label, Shore hardness, or copied temperature isn’t enough.

Key Takeaways

A torn foam surface can mean the bond exceeded the substrate strength, not that the adhesive was weak.
Temperature, pressure, dwell time and cooling define the limits of one lamination window.
Generic shoe adhesion protocols don’t qualify incoming film-to-textile bonds.
Recycled-content evidence and grade-performance evidence answer different questions.

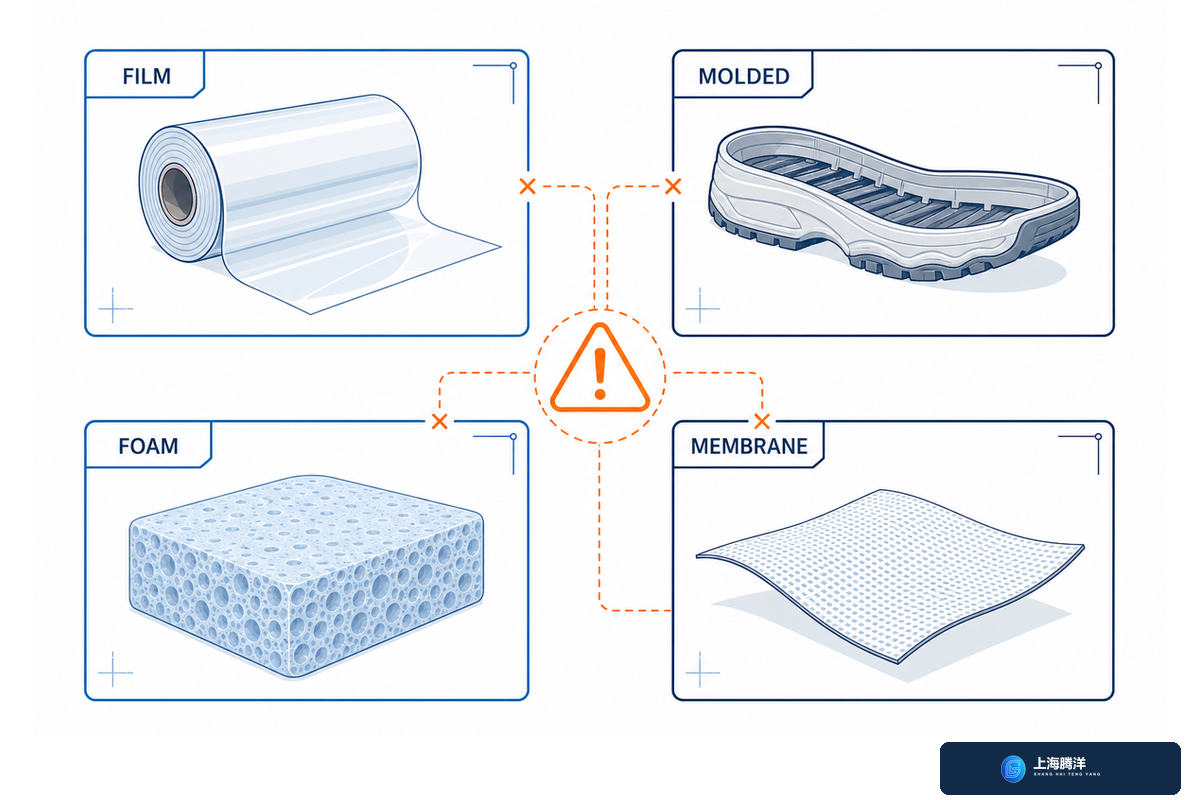

TPU Film, Molded Soles, Foam, and Membranes Are Not the Same Form

Thermoplastic polyurethane is a polymer family, while film is one material form within that family. TPU material may also appear as molded outsole parts, expanded foam, coatings, fibers, or adhesive layers. The abbreviation alone doesn’t identify the function, construction, chemistry, thickness, or approval test.

TPU is a thermoplastic elastomer processed by methods that include extrusion, injection molding, and even 3D printing. Those process names don’t prove that a grade suits a footwear film. Film customization requests should name thickness, surface, color, release liner, and any soft-touch requirement; “high-quality” alone isn’t a measurable specification.

In the footwear industry, material form matters to shoe manufacturers. Hot melt film is a film material used for bonding; foamed TPU and other foam materials serve different functions, while injection molded midsoles aren’t film. A grade sold for garment lamination or apparel isn’t automatically a TPU solution for footwear production. Changes to a copolymer’s chemical structure, hard segments, or urethane chemistry can alter behavior in composite materials, so approve the exact form and grade.

Specify the form

Hot melt adhesive film for bonding
Breathable TPU membrane for water management
Overlay film for decoration or protection
Reinforcement film for local stiffness or support

Do not substitute the label

Molded sole data for a thin film
Foam cushioning data for an adhesive layer
Membrane breathability data for a solid overlay
Shore hardness for a complete bond specification

Researchers in the controlled study used 30-40 µm TPU pressure-sensitive adhesive films and found that formulation and isocyanate-to-hydroxyl ratio changed phase behavior, probe tack, and 180-degree peel under the study conditions. Those thickness and test results are experimental context, not footwear targets. Measured adhesion belongs to a defined formulation and test setup.

Can TPU be used for shoes?

Yes. TPU can be used in shoe uppers, bonding layers, membranes, protective overlays, reinforcement parts, midsoles, and outsoles. The next question must be “in what form and for what job?” A sports shoe overlay and a molded safety-shoe component can both be TPU, yet they need different production processes and evidence.

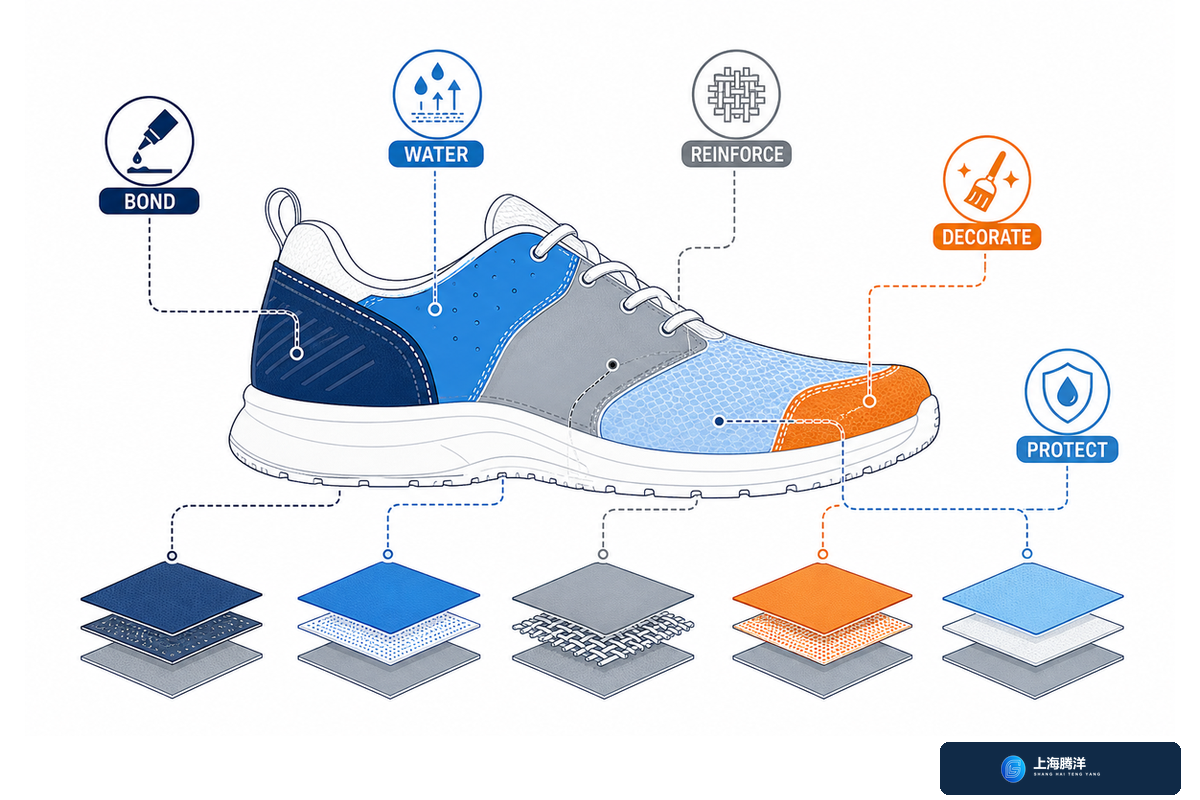

Choose the Film Function Before the Grade

A film for a footwear application is selected to bond, block water, release moisture, reinforce, decorate, or protect. Location isn’t enough. Two films in the same upper assembly may serve different functions, so each needs its own specification and test set covering thickness, elasticity, surface chemistry, and performance characteristics.

Function-first map for common footwear film decisions.
Film type, location, and function	Evidence to request	Wrong-choice symptom
Upper bonding or no-sew assembly	Actual substrate pair, process window, peel or separation test, flex ageing	Edge lift, strike-through, stiffness, or weak transfer
Waterproof and moisture-permeable membrane	Water resistance and moisture transmission on the finished laminate	Leakage, condensation, or reduced comfort
Toe, eye-stay, or local reinforcement	Flex, recovery, tear, appearance, and local stiffness	Cracking, distortion, pressure points, or poor shape retention
Lining-to-foam lamination	Soft touch, wash or moisture exposure, flex, and strike-through	Boardy feel, bubbles, migration, or local delamination
Seam sealing	Seam geometry, water resistance, flex, and edge continuity	Leak paths, lifting edges, or visible ridges
Insole or top-cover bonding	Compression, moisture, heat, odor-treatment compatibility, and peel	Curling, slip, wrinkling, or bond loss
Logo or graphic transfer	Color, edge definition, abrasion, flex, and surface compatibility	Cracking, blur, color shift, or partial transfer
Decorative or protective overlay	Color stability, abrasion resistance, surface adhesion, and appearance after flexing	Yellowing, scuffing, delamination, or print damage
Rand or sole-to-upper bonding layer	Interface test plus applicable finished-footwear separation and ageing control	Local separation, substrate tear, or ageing-related bond loss

In 2025, a TPU membrane study reported 31 kPa water-pressure resistance and 2,567.55 g/(m²·24 h) moisture permeability for its dense film, versus 19.98 kPa and 8,651.34 g/(m²·24 h) for its microporous construction. These values belong only to the studied formulations. Membrane selection should therefore test both properties. Teng Yang’s breathable TPU membrane page provides product context; its TPU hot melt adhesive film page covers a different function.

Match TPU Chemistry to Moisture, Ultraviolet Light, Flex, and Appearance

The application determines which film properties matter. Chemistry is an initial filter, not an approval. Narrow the candidate list by moisture, ultraviolet exposure, heat, cold, chemicals, flexing, color stability, and appearance; then test the supplier’s proposed grade on the actual footwear construction.

Supplier brochures may call a material advanced TPU, a leading TPU film, high-grade, high-performance, or a versatile material. Those labels don’t demonstrate excellent performance, excellent elasticity, high elasticity, heat resistance, chemical resistance, resistance to wear, UV light stability, or low weight. Even “advantages of TPU” is too broad until each claimed benefit becomes a grade-specific test with conditions and a buyer-defined limit.

Condition	Family to investigate	What still needs proof
Repeated wet or humid exposure	Ask whether a polyether-based or other hydrolysis-focused grade is available	Construction-specific ageing, adhesion, and property retention
Abrasion and oil or chemical contact	Investigate the supplier’s polyester or chemical-resistance grade family	The actual chemical, concentration, contact time, flex, and surface result
Light color or prolonged ultraviolet exposure	Investigate an aliphatic TPU film	Color shift, adhesion, flex, and appearance after the intended exposure
General bonding with a known substrate pair	Compare the supplier’s adhesive grades, including polyester TPU film where applicable	Activation window, wetting, failure surface, flex ageing, and finished-shoe feel

The 2025 footwear-material study changed a TPU formulation and then assessed tensile strength, elongation, hardness, wear, resilience, thermal behavior, and water uptake. It didn’t test a Teng Yang film. It does show why “same polymer family” isn’t performance equivalence: a formulation change calls for a new test program. Use Teng Yang’s TPU film grade-family overview to start the supplier conversation, then approve the quoted grade on evidence.

Which TPU is best for shoes?

No single TPU is best for every shoe. Flexible membranes, hot melt bonding films, and clear protective overlays solve different constraints. Choose by function and exposure first, then compare chemistry, thickness, hardness, surface, and process compatibility on the actual footwear construction.

Different footwear types place different demands on the wearer and the construction. Hiking boots and hiking shoes used in wet conditions or harsh environments don’t share one approval plan with safety shoes, sneakers, or skate footwear. The phrase “TPU film for sport” is too broad across these types of shoes. Claims that a film “enhances the comfort” or makes footwear “comfortable to wear” require assessment in the finished shoe.

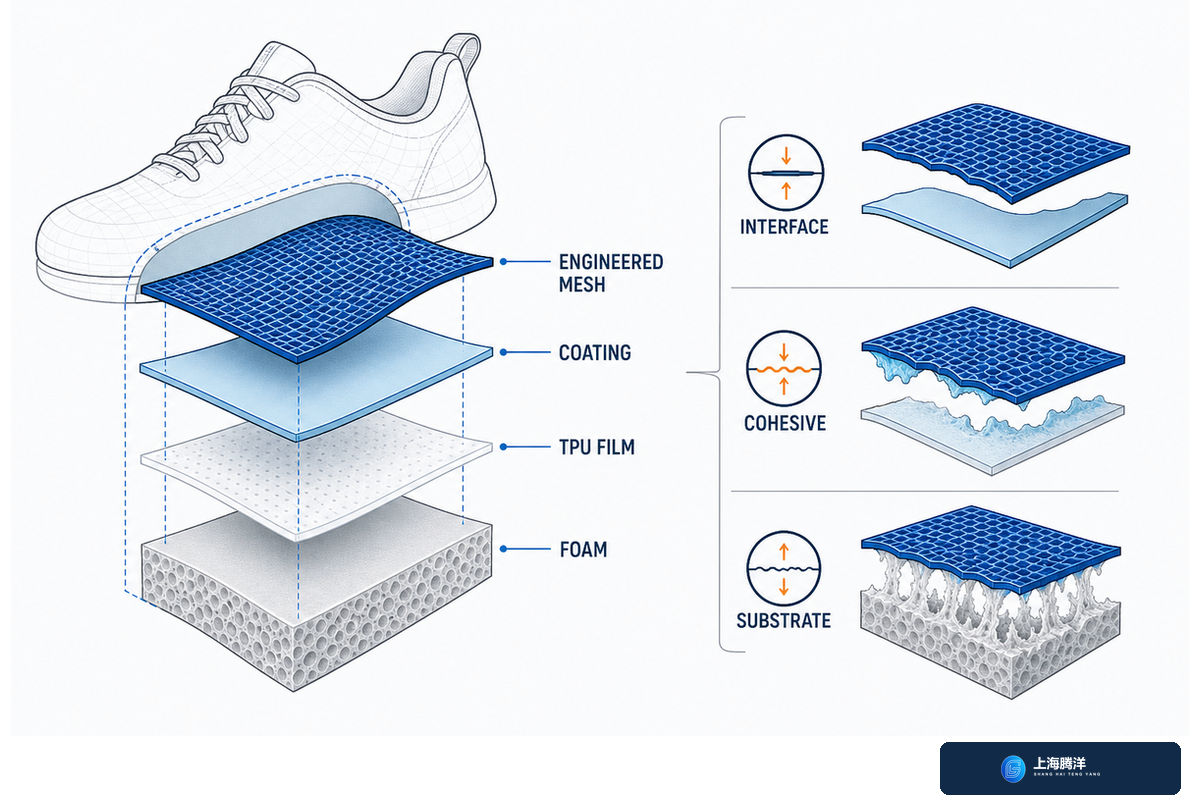

Substrate Surface and Stretch Change the Bonding Risk

The bond is a system of the film, two adherends, surface prep, geometry, load, and environment. Engineered mesh, knit upper, coated textile, leather finish, and foam can differ in porosity, surface energy, contamination, stretch, and internal strength. The same film can therefore create different failure modes.

The 2025 adhesion-failure review separates adhesive failure at an interface, cohesive failure inside the adhesive, and substrate failure inside an adherend. It lists humidity, aging, preparation, pressure, and contamination as variables. Inspect both sides of a failed part. Clean film can result from poor wetting or preparation; adhesive transferred to both parts indicates cohesive damage; torn foam or fibers point to the substrate.

Another laminate review indicates that joint strength also varies with adherend properties, geometry, preparation, environment, and loading. More adhesive layers don’t increase strength proportionally. This is relevant for footwear production because an extra layer may add stiffness or alter the load path without fixing contamination, weak foam, or incompatible coating.

Failure-surface check: a clean glue-line separation and a crumbling polyurethane foam surface need different corrective actions. Keep failed specimens, label the substrate batch and process setting, and photograph both sides before changing the film.

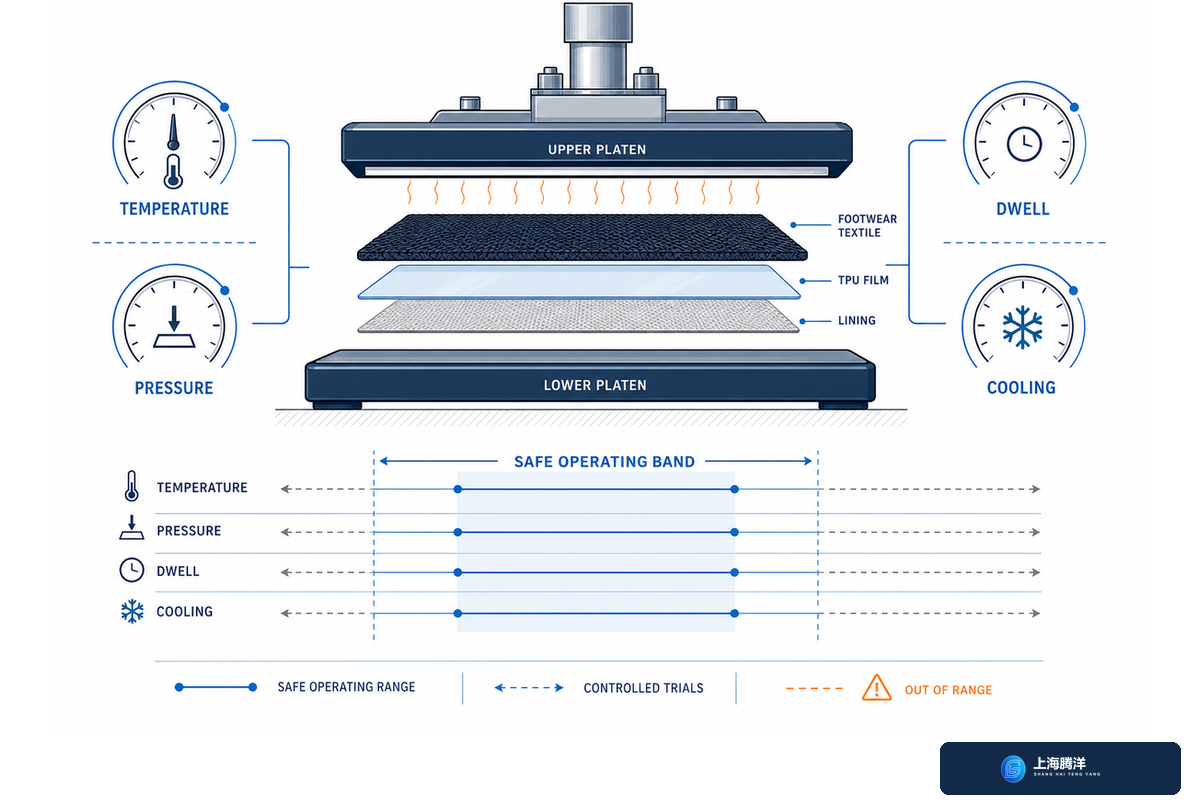

Build a Lamination Window, Not a Single Temperature

Each lamination setup has settings for temperature, pressure, dwell time, and cooling rate. Start near the supplier’s recommendation for the quoted grade, hold the substrate batch and stack constant, and vary one process parameter at a time. Log both the result and where the failure happened.

Controlled trial card

Condition and identify the real substrate batch, color, coating, and stack thickness.
Choose three settings around the supplier’s grade-specific starting point.
Hold pressure, dwell, cooling rate, and specimen size constant as one parameter is varied.
Measure using the listed method, then log the failure location (adhesive, cohesive, or substrate).
Repeat trials within the defined window before environmental ageing and production approval.

Low heat or short dwell may leave incomplete wetting. Excess heat or clamping pressure can cause strike-through, gloss change, distortion, or a stiff zone. Trapped air can create local bubbles even when the average bond looks acceptable. Cooling and cure time also matter because handling a joint too early can disturb it before strength develops.

Stop rule: Don’t reuse an activation temperature from another TPU adhesive, release liner, shoe upper, or machine. A supplier value is a starting point, not an approval certificate.

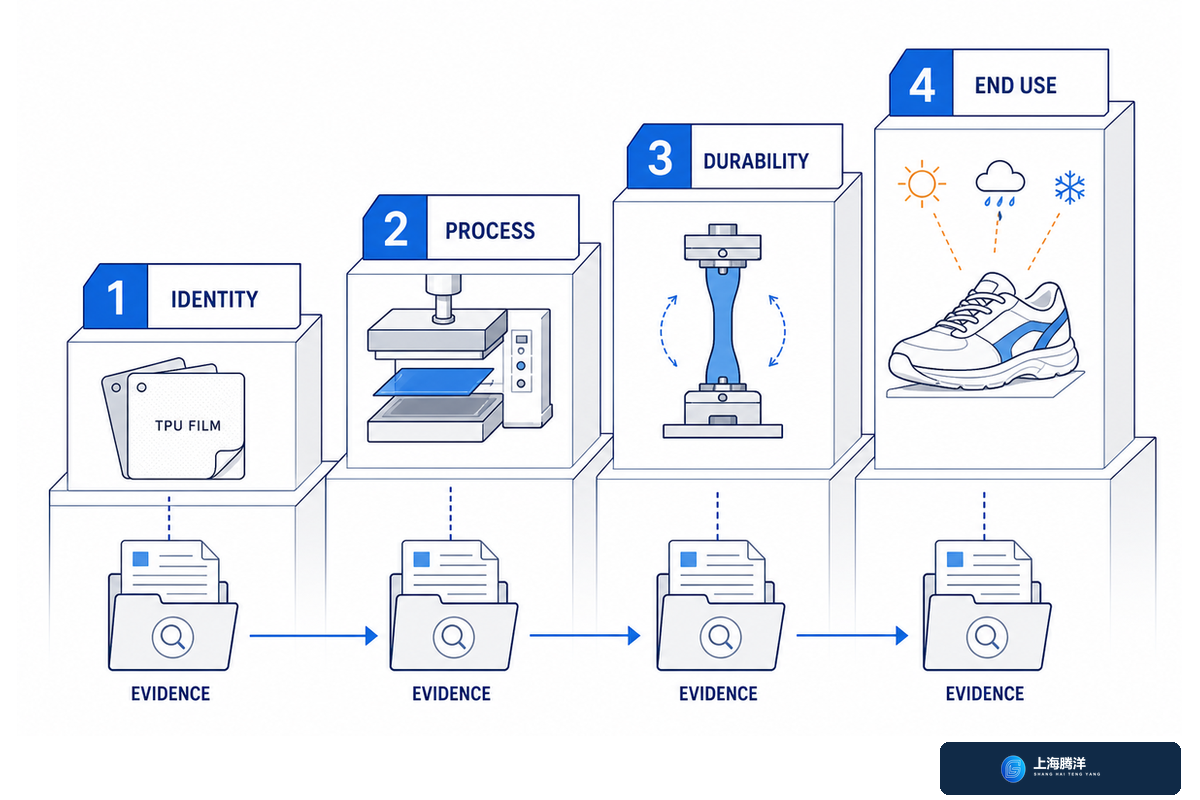

Use the 4-Gate Bond Approval Ladder

The 4-Gate Bond Approval Ladder begins with basic identity and moves through process approval, durability, and end-use approval. It uses four sequential gates: material identity, process repeatability, mechanical durability, and environmental ageing. A part can move up only when the prior gate has supporting evidence. Don’t advance a sample based on a supplier’s claim or a single good peel test.

Samples should advance only when the evidence remains traceable from material identity through repeatable processing, durability, and finished-footwear validation.

4-Gate Bond Approval Ladder, editorial decision rule

Gate	Evidence required	Hold or reject when
1. Identity and evidence	Function, grade, chemistry, thickness, liner, declaration set, restricted-substance evidence requested by the buyer, and substantiation for any recycled-content claim	Documents describe a family rather than the supplied grade, or a claim lacks an evidence owner
2. Repeatable processing	Buyer equipment and production constraints, supplier-proposed process window, repeated trials on the actual stack	The result depends on an uncontrolled setting, operator adjustment, or substituted substrate
3. Mechanical durability	Named method, specimen construction, conditioning, unit, result distribution, failure mode, and buyer-defined limit	Only a peak value is reported, conditions are missing, or failure moves into a weak substrate
4. End-use and ageing	Relevant moisture, heat, cold, ultraviolet light, chemical, flex, abrasion, and finished-footwear checks	Ageing changes the failure mode, appearance, comfort, or repeatability beyond the buyer’s limit

Test scope must stay visible. ISO 17708:2018 addresses upper-to-outsole separation or tear failure and includes ageing conditions for footwear production control. SATRA TM404, revised in January 2020, is a rapid toe- or heel-area sole-to-upper adhesion screen for completed footwear. Both can inform end-product control when applicable; neither automatically approves an incoming textile-to-film laminate. Confirm the current edition and buyer method before testing.

An SGS footwear quality-assurance interview illustrated a much wider range that included pre-order assessment, incoming material quality control, sample comparison, production run monitoring and finished inspection. This ladder of logic is just another way to visualize the concept: evidence must survive transitions from material sample to footwear manufacturing.

Is 90A TPU good for shoes?

90A hardness may be appropriate for a specific part, but it can’t approve TPU film for shoes by itself. Hardness doesn’t identify the function, chemistry, thickness, substrate pair, lamination window, flex response, or ageing performance. A molded support, adhesive layer, and protective film may carry similar hardness language while behaving differently in the finished shoe. Ask which Shore scale and method produced the value, whether it comes from the quoted film construction, and which other properties were measured.

Then test the exact grade on the production stack instead of treating 90A as a pass condition.

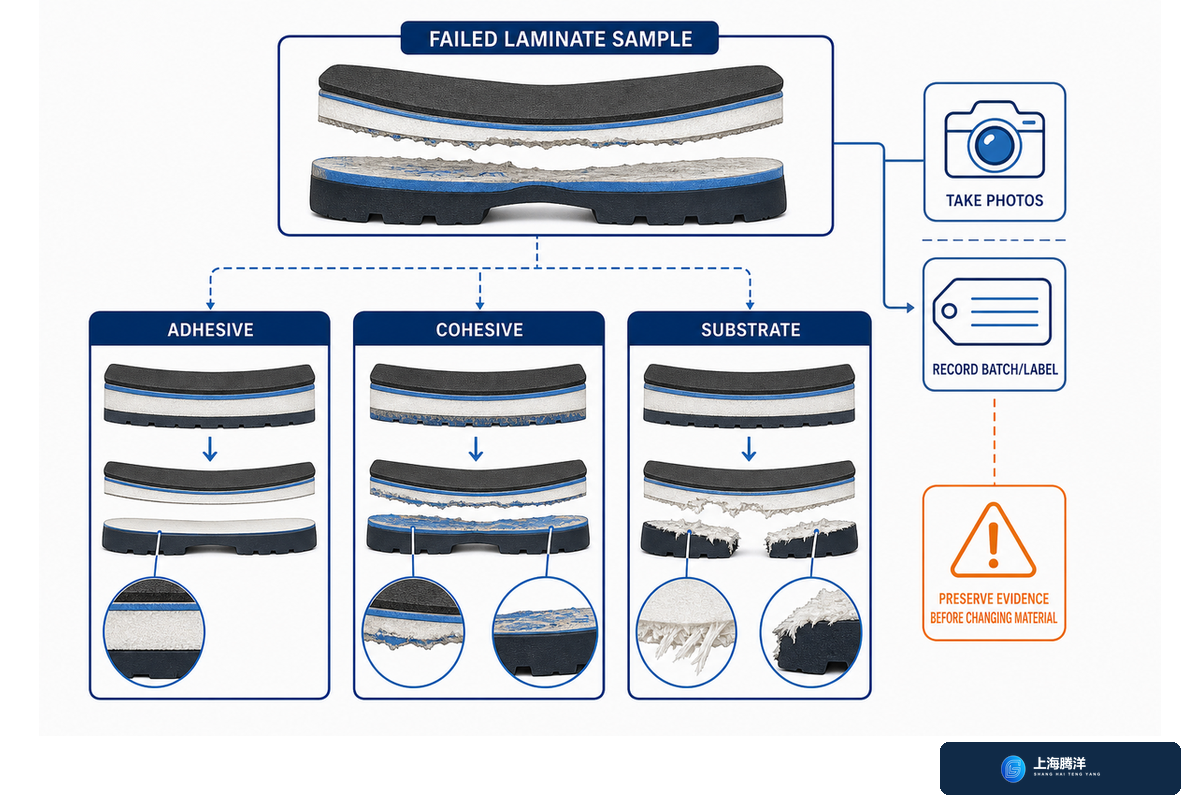

Diagnose the Failure Surface Before Changing the Film

Don’t replace the film until the failed surface shows where the joint broke. Classify the failure, compare it with the control specimen, and change one variable. This prevents a process or substrate problem from being hidden by a new raw material.

Observation	Likely question	Next controlled check
Clean separation at one interface	Was wetting, preparation, contamination, or activation insufficient?	Cleanliness control and one process-window variable
Adhesive remains on both sides	Did the adhesive fail internally after load or ageing?	Conditioning, thickness, cooling, and cohesive-strength evidence
Foam, coating, or fibers tear	Is the substrate now the weak link?	Adherend strength, coating attachment, and alternative construction
Bubbles or local unbonded areas	Was air trapped or pressure nonuniform?	Layup, venting, flatness, pressure map, and dwell consistency
Bond passes initially, then lifts after ageing	Did moisture, heat, ultraviolet light, chemicals, or flex change the joint?	Reproduce the relevant exposure and inspect the new failure mode

Results should be archived with the films used, substrate lot numbers, process conditions, sample-conditioning temperatures and environments, and photographs of observed failure modes. Without those records, “the film pulled off” is a description, not a diagnosis.

Storage history can also redirect the diagnosis. A shoe may look intact before an aged polyurethane midsole hardens or crumbles; later sole loss can then begin inside the substrate rather than at a clean adhesive interface.

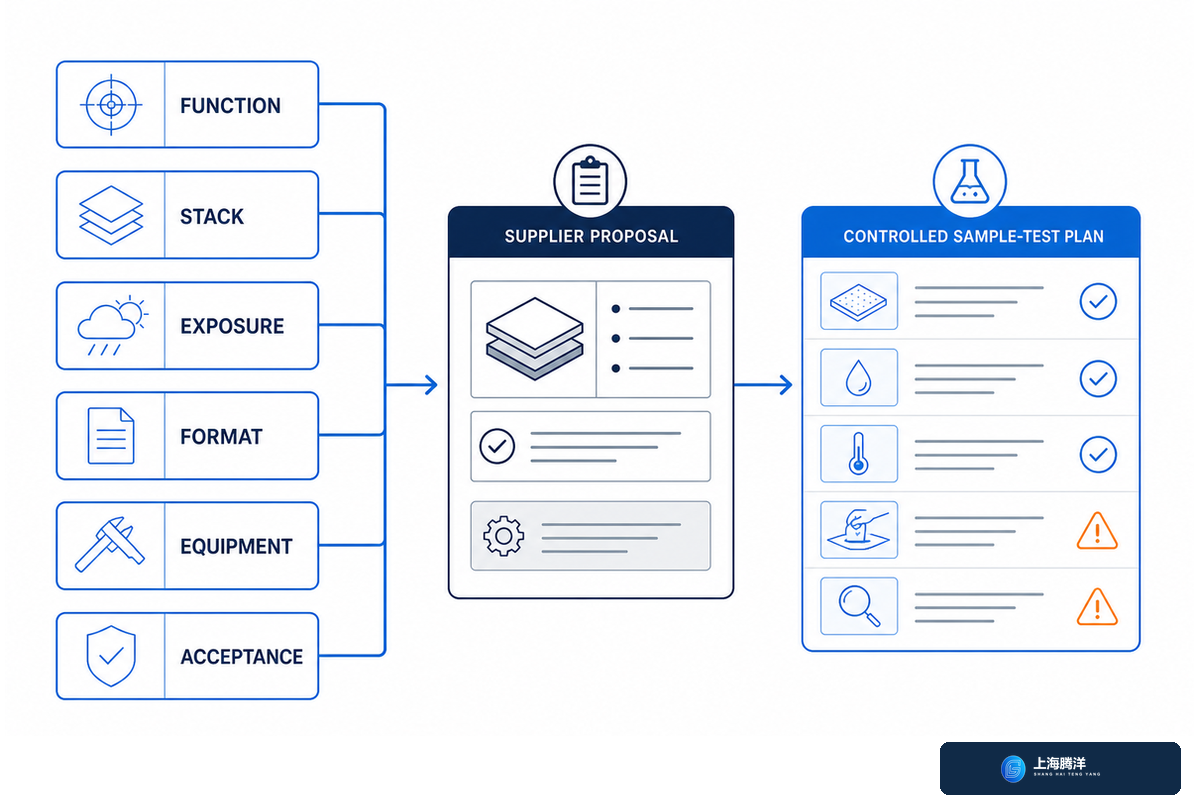

Put the Application Stack, Not Just TPU Film, in the RFQ

In footwear-film requests for quotation (RFQs), buyers should define the requirement or necessary end result, including relevant environmental conditions and application limits. Don’t imply knowledge of a specific product supplied by the manufacturer. Share the full stack architecture, intended use, preferred film form, limitations, acceptable evidence, evidence-retention requirements, and approval method. Ask the supplier to propose the appropriate film product and operating parameters for the defined goal.

Footwear TPU Film RFQ Checklist

Function and location: bond, membrane, reinforcement, decoration, or protection; identify the shoe component.
Application stack: both substrates, coatings, colors, thicknesses, contact area, stretch direction, and surface finish.
Exposure: moisture, heat, cold, ultraviolet light, chemicals, flex, abrasion, and expected service conditions.
Format: thickness target, width, roll length, release liner, color, surface, trial quantity, and packaging needs.
Buyer constraints: available equipment, controllable temperature and pressure, dwell range, cooling, and line-speed limits.
Supplier proposal: exact grade, technical data sheet, recommended starting window, storage, handling, change control, and sample identification.
Evidence: restricted-substance documents requested by the buyer, recycled-content substantiation where claimed, and chain-of-custody scope.
Acceptance: named method, specimen, conditioning, unit, failure classification, buyer-defined limit, and lot-release plan.

Why Price per Square Meter Can Mislead

The quoted unit price can be deceptively low if it doesn’t include usable yield, trim loss, rejected rolls, relamination, added testing, minimum-order commitments, start-up at a new supply partner, or operational interruption. Compare approved usable output, not raw purchased area.

When comparing bids, focus on the lowest achievable landed cost per approved usable surface area; then factor in qualifying and rework costs to determine true total cost. A lower priced option can cost more overall if the end product format produces more scrap or is too demanding for efficient manufacturing line operation.

The 2026 World Footwear report described operational nesting tests with 0.5-2% yield gains and lower raw-material waste. That’s a footwear-manufacturing example, not a forecast for TPU film. It supports one narrow purchasing point: yield can move converted cost, so the RFQ should collect roll format and usable-area data rather than compare price alone.

Once the stack and evidence fields are ready, review Teng Yang’s footwear hot-melt adhesive film options or request a footwear film sample with a testable brief.

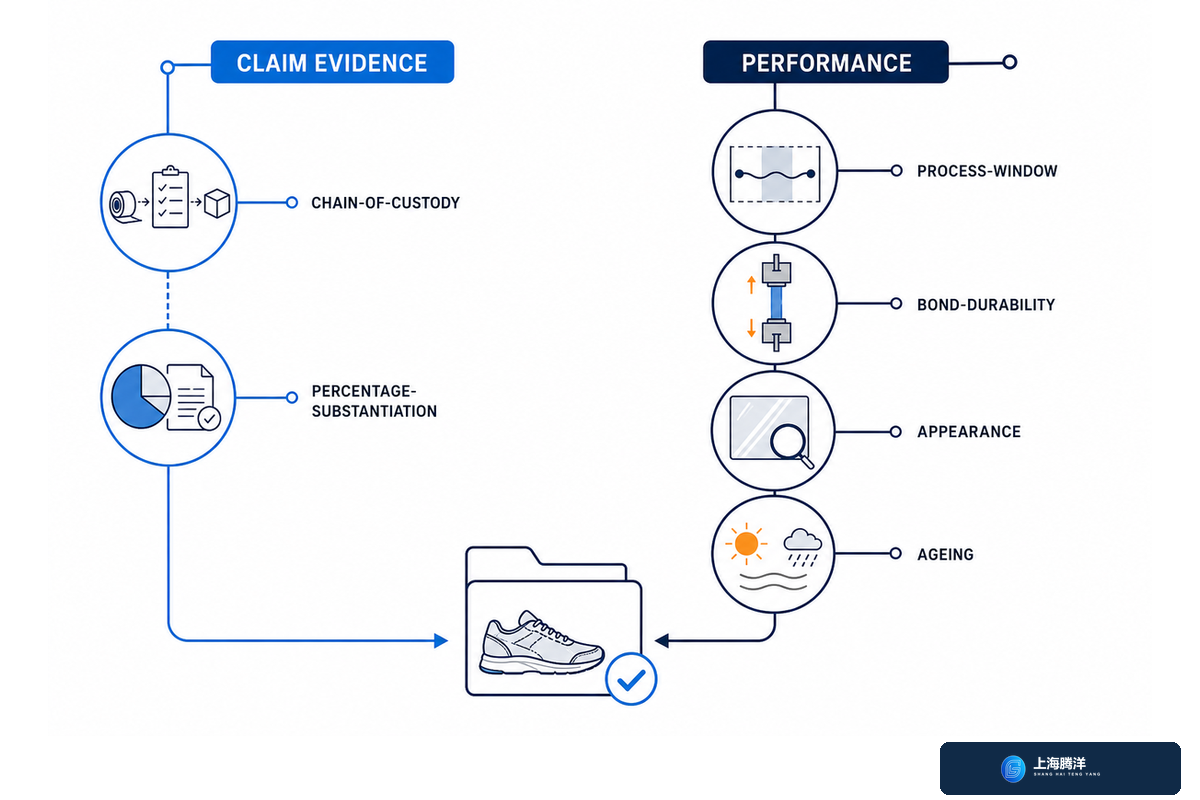

Recycled-Content Film Turns Sustainability into a Requalification Task

Recycled-content evidence and performance evidence should be reviewed separately. Chain-of-custody or content certification addresses the claim and material flow within its scope. It doesn’t prove that the quoted film keeps the same lamination window, bond durability, appearance, or ageing response in a footwear construction.

Each bio-based feedstock claim, mass-balance claim, circular economy program, circularity target, or carbon-footprint statement has a different evidence boundary. Terms such as eco-friendly or environmentally friendly still need a defined subject, measurement basis, scope, and evidence owner.

In December 2025, the Taiwan German Trade Office reported that a footwear collaboration’s first announced milestone would be GRS-certified TPU films. The announcement is evidence of the milestone, not finished-shoe durability. The separate 2025 footwear-material study discussed earlier shows why a changed formulation still needs tensile, elongation, hardness, wear, thermal, water, and application-specific checks.

For United States environmental marketing, 16 CFR 260.13 says recycled-content percentage claims need substantiation and partial-content claims should be clearly qualified. This isn’t global legal advice. It’s a useful RFQ discipline: identify which film or component carries the claim, the percentage and basis, the evidence owner, and the chain-of-custody scope. Then run the same grade-specific process and durability gates used for any material change.

Decision rule: approve the claim package and the footwear performance package as two linked records. Neither one substitutes for the other.

FAQ: TPU Film for Footwear

Can TPU film be used for shoe uppers?

Yes, after the function and construction are defined.

TPU film can bond, reinforce, decorate, protect, or manage water in a shoe upper. Approval must use the actual upper material, coating, thickness, stretch direction, process window, and durability conditions. A result on one textile or leather finish may not transfer to another. The supplier should identify the exact grade, while the buyer defines the construction and pass criteria.

Is TPU film better than rubber for shoes?

They usually perform different jobs.

Thin TPU film may provide bonding, reinforcement, decoration, protection, or a membrane function. Rubber is often selected for molded or sheet components such as an outsole. A film can reduce bulk in an upper assembly, while rubber may provide the thickness and ground-contact behavior required in a sole. Compare the same component and test conditions: exposure, weight, flex, abrasion, slip, appearance, and production process. Calling either material “better” before the job is fixed compares unlike forms and can send the trial toward the wrong failure mode.

Which TPU film is best for footwear?

There is no universal best grade.

Start with the film’s job, both substrates, moisture, ultraviolet exposure, color, flexing, and the available lamination equipment. Ask for a grade-specific data sheet and supplier starting window, then approve the candidate through repeatable mechanical and environmental tests. Keep the grade identity with every specimen so a passing result can’t be assigned to a different film family.

What does TPU stand for in shoes?

TPU means thermoplastic polyurethane.

In footwear, the term may refer to film, foam, coatings, adhesive layers, or molded parts. A complete specification also identifies the material form, function, grade, thickness, construction, and acceptance evidence.

What are the disadvantages of TPU in footwear?

The limitations depend on form, chemistry, and construction.

Some grades may not meet the required moisture, heat, ultraviolet, chemical, flex, or abrasion performance. Bonding film can create strike-through or stiffness, and a membrane can trade water resistance against moisture transmission. TPU also doesn’t make a multi-material shoe automatically recyclable.

Can thickness, width, and release paper be customized?

Many thickness, width, liner, and roll formats can be discussed, but availability remains specific to the selected grade, order quantity, production plan, and buyer requirements.

Send the function, substrate stack, thickness target, width, roll length, release-liner preference, equipment, and trial quantity. Confirm every item in the quotation and grade-specific technical data sheet before treating it as a production specification.

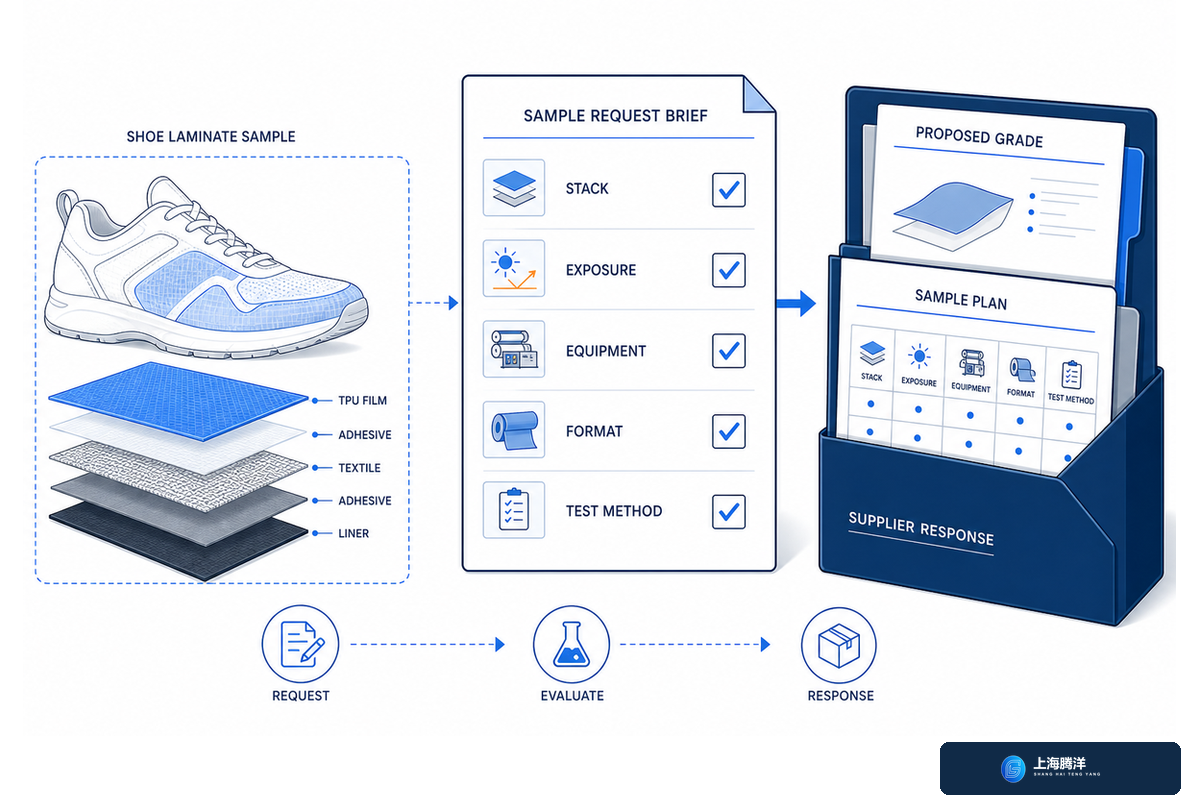

Prepare a Testable Footwear Film Request

Share the application stack, production constraints, exposure, format, and acceptance method so the supplier can recommend a grade and sample plan.
