DTF powder wash failure: Why Transfers Crack or Peel

DTF powder wash failure is a complex problem relating to powder coverage, cure, heat-press contact, material compatibility and the wash-and-dry procedure. Start with separating a cracked ink layer from adhesive lifting. Keep the failed garment and a retained sample: a photograph alone cannot tell you whether the powder lot, application process or laundering conditions caused the damage.

Diagnostic guides drawn from public technical sources inform the following. Trials shown below are hypothetical, not from reported factory tests.

A print can leave the platen looking clean and fail after washing. Common reasons DTF shops investigate include material mismatch and process drift. A reorder of powder immediately may also result in the same defect in production. Use the five checks presented below to choose the next trial, then qualify the replacement on the actual garment. DTF transfer includes film and ink as well as adhesive.

DTF peeling after washing: read the failure pattern

DTF peeling after washing indicates that part of the transfer has lifted from the garment. Cracking can occur within a layer that remains attached. Photograph both features, separately, before stretching or repressing the sample. Location and exposed fabric, as well as retained adhesive may help provide a partial, rather than complete causal diagnosis.

Why is my DTF print cracking after one wash?

A DTF print can crack after the first wash because the printed system cannot tolerate the particular garment stretch or laundering exposure. Powder cure and heat-press settings are possible contributors, but so are the fabric, layered print and drying conditions. Compare an unwashed retained print with the failed sample before changing the recipe or replacing a powder batch.

DTF prints crack or peel after washing under different possible failure paths. Cracking or peeling may also occur concurrently. A study of conductive elastomers printed on textiles distinguished material damage from poor attachment and varied detergent and washing load. Its process was three-dimensional printing, not DTF. The important diagnostic lesson learned is to document process conditions and end-point (including the type of detergent) of the wash; its numerical results won’t predict your transfer’s wash durability.

A complaint photograph does not establish that replacing the powder will fix the problem or that the supplier must accept responsibility.

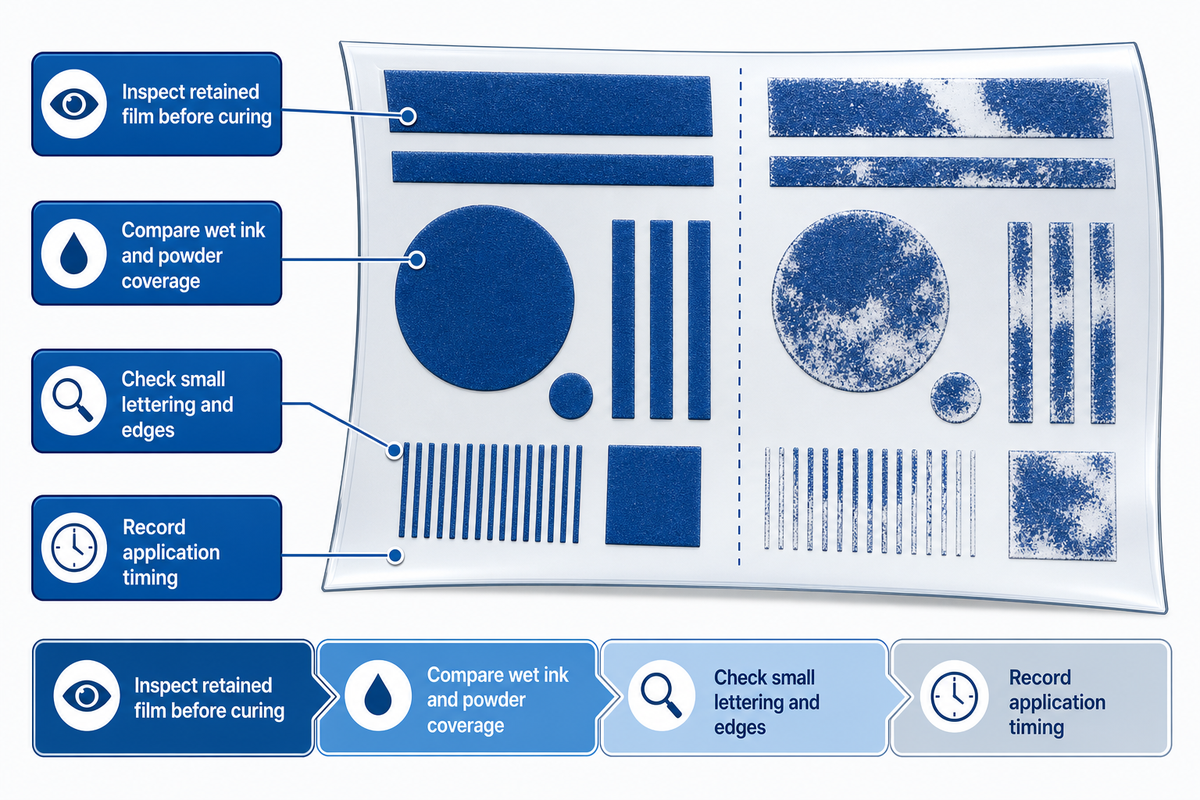

DTF powder not sticking: check wet-ink coverage

DTF powder not sticking should first be assessed on a retained printed film, before curing. Compare the wet-ink areas to the adhesive powder coverage. Carefully observe small lettering and edges. Other observed faults should be preserved. Treating every uneven powder layer as the same fault should be avoided.

Following the printer and material supplier’s wet-ink instructions, apply powder. Too little powder can leave discontinuous deposits; much powder can’t repair a bare area that never retained adhesive. Powder application timing, white underbase condition and storage history deserve separate mentions in the trial record. Compare texture visually without stating a precise melt state from whether the surface happens to look dull.

Inspect white underbase and other fine features using the same lighting with both films. Ask whether the delay between printing and powdering changed. Employ powder immediately only if the supported workflow specifies that timing; record the window of application. The basics of material and processes are covered in the DTF powder guide, and this check logs evidence of the failing run.

Illustrative production scenario: A shop gets a complaint about fine lettering lifting after washing. A broader artwork on the same garment remains attached. The operator wants to add more adhesive powder to the next run. Before changing anything, Quality Control compares retained films from the complaint batch and an earlier accepted batch under the same lighting condition. Both broad areas appear covered, but the complaint film has discontinuous coverage at the small letters. The team records the delay between printing and the powder, and the white ink condition, and follows the supported procedure for test prints. If the fine detail survives the agreed wash-and-dry check, then an investigation into an application process is warranted. It doesn’t, however, mean that all the bags in the powdered lot are acceptable.

Purchase decision: Request a replacement sample when the lot remains suspect after a matched application check. A new powder creates another variable; changing film or powder before retaining the evidence makes the complaint harder to reproduce. Check the powder particle-size specification against the actual supplied grade.

Coverage check to retain: Teng Yang publishes White Fine at 0-80 µm and White Medium at 80-200 µm. Those are product-specific bands, not proof that either deposit is continuous on your printed film. Pair the grade identity with photos of retained edges before changing the powder quantity or attributing a complaint to a lot.

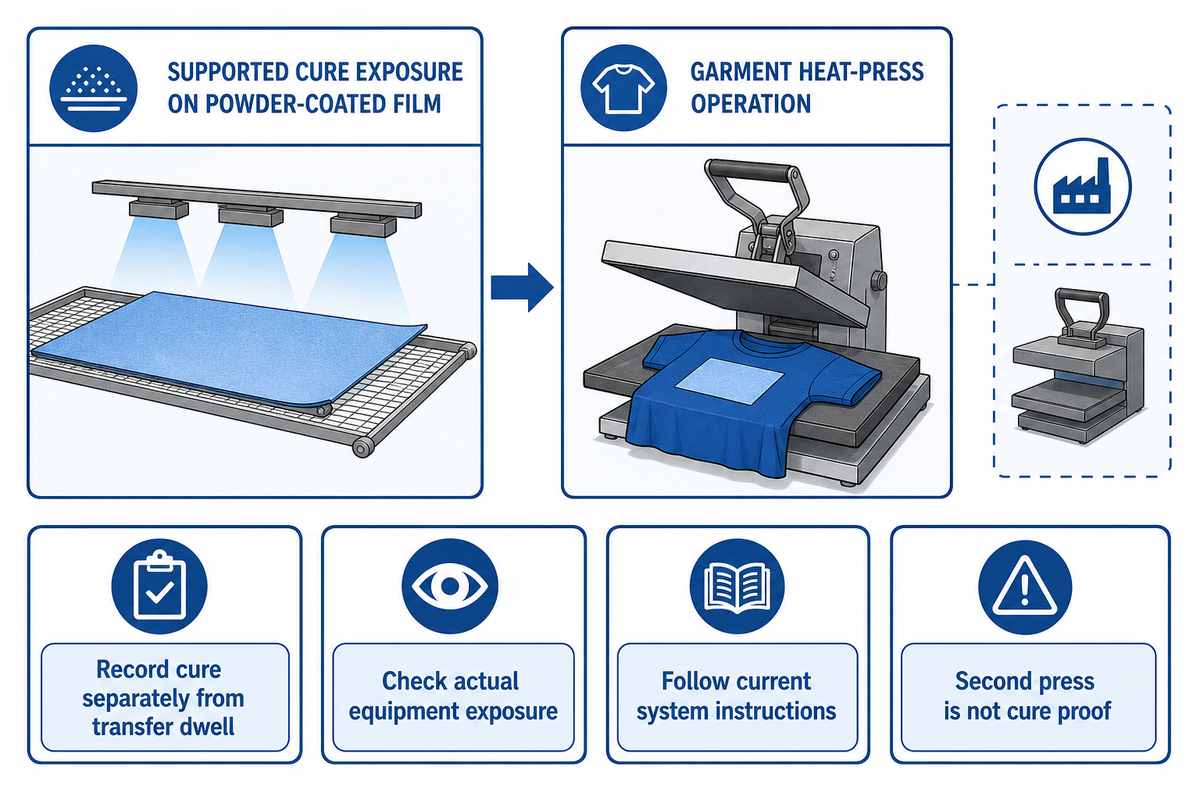

DTF powder cure: separate curing from transfer pressing

DTF powder cure and garment transfer pressing describe different process stages. Record how the powder-coated film is given its curing exposure, then note the heat and pressure used to bond to the fabric. A supplier-required second press belongs to that supplier’s workflow; it doesn’t independently verify the earlier cure.

Can under-curing look normal before washing?

An under-cured transfer can look acceptable before washing, so the appearance of the film can’t confirm a complete cure. Inspect the actual exposure of the film versus the current powder-and-film instructions and evaluate fresh samples with a defined wash-and-dry procedure. A shiny surface, clean peel, or a dry stretch check isn’t a substitute for the verification described above.

Use a record that separates the settings of the oven and press, belt speed, loading, and any approved press-based curing procedure from garment press dwell. More heat may soften one part of the system, while scorch, discolouration or a brittle layer that cracks warrants a system check. For recipe tuning, use the DTF powder curing temperature troubleshooting page.

A 2026 textile-design research chapter describes an oven stage and subsequent garment pressing, but evaluates feasibility rather than long-term material stability. It doesn’t establish that a separate oven is mandatory for every DTF transfer system. Follow the approved apparatus and sequence, including any finishing press, rather than using another publication’s recipe.

Recipe boundary: If a buyer requests a universal cure time, request the specific grade, ink load and equipment first. No matched commercial DTF experiments in this research confirmed that repressing reliably repairs an initially under-cured bond.

Separate the records: The research chapter reports a 100°C, 1-minute, oven step in its particular cotton-bag workflow. That number refers to the authors’ apparatus, not to a validated setting for your line. Keep curing exposure and transfer pressing in separate fields and qualify the resulting garment before treating either setting as valid.

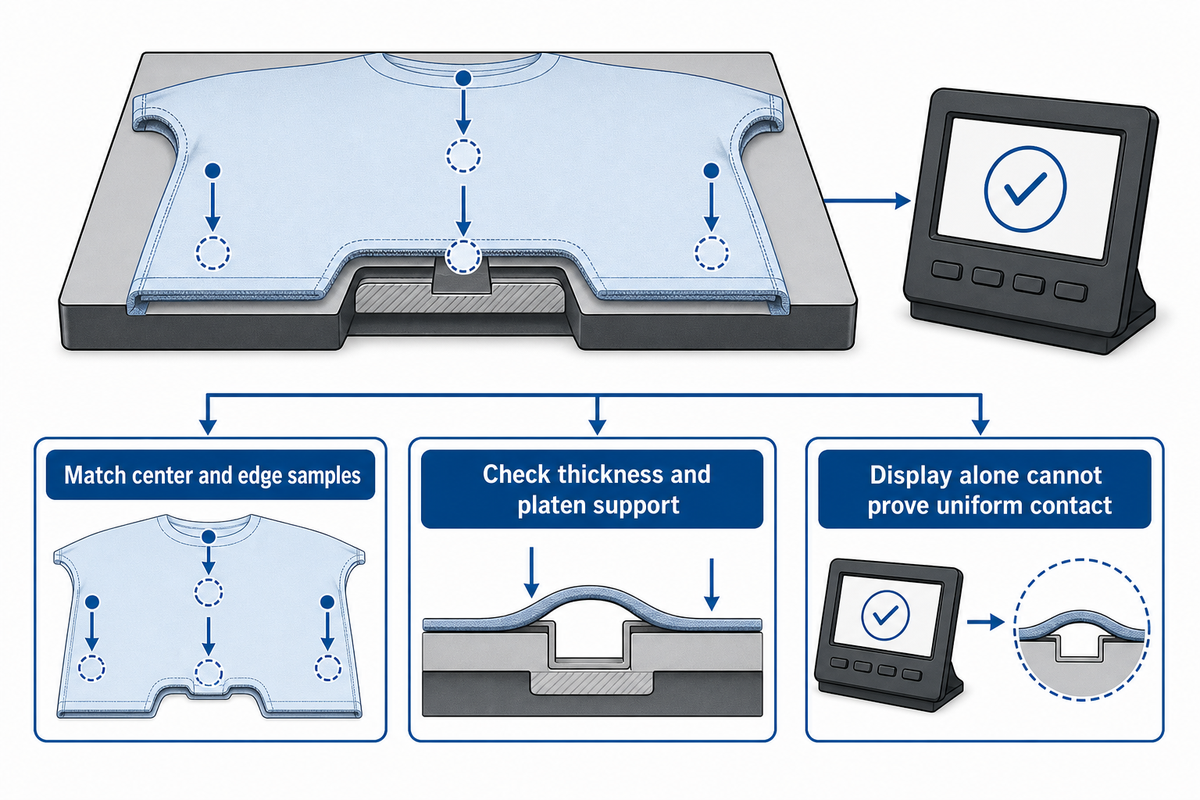

DTF transfer heat press: check the platen before the lot

DTF transfer heat press requires location-specific checks when damage appears unevenly across the artwork or follows seams. Compare matching samples at the center and edges of the platen using the equipment maker’s measurement procedure. Temperature and contact conditions must be reported together; a controller display alone can’t prove uniform heat or pressure during application.

Check garment thickness and platen support before changing a lot. Low pressure at one location is a hypothesis to test, not a number to infer from the handle position. Record the model of the pressing unit, the contact arrangement, and the measurement method along with the displayed setting. A suitable thermometer, or other approved sensor, must measure the quantity the equipment maker specifies.

Graphics Pro’s interview with Tim Check of Epson provides a material-specific calibration principle.

“Time, temperature, and pressure should be carefully calibrated based on the fabric and transfer type”

The speaker’s equipment affiliation is important. This is published process guidance, not an independent trial of Teng Yang powder. Position matched comparisons can be made to investigate heat press settings, but there’s no universal pressure display value for every machine. The complaint description, “Temperature or pressure”, is too general; both conditions and the instrument used must be described.

Quality control scenario: An order of hoodies shows lifting near a pocket seam. Transfers on flat panels from the same batch pass the check. Procurement suggests rejecting the powder. The quality lead retains both samples, maps the lifting to the platen position, and sends both samples to production. Production makes matched trials on flat areas and over the original garment geometry, without changing the ink, film or powder. The defect repeats at the seam. The team contacts the press manufacturer for support and sets up a new, supported position. A revised, supported setup must pass the same laundering procedure before release. Evidence suggests the issue is with the equipment; it doesn’t justify declaring the powder “good” or setting a new press value.

Press values need context: Teng Yang publicly provides cotton guidance of 150°C for 15 seconds for a fine-powder combination. Posting “150°C, 15 seconds” with no garment geometry, film grade, and press contact leaves the complaint incomplete. Don’t assume that setting the press value establishes the bond everywhere. Compare matching locations across the platen instead.

TPU powder: match the fabric, film and ink

TPU powder must be qualified with the actual fabric, film, and ink used in production. Approval on cotton can’t automatically release a polyester, nylon or stretch-blend order. Keep the same material versions together, and request the same grade sheet; same broad polymer name doesn’t establish same processing and wash performance.

Why does DTF fail on polyester or blends but work on cotton?

Polyester and blends may reveal a discrepancy that’s hidden in the accepted cotton sample. Fabric stretch, surface construction, dye behavior, and the supplier’s supported temperature window may vary. Compare the failing garment to a matching unwashed control and qualify the complete transfer system for that SKU rather than applying a cotton-only approval to all fabrics.

The response to water is also influenced by formulation. A 2026 university study of polyester/polyether TPU textile bonds focused on composition and water immersion. Its public abstract concerns textile bonding for other applications, and not commercial DTF laundry. Speak with the supplier about the intended application and formulation, as well as test conditions. Don’t interpret the results of water immersion as a guarantee of a wash count.

The Teng Yang DTF powder product page is the sole source for this information. These published starting points aren’t lot tested results, universal cure recipes or independent performance verification. Cross-check them against the latest technical data sheet prior to a process trial. Supplier approval must cover your intended usage conditions of garment and care.

Keep DTF film and powder versions together

Follow the film instructions for hot peel or cold peel. Removing the carrier film at the wrong time may affect fine details. Using the wrong peel introduces another variable. A film designed for hot release shouldn’t be interchanged with cold peel stock. Inspect what the film leaves behind and retain a version identifier for each roll.

Use the DTF film and powder compatibility checks for the full matching procedure. Procurement should request the powder safety data sheet, technical data sheet and certificate of analysis for their individual purposes. A safety document doesn’t establish adhesion after laundering.

Qualify the garment SKU: Teng Yang lists 130°C for 12 seconds for its black medium low-melt powder and cold-peel dark-polyester example, compared with 150°C for 15 seconds for its white fine standard-melt cotton example. The contrast demonstrates different published system instructions. It doesn’t prove which powder is better or release an untested polyester garment.

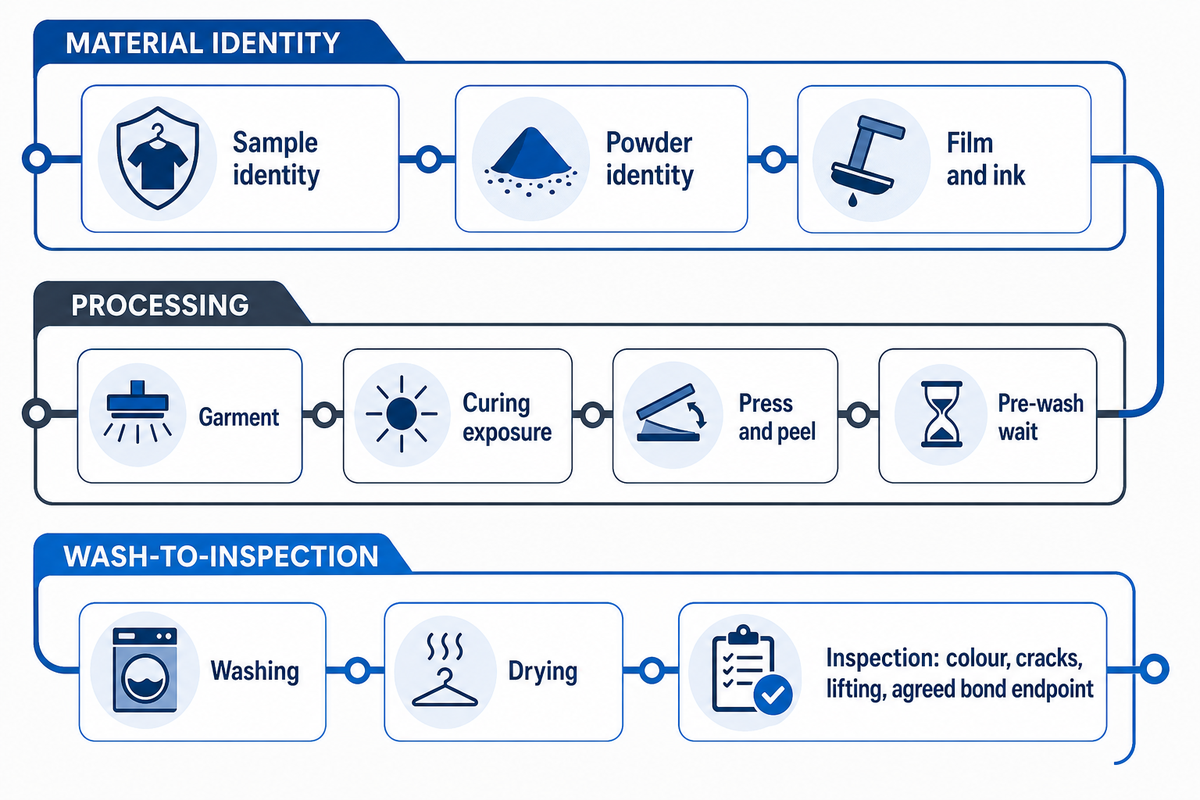

DTF wash test: define a repeatable wash-and-dry check

A DTF wash test involves a recorded washing and drying procedure with a defined endpoint. Compare colour change, cracking and adhesive lifting separately on matched garments. Acceptance criteria should be defined a priori, as an unqualified wash count leaves too many uncontrolled variables (e.g. water temperature, type of detergent, mechanical load, and drying exposure) and it can’t be concluded that a replacement lot is equivalent.

ISO 6330:2021 describes domestic washing and drying procedures for textile testing. Its public scope makes the drying step explicit:

“A complete test consists of a washing and drying procedure.”

The standard doesn’t define a universal DTF pass/fail level. An accelerated laundering colourfastness method, AATCC TM61-2013e(2020)e2, is available. Its public abstract roughly states a 45-minute test approximates color loss and surface changes caused by five launderings. That comparison doesn’t confirm five launderings represent residual bond strength and/or a lifetime guarantee.

Colorfastness, visual attachment, and/or functional readability address different queries. A 2026 DTF textile-printing paper reports QR-code scanning after five wash cycles on specified fabrics. Continued scanning is its functional endpoint; it can’t be substituted for a peel-strength measurement or a commercial 50-wash promise.

When a laboratory bond-strength test is needed

Qualified laboratory assessments should be requested when residual adhesion, a warranty or disputed responsibility is the case. The public scope of ASTM D2724-19(2025)e1 includes the bond strength of bonded, fused and laminated apparel fabrics, before or after laundering. A laboratory must evaluate whether that method is applicable to the DTF graphic and substrate, define specimen geometry, and agree upon acceptance criteria. The public scope alone does not prove applicability to all small or discontinuous print, and this guide does not reproduce the paid method.

Care boundary: wash garments inside out only where compatible with garment and transfer instructions. Keeping garments inside out doesn’t repair an existing weak bond. If washing exposes weak attachment, the sample should be preserved prior to repressing. Washing too soon, an altered detergent or unrecorded dryer exposure, won’t be assumed to be customer fault, unless proven otherwise. A request to certify “50 washes” should disclose the entire procedure and failure criteria prior to quoting a price or providing a replacement.

Count the right endpoint: AATCC TM61’s public summary uses a 45-minute accelerated colourfastness exposure as an approximation of five typical launderings. It can’t evaluate adhesive service life and doesn’t replace a specified washing and drying procedure for the actual garment of the buyer.

Compare powder lots before approving replacement

The comparison outlines the process for checking powder lot and process outcomes. Match the garment, artwork, ink, film and wash-and-dry procedure across groups. Retain lot identity; a single apparent pass or fail is a screening result, not a proven allocation of cause or liability.

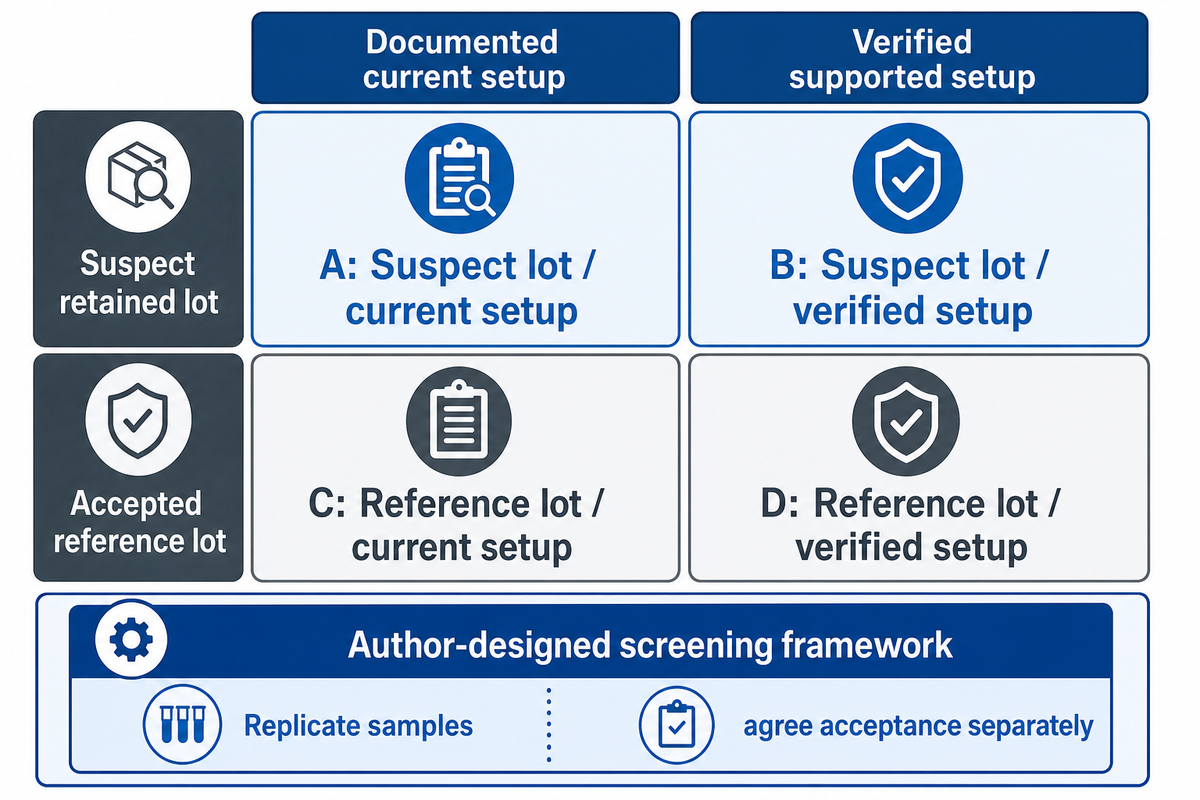

2×2 Powder-and-Process Matrix

The 2×2 Powder-and-Process Matrix compares two powder lots under two documented process conditions to guide the next diagnostic trial.

This is an author-designed screening framework based upon NIST’s two-level factorial design example. It isn’t a NIST-validated DTF test, nor an industry acceptance standard. “Current process” means the recorded complaint condition; don’t intentionally run an unsafe or unsupported condition. “Verified process” means a checked supplier-supported recipe for the appropriate grade, not the same temperature imposed on incompatible materials.

If both lots improve under the verified setup, investigate the process change. If the suspect lot consistently differs from the reference under matched supported conditions, investigate the suspect lot and obtain the agreed measurement evidence. A mixed pattern suggests an interaction or an uncontrolled variable. If the control fails, check the trial before interpreting the suspect lot. Randomize run order if possible, and use replicated samples and compare matching platen positions; four groups don’t mean four garments are a sufficient sample size.

How should you validate DTF ink, film, and powder?

Validate DTF ink, film, and powder as a version-controlled system on the intended garment. Start with retained reference materials, a supported process recipe and agreed wash-and-dry conditions. Change one diagnostic factor at a time, record the result and repeat the comparison. Release production against defined acceptance criteria rather than a clean-looking transfer immediately after pressing.

Production supplies the recipe and geometry records; quality control owns sample identity and the end point; procurement obtains the lot documentation and agreed replacement conditions. The DTF materials incoming inspection checklist supports the handoff.

When not to buy replacement powder yet

Hold an immediate bulk replacement when the complaint can’t be reproduced, the reference control also fails or the trial changes several materials concurrently. Buying a new lot in these situations may consume production time and provide no benefit. Additionally, it may remove the comparison procurement needs to discuss the claim. In these circumstances, keep the failed garment, the film and the opened bag history.

A supplier’s current recipe is a necessary starting point, but it does not establish delivered-lot wash durability. A product band such as 80–200 µm describes the published particle-size category, not the residual bond after laundering. The residual bond strength after the washing process should be evaluated as well. Ask the supplier for a sample of the proposed replacement grade and qualify it as per the order’s garment SKU, with the supporting drying procedure. The supplier can also suggest a different film or ink. Record that as a system change, and evaluate it separately.

For a warranty release or a disputed adhesion claim, use a relevant laboratory endpoint and the contractual acceptance criteria. The DTF powder selection guide helps compare material options following the analysis; it isn’t a substitute for retained samples.

Illustrative procurement scenario: A buyer has a suspect powder bag and retained reference material for an accepted cotton order. The team labels four comparison groups and fixes film, ink and the wash-and-dry procedure. In the first screen, both lots exhibited lifting for the reported complaint setup; neither showed lifting under the checked setup. Procurement delays a blanket lot rejection and asks production to document exactly what changed. Quality control repeated the comparison in a different run order and checked the end point. Warranty claims for residual bond strength require an applicable measurement. The buyer retains the material identities prior to requesting a replacement sample.

Keep grade and outcome separate: An 80-200 µm powder band, as published for Teng Yang’s medium grades, identifies a material category. It doesn’t qualify a released lot. In order for a comparison to be repeatable, identities must be retained, and processing and garment care exposure must be consistent, and supported. Where the decision concerns residual bond strength, ask which applicable laboratory bond tests should be performed.

Industry Outlook: powderless adhesive changes the trial, not the diagnosis

Powderless adhesive development changes which production system a buyer must qualify; it doesn’t diagnose a failed powder lot already in use. A digitally applied adhesive requires its own ink, film, equipment and care validation. Keep that technology decision separate from the retained-sample investigation of the existing DTF production process.

In September 2026, DuPont announced its Artistri JA1100 digitally jetted adhesive system with specified Artistri P1600 ink and DTF120 film, to be used with a Brown YetTee automation. The announcement describes an alternative production route that eliminates the powder step. It’s a commercial manufacturer’s statement, not an independent comparison of adhesive life under matched laundering conditions. This handbook doesn’t claim it outperforms the powder grade in your failed garment.

In the case of a system change, the important question to consider is what would need to be qualified again? The provider of the compatible system would supply the material compatibility list, the supported operating recipe and maintenance requirements. The potential artwork and garments are compared under the same agreed care conditions as the current system. Record the attachment, color and other required end points separately. A demonstration by the supplier using a different fabric and drying conditions doesn’t answer the original wash failure question.

Changes in equipment should be assessed for effect on workflow by the production department before a change is made. Quality control needs a new version controlled reference and acceptance record. Comparative cost/benefit analyses should be based on production data and rejection rates. No independent verifications of durability or cost savings were available for this guide. It’s recommended that a powder complaint not be addressed in combination with the purchase of an untested equipment investment.

Buying boundary: A bag of replacement powder and a digitally jetted adhesive system are two very different decisions. Replacing the powder requires a matched lot qualification, while replacing the adhesive system requires a system qualification. The September 2026 development is a reason to ask more specific supplier questions, not a reason to promise an immediate repair or a longer wash life. There’s also no evidence that Teng Yang owns that separate technology.

For the current order, provide records of the retained and failed samples and the relevant specifications of the DTF transfer material. State which current grade and supported process should be sampled for that garment, and agree a wash and dry endpoint prior to bulk replacement.
