DTF Powder Curing Temperature: Under-Cure vs Over-Cure Diagnosis

DTF powder curing temperature troubleshooting is a diagnostic process for separating under-cure, over-cure, uneven heat delivery, and look-alike defects. Do not diagnose from the oven display or surface gloss alone. Begin with the instructions for your exact powder and equipment, verify the heat the transfer actually receives, then read cure appearance, loose-grain behavior, heat damage, and downstream bond results together.

This guide is for a film that has already been printed and powdered but does not behave consistently after curing. It does not replace a supplier recipe, a Safety Data Sheet, or a controlled production approval. If you need the complete process from printing through pressing, use Teng Yang’s complete DTF powder-and-film workflow.

Whether the job runs through a desktop DTF printer or an industrial line, the same boundary applies: DTF printing quality depends on the matched ink, DTF film, adhesive powder, and heat-delivery method. The printer display, powder shaker, DTF curing oven, and heat press each describe a different part of the printing process.

This direct-to-film printing tutorial focuses on diagnosing cured DTF transfers before they go onto clothing. It applies to DTF printers of different sizes, but it does not turn one machine’s recipe into a universal setting.

In the printing industry, troubleshooting DTF powder issues begins by matching the powder type to approved films and powders and the rest of the printing supplies. Common issues such as powder not sticking, incomplete powder melts, or poor curing performance are symptoms to separate, not proof of one cause.

What Temperature Should You Use to Cure DTF Powder?

There is no defensible universal setpoint for every DTF powder. Start with the range published for the exact powder grade and curing method, keep time attached to temperature, and confirm the result on your film, ink load, powder coat, and equipment. Without that context, a copied number is only a guess.

Public specifications show why the context matters. The STS XPD-724 specifications identify the included DTF-P-1 powder as a low-temperature 225°F product, while the separate STS curing-oven specifications include equipment rated to a 150°C maximum. The first number belongs to a named consumable; the second is an equipment limit. Neither is a general recipe for an unknown powder.

Commercial supplier guides publish materially different starting points. HTVRONT describes 250°F–300°F (about 120°C–150°C) for roughly 2–3 min in its oven guide, while Jinlong describes 300°F–325°F (149°C–163°C) for 10–15 s in another application context. STS identifies a 225°F powder (about 107°C). These are commercial, source-specific examples, not interchangeable recipes.

Powder chemistry and particle distribution affect melt behavior; wet ink mass, airflow, heater distance, belt speed, and sheet position affect the dose that reaches it. The STS P-7 specifications list a melt point of 80°C–95°C and particles of 60 µm–140 µm, again as named product data rather than a production threshold for other materials.

The third-party WO2026069401A1 publication describes heating elements at 80°C–120°C and a general process-time span of 2–10 min. STS publishes a separate oven timer range of 0–999 s. Patent-publication examples and equipment limits show possible designs; they are not approval to use those values with an unidentified powder.

The practical starting point is therefore a three-part record: supplier range, equipment method, and observed result. Write down the controller setting and dwell, but also note the powder lot, film, ink mode, image coverage, room conditions, and load position. That record gives you something testable when the same displayed temperature produces a different transfer.

Search phrases such as “how to cure DTF powder with oven,” “how to cure DTF powder with heat press,” and “DTF curing oven temperature” all hide those missing variables. This matters because a production inspection record ties the displayed value to a named material lot, load position, and measured result.

For illustration only, Illustrative Example A starts at 120°C for 120 s after 5 min of stabilization, with a hypothetical 5°C review band. These placeholder values demonstrate how to follow the method; they are not sourced test results or recommended cure settings.

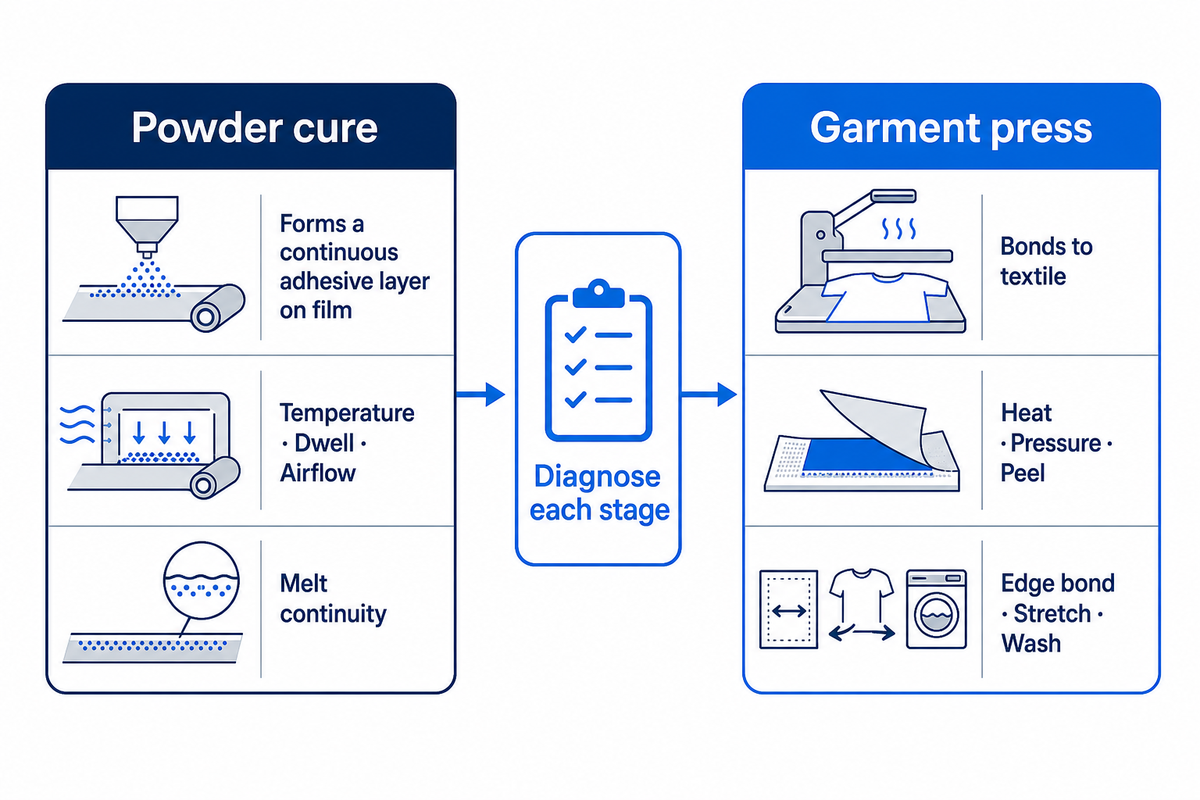

Keep Powder Curing Separate from Garment Pressing

Powder curing and garment pressing are two different heat events. Curing melts or gels the adhesive layer on the printed film without pressing it into fabric. The later press step uses heat, pressure, dwell, and peel timing to bond that prepared transfer to the textile. Diagnose each stage with its own evidence.

Stage	What the heat is doing	Variables to record	Primary evidence
Powder cure	Forms a continuous adhesive layer on film	Powder, temperature, dwell, airflow, heater distance, sheet position	Melt continuity, loose powder, film or ink heat damage
Garment press	Bonds the cured adhesive layer to textile	Platen temperature, pressure, dwell, textile, peel timing	Transfer release, edge bond, stretch, hand feel, wash result

A clean-looking cure sheet can still lift because press pressure was low, the platen had a cold zone, the textile retained moisture, or the film was peeled at the wrong time. Conversely, raising the powder-cure temperature will not repair a press-stage pressure problem; it may only add film distortion or adhesive migration.

Record heat press settings independently from cure heat settings. That separation makes a poor-adhesion complaint traceable instead of turning it into a random change across both stages.

Label the two records clearly: “cure” and “press.” When a garment fails, test a known-good cured transfer on the same press before changing the oven. When the film looks wrong before pressing, hold the garment settings constant and investigate powder application and cure delivery first.

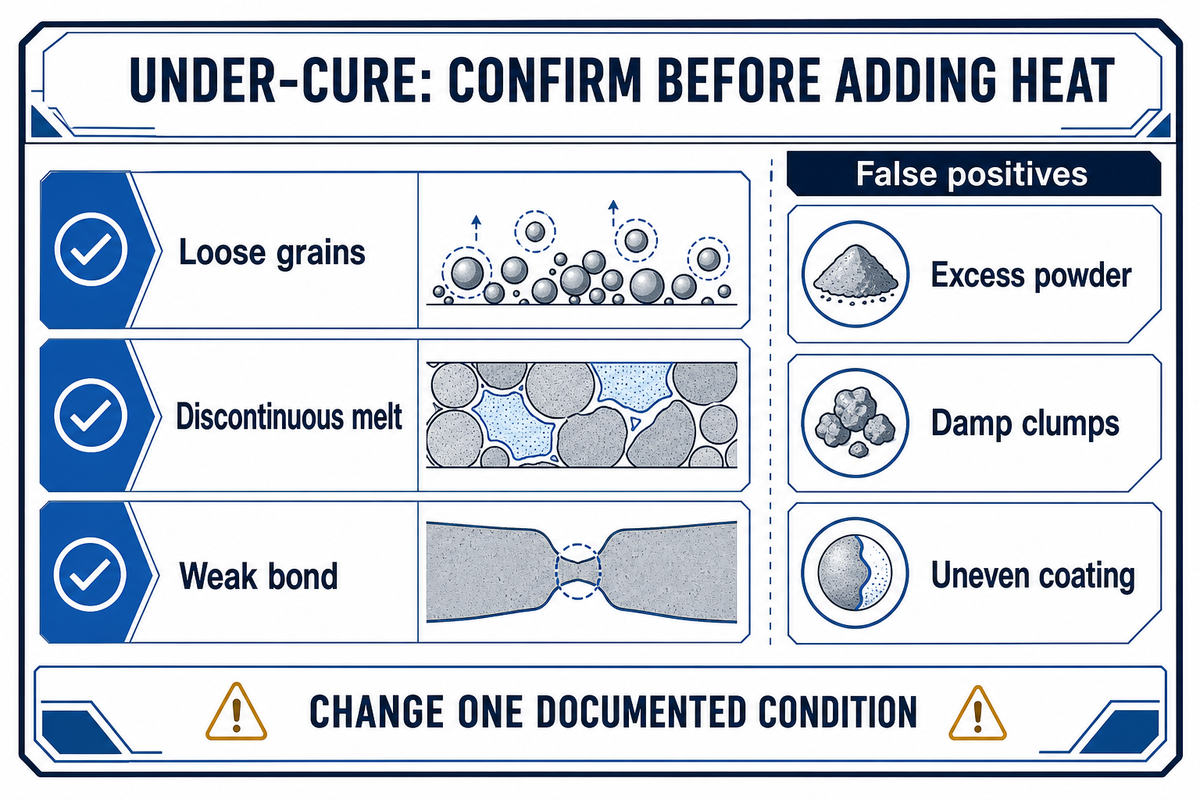

Under-Cured DTF Powder—Symptoms, False Positives, and the Next Change

Under-cure is likely when adhesive grains remain loose or powdery, the melt layer is discontinuous, and bond checks remain weak after other causes are controlled. It is not proven by graininess alone. Excess powder, damp clumps, incomplete pickup on wet ink, or uneven coating can create the same surface appearance.

ASTM’s public committee page lists defined hot-melt measurement scopes, including apparent viscosity and transition-temperature methods; it does not publish a DTF under-cure threshold. The symptoms here remain shop indicators to verify, not an ASTM diagnosis.

Failure type	Evidence that supports under-cure	Common false positive	Next controlled test
Loose grains after heating	Grains remain at intended printed areas and rub away easily	Unshaken excess around the image	Prepare a fresh sheet and shake off excess consistently
Grainy adhesive surface	More delivered heat within the supplier range improves continuity	Damp or clumped powder	Compare sealed fresh powder from the same approved grade
Patchy melt	Pattern follows measured cold zones	Uneven powder pickup or variable wet-ink laydown	Inspect coat uniformity, then rotate or reposition a repeat sheet
Weak bond after pressing	Cure evidence is weak before pressing and repeats across a fixed press test	Low pressure, wrong peel timing, or fabric contamination	Use a known-good cured control on the same garment setup
Cracking on stretch	Repeats with poor melt continuity and weak adhesion	Excess adhesive, incompatible film/powder, or excessive press heat	Compare a control transfer and hold the press recipe fixed
Bubbles after curing	Incomplete melt appears beside loose grains	Moisture, trapped volatiles, or excessive heat	Compare fresh dry materials using an approved baseline
Yellowing or film curl	Does not support under-cure by itself	Excess cure heat, long dwell, or film sensitivity	Separate heat damage from adhesive continuity before adding heat
Adhesive halo at the edge	Center remains discontinuous while the intended edge rubs loose	Heavy coat or adhesive migration	Standardize coat weight and inspect before curing
One repeatable zone stays grainy	Zone also measures cooler under the same load	Powder or ink distribution tied to the artwork	Move and rotate an identical sheet to separate zone from specimen

Why isn’t my DTF powder curing?

First determine whether the adhesive truly received too little heat. Loose grains and incomplete melt support under-cure, but similar signs can come from excess powder, moisture, weak pickup on the ink, blocked airflow, poor distribution, or a cold equipment zone.

Check powder condition and coating first, map heat delivery, then adjust one documented condition within the supplier range.

If increasing heat appears to help only the center while edges remain granular, stop raising the global setpoint. The next test is spatial: place an identical sheet in a different position or orientation. A defect that moves with the equipment zone points toward delivery; one tied to the artwork or powder pattern points toward ink and application.

If the powder is under-cured, added delivered heat within the approved window should improve melt continuity repeatably. If powder clumps or uneven powder distribution remain, more heat can hide the symptom without fixing the material or application cause.

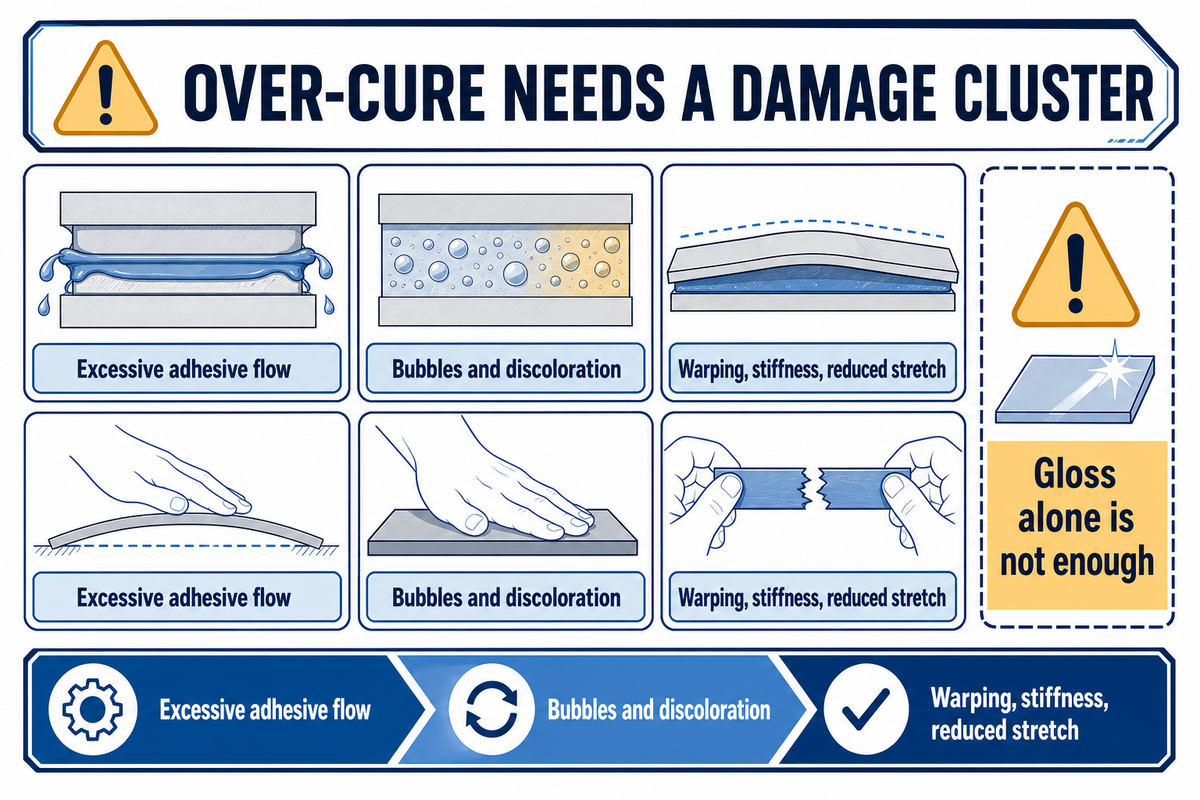

Over-Cured DTF Powder—Symptoms and When to Reduce Heat Dose

Over-cure is supported by a cluster of heat-damage signs: excessive adhesive flow, bubbles, yellowing or discoloration, film warping, a stiff hand, or reduced stretch. Gloss by itself is not enough. Confirm that the damage occurred during powder curing, not during the later garment press, before reducing the cure dose.

The third-party WO2026069401A1 publication provides oven-heating and process-time context, but it does not define a visual over-cure threshold. Use the damage cluster only to choose a controlled comparison.

Look for changes relative to a known-good sheet from the same materials. A film that curls, ripples, shrinks, or changes color before it reaches the garment points upstream. An adhesive layer that spreads past intended edges or looks locally boiled may indicate too much temperature, too much dwell, or a hot zone. A design that only stiffens after pressing belongs in the press-stage investigation.

Commercial troubleshooting guidance commonly groups stiffness, bubbles, discoloration, and scorching under excessive heat, but these are shop indicators rather than a laboratory diagnostic standard. Treat them as a reason to run a controlled comparison. If damage decreases when one heat input is reduced and bond performance remains acceptable, the over-cure diagnosis becomes stronger.

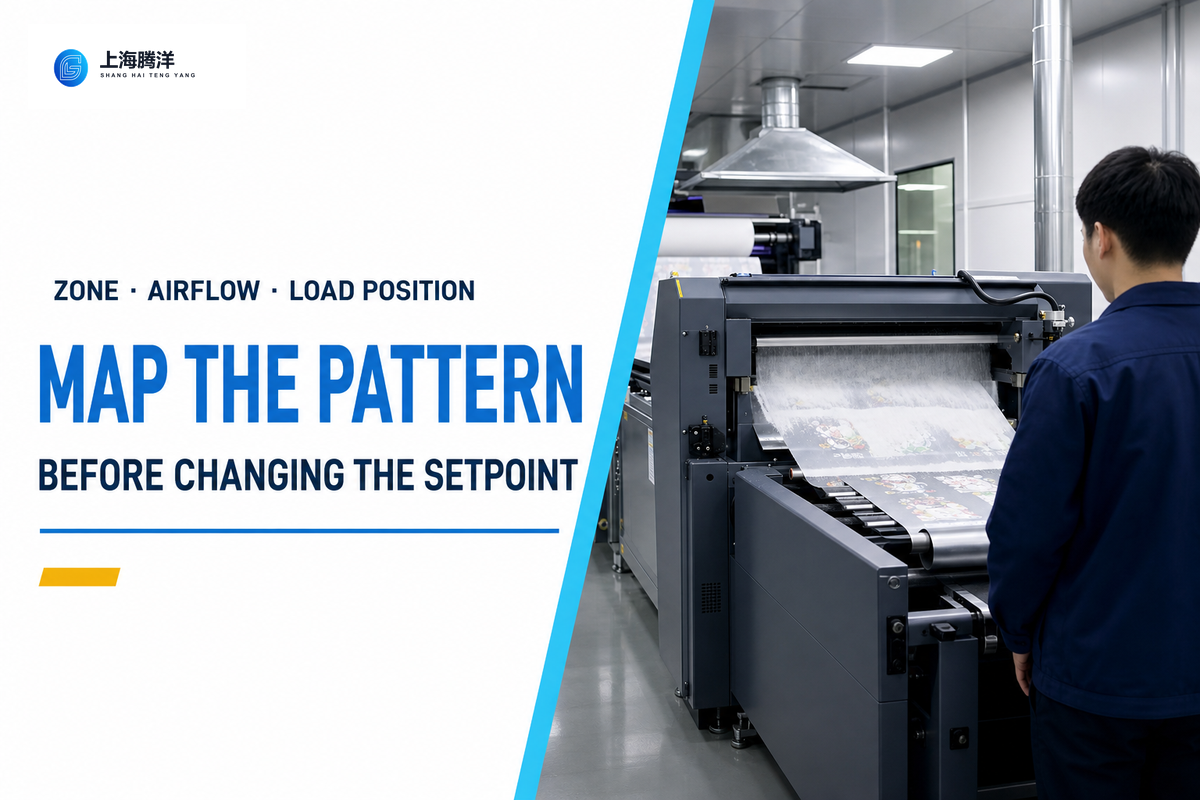

Uneven Cure—Hot Spots, Cold Spots, Airflow, and Load Position

When edges, centers, or repeated zones behave differently, map the pattern before changing the global setpoint. Uneven curing can reflect heater output, airflow, belt behavior, recovery between loads, or placement. It can also come from uneven resin-powder distribution, ink load, moisture, or handling, so thermal zoning is only one branch.

A 2026 paper from the Imaging Society of Japan identifies scattering of thermoplastic resin powder as a DTF process challenge. That matters because an edge-to-center defect is not automatically an oven map. The powder layer itself may be nonuniform before heat is applied.

Pattern	Check first	Separating test
Same physical oven zone fails	Heater output, airflow, belt path, platen or tray geometry	Move an identical sheet to another zone without changing settings
Defect rotates with the sheet	Powder coat, ink coverage, film handling	Rotate the same artwork and compare the defect orientation
First sheet passes, later sheets fail	Recovery time, load density, room airflow, belt speed drift	Record run order and repeat after a fixed recovery interval
Only heavy white-ink areas fail	Ink load, wetness, powder pickup, local dwell need	Use a test image with controlled coverage bands
Edges overheat while center lags	Radiant geometry, hover clearance, sheet flatness	Hold the film flat and map edge, center, and corner readings
Entire sheet is weak after a cold start	Equipment stabilization, verified dwell, load size	Repeat after a defined warm-up and compare the same mapped points
One powder lot fails across all zones	Powder condition, storage, and application	Run a sealed approved lot without changing the settings
Defects appear after dense consecutive loads	Recovery, airflow, and belt-speed drift	Repeat after a fixed gap and record the run order

Keep the film flat, use the same load size, and mark orientation on every sample. Record whether the equipment was cold-started or fully stabilized. A stable display does not prove the chamber, belt, platen, or sheet surface is uniform under load.

The aim is even heat distribution across a repeatable load, not a perfectly uniform display number. Cure mapping should also flag misalignment between the sheet, tray, belt, and measured zones.

In production, the operator’s inspection record should show which zone, orientation, and run order produced each pattern so the next test separates equipment position from specimen condition.

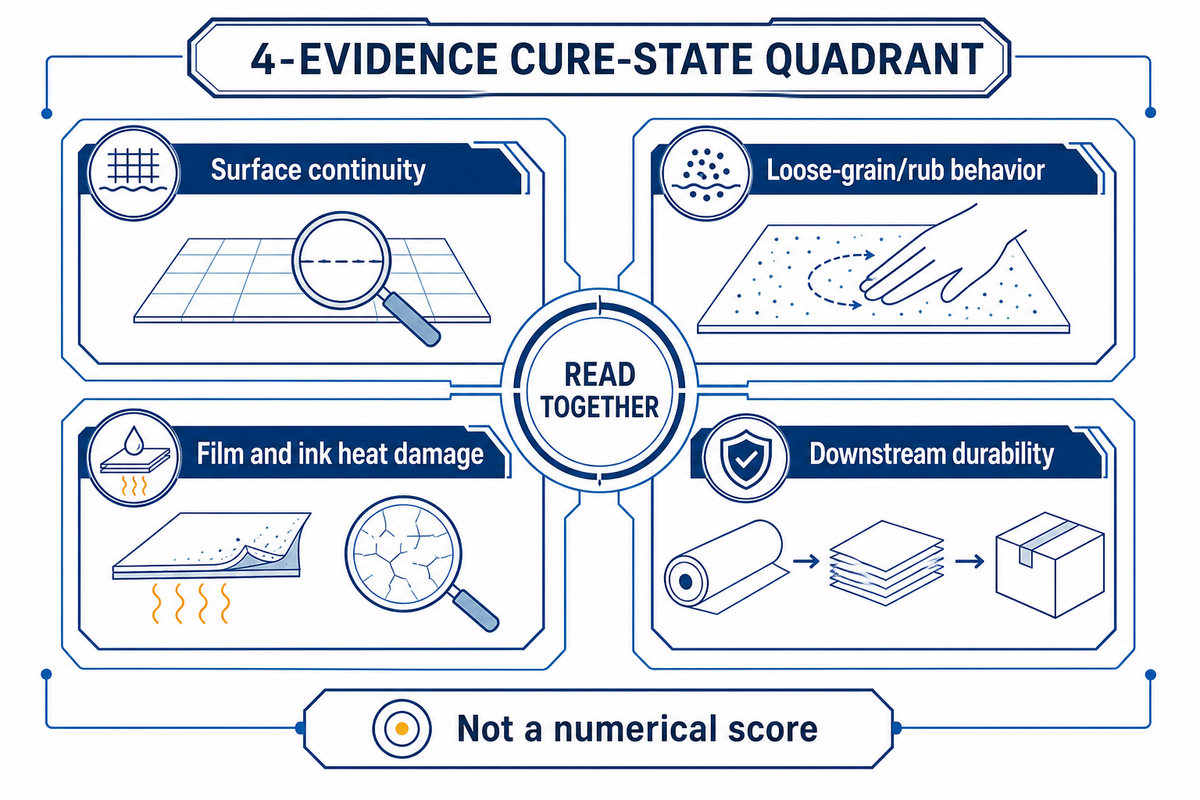

The 4-Evidence Cure-State Quadrant

The 4-Evidence Cure-State Quadrant is a shop diagnostic framework, not a certified test method. It prevents one ambiguous visual cue from controlling the decision. Read four evidence groups together: adhesive-surface continuity, loose-grain or rub behavior, film-and-ink heat damage, and downstream bond durability after a fixed press and handling check.

The Four-Evidence Diagnostic Matrix

Signal	Under-cure direction	Over-cure direction	Important alternative cause
1. Surface continuity	Discrete grains, broken melt, patchiness in intended adhesive areas	Excessive flow, bubbling, adhesive migration	Powder coat thickness, moisture, ink pickup
2. Loose-grain/rub behavior	Adhesive in printed areas rubs away after cooling	Usually not the leading sign	Unremoved excess powder outside the design
3. Film and ink heat damage	Little or no heat damage despite incomplete melt	Warping, discoloration, shrinkage, scorched or distorted areas	Film incompatibility or damage during garment pressing
4. Downstream durability	Weak bond, lifting, crack or wash loss with an otherwise controlled press	Stiffness, poor stretch, brittle feel, reduced bond after thermal damage	Press pressure, textile moisture, peel timing, material mismatch

Do not turn the table into a numerical score. Two strong signals from different groups are more useful than several descriptions of the same visual symptom, but no threshold has been validated for all DTF systems. Use the quadrant to choose the next separating test, then confirm the direction with repeat samples.

In practice, use the matrix during production to choose a separating test; do not treat it as a pass score or substitute it for the powder supplier’s acceptance criteria.

For fast interactive routing by symptom, use Teng Yang’s interactive DTF powder troubleshooter. This article adds the evidence boundary: a tool suggestion is a hypothesis to test, not proof of cause.

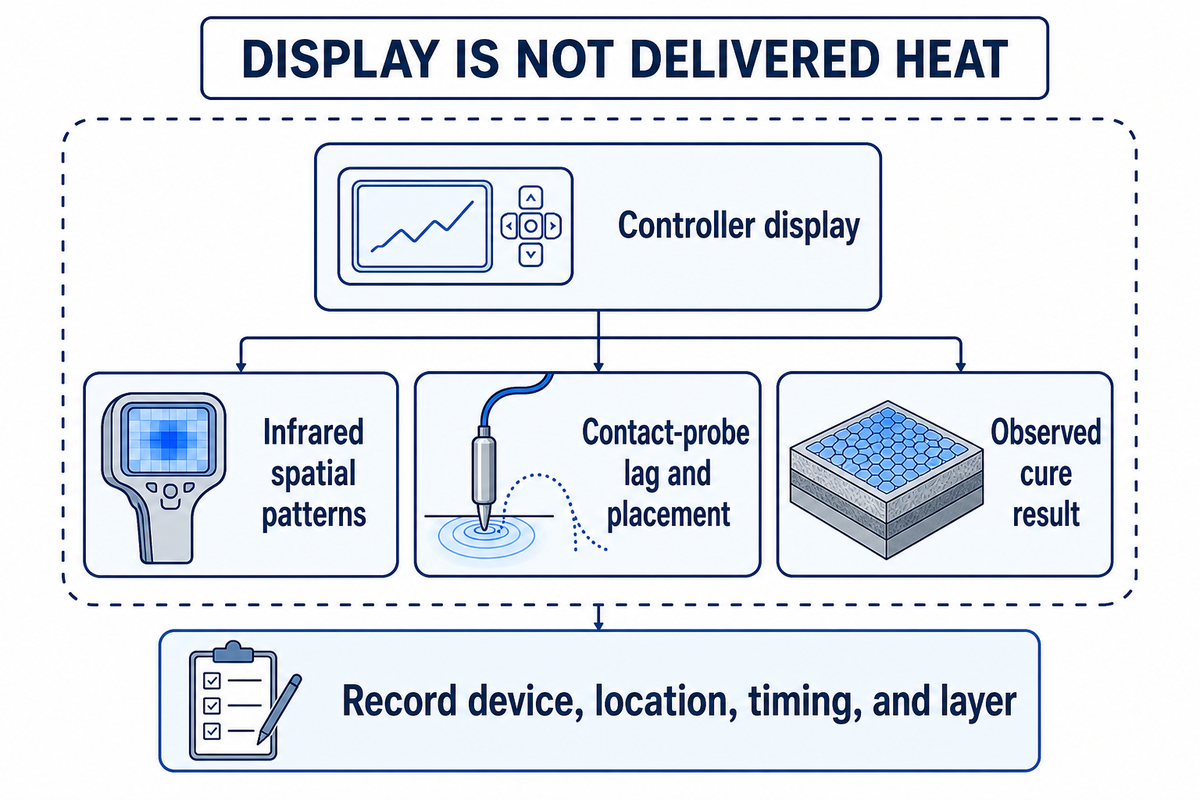

Verify Delivered Heat Instead of Trusting the Display Alone

The controller display reports a control input or sensor reading; it does not prove the temperature reached at every point of the adhesive layer. Verify delivered heat with a suitable method, fixed locations, and a repeatable test specimen. Record the instrument and its limits so unlike readings are not treated as equal.

Infrared tools can reveal spatial patterns, but they do not directly read through every material layer. Surface emissivity, reflections, viewing angle, distance, field of view, and calibration can change the result. Contact probes introduce their own lag and placement effects. The NIST thermography study is not about DTF, yet it is useful for one narrow lesson: a thermal image is a measurement with uncertainty, not an unquestionable true temperature.

“Thermography offers the ability to measure the two-dimensional surface temperature distribution.”

— NIST measurement research; cited here for the general spatial-measurement principle, not for a DTF cure setting

Create a simple map with the same labeled points each time: entrance edge, center, exit edge, left, and right. Run the equipment to a defined stabilized condition, use the same film or reference specimen, and record load. Compare patterns and repeatability before converting one observed difference into a controller change.

If you use a thermometer, document whether it is contact or infrared, where it was aimed or attached, and when the reading was taken. Do not compare unlike instruments as if they measured the same layer.

A thermometer, thermal camera, and built-in sensor answer different questions. None can be replaced by a visual color chart alone.

In practice, an operator should treat instrument verification as an inspection step: name the device, location, timing, and material layer represented by each reading.

In the same hypothetical case, Illustrative Example A maps 116°C at the center and 109°C at one edge while the controller still shows 120°C. The gap directs the next test toward delivered-heat distribution; it does not prove a universal pass or fail point.

ASTM’s hot-melt adhesive committee listings include separate methods for apparent viscosity and transition temperatures. That separation reinforces the same boundary: material behavior is established through defined measurement methods, not inferred from one machine setpoint. The public ASTM page does not supply a DTF pass threshold.

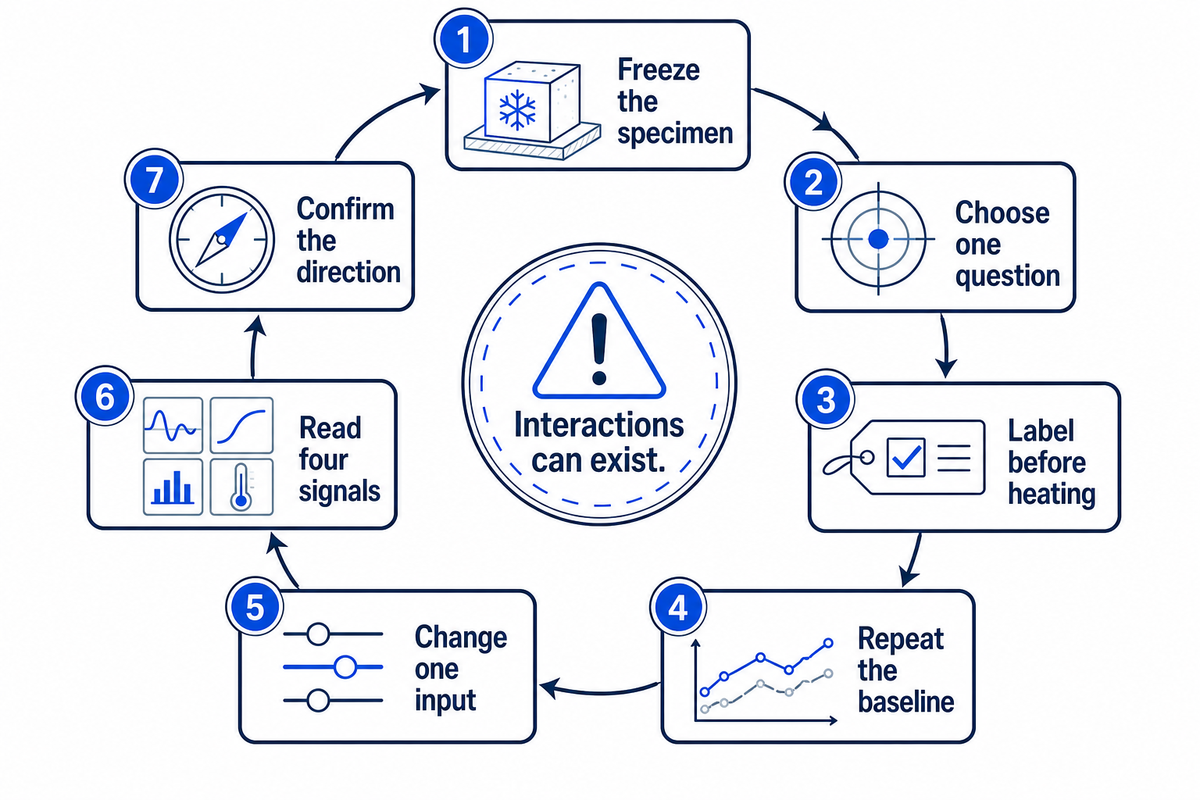

The 1-Input Cure Isolation Loop

The 1-Input Cure Isolation Loop is a bounded troubleshooting sequence, not a validated optimization design. Hold materials, artwork, powder application, position, and press checks constant; then change one cure input in small documented steps inside the supplier range. Repeat a condition before concluding that the change caused the result.

1. Freeze the specimen — use the same film, ink mode, artwork, powder grade and lot, coating method, orientation, and load position.
2. Choose one local question — for example, whether a small dwell increase improves loose-grain and bond evidence without heat damage.
3. Label before heating — record controller setting, dwell, position, run order, equipment state, and specimen ID.
4. Repeat the baseline — run at least two matching baseline specimens so ordinary process variation is visible.
5. Change one input — adjust temperature or dwell, not both, and stay within the material and equipment instructions.
6. Read all four signals — surface continuity, loose grains, heat damage, and downstream bond checks.
7. Confirm the direction — repeat the promising condition and return to baseline if drift is suspected.

NIST’s experimental-design handbook explains that one-factor-at-a-time experiments do not account for interactions. Temperature and dwell are physically coupled, and airflow, powder load, humidity, or equipment drift may interact with both. If results reverse across two dwell levels or cannot be repeated, stop calling it a single-variable problem. Use a small documented matrix or supplier-led process study instead.

Keep a log of every DTF transfer specimen, including dwell time, temperature settings, film surface condition, run order, and final result. That record is what turns a troubleshooting guide into a repeatable shop check and helps separate incomplete curing from ordinary process variation.

On a production line, the operator should use that inspection log to confirm repeatability before changing the next cure input.

For its next illustrative step, Illustrative Example A holds 120°C constant and compares 125 s with 130 s on labeled repeats. It returns to the 120 s baseline if the direction does not repeat, so the example demonstrates isolation rather than prescribing a recipe.

Use the dwell range for the exact powder and heating method, then confirm delivered heat and cure state on your own transfer. Published times vary from seconds to minutes because hover presses, box ovens, and conveyors transfer heat differently. Do not extend time blindly; compare labeled samples and stop when added dwell creates film damage or reduces downstream performance. Use the estimator only to organize the comparison, not to approve production.

Teng Yang’s cure and press settings estimator can organize a starting estimate, but the supplier data for the exact consumables and the controlled sample result remain the release evidence.

Confirm the Cure After Pressing, Peeling, Stretching, and Washing

A film that looks cured is not ready for production until repeat transfers survive documented downstream checks. Use fixed garment-press conditions, the correct peel timing, an edge-bond inspection, a comparable stretch check, and a fixed wash-and-dry screen. Record the result by powder lot, film, ink mode, and cure condition.

These downstream screens do not certify durable transfers, but they catch curing problems that are invisible on the transfer film. They also stop improper heat press settings from being misreported as a powder failure.

• Press: keep platen temperature, pressure, dwell, textile and pre-press treatment unchanged across comparisons.
• Peel: follow the film’s specified hot, warm or cold timing; do not use peel behavior to “fix” a cure diagnosis.
• Inspect: check edge lift, voids, adhesive squeeze-out, discoloration, hand feel and local stiffness.
• Stretch: compare the same design area and extension each time; note whether cracking recovers or propagates.
• Wash: use the same machine type, cycle, temperature, detergent, load and drying method. A shop wash screen is not an accredited textile test.
• Repeat: require matching results from more than one sample before approving the condition.

When every cure condition fails on one garment setup, use a known-good transfer to check the press stage. When every garment test fails only for one powder lot or film combination, return to material compatibility and supplier review. Teng Yang’s DTF powder grade information and heat transfer PET film pages can help define the material request; the DTF powder selection criteria guide and the DTF transfer materials selection and application pillar cover choices outside this troubleshooting scope.

What temperature do you cure DTF powder at?

Start with the stated range for the exact powder and curing equipment, not a number copied from another shop. Verify actual heat delivery, inspect melt continuity, and complete bond checks. Adjust one input at a time in small documented steps.

Keep film, ink load, powder coat, placement, and press conditions constant while comparing the result.

When curing DTF powder, keep the cure record separate from the later garment-press record. For searches phrased as “curing DTF powder with heat press,” the relevant method is a controlled hover cure, not pressing the adhesive into the textile.

Can you over-cure DTF powder?

Yes, but gloss alone does not prove it. Look for excessive flow, bubbling, discoloration, film distortion, stiffness, or lost stretch, and separate powder-cure damage from garment-press damage. If the cluster points to excess heat dose, reduce one cure input, repeat the same labeled specimen, and confirm that bond performance remains acceptable. The final choice still requires repeated press, peel, stretch, and wash checks on the same film, powder lot, artwork, textile, and recorded press conditions.

Is a curing oven better than a heat press for DTF powder?

A dedicated oven can make the cure step easier to control because temperature, dwell, airflow, and load position can be recorded as a separate stage. A hover press can also work when clearance, heat distribution, timing, and sheet flatness are repeatable.

Operator method must also stay repeatable and approved for the materials. Neither method makes another machine’s setpoint transferable. Compare them with the same film, ink load, powder lot, artwork, and downstream press test. Choose the method that gives repeatable delivered heat and bond results in your shop, not the one with the most attractive display number.

Powder and Heat Safety Boundary

Quality troubleshooting never overrides the exact product Safety Data Sheet, equipment instructions, local rules, or workplace risk controls. Powder composition and dust behavior are formulation- and process-specific. Keep containers closed, limit airborne dust, control ignition sources, use suitable ventilation, and follow the supplier’s handling and personal-protection instructions.

Store powder as directed, prevent it from being exposed to moisture, and keep the DTF station or workspace clean without creating airborne dust. Powder handling controls are part of production consistency as well as safety.

An air filter is not automatically a suitable dust-control system, and a handheld heat gun can add an open ignition source as well as uneven heat. Use only equipment and controls approved for the exact material and task.

OSHA’s combustible-dust guidance includes plastic and rubber dust as possible examples but also states that behavior is sample-specific. NIOSH likewise describes powder exposure, volatile emissions, and fire or explosion hazards as dependent on material and additive-manufacturing process. These sources set a precautionary boundary; they do not classify every DTF powder. Obtain the exact Safety Data Sheet and ask the supplier when its hazard information is incomplete.
