Powder dot coating uneven coverage should be traced by process stage before any changes to powder grade, temperature, or pressure are made. Preserve the first defective sample, mark its machine and cross directions, and record the active powder lot, fabric lot, line speed, transfer setup, and heat readings. That baseline lets the team test one controlled variable without losing the original evidence.
Updated October 2026
Quick diagnostic brief
- Define the stage: powder feed, metering, patterned transfer, web contact, transfer-stage heat, later fixing, or garment fusing.
- Map the pattern: record width position, machine direction, repeat length, onset time, and whether the defect wanders.
- Change one variable: preserve the last confirmed baseline and restore it after an unsuccessful trial.
- Verify the correction: repeat observations across width and time, then check the intended bonded laminate.
Powder dot coating uneven coverage can occur during powder delivery, engraved transfer, web contact, or at a particular stage of heating. Classify the defect by direction and repeat, inspect the first plausible station, then verify any correction across width and time.
Key points
- A fixed visual repeat selects the first inspection; it doesn’t prove one root cause.
- Heat used during powder pickup or transfer must be separated from later coating fixation and garment fusing.
- A clean center sample can’t release a roll without width and time evidence.
- Total mass, coating mass, visible dot coverage, and bonded performance are different observations.
Define the process before diagnosing the pattern

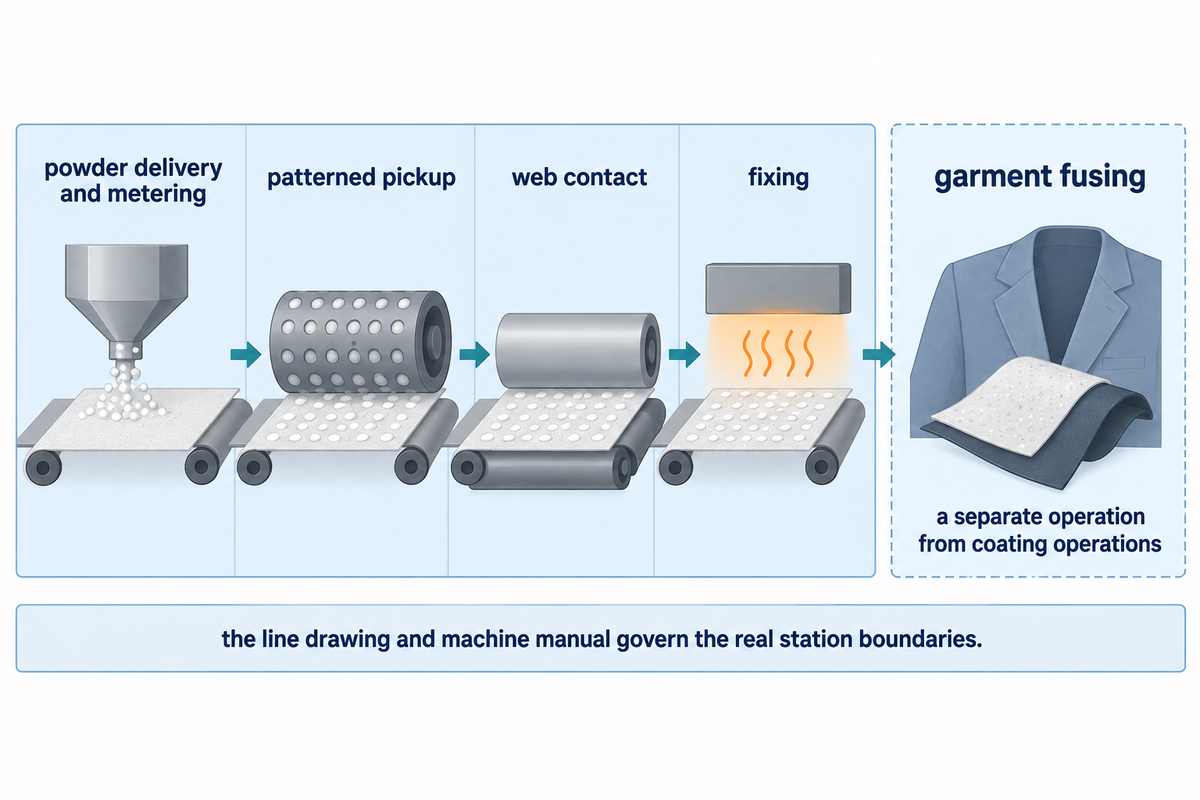

Powder-dot coating for fusible interlining places discrete thermoplastic adhesive deposits on a textile web for patterned deposition and later adhesion in this powder coating application. The useful process boundary is from powder delivery and metering to patterned pickup, web contact and fixing. Though both operations are done with the aid of heat and pressure, garment fusing is a separate operation from coating operations, with separate operational controls.
What does powder-dot coating mean in fusible interlining?
Powder-dot coating forms a controlled adhesive pattern on an interlining substrate so the coated material can later bond to a face fabric. One common route uses a heated substrate, powder in an engraved structure, metering, patterned transfer, and cooling or fixing. The limiting process factors vary based on machine design and architecture, so the line drawing and machine manual govern the real station boundaries.
The peer-reviewed review of fusible interlinings notes that the adhesive coating occurs prior to the fusing process and details a few different methods of coating. Fixatti’s attributed powder-dot process summary describes a practical method that involves a heated substrate, an engraved roll, and a pattern transfer. Neither source provides information pertinent to the textile coating process about the voltage of the spray gun, grounding of the electrostatic charger, or the thickness of the metal film, including excessive film thickness in a continuous coating film, surface finishing, or curing conditions.
Begin the study with a simple line sketch and label the powder supply, feed or doctoring point, engraved roller or screen, contact zone, web path, heat zones, cooling or fixing, and sampling. Connect the material question to the correct owner with Tengyang’s hot melt adhesive powder for textile coating page, while leaving machine settings to the equipment builder and converter.
Source capsule: the interlining review reports a 130–160 °C resin-melt range and a narrow optimum around a specified value in downstream fusing context. The review of fusible interlinings states the process requires heat, and doesn’t provide a recipe for powder dot coating.
Run the 5-Stage Pattern Isolation Sequence

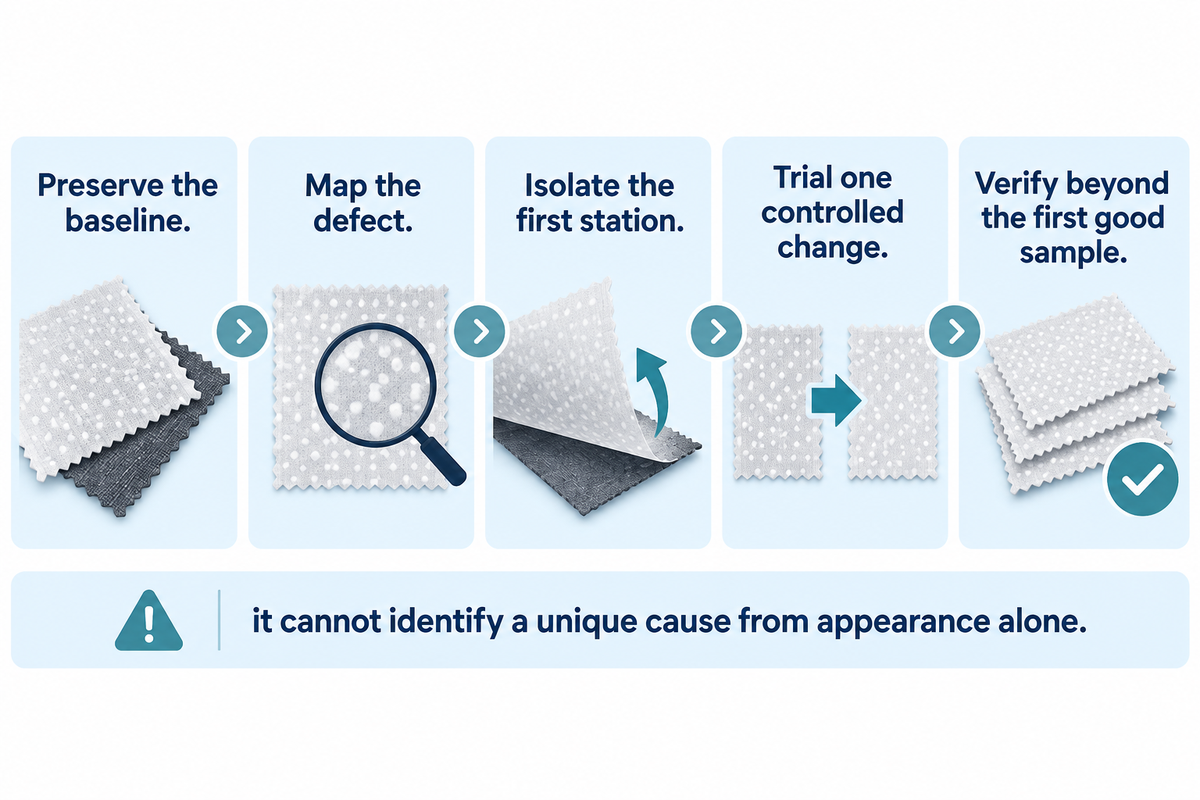

The 5-Stage Pattern Isolation Sequence is a controlled troubleshooting order for better control of successive trials: preserve, map, isolate, trial, and verify. It prevents an urgent line response from changing powder, transfer contact, web tension, and heat at once, helping prevent powder-lot changes from obscuring the original evidence. The sequence narrows the next test; it cannot identify a unique cause from appearance alone.
- Preserve the baseline. Retain a marked sample and record the powder lot, fabric lot, line direction, settings, speed, heat readings, and time.
- Map the defect. Mark left, center, and right positions, the machine direction, cross direction, repeat length, and onset point.
- Isolate the first station. Use pattern geometry and the physical line path to choose powder delivery, transfer hardware, web contact, or heat for the first inspection.
- Trial one controlled change. Stay inside supplier and equipment limits, record the exact change, and restore the last confirmed baseline if the trial fails.
- Verify beyond the first good sample. Repeat the width check at later machine-direction or time positions and test the intended bonded construction.
Separation of attachment and removal processes matters, as shown in the example of a fusible-interlining process patent. The patent variant applies particles while the adhesive is reactive, presses them, and subsequently removes excess powder. It is evidence that process sequences can contain distinct attachment and removal steps, not proof that every line uses that patent or the same settings.
Production pressure often favors a fast temperature change. This is best resisted until the sample retained shows where the pattern was already uneven. If the defect exists prior to later fixation, the next best evidence will be found at feed, metering, transfer or web contact. If the pre-fix pattern is uniform and the defect emerges later, investigate the specific heat and pressure stage where it appears; assess surface appearance and coverage uniformity separately across the same surface area.
Match the defect pattern to the first station to inspect
Repeatability and randomness can be useful clues when mapping a process defect. For control purposes we convert recurrence and position into a first inspection. This leads to different actions based on the visual pattern. Each row is a test priority, because similar visual patterns can arise from more than one material or machine condition.

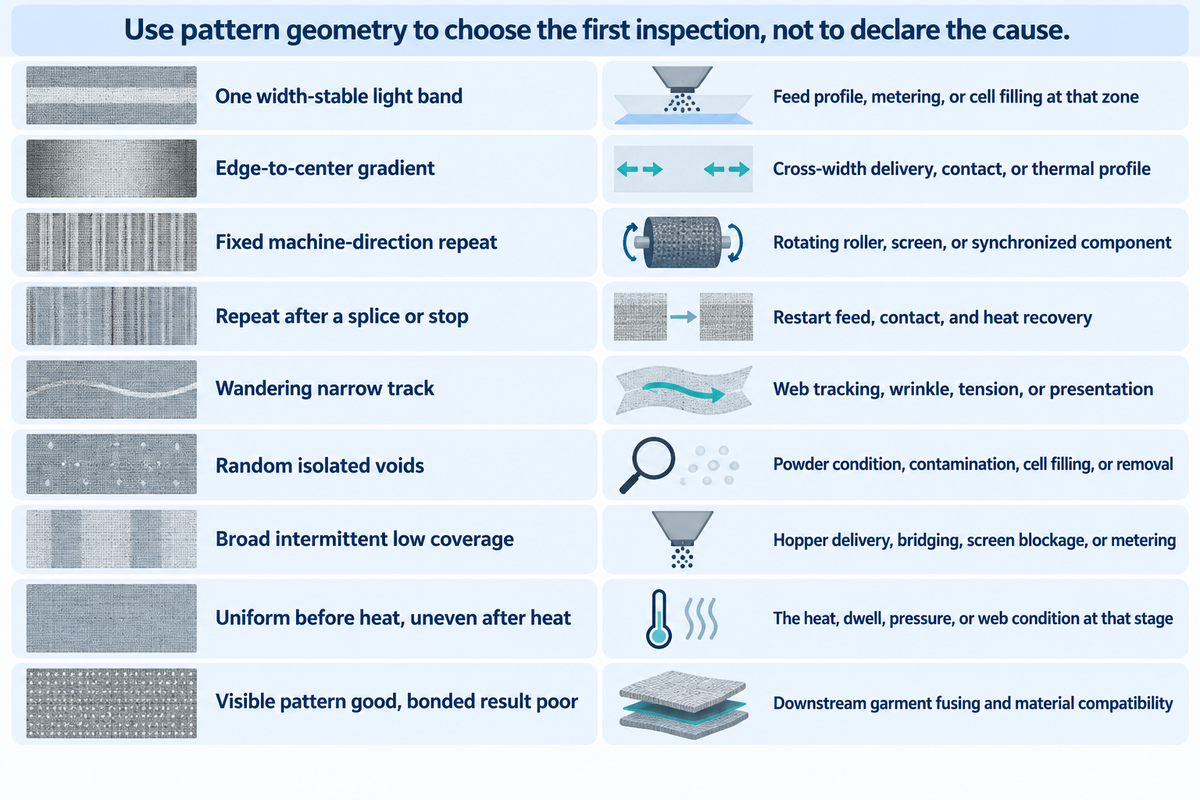

Width-Repeat-Random Defect Map
We combine many of these variables in the Width-Repeat-Random Defect Map in order to choose the first evidence-producing check.
| Observed pattern | Record first | First station to inspect | What the pattern cannot prove |
|---|---|---|---|
| One width-stable light band | Exact cross-width position | Feed profile, metering, or cell filling at that zone | That the powder lot is acceptable elsewhere |
| Edge-to-center gradient | Left, center, and right comparison | Cross-width delivery, contact, or thermal profile | Which profile variable is responsible |
| Fixed machine-direction repeat | Measured repeat length and machine identity | Rotating roller, screen, or synchronized component | That wear is the only possible cause |
| Repeat after a splice or stop | Time and machine-direction onset | Restart feed, contact, and heat recovery | That normal running conditions are unstable |
| Wandering narrow track | Path across successive samples | Web tracking, wrinkle, tension, or presentation | That powder flow is uniform |
| Random isolated voids | Frequency, size, and lot/time context | Powder condition, contamination, cell filling, or removal | That one visible particle caused each void |
| Broad intermittent low coverage | Duration and feed behavior | Hopper delivery, bridging, screen blockage, or metering | That the adhesive chemistry changed |
| Uniform before heat, uneven after heat | Paired pre-heat and post-heat samples | The heat, dwell, pressure, or web condition at that stage | That more heat is the correction |
| Visible pattern good, bonded result poor | Face fabric, fusing conditions, and bond test | Downstream garment fusing and material compatibility | That dot coverage meets end-use performance |
The process patent and interlining review establish distinct coating and bonding stages. The table adds an editorial inspection order to this physical order. Prior to a shutdown, take a photo of the marked sample next to a scale, maintaining the same orientation, and compare the measured repeat with the actual circumference or cycle of the suspected element.
Check powder condition and feed consistency

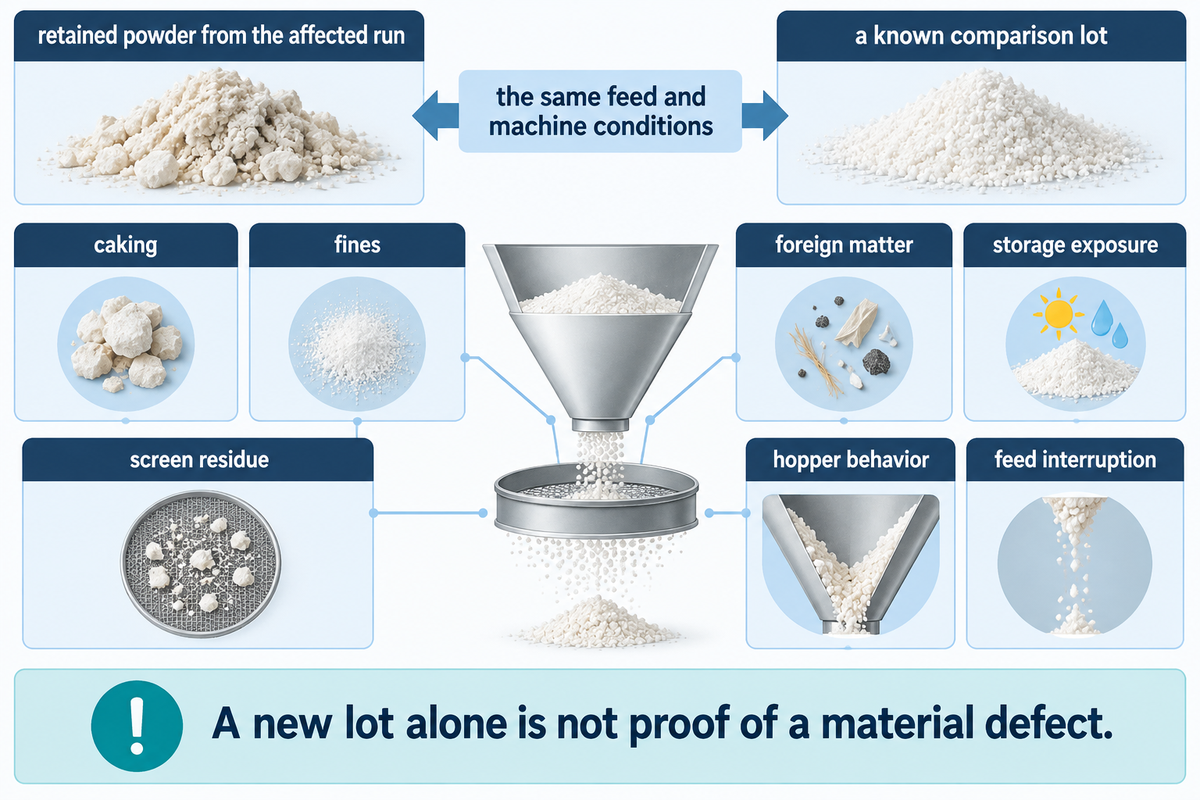

Compare lot identity, retained samples, particle-size distribution, storage history, visible contamination, sieve condition, and feed continuity while the machine baseline remains fixed. Machine baselines must be maintained. A new lot alone is not proof of a material defect, and one clean sieve result cannot describe every flow interaction.
Pharmaceutical processing is the topic of a peer-reviewed powder flow review that connects flow characteristics to distribution of particle size and shape, moisture and inter-particle forces, and the method of measurement. A powder investigation needs matched material and delivery evidence to characterize flow behaviour. Its field is pharmaceutical processing, so it supports the general warning against a one-test conclusion rather than a textile-specific pass limit. The authors also state that no single method is sufficient for flow evaluation.
Use retained powder from the affected run and a known comparison lot under the same feed and machine conditions. Record caking, fines, foreign matter, storage exposure, screen residue, hopper behavior, and feed interruption. If particle distribution is in question, check the particle-size distribution by sieve analysis, and then read how particle size affects the coating window. The supplier’s specification and the line builder’s feed envelope must refer to the same grade.
Don’t change the powder grade while any of the following are plausible: blocked screen, unstable feed, or contaminated cell. A grade change adds chemistry, particle distribution, and thermal behavior to the trial at once. If evidence still follows one powder lot, send the sample identity, distribution result, storage record, and paired coating evidence to the supplier, rather than a picture alone.
Inspect engraved transfer hardware and web contact
For a repeat defect, examine transfer rollers, gears, pulleys, and guide rollers. Mark the roller or screen phase, compare repeat geometry, and examine cell filling, doctoring, removal, contact, geometrical alignment, tracking, and tension under the machine builder’s safe procedure. Don’t adjust the thermal settings to compensate for an unverified mechanical transfer problem; record the adjustment against the retained baseline.
The US6344238B1 process record describes one discontinuous adhesive route in which excess powder is removed after particles contact reactive adhesive. That mechanism makes a useful inspection boundary: distinguish powder available to the pattern, powder retained on the web, and powder removed as excess. It doesn’t define the design or pressure of the process being investigated.

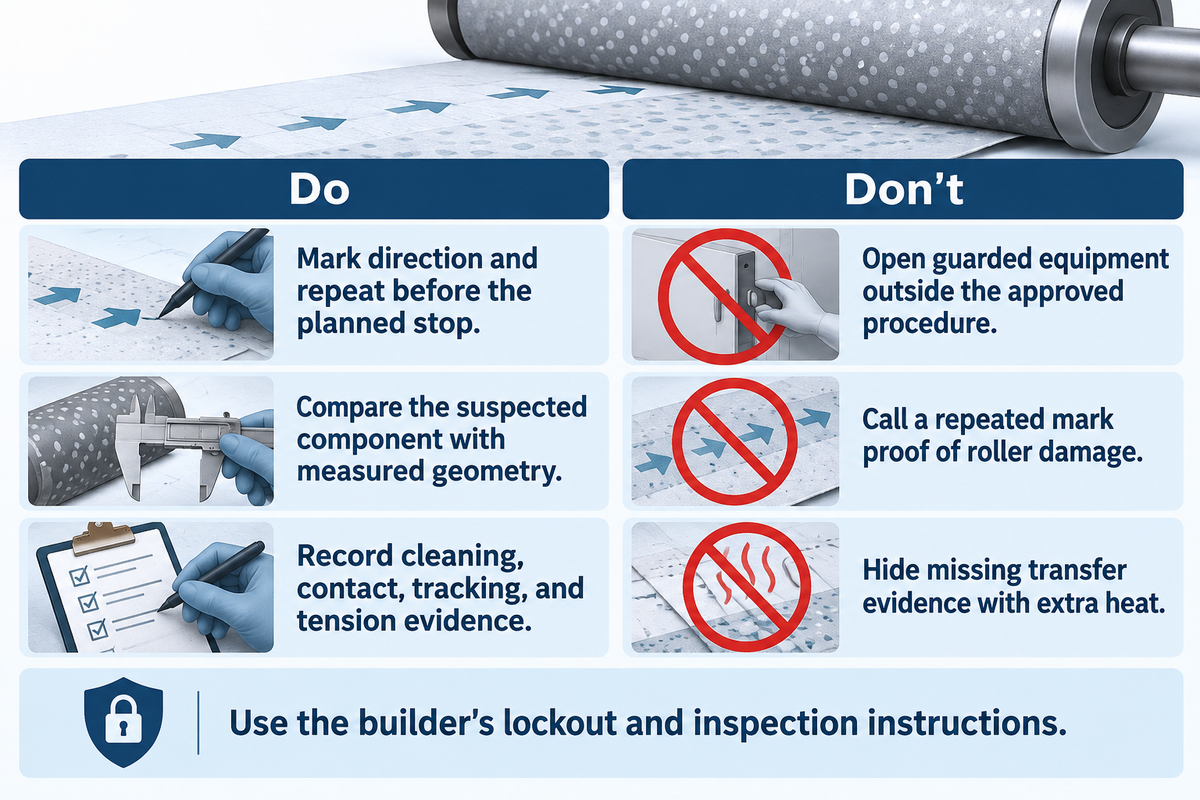

Plan the stop before opening guards or cleaning equipment. Record the machine identifier, rotating component identifier, measured repeat, cleaning history, contact set, web path, and any tracking correction already made. Use the builder’s lockout and inspection instructions. Tengyang’s guide to powder-handling and combustible-dust controls provides related handling context; it does not replace the machine procedure. This doesn’t replace the procedure for the machine in question.
Do
- Mark direction and repeat before the planned stop.
- Compare the suspected component with measured geometry.
- Record cleaning, contact, tracking, and tension evidence.
Don’t
- Open guarded equipment outside the approved procedure.
- Call a repeated mark proof of roller damage.
- Hide missing transfer evidence with extra heat.
Separate transfer-stage heat from downstream fixing heat

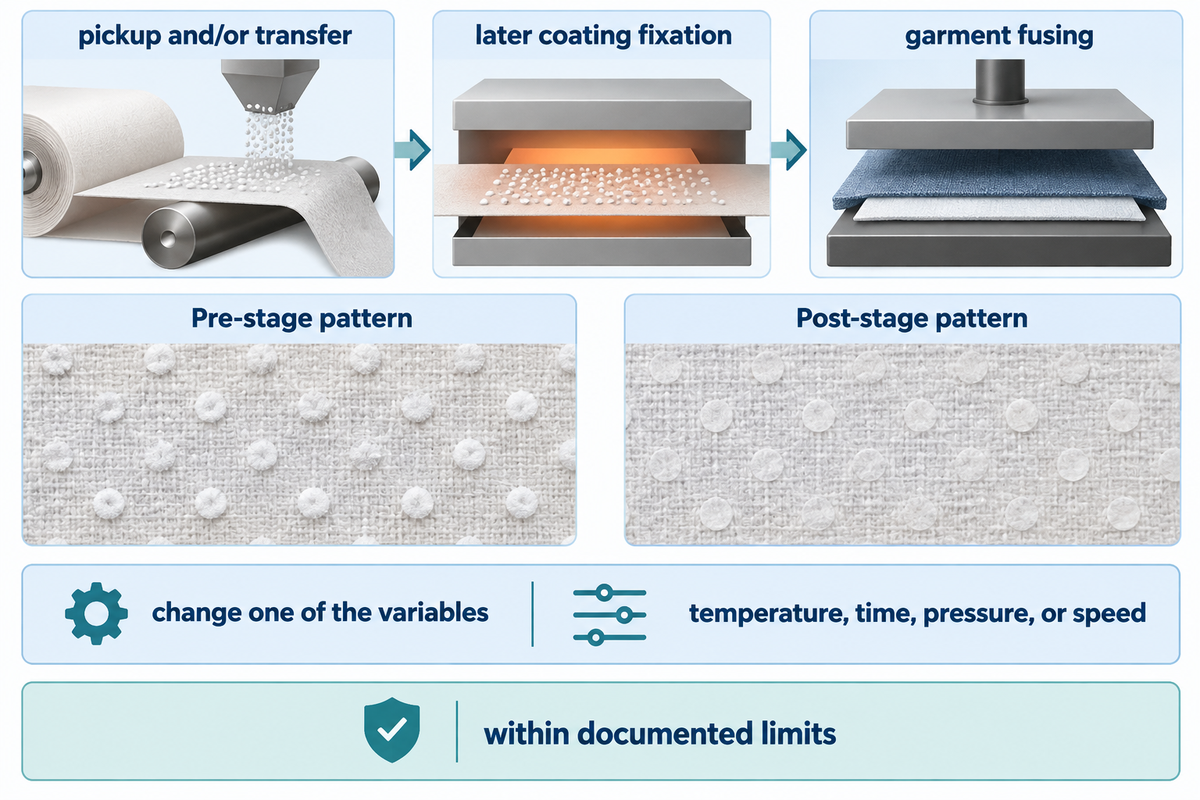

Heat must be assigned to its physical stage before a trial. Some processes in powder-dot apply heat to the substrate or adhesive during pickup and/or transfer, while later coating fixation and garment fusing apply separate thermal histories. Compare paired pre-stage and post-stage samples, and then change one of the variables (temperature, time, pressure, or speed) within documented limits.
The fusible-interlining review describes powder-dot application along with the melting of an adhesive, and thus corrects the misconception that all heat is applied after the transfer. It also discusses garment fusing, where temperature, pressure, and time act on the completed interlining and face fabric. A defect visible before that operation can’t be diagnosed with garment pressing advice.
| Field | Baseline | Controlled trial | Evidence |
|---|---|---|---|
| Stage name | Record | Same stage | Line drawing and sensor location |
| Temperature reading | Record °C | One approved change in °C | Named instrument and location |
| Line speed or dwell | Record m/min or s | Hold constant | Run sheet |
| Powder and fabric lots | Record | Hold constant | Lot labels |
| Pre-stage pattern | Retain | Retain | Marked image and sample |
| Post-stage pattern | Retain | Retain | Matched image and sample |
| Width positions | Left, center, right | Same positions | Position marks |
| Bonded construction | Record if tested | Same face fabric and method | Buyer-defined result |
| Disposition | Baseline | Accept, reject, or investigate | Named owner |
One published laboratory study used 110 °C for 20 s for its own polymer-coated interlining specimens. The broader review reports 130–160 °C in another downstream context. The difference is the lesson: record source, material, stage, pressure, and dwell with every number. Neither value is a universal line setting.
Validate local improvement across width and time

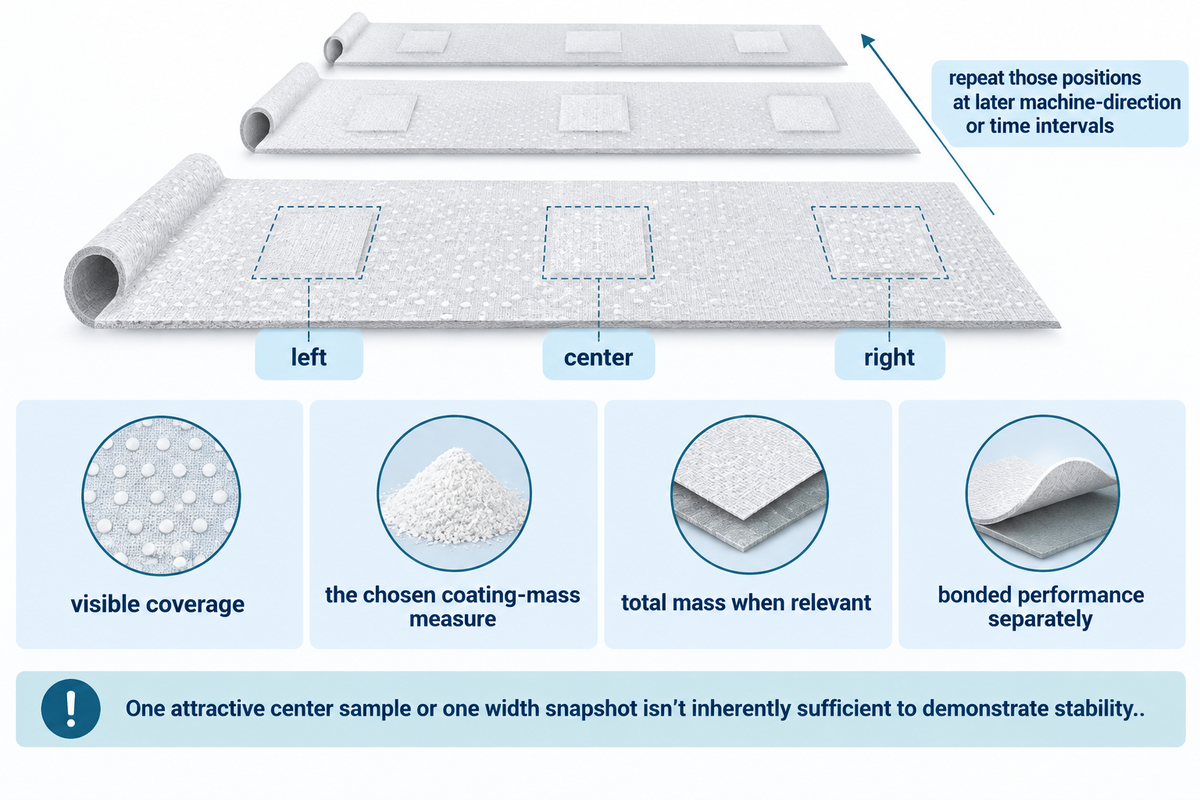

Corrective trials require evidence of both space and time. Sample left, center, and right, then repeat those positions at later machine-direction or time intervals. Record visible coverage, the chosen coating-mass measure, total mass when relevant, and bonded performance separately. One attractive center sample or one width snapshot isn’t inherently sufficient to demonstrate stability.
“The precision of any estimate will depend on the inherent variability of the process estimator.”
NIST states that precision is also dependent on measurement error, the number of independent repetitions, sample size, and the sampling scheme. Stability over time, which is covered by NIST’s process-stability guidance, explains that a local cross-width check shouldn’t serve to demonstrate process stability for an entire roll, or for subsequent production.
| Width position | Start, 0 min | Repeat, 15 min | Repeat, 30 min |
|---|---|---|---|
| Left, 10% of working width | Sample L0 | Sample L15 | Sample L30 |
| Center, 50% of working width | Sample C0 | Sample C15 | Sample C30 |
| Right, 90% of working width | Sample R0 | Sample R15 | Sample R30 |
The nine cells provide three width strata at three time frames. They don’t prescribe 15-minute intervals or 10%, 50%, and 90% positions. The plant must choose repetition intervals and the number of samples based upon process risk, roll length, measurement uncertainty, contract requirements, and the rate at which the suspect variable changes.
FZ/T 01081-2018 specifically addresses hot-melt adhesive coating amount for fusible interlinings, with a published substrate limitation. The public record does not disclose the entire paid procedure or a universal release limitation. ISO 2286-2:2016, within its coated-fabric scope, distinguishes total mass, coating mass, and substrate mass per unit area. Once again, visible dot coverage and bonded performance are to be evaluated separately. Use the method that fits the product and contract, and qualify the finished fusible interlining with the intended face fabric.
Build a release record that separates material from machine evidence

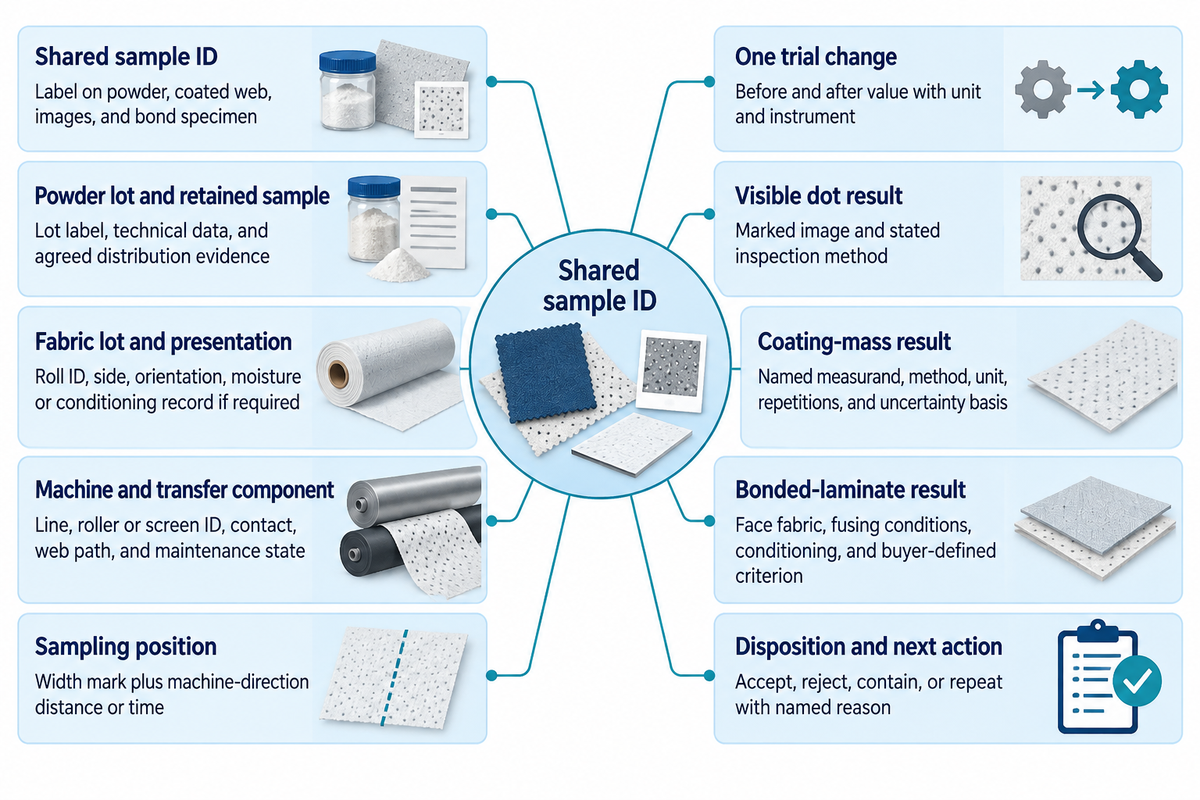

A good release record ties one sample identity to each material lot, machine state, location, trial change, observation method, bonded result, owner and disposition. Each measurand is named. Release records don’t always pair these measurands: the supplier may discuss particle distribution while the converter reports total fabric mass, and both records may appear complete.
Use the official ISO 3801 lifecycle page as a reminder that a mass-per-area method has a defined scope and status. ISO 3801:1977 was reviewed and confirmed in 2023. Age alone does not invalidate it and its title does not make total fabric mass a direct means of adhesive mass measurement.
| Record field | Evidence | Owner |
|---|---|---|
| Shared sample ID | Label on powder, coated web, images, and bond specimen | Converter quality |
| Powder lot and retained sample | Lot label, technical data, and agreed distribution evidence | Powder supplier and converter |
| Fabric lot and presentation | Roll ID, side, orientation, moisture or conditioning record if required | Converter |
| Machine and transfer component | Line, roller or screen ID, contact, web path, and maintenance state | Converter and builder |
| Sampling position | Width mark plus machine-direction distance or time | Converter quality |
| One trial change | Before and after value with unit and instrument | Variable owner |
| Visible dot result | Marked image and stated inspection method | Converter quality |
| Coating-mass result | Named measurand, method, unit, repetitions, and uncertainty basis | Test owner |
| Bonded-laminate result | Face fabric, fusing conditions, conditioning, and buyer-defined criterion | Converter and buyer |
| Disposition and next action | Accept, reject, contain, or repeat with named reason | Acceptance owner |
A hypothetical entry might read: Sample TY-TRIAL-01, powder lot P01, fabric lot F01, line M01, center width, 30 min after restart, one recorded contact change, visible image retained, coating mass measured by chosen method, and buyer bond result pending. The names are fictitious; the format keeps related records paired.
Assign the next test to the party that controls the variable

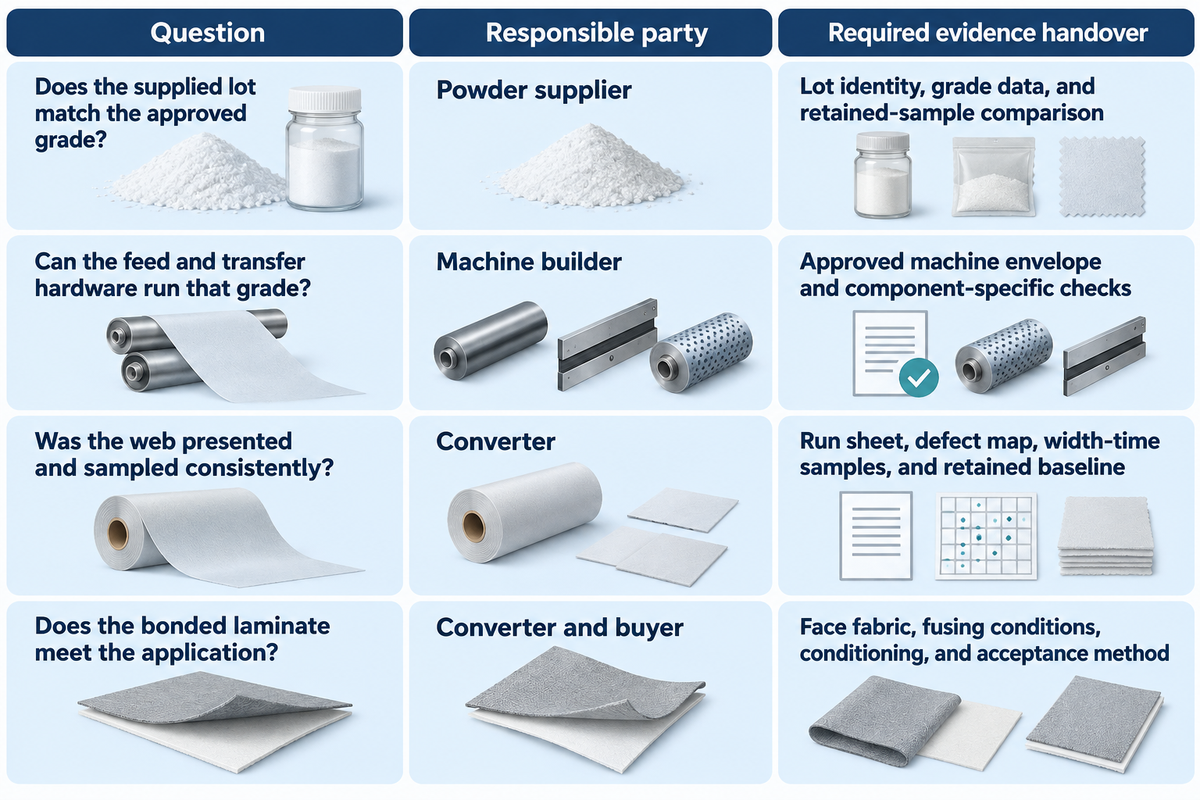

Responsibility should follow the variable and the evidence each party controls. The powder supplier owns grade identity, particle-distribution information, and material thermal data. The machine builder controls the feed and metering, the transfer, contact and heating hardware. The converter controls the fabric presentation and run controls, sampling, and the result of the bonded sample under the approved method.
The interlining literature relates final performance to the conditions of coated interlining and fusing. Therefore, a joint trial should start only when control evidence of each party is presented. Asking to “adjust setting” without identity of the sample and stage record shifts the responsibility, and produces little new information.
| Open question | Primary owner | Required handover |
|---|---|---|
| Does the supplied lot match the approved grade? | Powder supplier | Lot identity, grade data, and retained-sample comparison |
| Can the feed and transfer hardware run that grade? | Machine builder | Approved machine envelope and component-specific checks |
| Was the web presented and sampled consistently? | Converter | Run sheet, defect map, width-time samples, and retained baseline |
| Does the bonded laminate meet the application? | Converter and buyer | Face fabric, fusing conditions, conditioning, and acceptance method |
Tengyang can present the powder grade and lot evidence as the material supplier. The converter and machine builder must confirm the proposed grade on the actual coating line. Escalate to a joint trial when the remaining uncertainty crosses those boundaries, and define who can approve the result before the trial begins.
Know when troubleshooting becomes a process-method decision

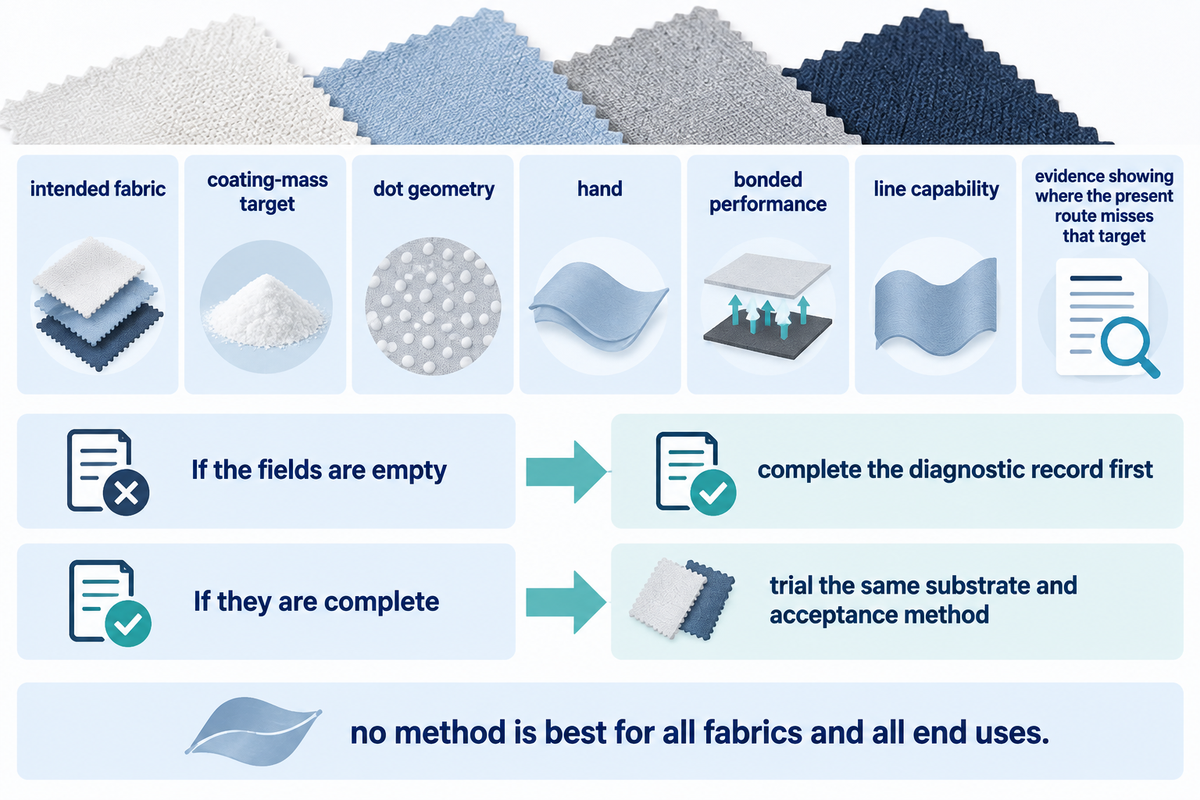

Don’t consider alternate coating methods until the current defects, product targets, and process envelopes are defined. Different coating patterns and process demands are obtained with powder dots, paste dots, double dots, scatter coating, etc. A change in method won’t correct an undefined acceptance target, and no method is best for all fabrics and all end uses.
The review of the interlining identifies several methods of adhesive coating, while the commercial Dotcoat overview identifies powder dot, paste or double dot, scatter, and gravure methods. Use those names when framing your trials, don’t use them to rank vendors or to state that a retrofit will address current issues.
A method comparison becomes reasonable when the team can state the intended fabric, coating-mass target, dot geometry, hand, bonded performance, line capability, and the evidence showing where the present route misses that target. If the fields are empty, complete the diagnostic record first, and then proceed to the comparison of methods. If they are complete, ask prospective equipment and material suppliers to trial the same substrate and acceptance method.
Frequently asked questions
What is powder-dot coating in fusible interlining?
It places discrete thermoplastic adhesive deposits on a textile substrate.
Powder-dot coating uses controlled powder delivery, metering, patterned transfer, fabric contact, and thermal processing to form adhesive dots on interlining. The finished coated web can later be joined to a face fabric. Keep that garment-fusing operation separate in the diagnostic record because a uniform coating can still produce a poor bonded laminate when the later temperature, pressure, dwell, or material pairing is unsuitable.
Can uneven coverage be corrected without changing the powder grade?
Yes, when the evidence points to delivery, transfer, web handling, or heat.
Preserve the original lot and machine baseline, then inspect the first plausible station. A feed interruption, partially filled cell, repeat on rotating hardware, wandering web, or stage-specific heat change can alter coverage without a chemistry change. Replace the grade only when matched trials, retained samples, and particle-distribution evidence continue to follow the material after the competing machine variables have been controlled.
What should be recorded before adjusting the line?
Record the lots, location, pattern geometry, settings, and retained sample.
Capture powder and fabric lots, line and component IDs, sample width position, machine direction, repeat length, line speed, transfer contact, stage-specific heat readings, and time. Retain and mark the defective sample before making a change. Add the exact variable changed, its unit, the responsible owner, the paired post-trial sample, and the resulting disposition. Restore the last confirmed baseline after an unsuccessful trial.
Does higher temperature fix missing dots?
Not by default.
First determine whether the defect exists before or after the relevant heat stage. Separate transfer-stage heat from later fixation and garment fusing, retain paired samples, and change only one documented variable inside the material and equipment limits.
When should the supplier join a corrective-action trial?
Start a joint trial when the remaining variable crosses party boundaries.
Bring the powder supplier, machine builder, and converter together after lot identity, machine setup, width-time samples, and bonded-result requirements are recorded. Each party should arrive with the evidence it controls and a named owner for the next decision.
Key takeaway
Preserve the defect map, change one stage-specific variable, and verify the result across width and time under the plant’s approved sampling and acceptance plan.
For a material review, send Tengyang the powder grade, lot identity, target substrate, particle-distribution requirement, process stage, and paired trial evidence. Keep machine settings with the line builder, and final bonded acceptance with the converter and buyer, to clearly define the next action.
Evidence note: This guide combines peer-reviewed literature, public standards records, a patent, and attributed process descriptions. Diagnostic maps, blank records, and sampling positions are editorial tools. No Tengyang plant trial, universal line setting, certification, defect rate, or buyer acceptance limit is claimed.
