Hot Melt Adhesive Pellets Melter Selection: 7 Checks

Choice of pellet melter starts with the adhesive grade and demand on the line. A bigger tank can’t tell you if enough adhesive will make it to the applicator during the peak part of the cycle. For industrial adhesive applications, match the material to the complete dispensing system, then compare the prices of the machines. A hot glue demo should reproduce the proposed duty cycle.

Updated October 2026

Hot melt adhesive pellets melter selection is matching a specified adhesive grade with melting capacity, usable reserve and peak delivery. Calculate the consumption then trial the complete system (pump, hose and nozzle circuit). Tank volume alone can’t define the production output.

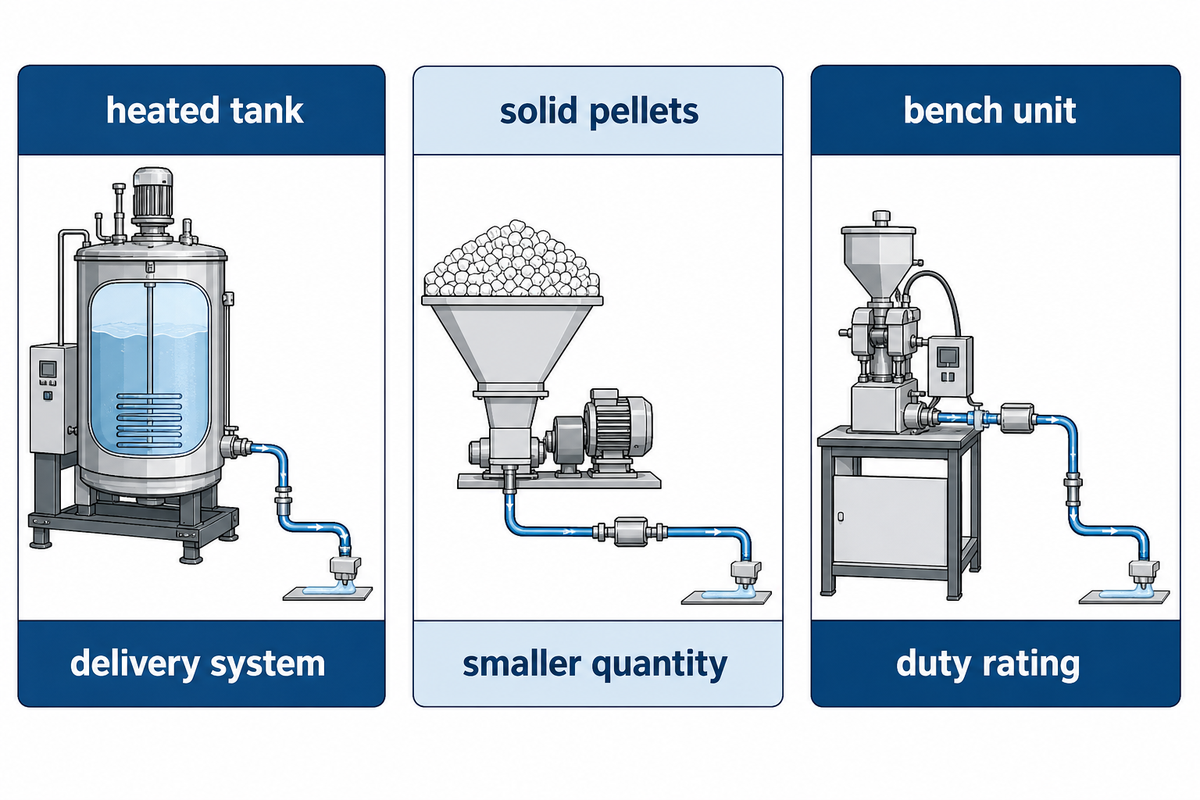

Melter architecture: tank, tankless or benchtop?

Begin with the feedstock and consider the duty cycle then compare the melting architectures. A supply hopper can house solid pellets and a separate chamber melts a smaller quantity. A heated tank can store the molten adhesive. Both architectures require a delivery system matched to the application. Therefore, ask the suppliers to define what each of those capacity figures means.

Robatech states that Concept Stream is a tankless system for thermoplastic granulate. Graco’s tank-free explanation gives a further distinction between its design and equipment where a small molten reservoir is included. Those are the manufacturers’ descriptions, not interchangeable definitions.

A bench unit or glue gun may suit a limited trial, but its demonstration does not establish continuous-line capacity. Obtain the duty rating for the exact melter, feed arrangement and applicator. A 10 kg hopper of solid pellets doesn’t mean 10 kg of molten glue is available; that’s a hypothetical example of two different quantities.

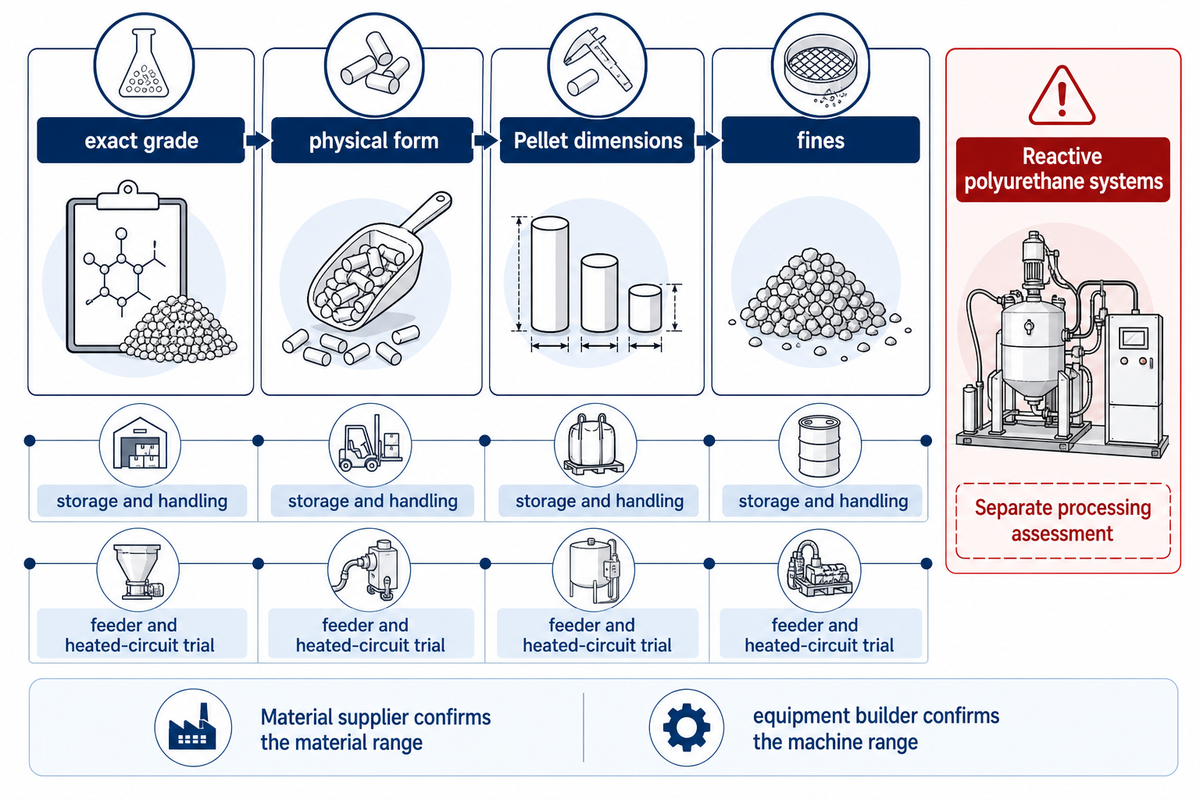

Pellet compatibility: chemistry, shape and moisture

Stipulate the exact grade, physical form and handling instructions of a material before approving a feeder. An EVA-based grade sold as an EVA hot melt still requires a complete specification of compatibility, as does a polyolefin grade. Pellet dimensions, fines, storage and handling also play a role when considering feeding. Reactive polyurethane systems need their own processing assessment; a thermoplastic adhesive approval cannot automatically cover them.

The German adhesive association’s profile-wrapping guidance, sections 3.1 – 3.2, mentions dry, uncontaminated granulate and describes special moisture protection for reactive PUR processing. Its scope is profile wrapping. Use that distinction to request the appropriate equipment approval, rather than copying a setup into packaging.

Send the equipment builder the grade sheet of the proposed hot melt adhesive pellets for the selected resin or polymer formulation. The equipment builder confirms the processing range of the machine; the material supplier confirms the processing range of the material. Our pellet and granule forms guide covers the material-format questions.

Different suppliers provide a range of hot melt adhesives for different processes, but approval is grade-specific. Even for a wide variety of hot melt products, the exact grade is important. Long shelf life in storage doesn’t indicate good thermal stability during production. For a given process, for example the 7.2 kg/h line below, compatibility must be maintained at the feeder and the heated circuit, for the duration of the agreed operating cycle.

Melt viscosity: match the grade to the equipment

Compare the viscosity at a specific temperature and using a specific test method. Softening point temperature is different and can’t replace a processing setpoint. Compare the grade viscosity information with the equipment supplier’s operating envelope, then confirm delivery through the proposed hose and nozzle, at the approved temperature.

[ASTM D3236-15(2021)] shows that an apparent viscosity measurement under low shear may not correlate to the end use which requires high shear. Equivalent shear conditions are to be considered while comparing results. A single viscosity number without its temperature, spindle and speed conditions is an incomplete comparison.

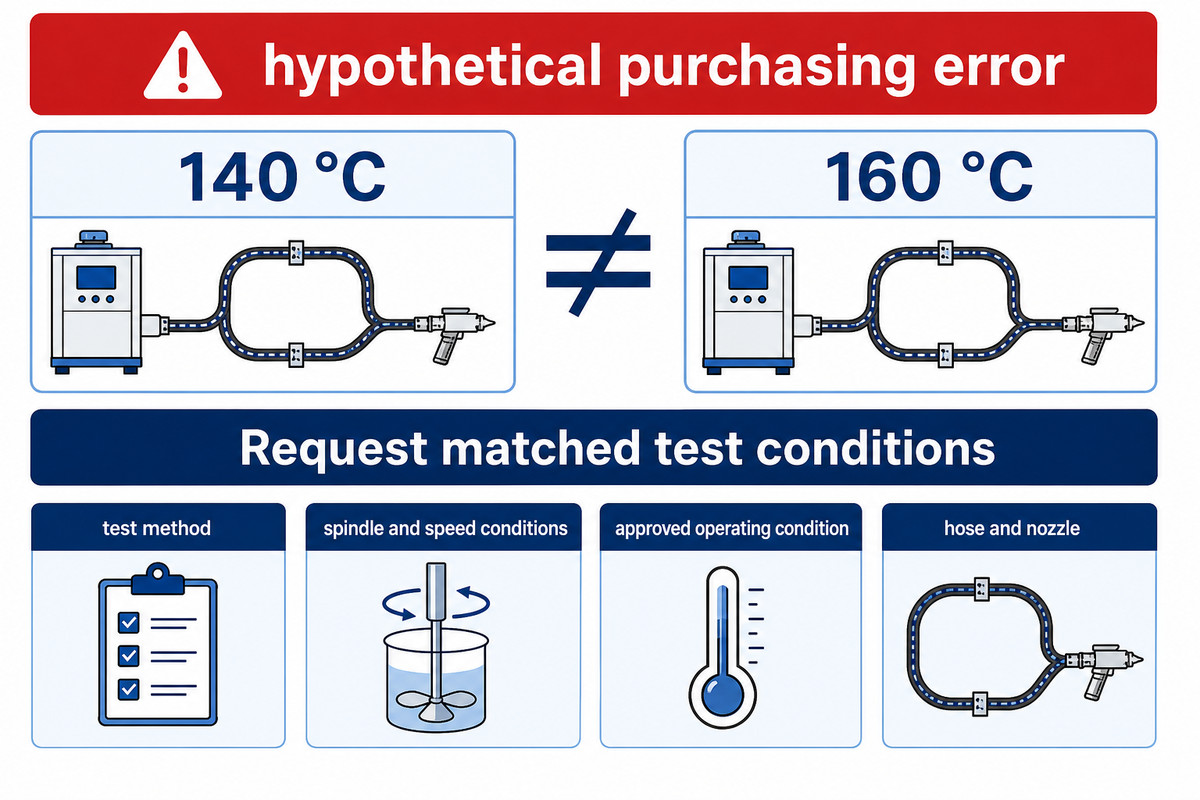

Consider a hypothetical purchasing error: a buyer compares two quoted viscosity values, one at 140 °C and one at 160 °C. The lower number looks easier to pump, so the buyer favors that grade without requesting matched measurements. Neither value defines which material best suits the buyer’s operating condition. Request comparable data from both suppliers and trial the material at its approved operating condition. Using too high a temperature to force a neat application may exceed the adhesive’s limits or harm heat sensitive materials. Speed and ease of setup can’t replace that check. The decision is whether the selected system can deliver the grade within its documented range, not whether heat can make it flow during a brief demonstration.

Low temperature performance is formulation-specific. Published application US20240400870A1, associated with HB Fuller Co, describes a composition at no greater than 2,000 cP at 107 °C. It’s a patent disclosure, not a Tengyang specification, commercial-grade approval or universal operating temperature.

Two readings taken at 140 °C and 160 °C can’t establish a like-for-like purchasing comparison on their own. Request matched test conditions and the grade’s correct application temperature. A pump that fits a quoted viscosity envelope still requires confirmation with the complete dispensing equipment.

Packaging adhesive demand: size melt rate before tank volume

Calculate adhesive mass per item, then determine the fastest sustained production rate to consider melt rate performance and evaluate the size of the reserve for interruptions and recovery. A large tank can store material without melting it quickly enough, while a high pump rating can’t supply adhesive that hasn’t melted.

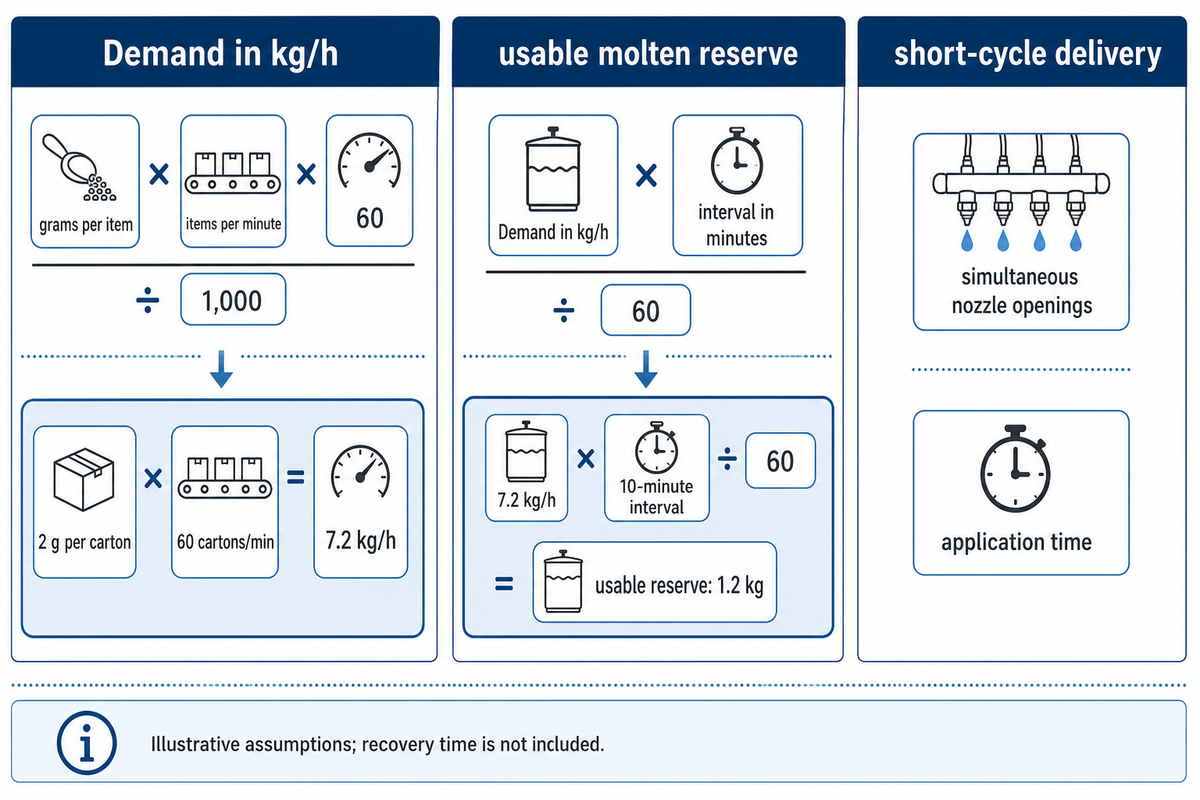

3-Part Demand, Reserve, Delivery Match

The 3-Part Demand-Reserve-Delivery Match evaluates sustained consumption, usable molten reserve and short-cycle delivery before a supplier trial.

Demand in kg/h = grams per item × items per minute × 60 ÷ 1,000.

Reserve for a zero-replenishment interval equals demand in kg/h × interval in minutes ÷ 60. This calculation assumes a steady demand and usable molten material; it doesn’t include recovery time for warm up or refill.

Suppose a carton sealing line uses 2 g per carton at 60 cartons/min. Consumption is 2 × 60 × 60 ÷ 1,000 = 7.2 kg/h. A 10-minute interval with no replenishment consumes 1.2 kg. The plant manager wants enough reserve to avoid a stop, but leaving much more adhesive hot can create a separate residence-time problem. Procurement therefore asks each vendor to demonstrate steady output, usable reserve and refill recovery with the chosen hot melt adhesive for carton sealing. An advertised 8 kg/h rate alone doesn’t prove this installation will pass: the test adhesive, starting temperature and downstream circuit may differ. There’s no universal spare-capacity percentage in this example.

Section 3.3 of the association guidance relates melting capacity to heat transfer, adhesive properties and the residue left on contact surfaces. That warrants a grade-specific trial, not a packaging output benchmark. Ask the builder to distinguish between the solid hopper, heated volume and the minimum usable level.

At 7.2 kg/h, a 10-minute interruption consumes 1.2 kg only if that mass is already usable under the agreed conditions. Nameplate volume of the tank may include space or material that can’t support the application. Show reserve and recovery, instead of converting liters to kilograms with assumed densities.

Pump and nozzle selection: test the whole flow path

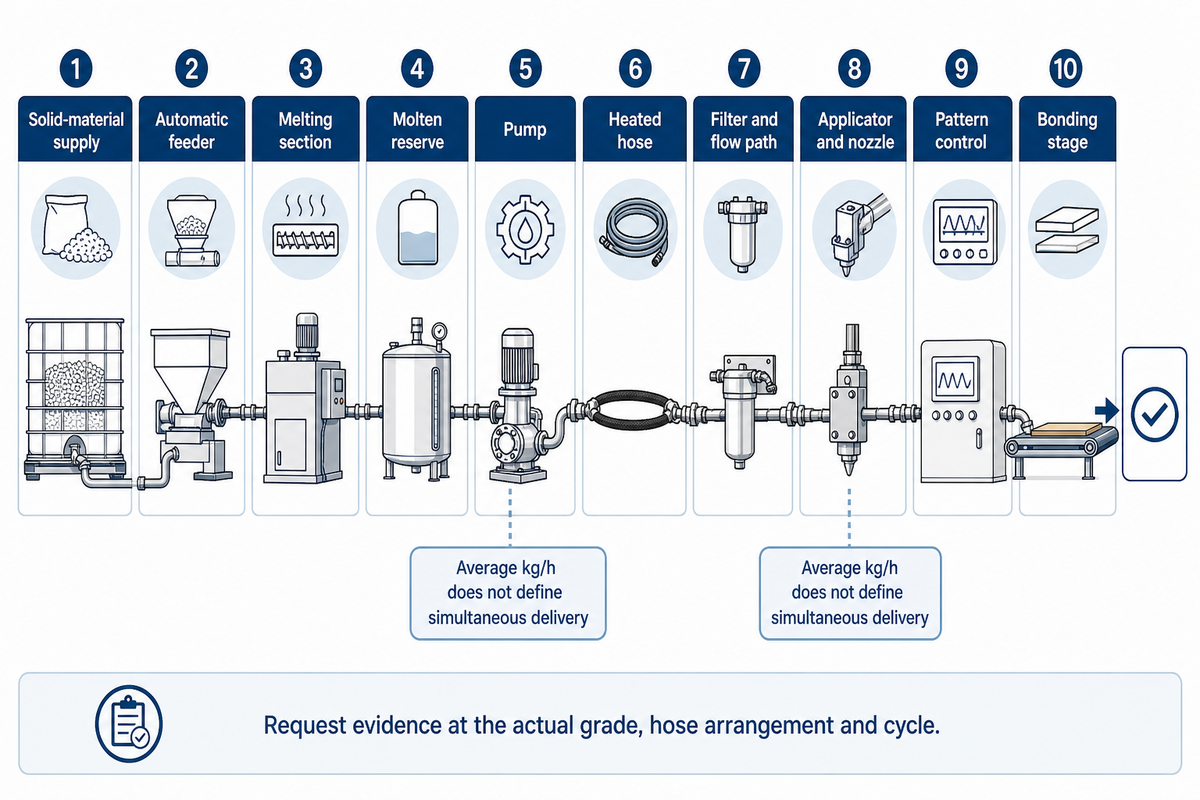

Test the pump, heated hose and hot melt nozzles as a circuit. Average hourly consumption doesn’t describe simultaneous demand on nozzles or the time required for a precise bead. For the application process, capture which applicators open together, the time they’re open, and the mass delivered in that time.

Robatech’s Concept series description relates piston pumps to intermittent applications and gear or Gerotor pumps to continuous applications. Use this as a starting point to select those products. A pump type alone does not establish compatibility with every adhesive or control arrangement.

In a theoretical cycle, to deposit 2 g in 0.1 s requires an average of 20 g/s in that time. The hourly line demand can still be 7.2 kg/h. Provide both sets of data as well as the nozzle time. Buying a larger tank doesn’t resolve the question.

Tankless limits: check feed compatibility and hot residence time

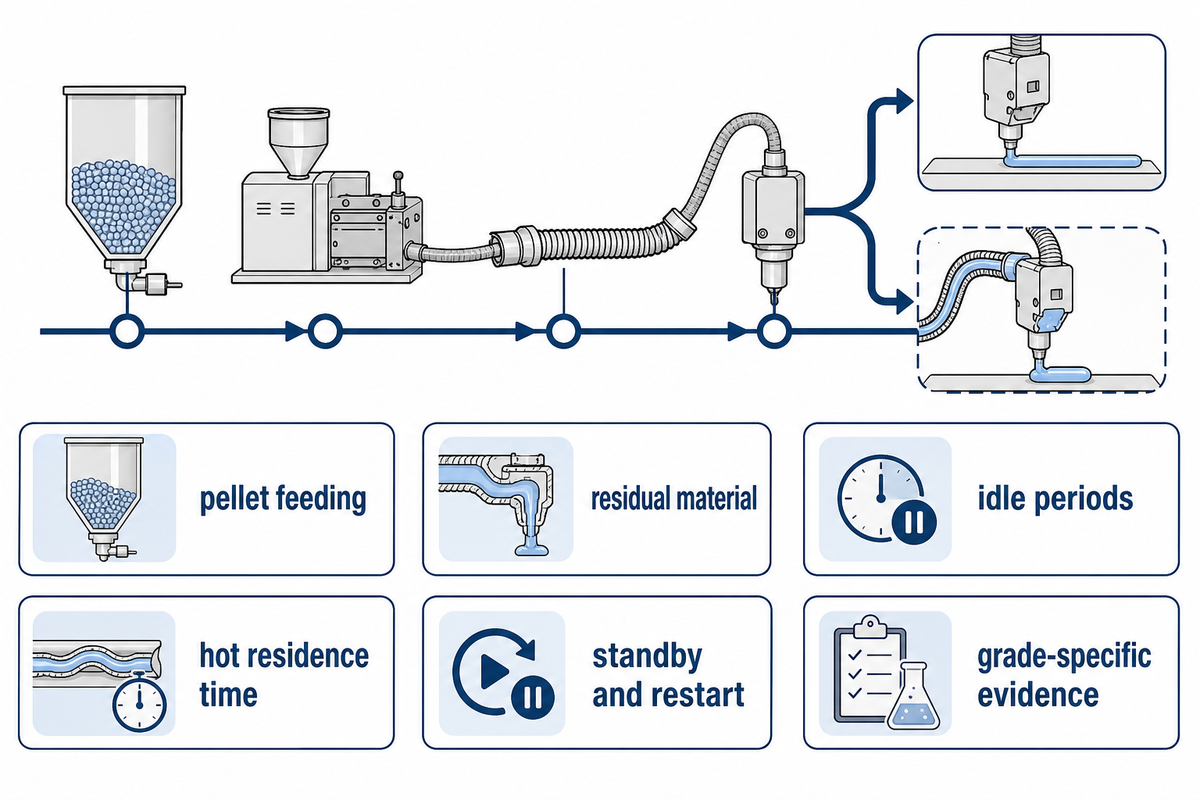

Equipment that does away with heated tanks changes how materials are stored and heated. Ultimately, grade and operating pattern determine suitability. Inspect pellet feeding, residual material throughout the circuit, and what happens during idle periods. Smaller melting chambers can’t prove that material in hoses and application heads will be stable during all stops. Don’t approve a material just because its pellets turn to liquid during a demo.

Nordson’s Larry Saidman provides insight into tankless adhesive requirements in a 2016 technical article. His employer’s interest matters when reading performance claims. Another vendor-affiliated author, Mike Budai of ITW Dynatec, makes a useful narrower point about oversizing:

“If a melt tank is too large for the application, adhesive will not turn over frequently enough.”

For a low consumption line compare the normal hot residence time to the adhesive supplier’s stability recommendation. For an interrupted line, include standby and restart in the trial. Our separate guide to causes of adhesive char covers troubleshooting; equipment selection should establish which conditions the new system must handle.

An illustrative reserve of 1.2 kg protects a 10 minute zero-replenishment interval at 7.2 kg/h. With an increase in the reserve, look at the amount of adhesive that remains hot. The supplier should be able to provide evidence of the intended stop-and-restart pattern. A general promise of zero char shouldn’t be accepted in place of grade-specific evidence.

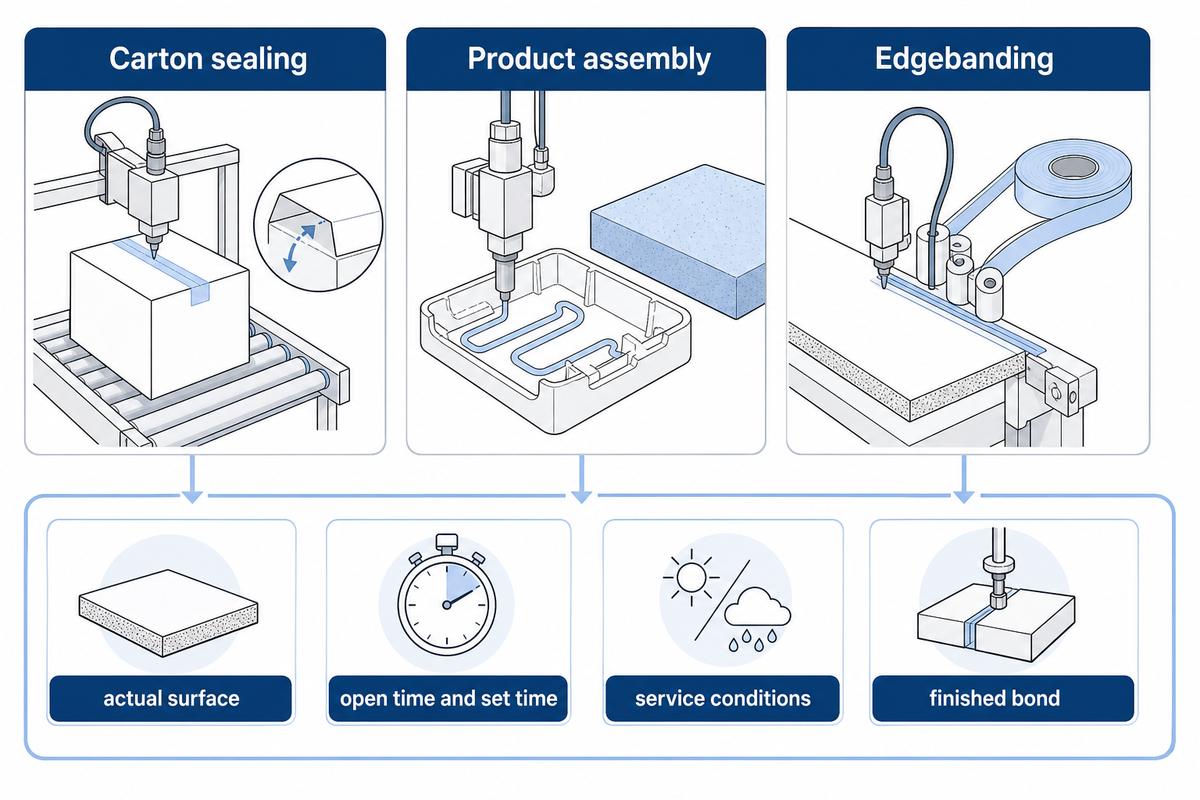

Application fit: packaging, assembly and edgebanding

Define the finished bond before selecting machinery. Carton sealing requires adhesive placement and closure timing particular to the board. Product assembly may engage foam and plastics or other difficult-to-bond substrates. Edgebanding has its own feed and application arrangement. A material that melts readily hasn’t yet proved the required adhesion. Equipment shouldn’t be selected from a vendor’s presumed typical industries list alone.

Mention the variety of substrates in the trial: cardboard, corrugate, plastic, porous material or coated surface. Specify the actual surface and the flexibility the completed part requires. Provide service conditions to the supplier like refrigeration, heat resistance and sustained stress or weight. A flexible hot melt adhesive for a mattress assembly and a packaging hot melt adhesive face different bond requirements. Automotive use alone isn’t a qualification.

Speak to your material supplier for guidance on how to control the wetting within the approved process window. Match open time and set time to the folding, tray closing or component joining process. For sheet-based bonding, hot melt adhesive film has a different physical format to evaluate before purchasing pellet equipment.

A 2018 WOODWEB edgebander discussion contains an operator’s report of charring and suggestions to check actual temperature against the display. Those are dated anecdotes, not recommended settings. Be clear with your suppliers on how you intend to measure temperature and bond quality.

Supplier comparison: quote the same trial conditions

Provide at least one copy of the same trial brief to each short-listed supplier. Where packaging trials are compared, record the conditioning atmosphere for every supplier because ASTM D4332-22 explains that temperature and relative humidity can change package material properties and affect whether test measurements are meaningful and reproducible. Fix adhesive grade, substrates and demand profile and acceptance measures and compare installed scope. Procurement should obtain comparable quotes; production should have reliable output. Finance should compare productivity and cost per acceptable item alongside capital cost, without treating a vendor’s projected savings as measured results.

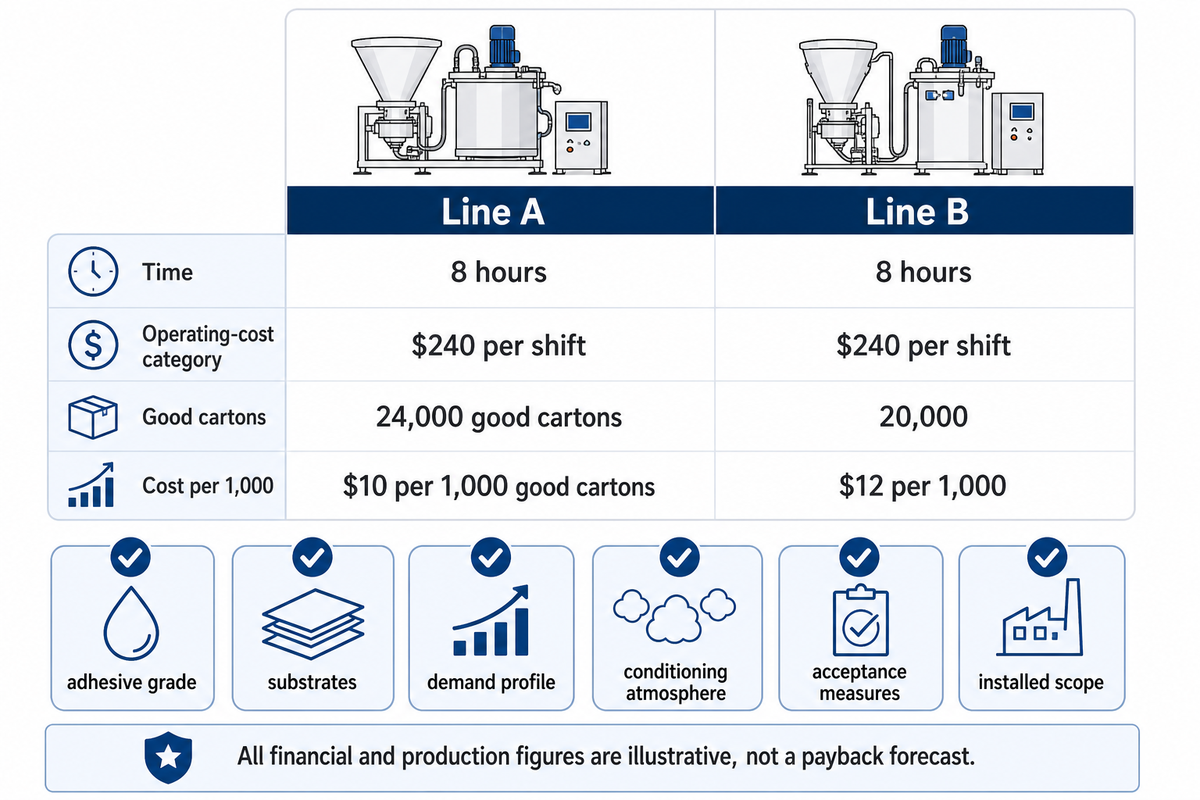

Consider a hypothetical comparison of shifts. Both lines run for 8 hours and cost $240 per shift in the narrowly defined operating-cost category being compared. One produces 24,000 good cartons, giving $240 ÷ 24,000 × 1,000 = $10 per 1,000 good cartons. Another produces 20,000, giving $12 per 1,000. That $2 difference is illustrative, not a machine payback forecast. The plant manager must establish why there is a difference in output before crediting the melter; a stoppage in downstream packing could dominate the result. Finance must then add the real installed price, material use, maintenance and other relevant costs consistently. Quality assurance determines which cartons are good.

Ask suppliers to customize their proposals. Send them your trial brief, grade sheets, usable kg, kg/h requirement, application time in seconds, hose arrangement, utilities and trial records. Ask suppliers to use your intended material form. Assign processing advice to the adhesive supplier, equipment capacity to the builder, and line interfaces to the integrator. A guide to hot melt selection can address these questions; it can’t approve a combination remotely.

Acceptance test: prove the complete dispensing system

Agree on the trial conditions and define pass criteria before ordering. Run the selected grade with the proposed feed, pump, hoses and application heads to evaluate system behavior and performance, measure startup, steady production, refill recovery and restart behavior, and test the bond which forms on the finished part. The proposed trial has three main stages: establish conditions, run the agreed cycle and assess the finished parts. This proposed protocol is to help suppliers provide evidence; it isn’t a certification protocol or a recorded customer trial.

ISO 10363:1992 describes a laboratory thermal-stability method with repeated measurements at 4–6 h intervals and observations including gelation, phase separation and color change. The interval belongs to that method, not to every machine acceptance trial. Ask the adhesive supplier how stability should be assessed over the intended production and standby periods.

For packaging, ASTM D4332-22 explains why temperature and relative-humidity conditioning affect meaningful, reproducible tests. Lab conditions may not represent field conditions. Room temperature and RH should be logged along with other comparison conditions and finished product’s service conditions.

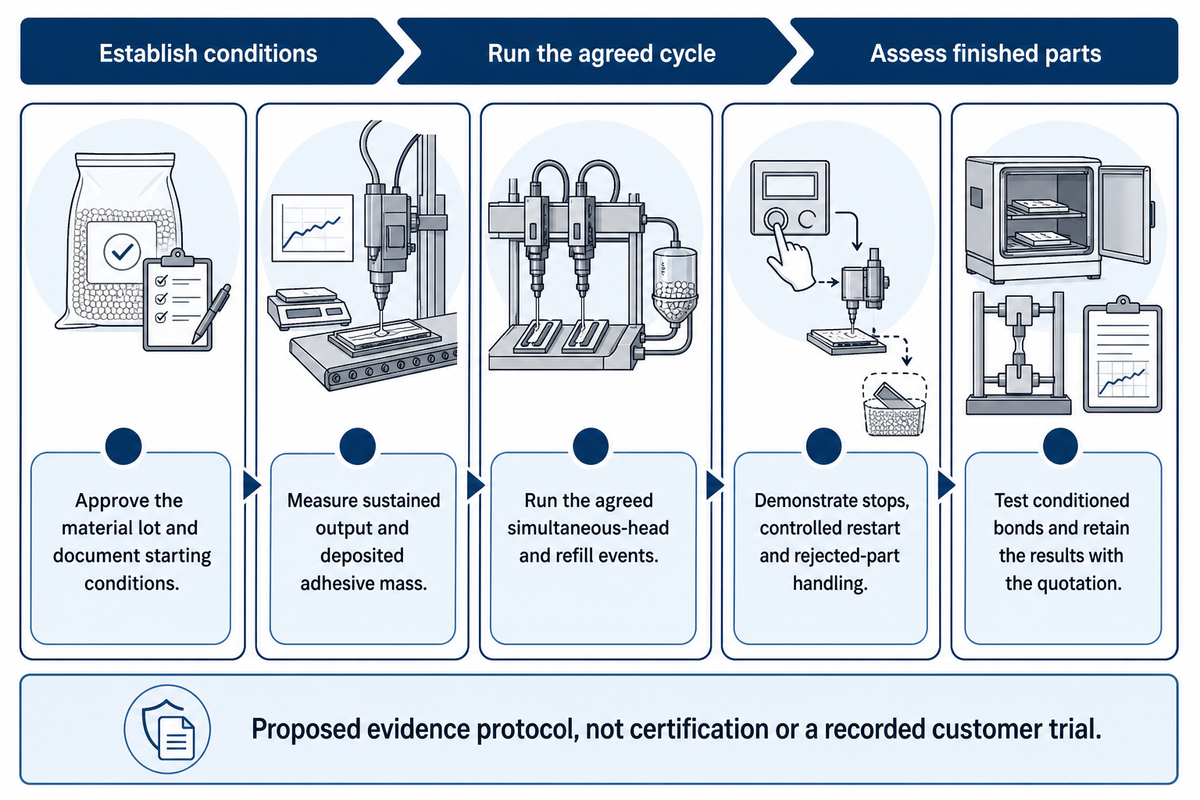

1. Approve the material lot and document starting conditions.
2. Measure sustained output and deposited adhesive mass.
3. Run the agreed simultaneous-head and refill events.
4. Demonstrate stops, controlled restart and rejected-part handling.
5. Test conditioned bonds and retain the results with the quotation.

A hypothetical 7.2 kg/h trial only demonstrates the conditions experienced during that run. If production also includes a 10 minute stop, the restart should be considered a separate test event. Quality assurance should reject an acceptance report that documents routine dispensing but fails to address finished bond criteria or the tested adhesive grade.

Integration and utility requirements

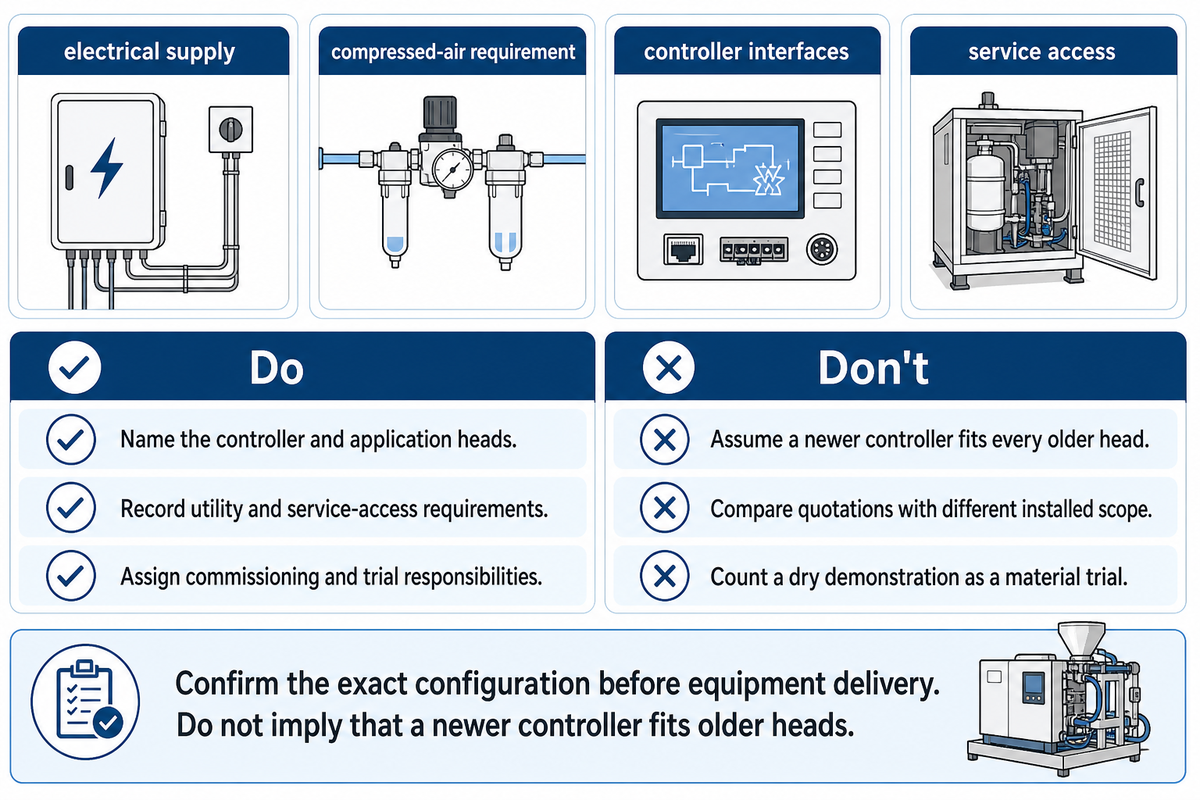

Confirm the limits of the installation before evaluating final prices. Identify the electrical supply, any compressed-air requirement, controller interfaces and service access for the exact configuration. Equipment selection also addresses responsibility for safe operation and the grade’s handling requirements. These should appear in the equipment quotation and commissioning plan. They shouldn’t be determined after equipment delivery.

Robatech’s announcement of January 2026 Sirius replaces its AS 30, AS 50 and AS 60 external pattern controls with a new product family. That’s a valid reason to ask which controller generation and interfaces a retrofit quote includes. It does not mean every existing application head is compatible.

Review the adhesive SDS. Assess your installation’s exposure-control needs. Discuss with the responsible site specialists. Review the 1993 NIOSH bindery investigation, which includes hot-melt gluing. A 1993 NIOSH bindery investigation concerned several processes, including hot-melt gluing; it can’t predict emissions from a modern pellet line. The relevant procurement question is who assesses the actual materials, temperatures, and workplace conditions?

Frequently asked questions

Tengyang will require some specific information. Your substrates. Include the required bond performance. Include your line timing and equipment information. Discuss an appropriate grade of adhesive. Use the pellet material enquiry and obtain equipment builder’s approval for your selected grade and trial conditions.

Evidence note: This guidance brings together public standards, association guidance, and attributed equipment information. Line and cost examples are illustrative. No Tengyang plant trial, equipment certification or proprietary performance result is claimed.
