What Is Hot Melt Adhesive Film & How It Works?

Updated July 2026 · Technical buyer guide

Edited by the Shanghai Teng Yang New Materials Technology Co., Ltd. technical team

What Is Hot Melt Adhesive Film & How It Works is the focus of this guide. Hot melt adhesive film is a dry, pre-metered thermoplastic adhesive layer positioned between two materials. When heated, the film flows; pressure holds it against the surfaces while it wets them, and cooling solidifies the bond line. Useful temperature, pressure, dwell, and cooling conditions depend on the specific grade and material stack.

Direct answer: A conventional hot melt adhesive film bonds in three stages: melt the solid film, hold the molten layer against both substrates so it can wet them, then cool it under control so cohesion returns. Reactive grades may add a later chemical-curing stage.

TL;DR: Film meters the adhesive before the parts enter the press, but it isn’t a “one-size-fits-all” bonding recipe. Repeatability still depends on the polymer grade, film thickness, layer stack, real interface temperature, contact pressure, dwell or line speed, substrate condition, and cooling restraint.

Quick Specs

Physical form: solid at room temperature; some constructions include a removable liner.
Activation: heat plus contact pressure, followed by controlled cooling.
Main control: the adhesive-substrate interface, not the machine display alone.
Common families: TPU, EVA, polyamide, polyester, and polyolefin.
Approval method: test the actual substrate pair and record strength and failure location.

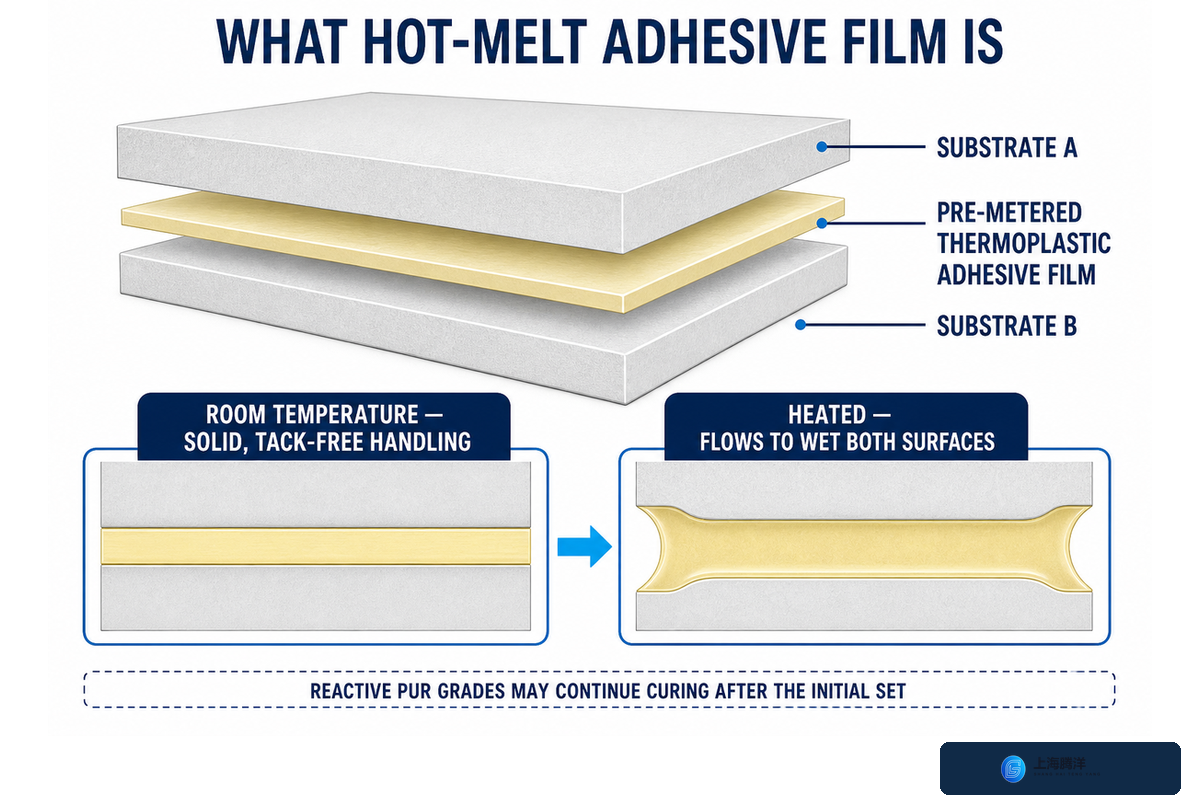

What Is Hot Melt Adhesive Film?

Hot-melt adhesive film is supplied at a precise thickness that can be cut and positioned before bonding. Unlike solvent-based adhesives, the dry layer is pre-metered, so no additional dosing step is needed. Unlike pressure-sensitive tapes, traditional heat-activated film must experience a specific thermal cycle to develop its intended bond.

A peer-reviewed review of hot-melt chemistry and industry guidance from the Adhesive and Sealant Council describe hot melts as thermoplastics that are usually 100% solids and develop strength as they cool after activation above their softening region. In film form, the chemistry is presented in a continuous layer, not as a liquid being pumped out of a tank or applied by a glue gun. This results in predictable placement and coverage, provided that the film’s construction and thickness are appropriate for the intended application.

Why Film Differs from Other Hot Melt Adhesives

Format matters. Glue sticks are melted and dispensed as beads; adhesive powders are scattered or coated as particles; an adhesive web is a nonwoven network. Film applies a continuous layer, but each format alters air permeability, surface coverage, part handling, process equipment, and the approach to excess adhesive control. For the current film families and commercial options, refer to the hot melt adhesive film product hub instead of using this mechanism guide as a grade table.

Hot melt film also differs from decorative and protective plastic films. Its fundamental function is adhesion. During activation, the layer is formulated to wet both substrate surfaces and then resist the service conditions that follow. Transparency, a polyurethane label, or availability in roll form doesn’t by itself establish this defining capability.

Search results for the types of hot-melt adhesives often combine film with hot-melt glue, pellets, web, and powder. These are different types of hot melt supply form, not one finished-film specification. A supplier may extrude a continuous film, while other equipment meters bulk material. Even headings such as “types of hot” or descriptions saying a product is “known as hot melt” don’t establish film compatibility. The use of hot-melt adhesives in bookbinding or woodworking likewise doesn’t prove that the same grade suits a laminating press.

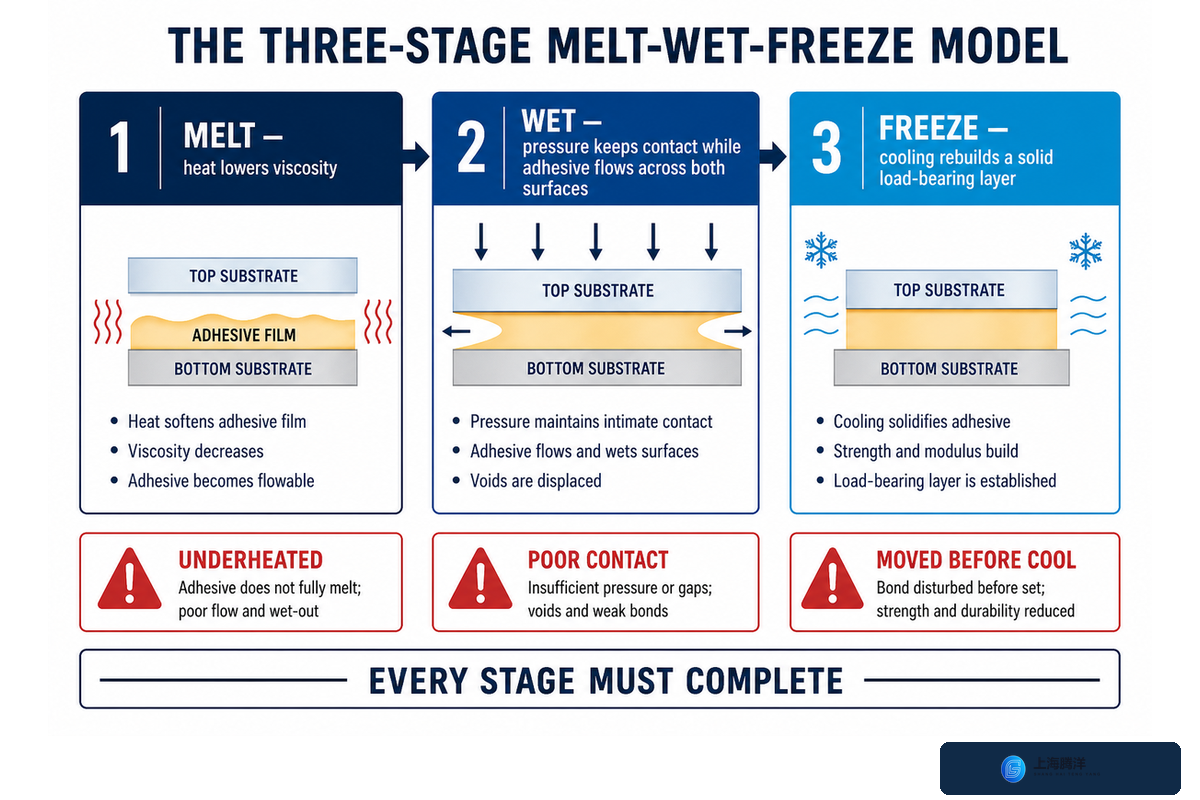

How Does Hot Melt Adhesive Film Work? The 3-Stage Melt-Wet-Freeze Model

Hot melt adhesive film operates by transitioning from a solid handling layer into a low-viscosity bonding layer, and then reforming as a coherent solid as it cools. We call this The Three-Stage Melt-Wet-Freeze Model because a press can complete one stage but fail another.

1. MeltHeat reaches the bond line and lowers adhesive viscosity enough for the film to deform and flow. Softening the surface doesn’t automatically activate the full interface.

2. WetPressure maintains intimate contact while the mobile adhesive spreads across surface texture and displaces small air gaps. Wetting must occur on both substrates.

3. FreezeCooling restores cohesive strength and fixes the joint geometry. Restraint may be needed until the laminate can be handled without shifting or opening.

Viscosity connects the phases: if the adhesive is too viscous, it can bridge rather than fill the texture of a surface; if the joint moves before cohesion has returned, it can separate. Process control therefore asks whether the interface reached an adequate temperature, sufficient pressure was maintained over the contact area, and the assembly remained stable during cooling.

Fully melting a film can still produce a poor bond. Melting changes the adhesive; wetting creates contact; cooling locks in the contact that was actually achieved.

This model describes conventional thermoplastic film. Reactive polyurethane hot melt can add a second mechanism after its initial physical set: chemical crosslinking triggered by moisture. Early handling strength and final cured properties are separate checkpoints, and the specific grade determines whether process development stops at cooling or continues through a controlled cure period.

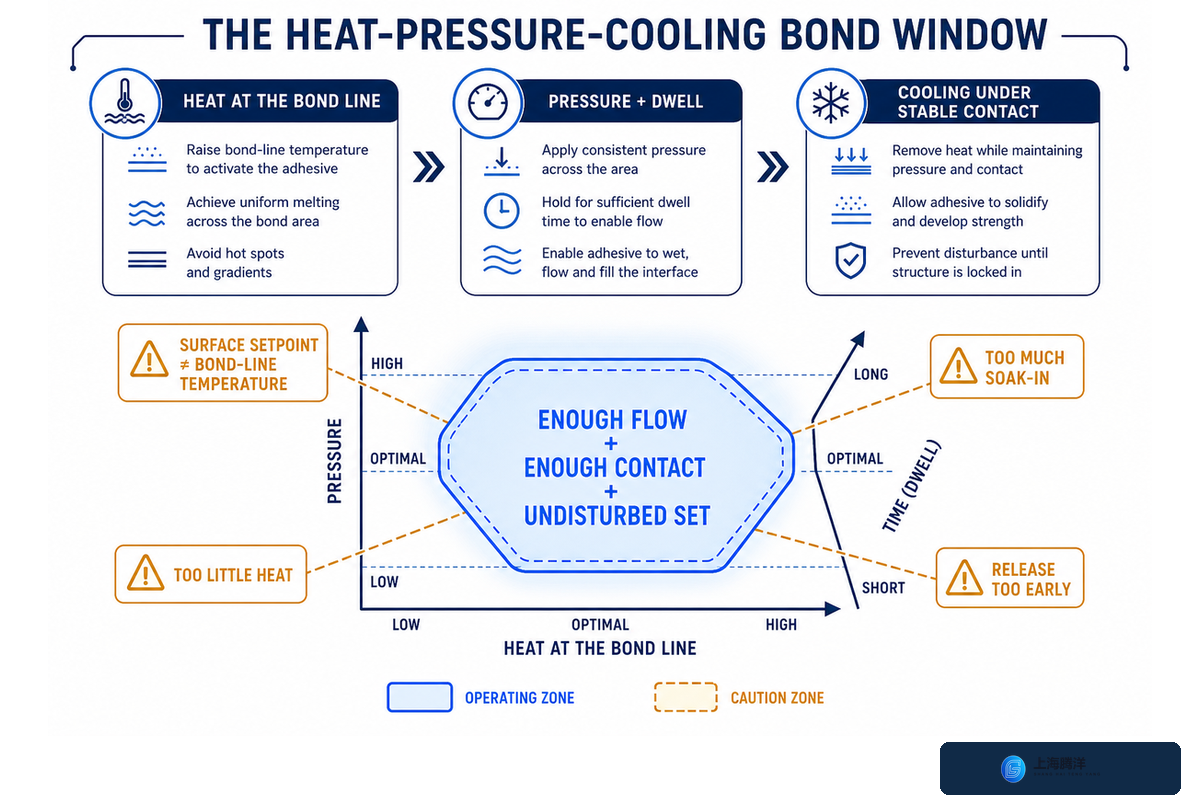

Hot Melt Adhesive Temperature Range: The Heat-Pressure-Cooling Bond Window

The Heat-Pressure-Cooling Bond Window defines the process envelope where enough energy reaches the adhesive, enough contact is maintained for wetting, and the assembly cools without disturbing the joint. Machine temperature alone can’t define this window.

Machine heater setpoint may differ from the adhesive-interface conditions that control wetting and cooling because heat must travel through platens, liners, textiles, foams, films, coatings, or metals. Thickness and heat capacity alter the heating rate. Roller geometry, nip pressure, heat-transfer dynamics, and line speed may change both heat transfer and contact area. Calibration and pressure uniformity can cause the center and edge of a part to behave differently.

Process variable	What it controls	Useful observation	Risk when it drifts
Interface temperature	Viscosity and ability to wet	Transfer across both surfaces	Dry spots, strike-through, or substrate damage
Dwell or line speed	Time available for heat and flow	Bond consistency from center to edge	Incomplete activation or excessive exposure
Pressure and contact	Intimate contact and air removal	Even bond line without shifted parts	Voids, edge lift, imprinting, or crushing
Film thickness	Adhesive volume and heat path	Coverage without squeeze-out	Starved or overly thick bond line
Cooling restraint	Joint stability while cohesion returns	No spring-back, slide, or early peel	Open edges or distorted alignment

When using hot melt adhesive film, start with the range provided by your supplier for the specified grade. Test coupons made from the actual substrate stack, change only one variable at a time, and record machine parameters, observed interface conditions, visible transfer, and cooled results. Don’t transfer a temperature or dwell time from a different grade, thickness, or machine.

Keep four temperature ideas separate: the supplier’s temperature range, the material’s melt temperature, the measured application temperature at the interface, and the high temperature exposure expected in service. Temperature resistance is one of several grade-specific adhesive properties; it isn’t proven merely because the adhesive when heated becomes mobile. During a trial, observe how the molten adhesive reaches both faces and how the joint behaves upon cooling. Apply heat and pressure only inside the named grade’s controlled trial window.

Fast cooling is not automatically better. Cooling builds handling strength, but a layer that freezes before it has wetted the surface can preserve a weak interface. Conversely, slow release while the joint is still mobile can permit shift or spring-back. The useful cooling method is the one proven for the named assembly.

Hot-Melt Adhesive Film Construction, Release Liners, and Bond-Line Placement

Film construction defines what remains in the laminate and what must be stripped out. Unsupported adhesive, single-liner film, double-liner film, and film on a permanent carrier aren’t interchangeable, so consult the supplier’s drawing and handling instructions for the proper assembly sequence.

A release liner is designed to separate from the adhesive at a defined handling point. A permanent backing or carrier is integral to the final product. Although these terms are common in pressure-sensitive products, the distinction remains useful here: never assume everything visible in the stack is temporary, and don’t leave a temporary liner inside a hot-melt laminate because another product used a different sequence.

Published textile work demonstrates why the instruction needs to be construction-specific. A particular polyamide hot melt was presented in powdered and preformed-film formats, processed under heat and pressure conditions specific to each material. This illustrates that format and temporary support affect handling; it doesn’t establish universal removal criteria for hot melt adhesive film.

Before press operation, draw the entire stack from the upper to lower tooling. Label each substrate, face coating, adhesive layer, release surface, protective liner, and permanent carrier. Note the contact order, whether staged transfer is acceptable, and when each temporary liner will be removed. This diagram also helps troubleshoot reversed parts, trapped liners, crooked cuts, and adhesive extending beyond the specified bond boundary.

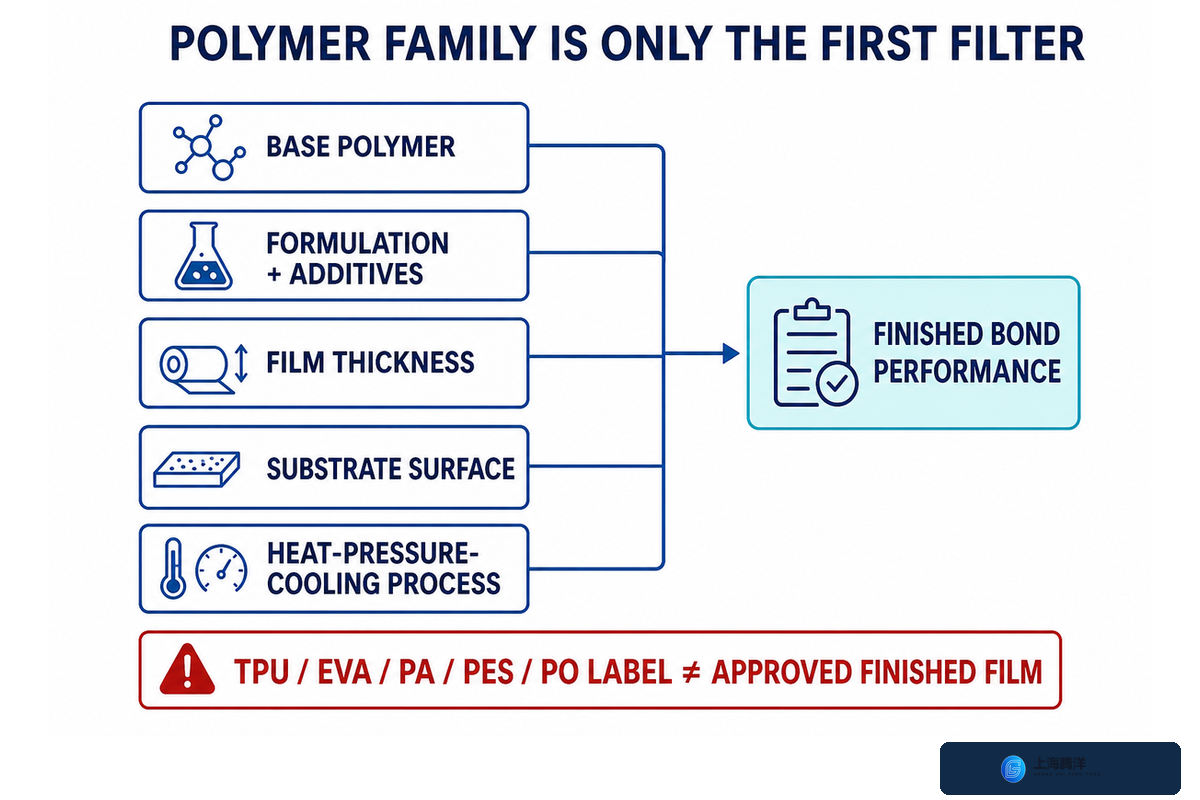

Why Base Polymer Family Alone Does Not Predict the Finished Bond

A TPU, EVA, polyamide, polyester, or polyolefin label is merely the first filter and not the finished film. A peer-reviewed hot-melt formulation review shows why adhesion and service performance also depend on grade, formulation, thickness, additives, support material, process conditions, and the actual substrate combination.

Within a single family, a producer may vary the base polymer, tackifiers, filler, melt viscosity, melting point, open time, crystallization, flexibility, and hot tack. Heat resistance, chemical resistance, and mechanical properties remain grade-specific. Antioxidants may protect processing or service performance, but their presence isn’t evident from the polymer abbreviation.

Shortlist the family, then compare actual test reports and samples. Teng Yang sorts current options into TPU hot melt adhesive film and EVA hot melt adhesive film pages, while the hot melt film grade router asks for substrate and service inputs before it offers advice. If TPU base chemistry becomes relevant, the polyester versus polyether TPU guide explains that narrower choice.

There’s a practical comparison that makes the following three questions distinct. First, will the melted adhesive wet the surfaces?

Second, will the cooled adhesive support the intended weight at service temperatures?

Third, will the entire laminate resist water, detergents, bending, heat, UV radiation, and regulated-contact requirements?

It’s impossible to answer all three with a family name.

What Materials Can Hot Melt Adhesive Film Bond in Industrial Applications? Textiles, Foam, Metal, and Plastics

Hot melt adhesive film can be formulated for foams, textiles, metal finishes, leather, and selected plastics, yet no material-family list proves adhesion to every member. The wetting factors summarized in peer-reviewed literature include surface behavior alongside formulation and process conditions; contaminants, porosity, heat tolerance, flexibility, plasticizers, and coatings can all affect the result.

Substrate Screening by Material Class

Material class	Interface question	Process risk	Evidence needed
Woven or knitted textile	Will adhesive wet fibers without unwanted strike-through?	Compression, texture, and heat loss vary with construction	Conditioned peel plus appearance
Foam	Does the surface accept adhesive without collapsing?	Heat and nip pressure can change thickness	Thickness recovery and bond test
Leather or synthetic leather	Is the finish the true bonding surface?	Finish chemistry and oils can block wetting	Finish-specific aging and peel
Metal	Is the surface clean and treated consistently?	High heat capacity can cool the interface	Surface record and temperature trace
Low-surface-energy plastic	Can the named grade wet the polymer?	Family labels hide additives and treatments	Actual-grade coupon and treatment record
Coated plastic film	Does the adhesive bond to the coating or base film?	Coating transfer can mimic adhesive failure	Failure-surface inspection
Paper, board, or wood	How do porosity and moisture affect flow?	Absorption can starve the bond line	Moisture-controlled bond test
Rubber or elastomer	Will plasticizer or surface bloom interfere?	Migration can weaken an initially good joint	Aged peel under service heat
Multilayer composite	Which internal interface is weakest?	The substrate can delaminate before the adhesive	Layer-by-layer failure identification

For substrates such as paper, textiles, foam, or coated film, define the actual surfaces to be joined rather than naming only the broad material family. In fabric lamination, layers of fabric can differ in finish, porosity, and thermal response even when their fiber labels match. Record where the adhesive is applied, the apparent stickiness of the adhesive during handling, and the final adhesive strength after conditioning; these observations answer different questions.

Porous fabric may take a bit of the melted adhesive into it. A hard coated textile will present a different kind of surface. Foam may crush or fail under pressure and temperature.

Metal can draw heat from the bond line. Plastic may soften, release plasticizers, or repel the adhesive. A leather finish may be the actual bonding surface instead of the leather under it.

That’s why what works for a fabric-to-film laminate can’t automatically be applied to a fabric-to-foam or metal-to-textile laminate.

Screen both sides of the joint. Record material identity, coating, color or finish, thickness, surface treatment, cleaning history, storage condition, and maximum safe temperature. Add the expected load direction and service environment. For moisture-managed laminates, the breathable TPU membrane guide shows why permeability and bond durability need separate tests.

Continued stress at temperature matters because a thermoplastic joint can exhibit creep despite an apparently favorable quick peel. Structural, safety, and controlled products demand grade-specific data and product-specific certification; initial tack is only the start.

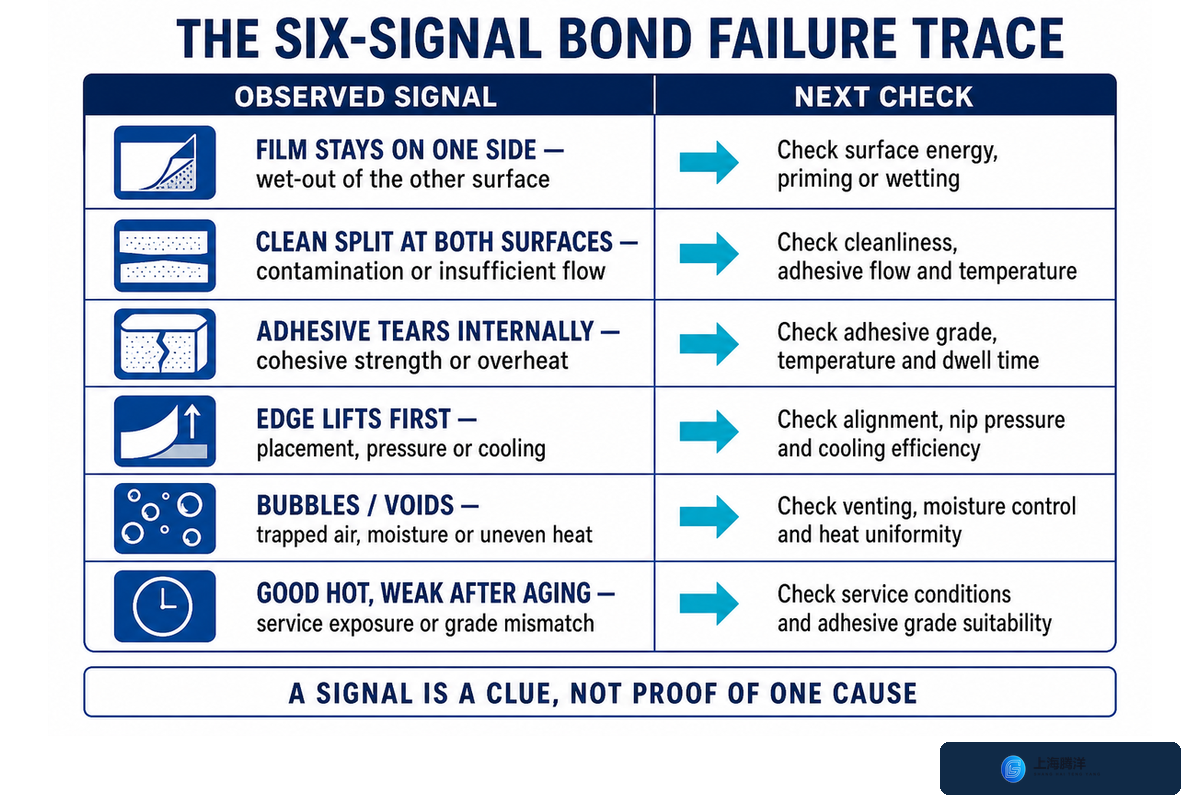

Why a Hot Melt Adhesive Bond Fails: The Six-Signal Bond Failure Trace

The Six-Signal Bond Failure Trace begins with what’s visible after a controlled separation, then selects the next check. The framework uses wetting and cohesive behavior described in peer-reviewed hot-melt literature as boundaries, but it doesn’t presume that one appearance proves one cause. Don’t turn up the heat until you’ve checked the failure location, material stack, and process record.

Observed signal	What it may indicate	First check	Controlled next trial
No adhesive transfer to one side	Inadequate wetting, contamination, wrong face, or incompatible surface	Surface identity and transfer pattern	Clean and verify the surface; adjust one activation variable within the grade range
Adhesive mainly on one surface	The second interface did not wet or lost contact	Pressure, flatness, dwell, and interface heat	Correct contact first; compare a bounded dwell or pressure change
Cohesive split inside adhesive	Interfaces may be stronger than the adhesive layer under that test	Service temperature, thickness, and load mode	Retest the named grade and thickness after conditioning
Edge lift after cooling	Spring-back, uneven pressure, premature release, or cooling stress	Edge temperature and restraint	Hold alignment through the proven cooling point
Bubbles or voids	Trapped air, moisture, surface texture, or rapid flow	Material dryness and pressure path	Dry or vent the assembly; alter one contact variable
Distortion or strike-through	Substrate exceeded its thermal or pressure tolerance	Actual interface temperature and pressure distribution	Reduce exposure within the grade window or select a lower-activation construction

Practitioner discussions report uneven transfer, localized sticking, and peeling after initial bonding. Those reports tell us to document the fracture surface; they don’t establish a universal cause. A diagnostic approach requires film chemistry, substrate data, process history, and a repeatable test system.

Reheating some thermoplastic joints may facilitate movement or delamination but can spread adhesive, deform a substrate, or leave residue. Reactive grades may not regain their original flow properties. Define whether the goal is rework, disassembly, or residue-free separation, then test a small representative area.

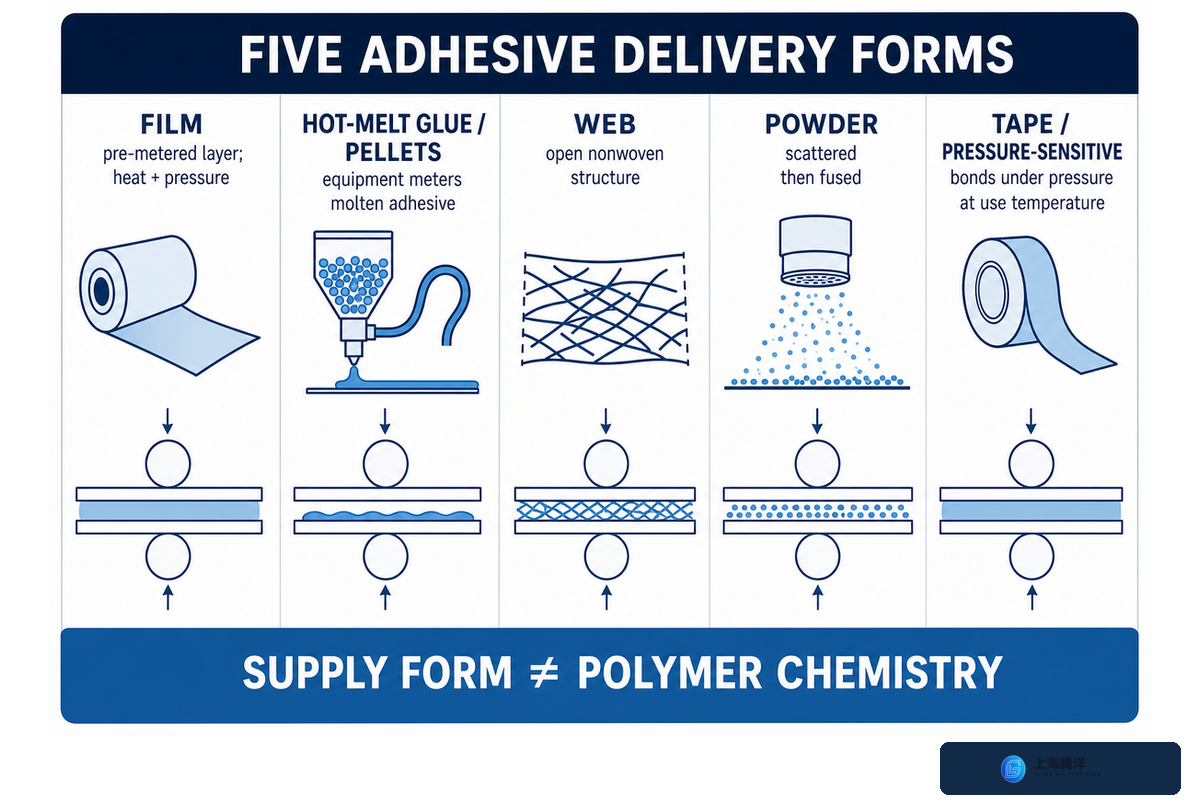

Different Types of Hot Melt: Film vs Hot Melt Glue, Solvent-Based Adhesive, Web, Powder, and Tape

The Adhesive and Sealant Council’s technology overview helps separate hot-melt format from other adhesive technologies. Film is often preferred when total coverage, precut parts, and controlled adhesive quantity matter more than coating irregular shapes or leaving open air paths. Another form may be better when part shape, line speed, equipment, cleaning requirements, or permeability control the decision.

Hot-Melt Glue and Film Are Different Supply Forms

Adhesive format	Placement character	Typical decision advantage	Question before choosing
Film	Continuous, pre-metered layer	Cuttable placement and uniform coverage	Will a continuous bond line affect breathability or hand feel?
Web	Open nonwoven network	Intermittent coverage and potential air paths	Is the web mass and openness consistent enough for the target bond?
Powder	Discrete particles	Flexible coating pattern and selective coverage	How will powder mass, overspray, recovery, and melting be controlled?
Pellets or bulk hot melt	Pumped or coated from molten material	Continuous industrial application	Can the line control melt residence, coating weight, and cleanup?
Liquid adhesive	Wet coating or bead	Conformal application to complex surfaces	How will solvent or water removal, cure, and coat uniformity be managed?
Pressure-sensitive tape	Pre-coated tacky layer	Bonding without a heat-activation cycle	Can the tape carry the service load and temperature over time?
Glue stick	Manually or automatically dispensed bead	Fast spot or bead application	Is bead geometry acceptable where uniform film coverage is needed?

For competing forms, review hot melt adhesive web, hot melt adhesive powder, and hot melt adhesive pellets. The TPU adhesive powder guide and pellets and granules guide detail their own process controls. Film isn’t inherently cleaner, greener, stronger, or cheaper; the complete production line and end product determine that.

Neither a “high-performance” label nor the size of the hot-melt adhesives market proves application fit. Film can be one of several bonding solutions, and traditional adhesives may still be better for some shapes, service conditions, or production lines. It shouldn’t be called environmentally friendly solely because it is supplied dry or solvent-free; compare energy use, scrap, liner waste, rework, durability, and end-of-life conditions for the complete process.

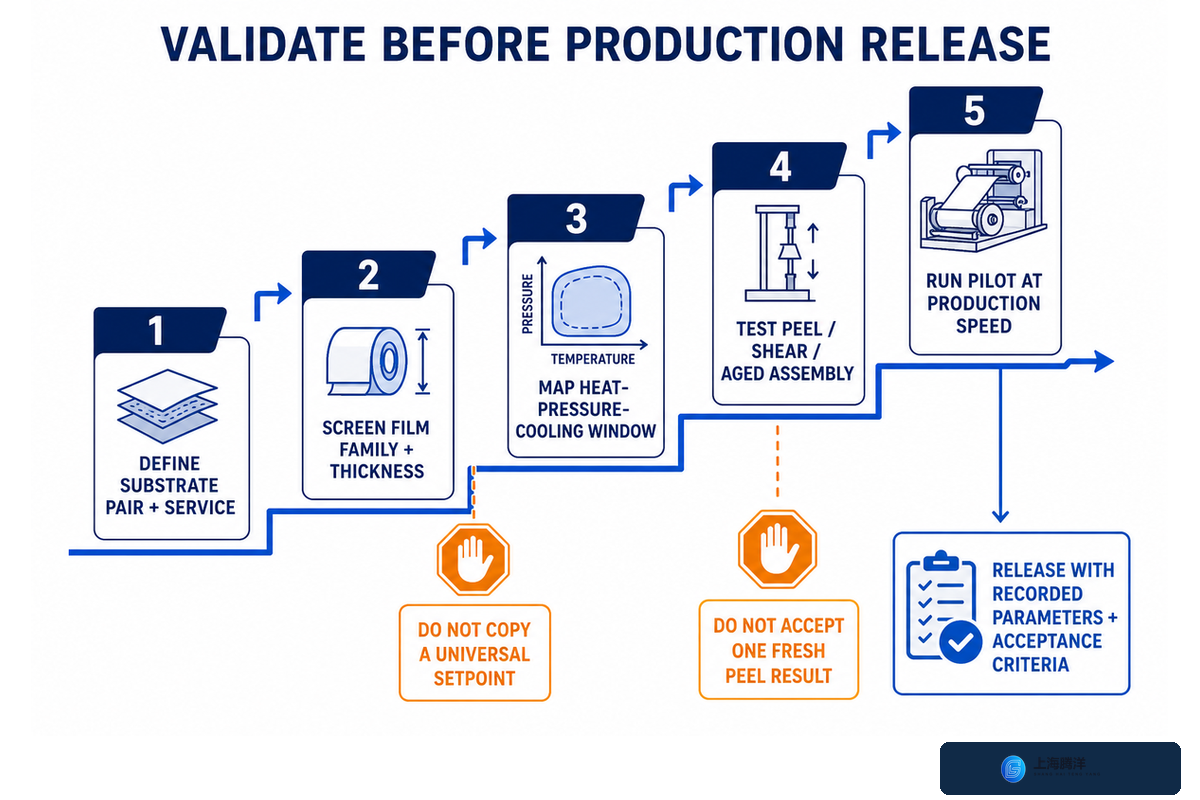

How to Validate Hot-Melt Adhesive Film Before Production Release

Production validation establishes a defined production window for a single material stack within a given supplier’s starting range.

The final release should stipulate the film type, substrates, process equipment, settings, conditions, test procedure, acceptance criteria, and typical failure modes across the range of normal process variation.

Begin with standard representative samples.

Control substrate lot, preparation procedure, film orientation, and sample geometry. Vary one process parameter at a time while staying within the supplier’s defined process window. Allow the finished laminate to cool and equilibrate at the specified test condition after bonding, rather than peeling samples after an unspecified cooling duration.

ISO 11339 supports comparative T-peel studies for bonded assemblies made from flexible materials. This test doesn’t provide universal acceptable values for any hot melt film.

If T-peel adequately represents the service load and joint risk, document specimen composition, conditioning, test speed, calculation method, and pass/fail parameters. If the main risk is shear, heat, wash, humidity, flex, or another failure mode, use a test that predicts that risk better than peel selected by convention.

One pragmatic release procedure consists of screening material pairs, identifying the range of acceptable processing parameters, conditioning samples, testing in a relevant failure mode, inspecting for the point of failure, and repeating for edge cases within the normal process range. Take into account process variation from start up to steady state, and lot-to-lot differences. Log the settings and conditions that result in failure, as well as the final successful range, so operators can readily identify reasons for limits.

Shelf life and bond life are different. Unopened storage, time after a roll is opened, and service life of the finished laminate need separate definitions. Follow current packaging and storage instructions, mark the opened date, and use aged assembly tests for the product-life decision.

What to Send a Hot Melt Adhesive Film Supplier for a Useful Recommendation

A supplier can make a specific, testable film recommendation only if the inquiry specifies the particular substrates, the entire stack of layers, process parameters, end-use service conditions, the chosen method for validation, and any regulated end uses. When ISO 11339 T-peel fits the flexible assembly, name it together with specimen, conditioning, calculation, and project acceptance details. Asking for a “strong TPU film” without that context leaves critical design choices unaddressed.

Use the table format below to construct your test request. “Recommended range” specifically requires the buyer or supplier to insert their own value, based on the project parameters; this isn’t intended to provide a default production setting.

Show units instead of adjectives. A formatting example could record 80 µm (0.08 mm) film with ±5 µm tolerance on a 1.5 mm substrate; 1000 mm width with ±1 mm tolerance; 100 m roll length, a 76 mm core, and 25 kg maximum roll weight; 120°C interface temperature with ±2°C tolerance; 12 s dwell; 2 bar (200 kPa) pressure with ±0.1 bar tolerance; 10 m/min line speed; 5 N/mm peel and 1 MPa lap-shear after 30 min recovery; 10 coupons, a 25 mm specimen, 50 mm overlap, and 150 mm peel length at 100 mm/min; 5 min clamped cooling; a second evaluation after 72 hours; 24 h conditioning at 23°C and 50% RH; 90% RH exposure for 5 days; 60°C aging for 48 h; and 500 flex cycles around a 5 mm radius at 20 cycles/min. Replace every illustrative value with the named grade, equipment, method, and project requirement.

Film sample request checklist:

Parameter	Recommended range	Why it matters	How to verify
Substrate pair	Named material, grade, finish, thickness, and supplier	Actual surfaces control wetting and heat transfer	Send representative pieces from intended lots
Layer stack	Order of substrates, coatings, adhesive, liner, and permanent carrier	Prevents reversed faces and trapped release layers	Attach a labeled cross-section drawing
Film construction	Polymer family, named grade, thickness in µm or mm, liner or carrier	Defines adhesive volume and handling format	Check the sample label and supplier data sheet
Equipment window	Maximum safe temperature in °C, available pressure, dwell in s or line speed	Eliminates samples the line cannot activate safely	Record calibration and measured trial conditions
Service exposure	Temperature, humidity, wash, chemicals, load, flex, and expected duration	Separates initial adhesion from durable performance	Condition bonded coupons using the service-risk sequence
Validation rule	Named method, specimen geometry, conditioning, units, and pass/fail limit	Turns “strong bond” into an auditable decision	Test multiple coupons and record failure mode
Regulated end use	State skin contact, food contact, medical, automotive, or other required scope	Compliance depends on the actual application and jurisdiction	Request current evidence for the supplied grade and intended use

Use Teng Yang’s online film specification builder to facilitate information sharing. It generates an initial draft rather than definitive proof of material compatibility. Production release still requires a material-pair test and an agreed testing protocol.

Need a sample recommendation?

Send the two substrates, a layer-stack drawing, equipment limits, service conditions, and the test you’ll use to approve the bond. The Teng Yang technical team can use those inputs to narrow the first film trial.

FAQ: Frequently Asked Questions

What are the disadvantages of hot melt adhesive?

Hot melt adhesive film requires controlled heat, pressure, dwell, and cooling. It can be a poor fit for heat-sensitive substrates, irregular parts, or lines that can’t hold a narrow process window. Open time and service-temperature limits vary by grade. Test the real material pair instead of generalizing from the adhesive family.

How long does hot melt adhesive last?

No single number describes how long hot melt adhesive lasts. Unopened shelf storage, time after a roll is opened, and the service life of the finished bond are different measurements. Packaging, humidity, heat, chemicals, load, substrate movement, and polymer formulation can change them. Follow the supplier’s storage instruction, record the opened date, and validate the bonded assembly with aging conditions that represent transport, cleaning, weather, and normal use. For regulated uses, define a documented acceptance test before production release.

Can hot melt adhesive film be removed or reheated?

Some thermoplastic films soften again when reheated, but that doesn’t guarantee clean removal. Heat may damage the substrate, spread adhesive beyond the bond line, or leave residue. Reactive grades may behave differently. Confirm the chemistry, test a small area, and define whether the goal is rework, separation, or residue-free removal.

What does hot melt glue not stick to?

Avoid a universal “won’t stick” list. Low-surface-energy plastics, contamination, incompatible coatings, insufficient heat, poor pressure, and part movement can all look like the same adhesion problem. Test the exact substrate pair and inspect where adhesive remains after failure testing.

What temperature should I set my bonding machine to?

Start with the grade’s current technical range, but don’t treat the machine setpoint as the bond-line temperature. Substrate thickness, heat capacity, film thickness, dwell time or line speed, pressure, and platen calibration can shift the heat that reaches the interface. Run controlled samples within the supplier range, inspect transfer and failure mode, and change one variable at a time. Release the setting only after the cooled laminate passes the test that represents its service risk under normal production variation.
