TPU Film UV Yellowing Test: Weathering Guide

TPU Film Testing & Converting

August 2026 Test-planning guide for film buyers, converters, and laboratories

A TPU film UV yellowing test is a controlled comparison that identifies the exact film construction, exposes matched specimens under a fully reported cycle, measures color with a fixed optical setup, and checks any end-use property that the weathering claim depends on. A chamber name and a number of hours are not enough.

The same visible yellow shift can come from the TPU base, stabilizer package, pigment, topcoat, adhesive, substrate, processing heat, storage contamination, or a combination of them.

The test therefore has two jobs: quantify change and preserve enough evidence to locate its likely source. This guide shows how to build that chain without inventing a universal cycle, pass limit, or hours-to-years conversion.

Search labels such as anti-yellowing TPU, TPU UV resistance, and TPU weathering test describe broader buyer needs. This guide narrows those terms to a finished-film evidence plan, because yellowing control, ultraviolet exposure, and retained weathering performance don’t prove the same thing.

Related vocabulary that does not define the test

Search-language cluster	How to use it without overclaiming
anti-yellowing; non-yellowing; yellowing resistance; visible yellowing; yellow tint; stay clear	Treat each as an appearance claim that still needs a metric, cycle, and limit.
UV radiation; UV light; UV energy; sun exposure; outdoor exposure	These name exposure families, not interchangeable doses or service-life evidence.
UV chamber; UV aging; UV irradiation; irradiation; UV stability; UV-stable	Bind them to the apparatus, filter or lamp, irradiance, temperature, moisture, and sequence. A bare 500 hours is incomplete, and even 0.89 W/m²/nm needs its control wavelength or band.
TPU yellowing; yellowing mechanism; cause of yellowing; cause yellowing; chemical structure	Use comparative controls and analysis before assigning a color change to one layer or mechanism.
absorb UV; UV protection; absorb blue light; light in the blue	Separate absorber or transmission language from a finished-film durability claim.
aliphatic TPU base; aromatic TPU film; polyester-based TPU; aliphatic isocyanates; MDI	These chemistry labels narrow material families but do not predict every finished stack.
extrusion; adhesive film; base film; raw material; material selection	Record process and construction fields so the comparison remains traceable.
clear and transparent; optically clear; yellowing in the film; polycarbonate	Define transmission or backing and avoid transferring results between unlike polymers.
paint protection film; PPF; TPU PPF; self-healing	These are adjacent application terms; they do not turn this testing guide into a PPF product specification.
physical properties; heat resistance; aging resistance; wear resistance; abrasion resistance; scratch resistance	Select only the retained properties required by the actual end use.

Short answer: freeze the specimen stack and controls; choose natural exposure, fluorescent ultraviolet, or xenon arc for the intended question; report every cycle field; measure against a baseline; pre-agree the decision rule; and keep appearance claims separate from mechanical, optical, adhesion, or surface-retention claims.

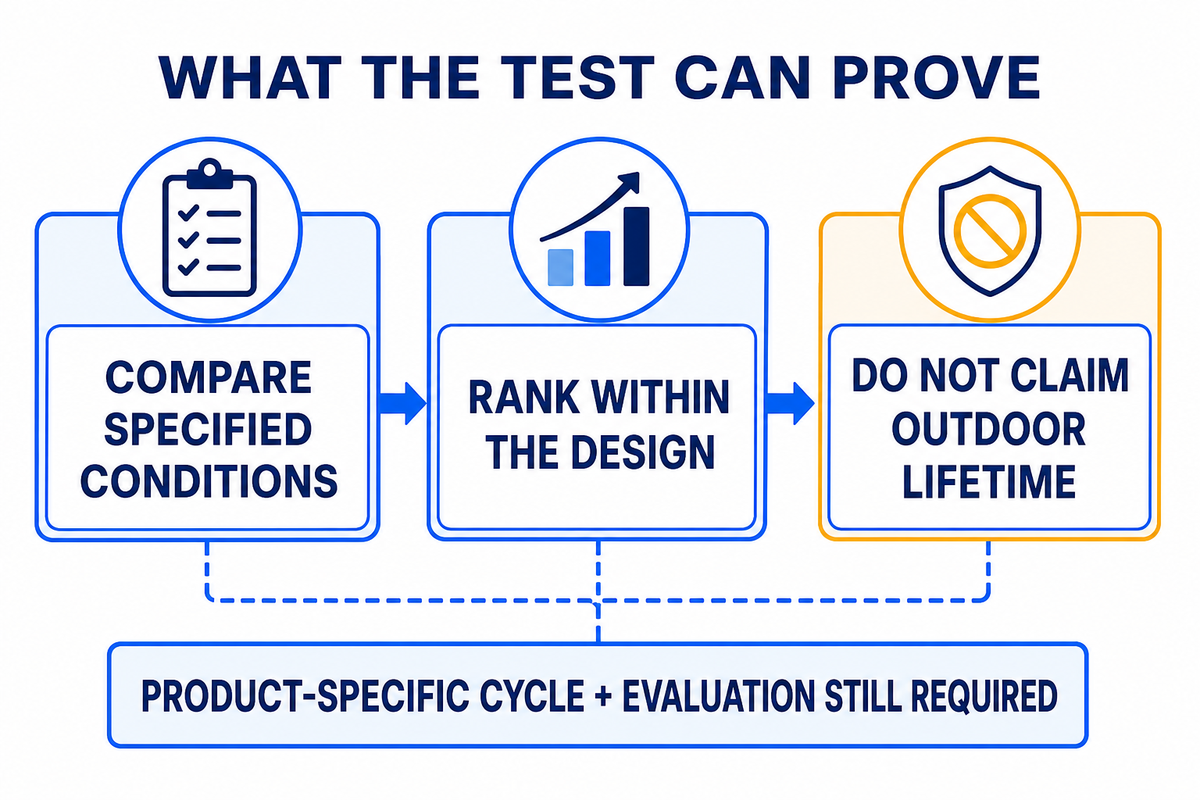

What the Test Proves, and What It Does Not

Controlled weathering can compare specified TPU film specimens under specified exposure and measurement conditions.

It can show whether color or selected properties changed, and it can rank samples within that design. It doesn’t automatically prove outdoor lifetime, identify the damaged layer, or qualify every production lot and climate.

Write the claim before designing the test. “Lower color change than the control after this cycle” is a comparative claim. “Suitable for three years outdoors” is a service-life claim and needs field correlation for the actual material, construction, location, and failure mode. “UV resistant” is broader than “resisted yellowing” if the application also depends on adhesion, transparency, tensile behavior, or surface integrity.

ASTM describes its xenon-arc practice as “limited to the basic principles.” The product-specific cycle and evaluation still have to be defined.

Evidence boundary: ASTM G154-23 and active ASTM G155-25 govern apparatus operation, but neither is a universal TPU film product specification. ISO 4892-1:2024 provides general plastics guidance, while lamp-specific parts cover particular laboratory light sources.

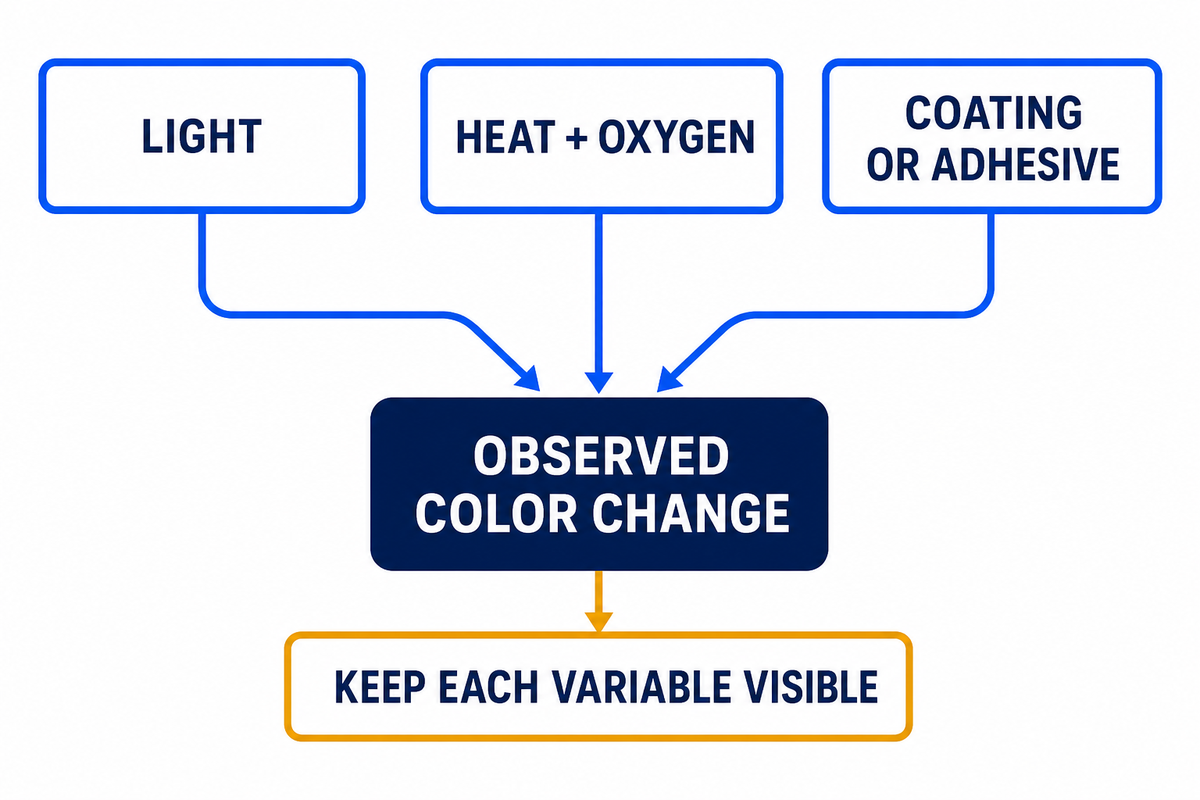

Why TPU Film Can Yellow Under UV, Heat, and Oxygen

Yellowing is an observed color change, not a one-cause attribution. Light can initiate chemical changes; heat and oxygen can accelerate oxidation; phenolic contaminants may create another pathway; and a coating or adhesive may discolor before the base film. Test design must keep these variables visible instead of assigning every result to ultraviolet radiation.

Thermoplastic polyurethane (TPU) is a film-forming polymer in the broader PU family. The polyurethane resin contains isocyanate-derived hard segments and polyol-derived soft segments, so raw material chemistry, stabilizers, processing, and the finished material structure all influence how it can degrade. Photo-oxidation, thermal degradation, and contamination may each cause yellowing by a different route.

Aromatic and aliphatic TPU grades are useful screening categories. Under one peer-reviewed artificial-weathering protocol, the tested aromatic TPU showed marked degradation and yellowish discoloration while the tested aliphatic TPU didn’t. That finding is condition- and formulation-specific.

It supports screening aliphatic TPU for color-sensitive outdoor applications, but it doesn’t prove that every aliphatic finished stack will remain colorless.

The finished article may contain more than TPU. A clear surface layer can change light transmission.

Adhesive chemistry, liner residue, pigment, recycled content, print, and substrate color can change the measured result. Processing temperature and dwell can also create a starting color difference before weathering begins. For grade-level selection, use the aliphatic TPU film guide, then test the actual construction.

Published numbers show why conditions must travel with the result. One additive maker’s first-party comparison used a 2 mm clear polyester TPU specimen, 0.6% additive loading, processing at 190–210 °C, and a 24-hour UVA-340 exposure. The peer-reviewed TPU/PP study used 320 hours in a QUV chamber. Neither result is a recommended cycle for thin TPU film; both are examples of construction-bound evidence.

Mechanism check: NIST-linked TPU research paired color measurements with infrared spectroscopy, thickness, surface morphology, and release behavior. That multi-response design is a better model than treating one color coordinate as a complete degradation attribution.

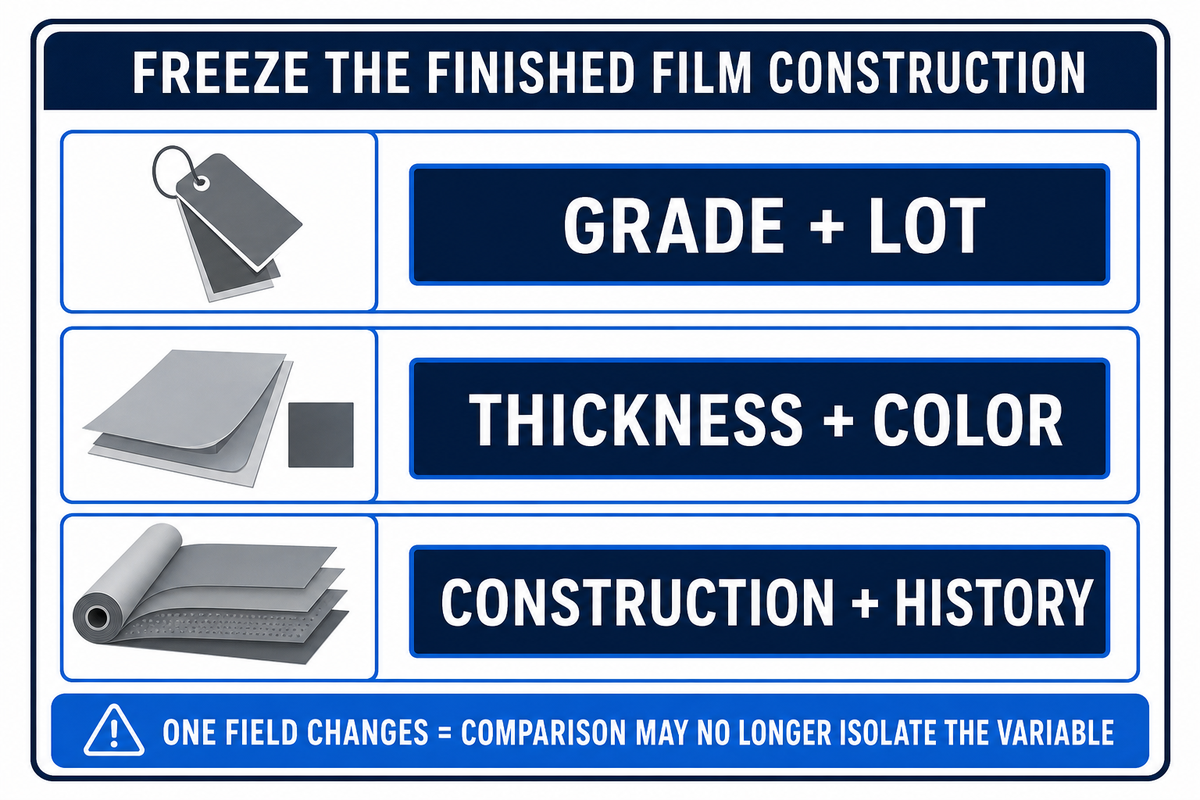

Freeze the Exact Film Construction and Controls

Before exposure, create a traceability card for every specimen. Record grade and lot, base chemistry, thickness, color, finish, topcoat, adhesive, substrate, liner, lamination conditions, machine direction, exposed face, conditioning history, and specimen ID. If one field changes, the comparison may no longer isolate the intended variable.

Control element	Why it matters	Record in the report
Unexposed control	Separates starting variation from exposure change	Same lot, construction, conditioning, and measurement sequence
Dark control, where relevant	Helps distinguish light-driven change from heat, moisture, or storage effects	Temperature and moisture history, not just “kept dark”
Known-performance control	Shows whether the exposure produced the expected comparative response	Material identity, prior performance basis, and position
Concurrent replicates	Makes specimen variability and outliers visible	Count, randomization, position map, exclusions, and statistics

The active ASTM G155-25 public page recommends two controls of known performance and at least three concurrent replicates of each specimen and control for statistical evaluation. Keep that statement scoped to G155. Other methods or customer specifications may require a different design. Whatever the count, decide it before seeing the results.

Conditioning deserves its own line. ASTM D618-21 explains that temperature, relative humidity, thickness, material type, and previous history can materially affect plastics test results. Bind the pre-exposure condition, post-exposure recovery interval, and measurement environment. Otherwise temporary moisture or temperature effects may look like permanent degradation.

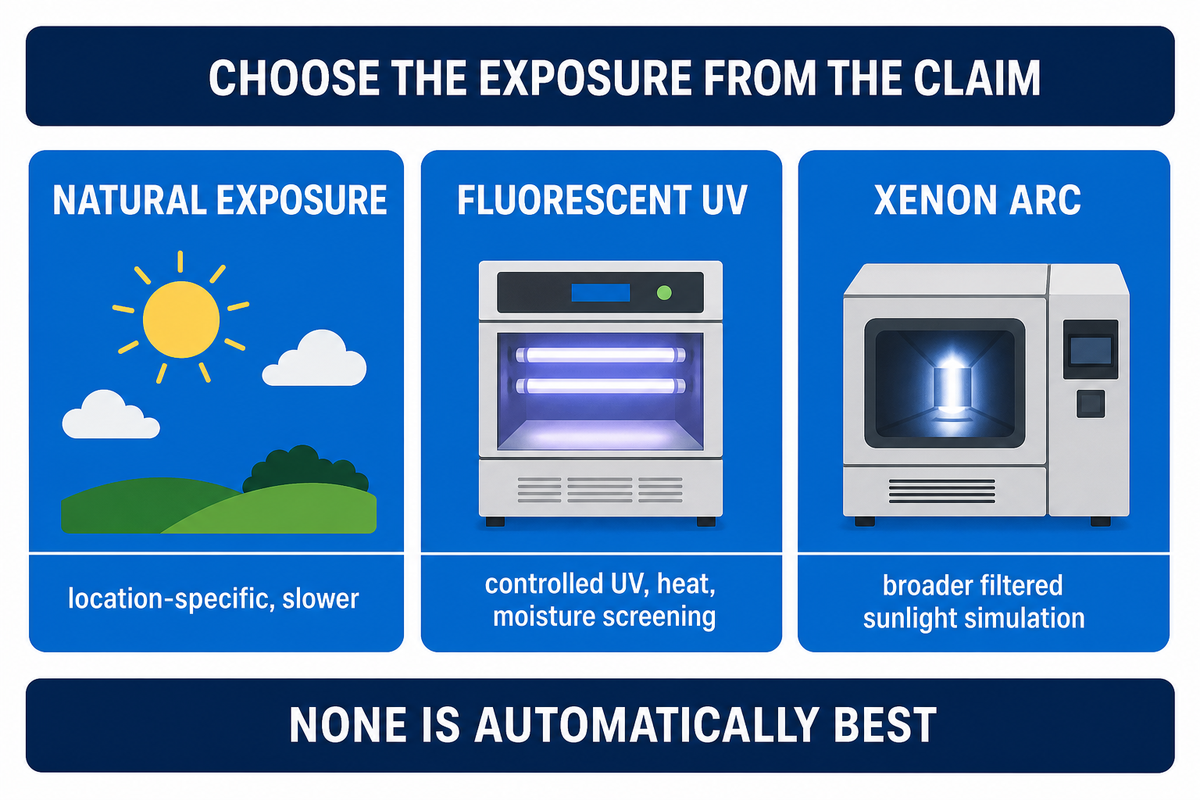

Choose Natural Exposure, Fluorescent UV, or Xenon Arc

Choose the exposure route from the claim and expected failure mode. Natural exposure is closest to the selected location but takes time and varies by climate. Fluorescent ultraviolet apparatus is useful for controlled ultraviolet, heat, and moisture screening. Xenon arc offers a broader sunlight simulation with defined filters. None is automatically “best.”

Route	Good question to ask	Main reporting burden	Key limitation
Natural exposure	How does this material behave at a defined site and orientation?	Location, season, angle, facing, backing, temperature, moisture, radiant dose	Slow and location-specific
Fluorescent UV	How do samples compare under a controlled UV/heat/moisture sequence?	Lamp type, irradiance, control point, temperatures, condensation or spray, sequence	Does not reproduce the full solar spectrum
Xenon arc	How do samples compare under filtered simulated sunlight plus controlled heat/moisture?	Lamp/filter, irradiance band, temperatures, humidity or spray, sequence	Filter and operating choices can produce different outcomes

Use a named customer, regulatory, or product method when one governs. For general plastics work, ISO 4892-1:2024 provides overall guidance and ISO 4892-3:2024 addresses fluorescent UV. ASTM G154-23 and G155-25 cover fluorescent ultraviolet and xenon-arc apparatus respectively. Check the current edition at the time the test is contracted.

Correlation rule: ASTM G151-26 warns against converting a generic number of laboratory hours into months or years outdoors. A factor for a particular material is defensible only when enough separate outdoor and laboratory exposures support statistical comparison and reproduce the same degradation type.

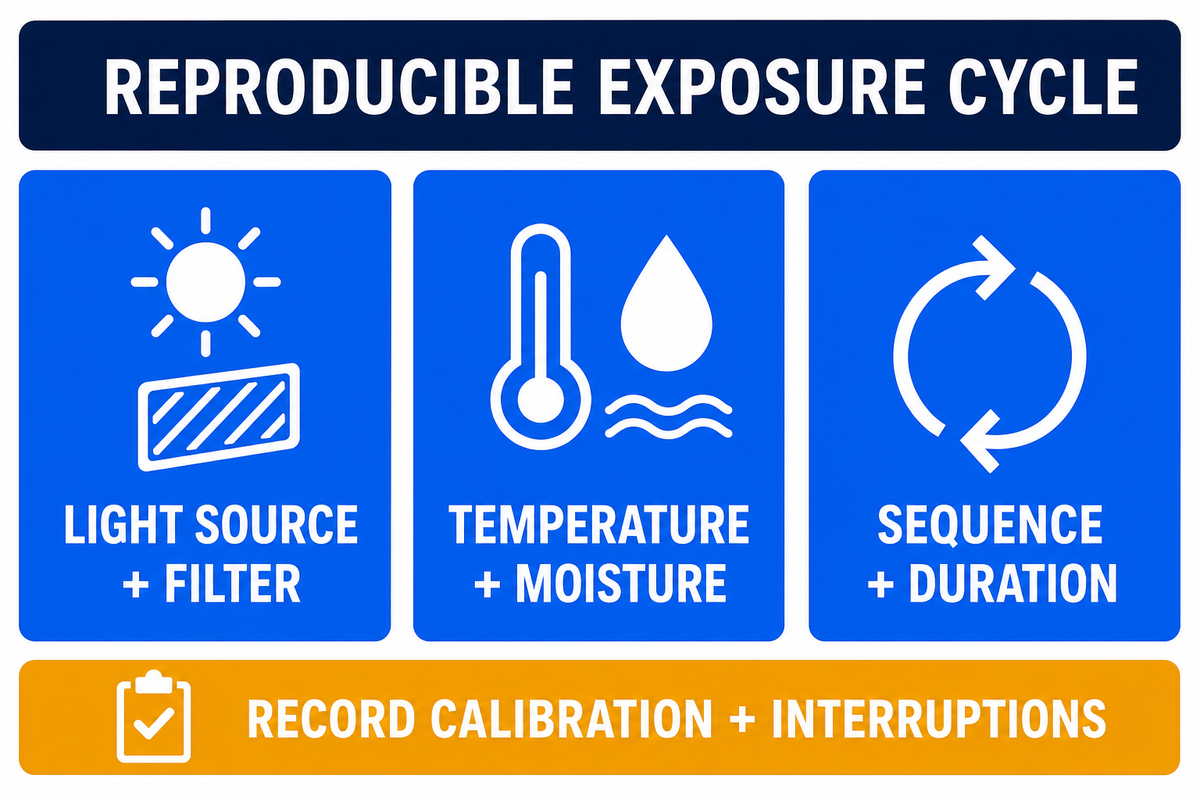

Specify the Complete Exposure Cycle

“500 hours of UV” isn’t a reproducible cycle. The laboratory needs the practice or cycle designation, light source and filter, irradiance and control wavelength or band, temperature settings and sensor type, moisture mode, light/dark sequence, duration, inspection intervals, specimen handling, calibration, and interruption record.

Name the apparatus practice and exact cycle. A practice number alone can allow multiple conditions.
Bind the light. Record lamp, filter, irradiance setpoint, control point, and radiant exposure where available.
Bind heat and moisture. State chamber or panel temperature, humidity, condensation, spray water, water quality, and timing.
Bind time as a sequence. Record light, dark, wet, and dry segments plus the total exposure and inspection intervals.
Bind specimen handling. Record position, rotation or repositioning, exposed side, fixture, shielding, and any edge preparation.
Record deviations. Power loss, lamp change, water interruption, over-temperature event, or early specimen removal belongs in the report.

Don’t choose a high temperature or irradiance simply to finish faster. An extreme condition can change the failure mechanism or stability ranking. The test should accelerate the relevant process without creating a different one. If the end use includes window-filtered light, outdoor rain, high humidity, or a hot dark period, those conditions must be considered explicitly.

Notation example only: the values below demonstrate how a report can carry units. They are not a TPU test cycle, material limit, or Teng Yang specification.

Reporting field category	Example notation	Why the unit must be explicit
Film geometry	0.15 mm; 50 μm	Thickness changes optical path and conditioning time
Temperature	50 °C; 60 °C	Chamber, panel, and conditioning temperatures are not interchangeable
Relative humidity	50%; 75%	Moisture history can affect plastics measurements
Irradiance	0.89 W/m²/nm	The control band or wavelength must accompany the setpoint
Wavelength	340 nm; 420 nm	Different control points do not describe the same light condition
Exposure and interval	500 hours; 100 hours	Total duration and measurement interval answer different questions
Conditioning	23 °C; 50%; 24 hours	Temperature, humidity, and time form one condition
Mechanical result	20 MPa; 5 MPa	Property name, method, and direction still have to be stated
Specimen size and speed	10 mm; 100 mm/min	Geometry and test speed affect comparability
Optical or pressure result	3%; 90%; 2 bar; 30 psi	Name the property and basis instead of reporting a bare number

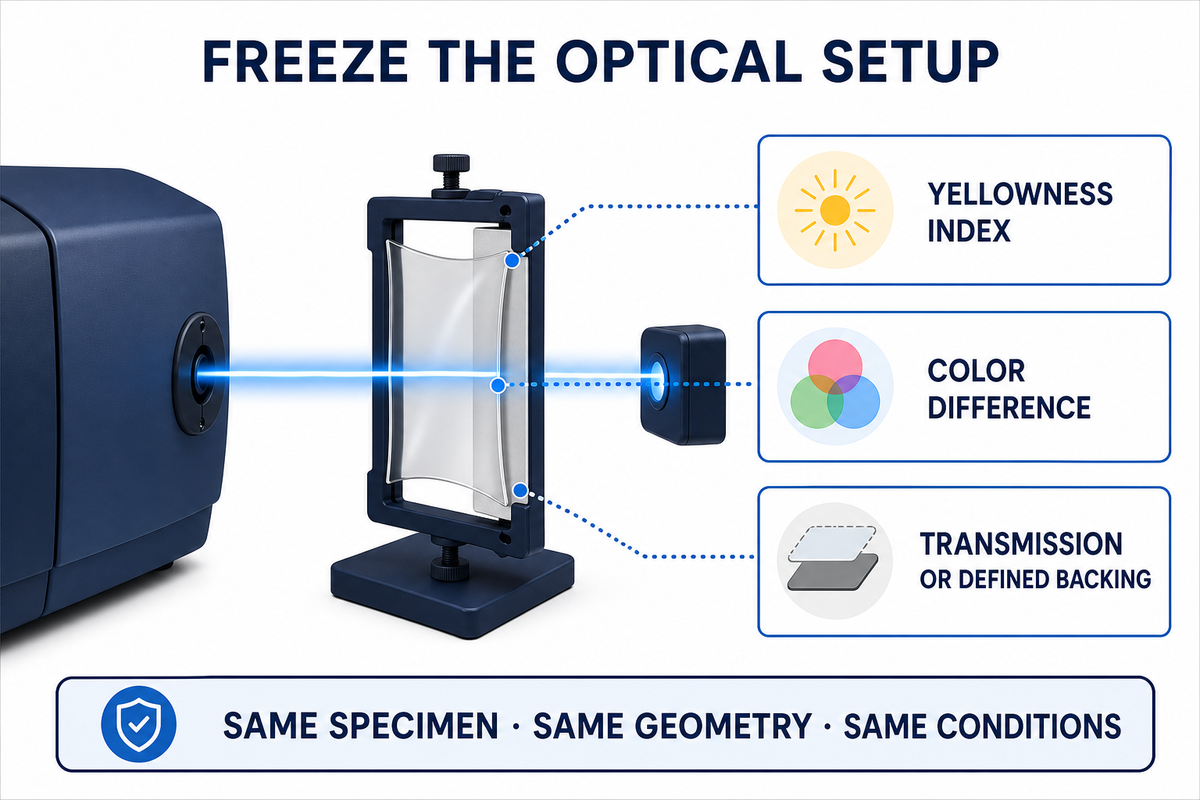

Measure Yellowness Index and Color Difference Reproducibly

Yellowness Index and color difference answer related but different questions. Yellowness Index targets a yellow-versus-blue shift for suitable white, near-white, or colorless specimens. The color-difference calculation describes movement between two color measurements. Neither number is self-explanatory without the specimen, optical geometry, and calculation conditions.

For transparent film, first decide whether the measurement is made in transmission or over a defined backing. ASTM D2244-25 is scoped to calculations for opaque specimens, so citing it does not choose a transparent-film arrangement. ASTM E1348-22 provides a transmission route for transparent and translucent materials. ASTM E313-20(2025) also requires comparable specimens and has an applicability boundary.

Measurement field	What to freeze	Common comparability error
Instrument	Model/class, calibration, aperture	Switching instruments without inter-instrument study
Optical setup	Illuminant, observer, geometry, specular setting	Comparing values calculated under different conditions
Transparent-film arrangement	Transmission or backing, backing identity, air gap, orientation	Using an undefined white backing for one set only
Specimen equivalence	Thickness, translucency, gloss, texture, color, exposed side	Treating unlike constructions as a chemistry comparison
Sampling	Locations, reading count, orientation, mean and variability	Reporting one favorable spot

Measure a baseline after the agreed conditioning, then use the same sequence after each exposure interval and recovery period. Fully transparent specimens may not always be position-sensitive at the transmission port, but sided, coated, textured, translucent, or multilayer films can be. Record orientation whenever it could affect light exposure or measurement.

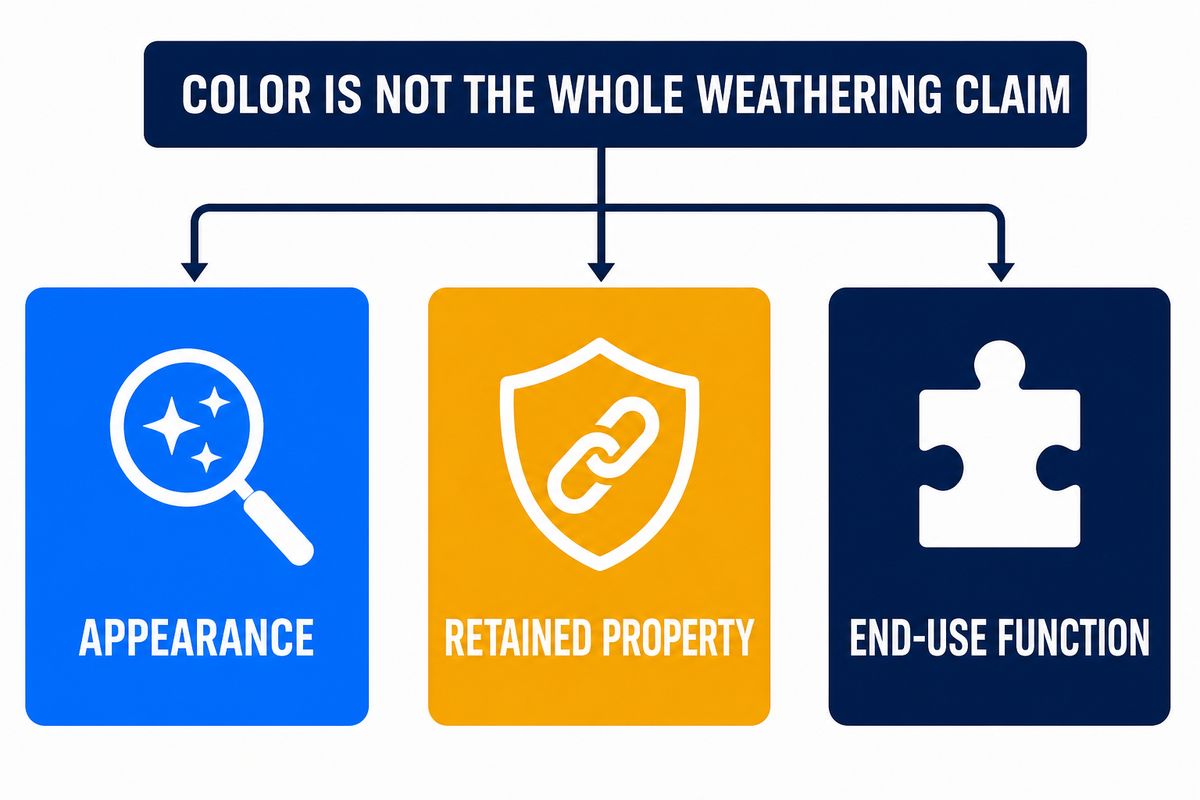

Pair Color Change With Retained-Property Tests

If the purchase claim includes weathering resistance, select the properties that make the film useful after exposure. Films can remain visually acceptable while losing adhesion, elongation, tear behavior, gloss, transmission, or surface integrity. Conversely, color-sensitive decorative films may fail their appearance gate while retaining mechanical function.

Choose only relevant endpoints. Bonded films may need peel or adhesion and failure-mode recording. Transparent covers may need haze or transmission. Stretch components may need tensile and elongation retention. Surface-protection layers may need gloss, scratch, tack, or crack assessment. Apply the same traceability, conditioning, timing, and statistical discipline used for color.

Evidence note: ISO 4582:2025 covers changes in color and appearance together with variations in mechanical or other properties after radiation exposure. ASTM D5870-22 offers a property-retention framework for plastics. These sources support selecting an end-use response; they do not prescribe one universal TPU pass percentage.

Moisture can interact with ultraviolet exposure, especially when comparing polyester and polyether bases or laminated structures. The polyester versus polyether TPU guide helps define that chemistry branch, but the final answer still comes from the conditioned finished construction.

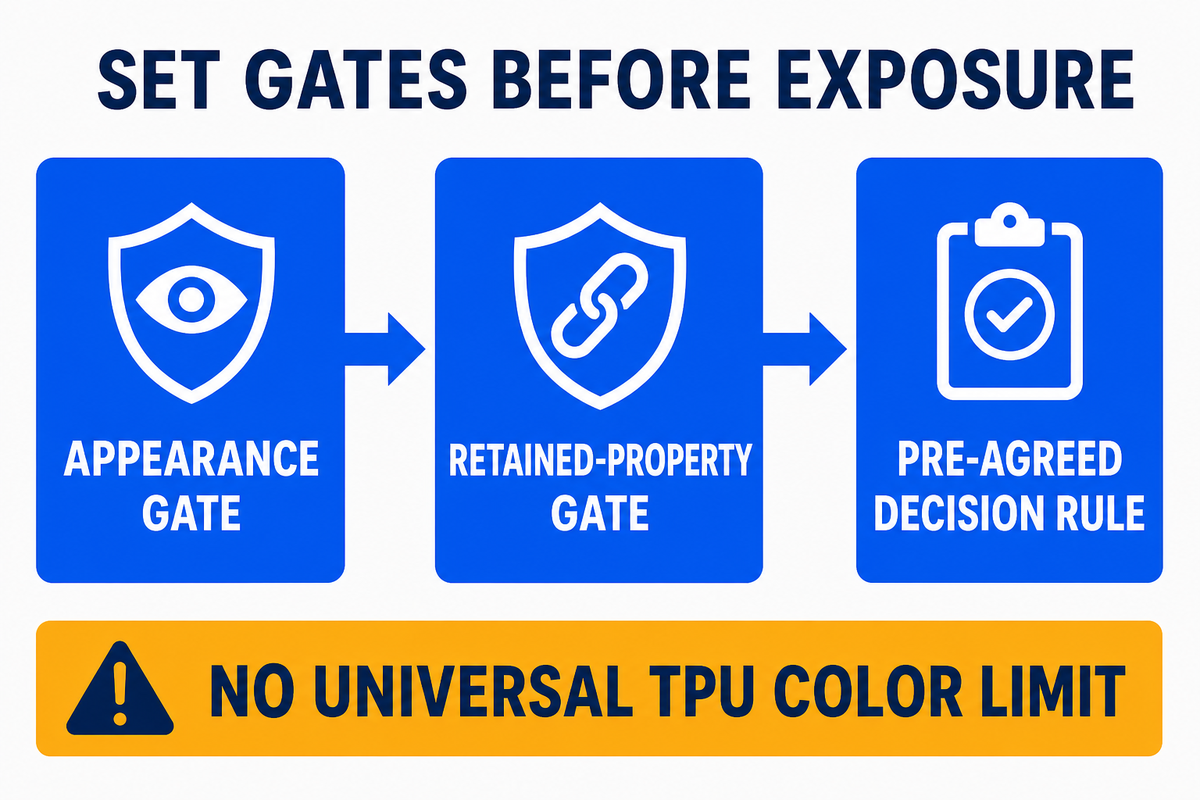

Set Two Acceptance Gates Before Exposure

Set an appearance gate and, when the product claim depends on function, a retained-property gate before testing begins. Each gate needs a named metric, limit, sampling rule, control comparison, variability treatment, outlier rule, and failure definition. There’s no defensible universal Yellowness Index or color-difference limit for all TPU films.

Decision	Required evidence	Do not do this
Pass	All governing appearance and functional gates pass; controls behave as expected; variability is acceptable	Pass from the average while hiding a defined failure or invalid control
Investigate	Anomaly, unexpected control response, outlier, layer-attribution conflict, or equipment deviation	Relabel an ambiguous run as pass without a predefined rule
Fail	Confirmed exceedance of a governing limit under a valid run	Replace the agreed limit after seeing the result

Customer specifications, visual matching needs, optical function, bond requirements, and safety margins can lead to different limits. State whether the rule applies to every replicate, a confidence interval, a mean plus variability band, or another agreed statistic. Also state what happens when a specimen is damaged during handling rather than exposure.

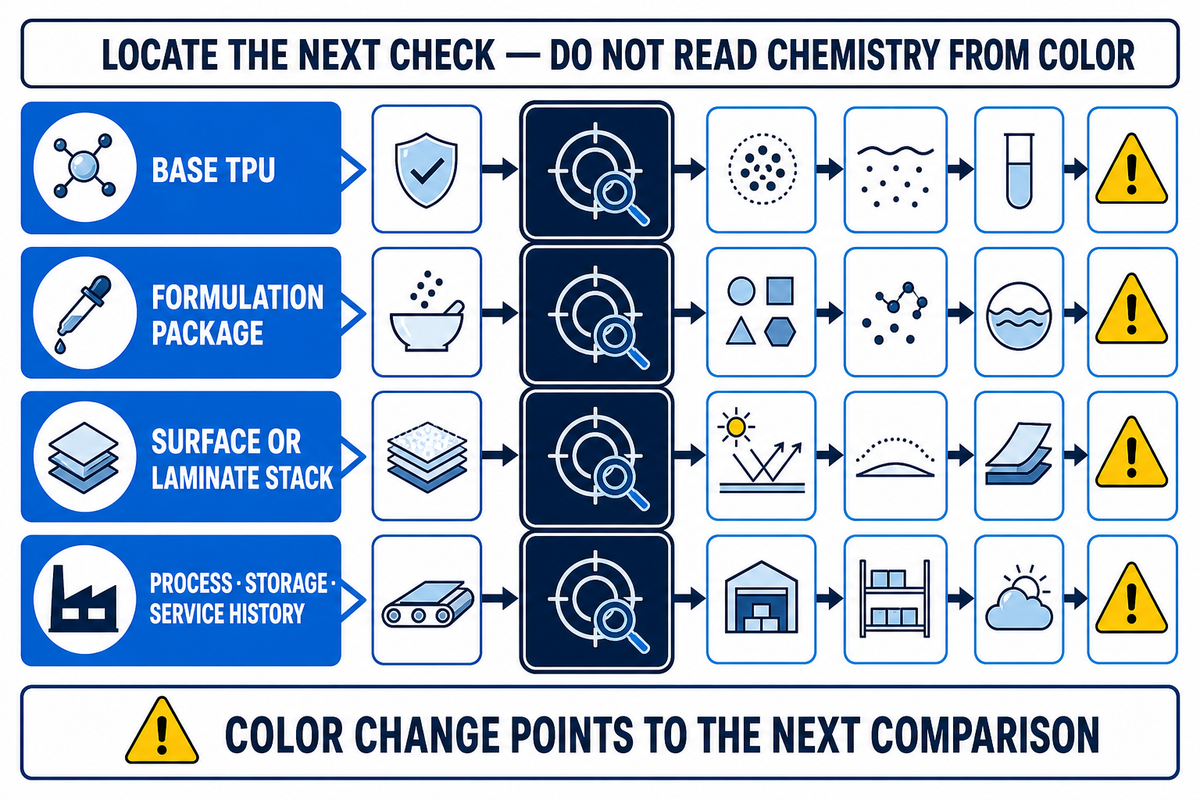

The 4-Layer Yellowing Attribution Grid

Use the attribution grid when you see a color change. It separates four evidence layers: the base TPU, the formulation package, the surface or laminate stack, and the process/storage/service history. It doesn’t aim to read chemistry from color. It points out what comparison or analytical check to do next.

Layer	Possible contributor	Comparison that adds evidence	Wrong shortcut
1. Base TPU	Aromatic/aliphatic chemistry, hard/soft segment design	Matched uncoated grades at equal thickness and condition	“Aliphatic means never yellow”
2. Formulation	UV absorber, light stabilizer, antioxidant, pigment, filler	Controlled formulation or supplier-grade comparison	Assigning additive performance from a different specimen
3. Surface/stack	Topcoat, ink, adhesive, primer, substrate, liner residue	Layer-removal or stack-step comparison where practical	Calling laminate yellowing a base-film result
4. History	Processing heat, humidity, phenolic contamination, storage, cleaning, service	Matched dark, thermal, contamination, or process controls	Assuming every yellow shift is photodegradation

If the exposed side yellows more than the reverse side, the finding may support a surface or light-path effect, but it isn’t proof by itself. If both dark and light-exposed specimens shift similarly, revisit heat, moisture, processing, or contamination. If color changes while a chemical or surface marker stays stable, confirm the optical setup and the layer responsible before changing the TPU grade.

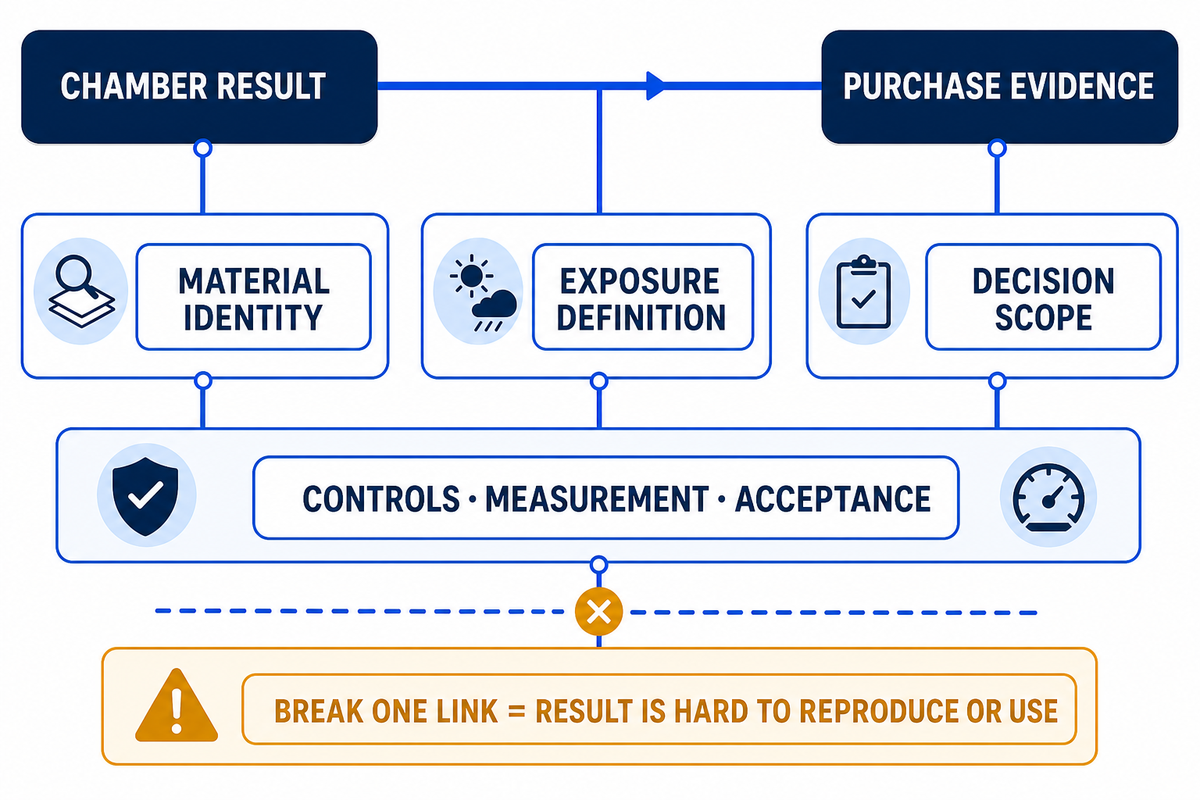

The 7-Link Chamber-to-RFQ Evidence Chain

A test result becomes purchase evidence only when seven links remain connected: material identity, specimen construction, exposure definition, controls and statistics, measurement setup, acceptance rule, and decision scope. Break one link and the number may still exist, but it becomes difficult to reproduce, compare, or use in an RFQ.

1Material identity: grade, lot, chemistry, thickness, color, formulation status.
2Construction: topcoat, adhesive, substrate, liner, exposed face, conversion history.
3Exposure: practice, full cycle, dose or duration, temperatures, moisture, deviations.
4Controls and statistics: control materials, replicate map, variability, exclusions, outliers.
5Measurement: conditioning, timing, instrument, geometry, backing/transmission, locations.
6Acceptance: pre-agreed appearance and relevant function gates, decision rule, failure definition.
7Scope: exact product, construction, supplier lot range, application, climate, and claims covered.

This chain prevents cannibalization between a test guide and a product page. Use the test record to identify evidence needed, then Teng Yang’s TPU film grade selector to narrow candidates for sampling against that evidence plan.

Frequently Asked Questions

Does aliphatic TPU film ever turn yellow?

It can. Aliphatic TPU removes an important aromatic yellowing pathway and is often the first chemistry screened for color-critical outdoor film. Yet the finished result also depends on stabilizers, pigment, topcoat, adhesive, substrate, processing heat, contamination, thickness, and exposure conditions. Treat “aliphatic” as a useful selection signal, then test the actual film stack and lot against the application’s color and functional limits.

What is the difference between fluorescent-UV and xenon-arc weathering?

Fluorescent-UV apparatus focuses on controlled ultraviolet exposure and can combine heat with condensation or water spray. Xenon arc uses filtered xenon light to represent a broader solar spectrum and can also control heat and moisture. Both allow different operating choices. Select the route from the target failure mode and governing specification, then report the exact lamp or filter, irradiance, temperature, moisture, and sequence.

Is an anti-yellowing claim the same as UV resistance?

No. Anti-yellowing usually describes an appearance outcome under stated conditions. UV resistance can imply that other properties remain fit for use after exposure. A film might keep its color but lose adhesion, elongation, gloss, or surface integrity; it might also retain function while exceeding a strict color limit. Define the purchase claim first, then choose both appearance and end-use property checks that match it.

Can chamber hours be converted into outdoor years?

Not with a universal factor. Material formulation, spectrum, irradiance, temperature, moisture, climate, and failure mode affect acceleration. ASTM G151-26 leaves a narrow path for a particular material when sufficient separate outdoor and laboratory exposures reproduce the same degradation type and support statistical analysis. A generic statement such as “1,000 hours equals five years” should not be used across TPU films. A defensible correlation also has to preserve the performance ranking and the type of degradation seen outdoors. It should be rebuilt when formulation, pigment, thickness, topcoat, adhesive, substrate, target climate, or chamber cycle changes. Use laboratory weathering for controlled comparison; use field evidence for a field-life claim.

Should I report Yellowness Index or color difference?

Use the metric that matches the decision. Yellowness Index is suited to an applicable white, near-white, or colorless specimen when yellow-versus-blue shift is the question. Color difference is useful for overall color movement between baseline and exposed states. Many programs record both, but only with the full instrument, illuminant, observer, geometry, backing or transmission arrangement, conditioning, and sampling method.

Does a topcoat protect the TPU base from yellowing?

It may reduce part of the exposure reaching the base or add surface protection, but it can also become the first layer to discolor, crack, lose gloss, or change transmission. Test the complete coated construction and, when attribution matters, compare controlled layer variants. Record which face was exposed and measured. Don’t use a finished-laminate result as proof of the uncoated base film alone. A useful comparison can include uncoated base film, coated film, and the final adhesive/substrate stack from the same material lot. Keep thickness, conditioning, exposure position, and optical setup matched. If only the finished stack is available, report the result at stack level and leave layer attribution open.

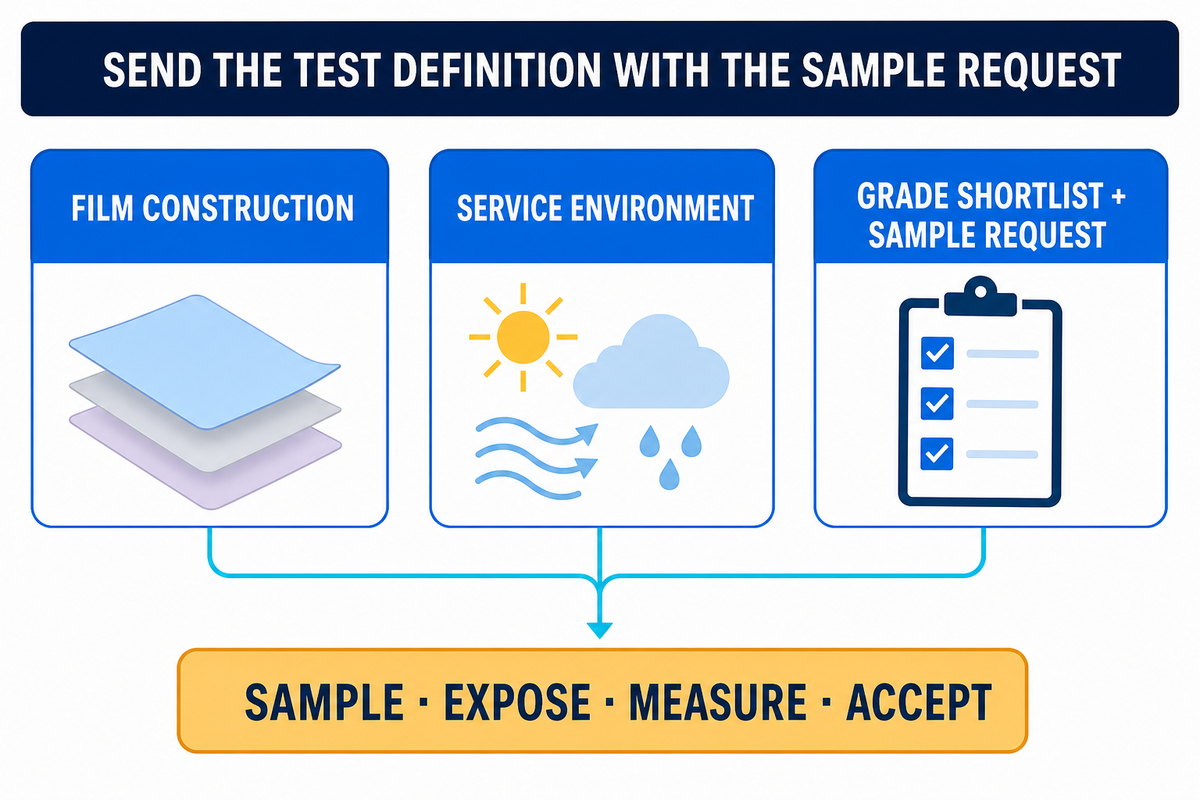

Turn the Test Plan Into an RFQ-Ready Brief

An RFQ-ready brief tells the supplier and laboratory what must be sampled, exposed, measured, and accepted. It avoids asking for “good UV resistance” without a test definition. Send the application, film construction, service environment, governing specification, color target, relevant retained properties, and decision rule together.

RFQ test brief

Product: application, drawing or stack, exposed face, required transparency/color.
Film: grade/chemistry options, thickness and tolerance, finish, topcoat, adhesive, liner, lot traceability.
Service: sunlight route, climate or indoor light, temperature, humidity, water, chemicals, cleaning, load.
Exposure: governing practice, exact cycle, duration or dose, intervals, controls, replicates, specimen map.
Color measurement: metric, method, optical setup, backing/transmission, conditioning, locations, statistics.
Function: selected retained properties, method, conditioning, failure-mode record.
Decision: limits, control comparison, variability and outlier rules, pass/investigate/fail disposition.
Report: raw interval data, images under fixed lighting, deviations, equipment identifiers, calibration status, conclusion scope.

If no customer cycle exists, ask the supplier and laboratory to propose a screening plan with its limitations stated. Compare candidate films in the same apparatus at the same time when practical. Then use outdoor or end-use validation for any claim that goes beyond relative screening. For early material definition, review Teng Yang’s TPU film portfolio.

Request a matched TPU film sample

Send Teng Yang the film stack, target thickness, exposure route, color limit, retained-property need, and substrate. The team can use those fields to prepare a grade shortlist and sample request without replacing application-specific laboratory validation. Contact Teng Yang →
