Automotive Interior TPU Film: Protection vs Bonding Guide

Updated August 2026

Automotive interior TPU film is not one product category. One phrase can describe a clear film protecting a console, a formed skin over a trim part, a barrier inside a seat, or a heat-activated layer that bonds fabric, foam and a rigid carrier. Those films may share a polymer family, but they do not share one specification or one route to approval.

If you need the broader polymer definition first, begin with TPU film basics. This article stays with the automotive qualification problem: what the film does inside the part, what can fail, and what evidence is strong enough to support a decision.

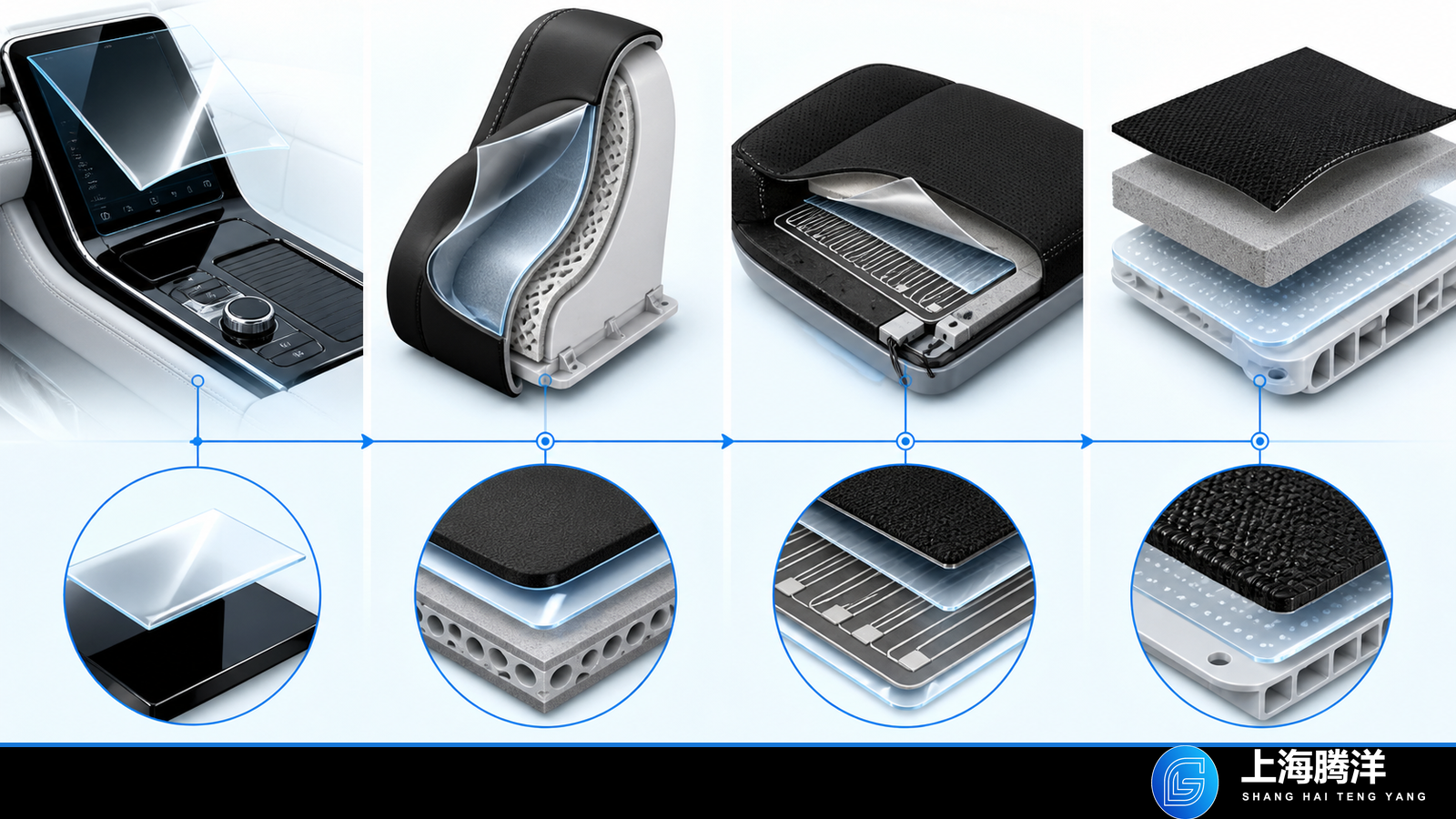

Automotive Interior TPU Film Has Four Jobs, Not One

Replace the phrase “TPU film” with a functional description before comparing data. Surface-protection film manages touch and appearance; skin or barrier film manages forming, air or moisture; embedded film supports a flexible assembly; hot-melt film creates the bond between substrates.

1. Exposed protection or decorative film

Search results for this keyword mostly show transparent protection film for piano-black console trim, touchscreens, switch panels and other high-contact car surfaces. This is the interior cousin of paint protection film: it is visible, its edges matter, and the driver sees haze, gloss change, scratches, bubbles or contamination immediately.

Evidence requests should therefore begin with the exact surface and installation system. Optical appearance, cleaner contact, edge behaviour, substrate interaction and light transmitted through vehicle glazing are central. Self-healing, hydrophobicity or a particular topcoat can be relevant to a specific TPU PPF construction, but those properties should never be assigned to every TPU film simply because they appear in consumer protection-film marketing.

2. Functional skin or barrier film

TPU film can also sit within the original equipment construction. It may become a formed skin, separate foam from fabric, retain air in a lumbar bladder, limit moisture movement or contribute to an acoustic part. Covestro’s current Platilon U product information lists headliners, door panels, seats, parcel shelves and sound-insulation parts among automotive uses.

Here the word protection can be misleading. Bladders need air retention and flex durability; foam barriers need compatibility with the foam and face material; visible skins need forming and surface evidence. One property sheet cannot close all three decisions.

3. Embedded heat-management or flexible layer

TPU film also appears around flexible electronics and seat-heating constructions. In this role, it may bond to nonwovens, isolate layers, carry a wire pattern or help control moisture around the assembly. Covestro’s automotive TPU film brochure uses seat-heating laminates, foam barriers and lumbar-support bladders to show these different functions.

For an embedded layer, the film is only one participant. Electrical resistance, local heat, nonwoven density, flexing, connectors and the lamination process can all determine the observed failure. Test the assembly that carries those interactions.

4. Heat-activated bonding interlayer

Hidden between two substrates, TPU hot-melt adhesive film is dry and handleable at room temperature. Heat and pressure allow it to wet both surfaces; cooling creates the thermoplastic bond. Its job is not to guard a screen from scratches but to keep a headliner, seat, door panel or trim laminate together through processing and service.

If this is your film role, the dedicated automotive interior TPU hot melt film solution is the correct next page for product grades, specifications, customization and samples. This guide intentionally leaves those commercial decisions there.

Draw the Layer Stack Before Choosing a Test

Useful automotive interior specifications describe the construction in order: exposed face, TPU film role, primer or adhesive, textile or foam, and rigid carrier. They also mark every continuous bond and every interface that can separate. Without that map, a test result can easily be assigned to the wrong layer.

Console film sees fingers, cleaner, keys and transmitted sunlight. Door-panel skins add complex geometry and tactile requirements. Headliners cover a large area and must keep their laminate stable while cabin-quality and burn behaviour remain in scope. Seats add repeated flex, moisture, foam interaction and sometimes local heating. “Automotive interior” is therefore an environment family, not one exposure cycle.

Data sheets still matter for screening thickness, format, chemistry and baseline properties. Use the guide to read a TPU film specification sheet for that roll-level work. Then move to the part-level evidence that a data sheet cannot supply.

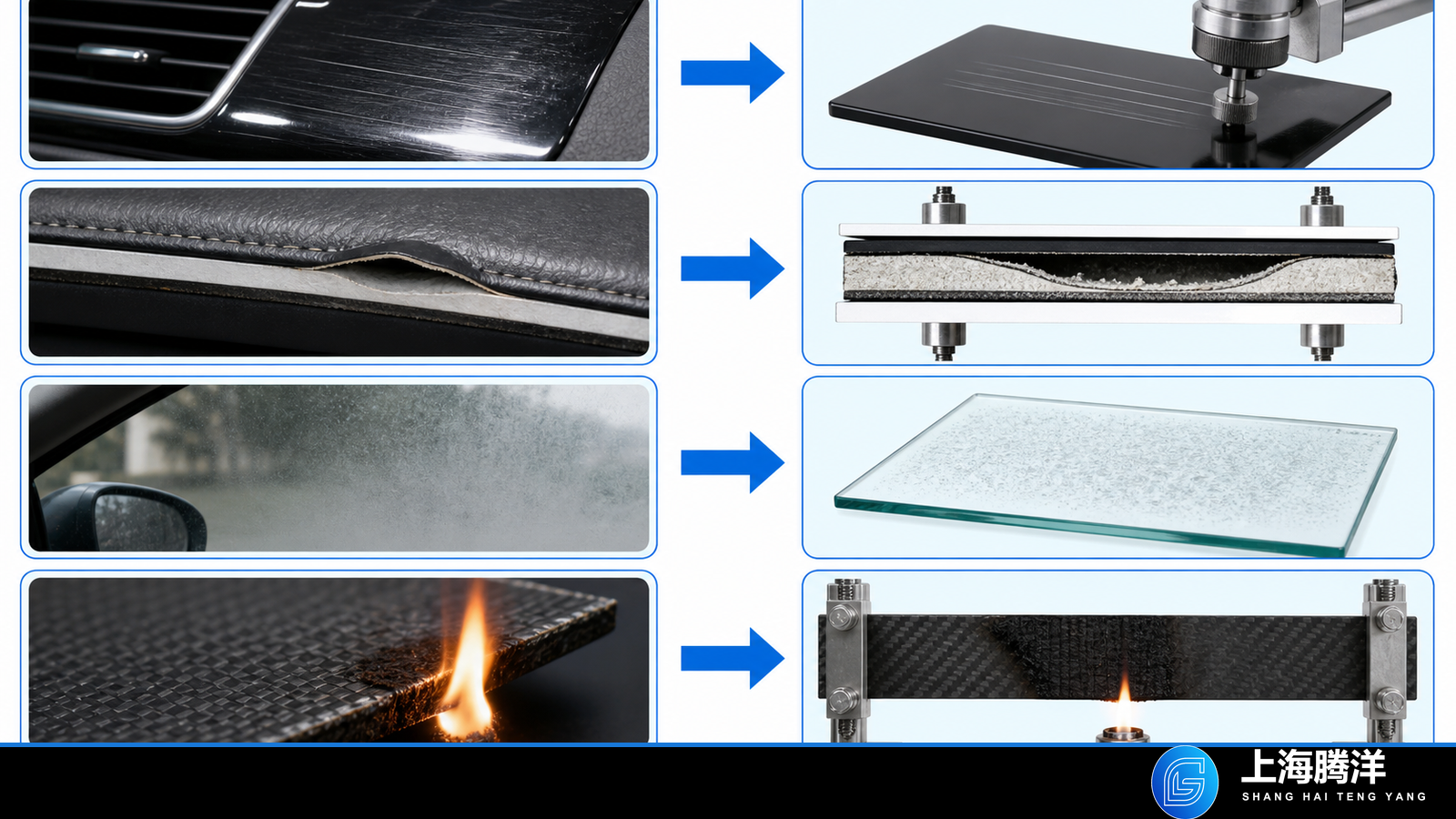

Start With the Failure, Then Ask for Evidence

Teams often begin with a method name: “Do you have a UV test?” or “Is it VDA 278?” A better question begins with the rejected condition. Is the console scratched? Did the headliner delaminate after heat ageing? Did the windshield receive a deposit? Did the odour panel reject the part? The failure tells you which layer, specimen and method family deserve attention.

Surface and appearance failures

Scratches, haze, gloss shift, colour change, cleaner staining and edge lift belong to the exposed construction. Test the actual topcoat, TPU, adhesive and substrate combination. Clear bare film can look excellent in isolation and still interact badly with piano-black plastic, a textured coating or an installation adhesive.

Bonding and forming failures

Incomplete wet-out, bubbles, print-through, hand-feel change, creep and heat-age delamination point toward interfaces and processing. Pressure, dwell time, actual material temperature, substrate condition and cooling all matter. Strong immediate peel can hide an unstable construction; the useful result comes after the conditioning or ageing that represents the program risk.

Cabin-quality and burn-behaviour failures

Fogging, VOC, FOG, carbonyls, odour and flammability appear together in automotive questionnaires, but they are not one test. Little visible condensate does not rule out an odour issue. Raw-layer burn results may not describe the final composite. “Low emission” is not complete until the method, specimen and acceptance rule are named.

What the Major Test Families Actually Prove

Flammability: specimen construction changes the question

FMVSS 302 in 49 CFR 571.302 covers burn resistance of listed occupant-compartment materials. Its specimen rules matter to laminates: material that does not adhere at every contact point is tested separately, while material that adheres continuously can be tested as a composite. Under this procedure, the flame-front limit is 102 mm/min.

ISO 3795:1989, confirmed current in 2025, provides a horizontal-burning method for interior materials tested individually or in combination up to 13 mm thick. The documents are related to the same test problem, but a supplier should not call them interchangeable. Record the market, vehicle program and customer requirement that owns the acceptance decision.

Fogging: a deposit measurement, not total emissions

ISO 6452:2021 determines fogging characteristics of automotive trim materials and can also apply to raw materials and finished products. Its official scope notes that low-surface-tension condensate or a heavy oily film can mislead optical readings; in those cases, the gravimetric method is preferred.

SAE J1756, revised in April 2026, likewise describes a light-scattering deposit on glass and a measurable mass deposit on aluminium foil. Reports should say which route was used. “Low fogging” without that detail is incomplete.

VOC and FOG screening: condition-bound material evidence

VDA 278 uses thermal desorption followed by gas chromatography and mass spectrometry to characterize emissions from non-metallic automotive materials, including adhesives and films. It reports semiquantitative VOC and FOG sum values and individual substances. VDA’s description warns that the results are not a toxicological assessment and do not predict concentrations in a complete cabin.

ISO 12219-11:2025 addresses the same broad thermal-desorption evidence category for non-metallic vehicle materials and carries the same kind of limitation. ISO 12219-2 instead uses a sampling-bag method to screen VOCs, formaldehyde and other carbonyl compounds from interior parts and materials.

Light exposure: not a service-life clock

ISO 4892-2 exposes plastics to filtered xenon-arc light in controlled moisture, temperature and humidity conditions intended to reproduce particular daylight effects, including daylight through window glass. It is an exposure method, not a universal product pass mark. Hours in the chamber do not convert to years in a vehicle through one fixed multiplier.

For exposed trim, the agreed program may add colour, gloss, crack, tack, cleaner, sun-cream, sweat, abrasion or adhesion measurements. BASF’s automotive interior application guidance is useful context because it treats UV, scratching, cleaning agents, sun cream and sweat as distinct surface demands. The final method and limit still belong to the OEM or component program.

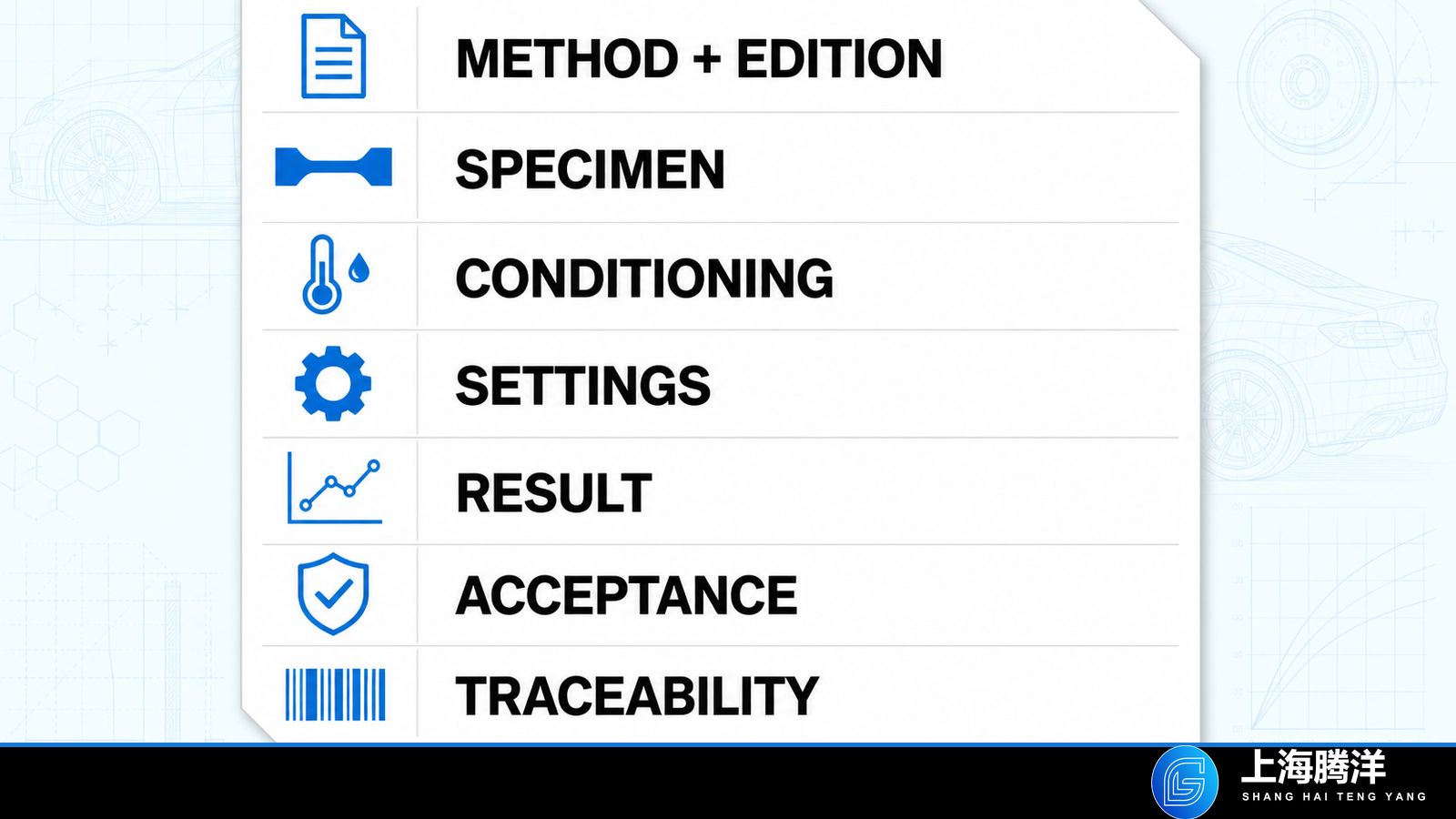

Use the Seven-Field Automotive Evidence Packet

Method names are not reports. Decision-grade evidence identifies the method edition, specimen construction, conditioning, settings, result, acceptance criterion and accountable evidence owner. If one field is missing, write “not reported” instead of guessing.

Compare two statements:

Weak: “Automotive grade, UV resistant and FMVSS tested.”

Actionable request: “Please provide the method edition, exact laminate build, conditioning and result for the production construction, together with the customer acceptance criterion and traceable report.”

This stronger request does not assume failure or demand an invented universal limit. It tells procurement, engineering and supplier quality what is missing from the approval record.

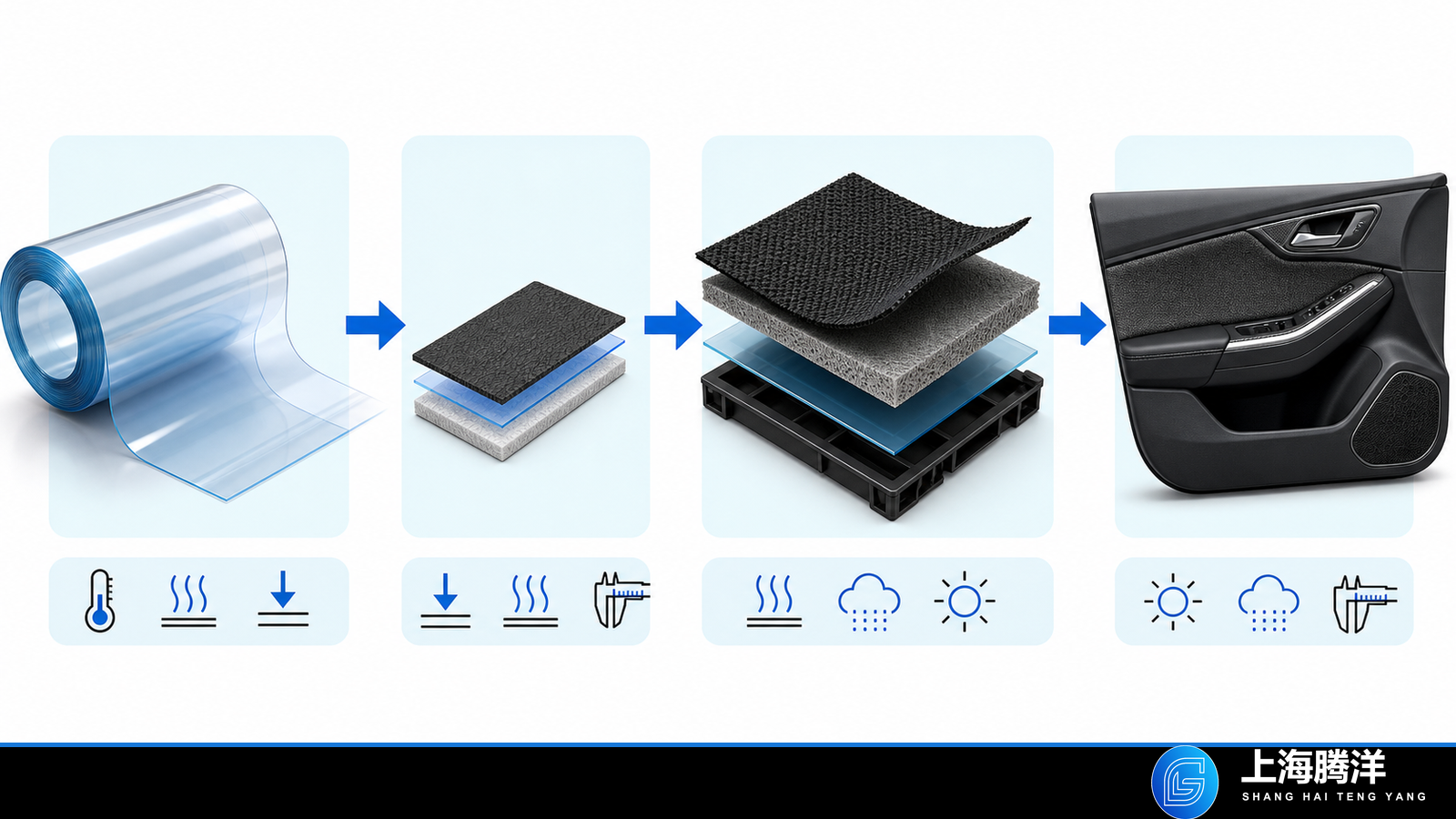

Qualify From Raw Film to Finished Part

Qualification should move from inexpensive screening to representative evidence. Failures also become easier to locate because each specimen adds one layer of complexity.

Step 1: name the film role

Write one sentence: “This TPU film will…” Protect a visible console, form a skin, retain air, carry a heating assembly or bond two substrates. If the sentence contains two jobs, keep both and prepare two evidence branches.

Step 2: map exposures and interfaces

List light, heat, humidity, cleaner, abrasion, flex, electrical load and proximity to occupant-compartment air. Record every primer, adhesive, ink, coating, foam, textile and carrier. Add the geometry that a flat coupon cannot reproduce.

Step 3: build a specimen ladder

Do not expect every method to use every rung. Use the ladder to show where the proof lives and where an evidence gap remains.

Step 4: review the evidence packet before volume ordering

Match each claimed benefit to its report and each report to its specimen. Separate “supplier has run this method” from “our agreed construction met the acceptance criterion.” That one distinction prevents a large share of qualification drift.

Step 5: run a controlled process and ageing matrix

Change one production variable at a time. For a bonding film, that may mean pressure, dwell time or actual interface temperature. For a surface film, it may mean substrate preparation, forming strain or edge design. Inspect immediately and again after the specified conditioning; otherwise an unstable interface can look successful on day one.

Step 6: freeze the qualified construction

Control more than a grade name. Freeze the layer order, material revisions, process window, appearance master, acceptance tests, lot traceability and supplier change-notification path. If a topcoat, adhesive, foam or carrier changes, identify which qualification evidence must be refreshed.

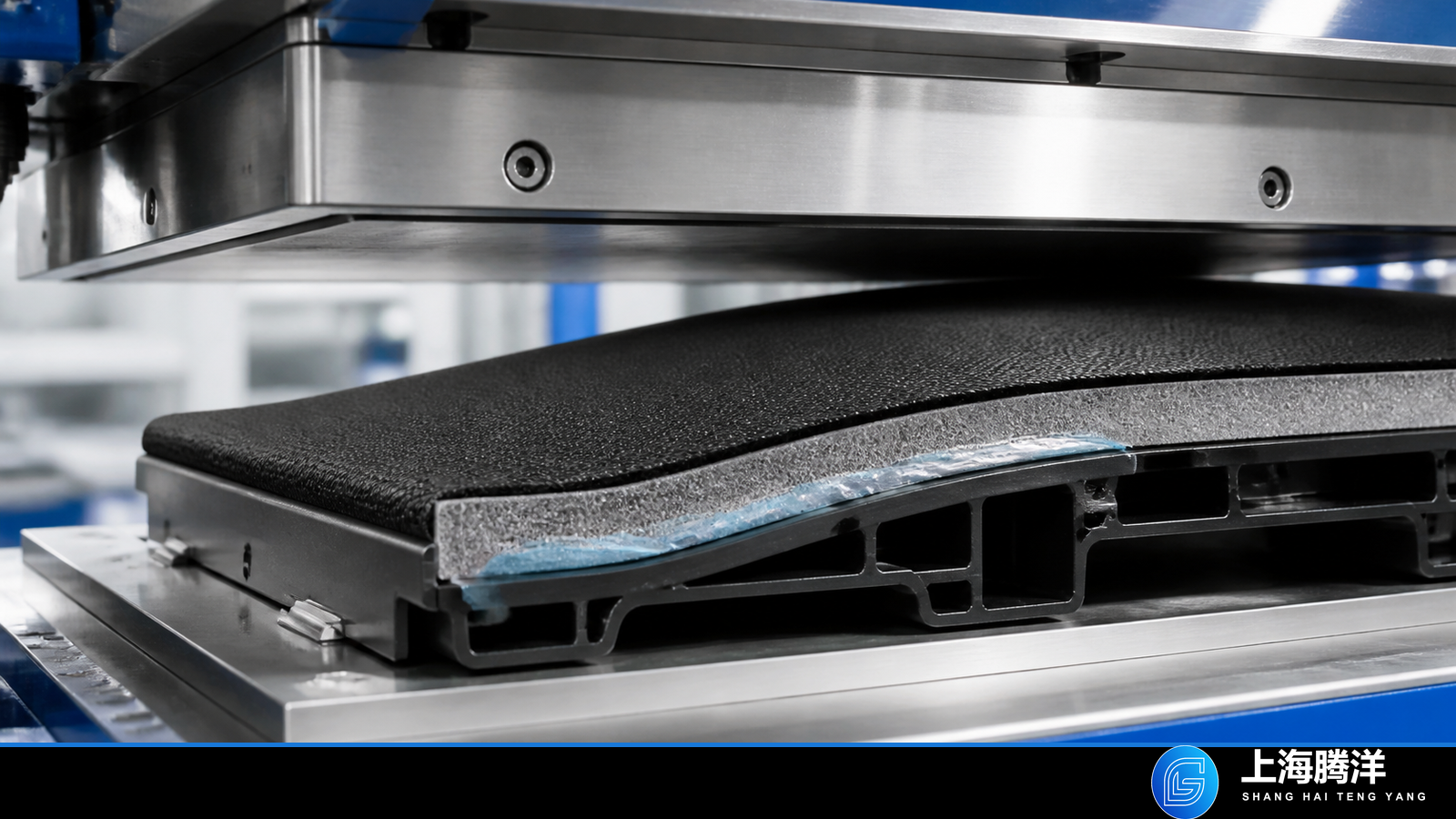

When a TPU Hot-Melt Bonding Film Is the Right Route

Choose the bonding-film route when the function is a dry, hidden, heat-activated layer between substrates—not a removable protection layer on top of a finished console or screen. Headliners, door panels, seat constructions and trim laminates can all fit that route, but the right film still depends on the actual substrates and process.

Teng Yang’s automotive interior TPU film solution page covers the commercial side: available product paths, specification inputs, customization and sampling. Company context and the wider material range appear on the Teng Yang About page. This division keeps the guide useful while giving qualified bonding projects a clear next step.

Frequently Asked Questions

Is automotive interior TPU film the same as paint protection film?

No. Interior or paint protection film is an exposed surface system, usually including a topcoat and adhesive. TPU also appears as a formed skin, barrier, bladder, embedded layer or hot-melt bonding interlayer. Comparing them as one product class would mix different jobs and failure modes.

Does solvent-free mean zero emissions?

No. Solvent-free describes a manufacturing or bonding route. It does not replace the program’s VOC, FOG, carbonyl, fogging or odour evidence.

Does a raw-film FMVSS 302 result qualify the laminate?

Not automatically. FMVSS 302 contains different specimen logic for non-adhering and continuously adhered materials. Production layer order, the interfaces that touch throughout the part, thickness and proximity to occupant-compartment air all affect what must be represented. Ask the vehicle or component compliance owner to confirm whether separate-layer or composite evidence applies and to bind that choice to the production drawing.

Can one TPU grade cover every interior component?

That cannot be assumed. Console protection, seat bladders and headliner bonding create different exposures. One grade may fit more than one use, but each application still needs construction-bound evidence.

What should be sent before requesting a bonding-film sample?

Send both substrates, layer order, target bond area, current process equipment, heat sensitivity, part geometry, expected ageing and acceptance tests. Include photos or drawings of edges, openings and high-strain zones. State whether the film remains in the finished part, which surfaces are exposed to cabin air, and whether the laminate must meet a named OEM, market or internal requirement. If a current construction failed, describe when the failure appeared and preserve an unfailed control. Those details allow a useful sample discussion without guessing a commercial grade in this guide.

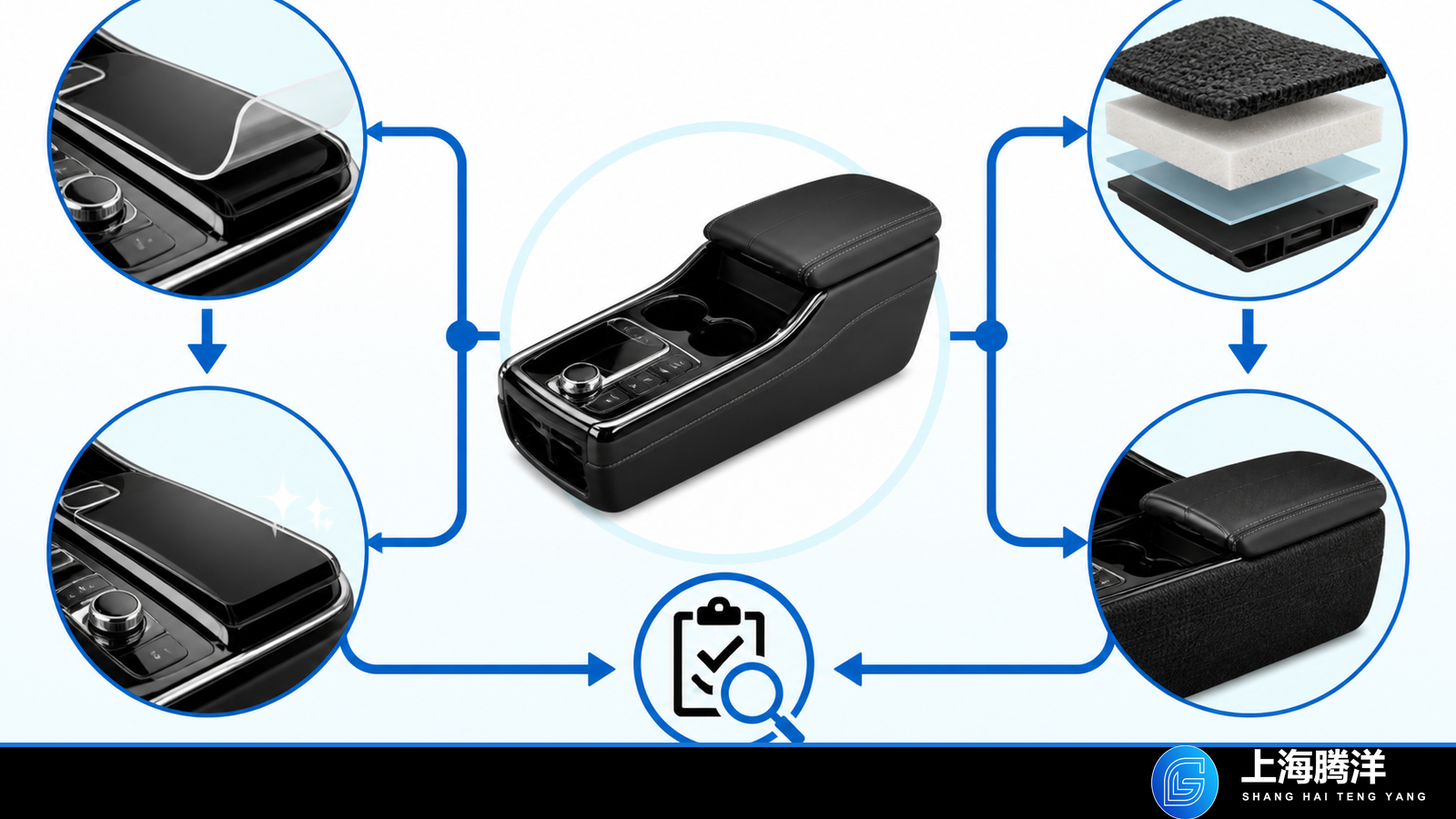

The Short Version

Automotive interior TPU film is a role inside a system, not a stand-alone promise. Name the role, draw the stack, map the exposure, begin with the observed failure, and bind every test result to the specimen that was actually tested. Then move from raw film to coupon, laminate and finished part with explicit acceptance criteria.

That sequence also protects search intent. This guide answers how to understand and qualify the category. The solution page remains the place to compare automotive-interior TPU hot-melt film options and prepare a project-specific sample or specification request.
