Reflective-Material TPU Film: Testing Guide [2026]

Updated August 2026 · Technical testing guide

Reflective-Material TPU Film is an ambiguous search phrase. It may describe a reflective construction that contains TPU, a TPU hot-melt adhesive layer used behind reflective material, or a different TPU product that only shares the same words. Production teams should identify the layer stack before comparing test results.

Direct answer: qualify the finished laminate in separate optical, bond, durability, and end-use steps. Record the specimen, test geometry, conditioning route, endpoint, and acceptance rule. Bright samples can have weak bonds, while strongly bonded samples can sit beneath a damaged reflective face.

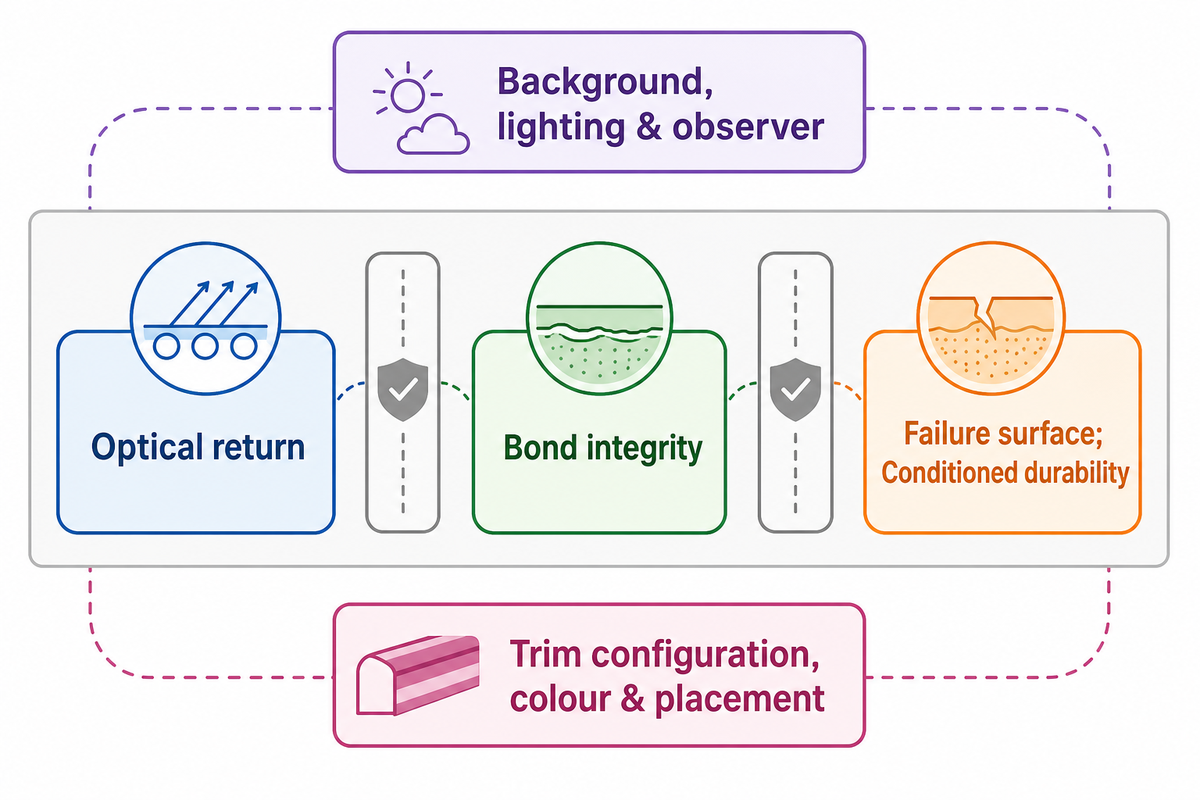

Diagram separating optical return, bond integrity and conditioned durability — Optical return and bond integrity need separate measurements on the same finished laminate.

Quick test brief

First decision
Identify the physical product and each layer’s job.

Minimum evidence
Optical result, bond result, conditioning, and failure surface.

Release boundary
Use-case standards apply only to their stated specimen and scope.

Commercial boundary
Price, grade selection, minimum order, and quotations stay on the solution Page.

Key takeaways

Search-result wording isn’t a product specification. Confirm the stack first.
Retroreflection, adhesion, durability, and conspicuity are different evidence families.
Standard numbers without their edition, specimen, geometry, and scope can’t support a release decision.
Set acceptance rules before conditioning samples, not after seeing the best result.

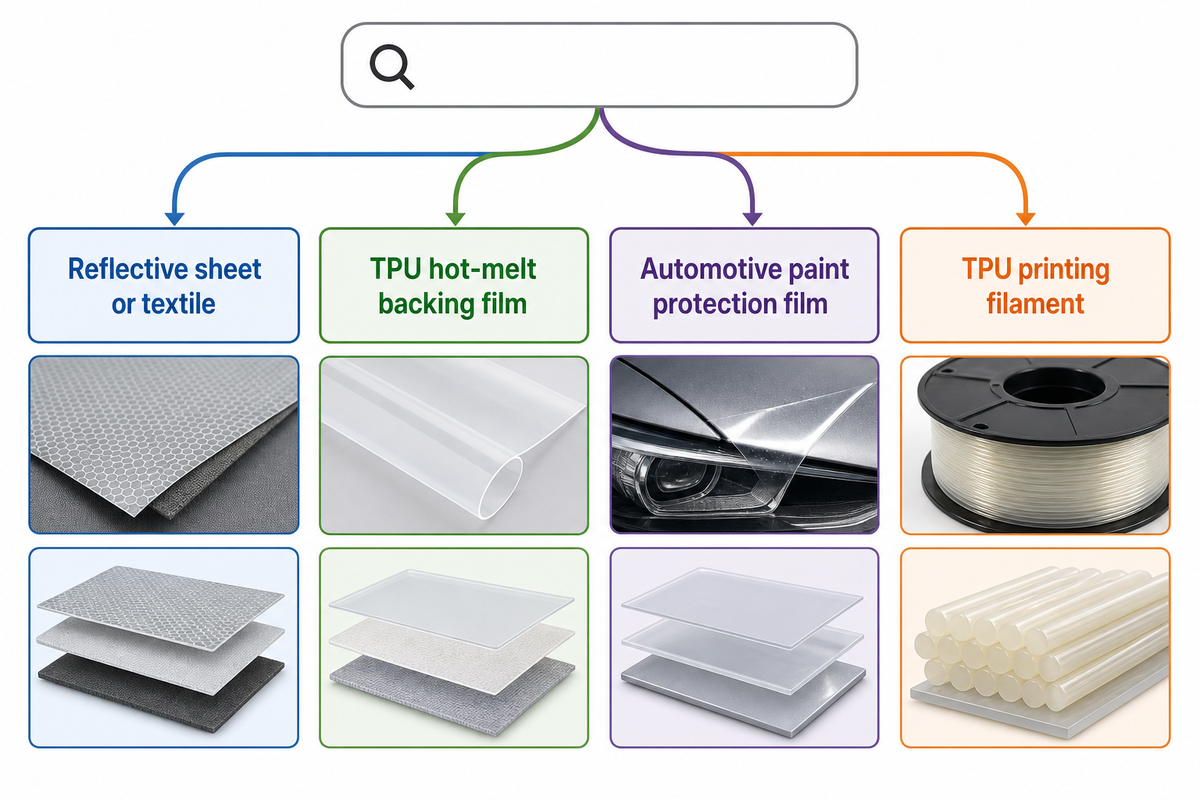

One Search Term, Four Different Products

Current search results for reflective TPU film can place four different product families beside one another: a reflective sheet or textile, a TPU hot-melt backing film, automotive paint protection film, and TPU printing filament. Treat that list as a search-intent collision, not an official industry taxonomy. The physical stack decides which evidence is relevant.

Buyers who start with a search phrase can easily compare the wrong items. One listing may sell a finished silver sheet, another a transparent bonding layer, and another a protective film for a vehicle. Similar titles don’t mean the thickness convention, adhesive system, installation route, or warranty belongs to the same product.

The 10-Clue Product Identity Matrix

Use visible clues to classify the item before asking for test data. Several clues may appear together, so the final check is always the supplier’s layer drawing and a labelled sample.

Clue in the listing or sample	Likely product type / family	Evidence to request next	Limitation
Visible glass beads on a silver or coloured face	Reflective fabric, transfer, or sheet	Layer drawing and photometric method	Beads do not identify the backing chemistry
Regular micro pattern under magnification	Microprismatic reflective construction	Entrance and observation geometry	Pattern alone does not prove a standard class
Heat-press carrier and release liner	Reflective heat-transfer construction	Carrier, reflective layer, adhesive, and substrate drawing	One transfer can use more than one adhesive family
Clear or translucent roll activated by heat	TPU hot-melt adhesive film	Substrate pair, process window, and peel method	The adhesive may contain no reflective element
“8 mil,” car panel, scratch heal, and hydrophobic coating	Automotive paint protection film	Vehicle-use data and pressure-sensitive adhesive details	Not a heat-activated textile-bonding film
Gloss, matte, chrome, or coloured PPF wrap language	Automotive vinyl or PPF	Adhesive type and vehicle installation method	Glossy faces are not proof of retroreflection
Phone, privacy, nano surface protection, or self-healing film	Screen protective film	Device-fit and optical-clarity data	Not evidence for a reflective textile laminate
Filament spool and printer diameter	TPU 3D-printing filament	Print and mechanical-property data	Not a film, sheet, or lamination layer
Self adhesive sticker or decal wording	Pressure-sensitive label or vinyl	Release liner and tack/peel method	Pressure-sensitive and hot-melt routes are not interchangeable
Finished garment report with trim placement	High-visibility clothing or applied reflective trim	Standard edition, specimen, and garment class	Garment passes do not certify loose adhesive components

Search-noise note: a page titled “color PPF paint protection film” may contain reflective TPU, clear TPU, transparent TPU, PVC, protective film, and premium aesthetic language. Results about medical devices can also surface around broad TPU queries. Those NLP terms describe other product families; they appear here only to prevent a wrong-product comparison.

For material-family context after the product has been identified, use the TPU film specification hub. Don’t use a high-scoring automotive page as the benchmark for a reflective textile bonding trial.

Decision boundary: product identity comes before thickness, process settings, durability claims, or standard selection. Search titles are not layer drawings.

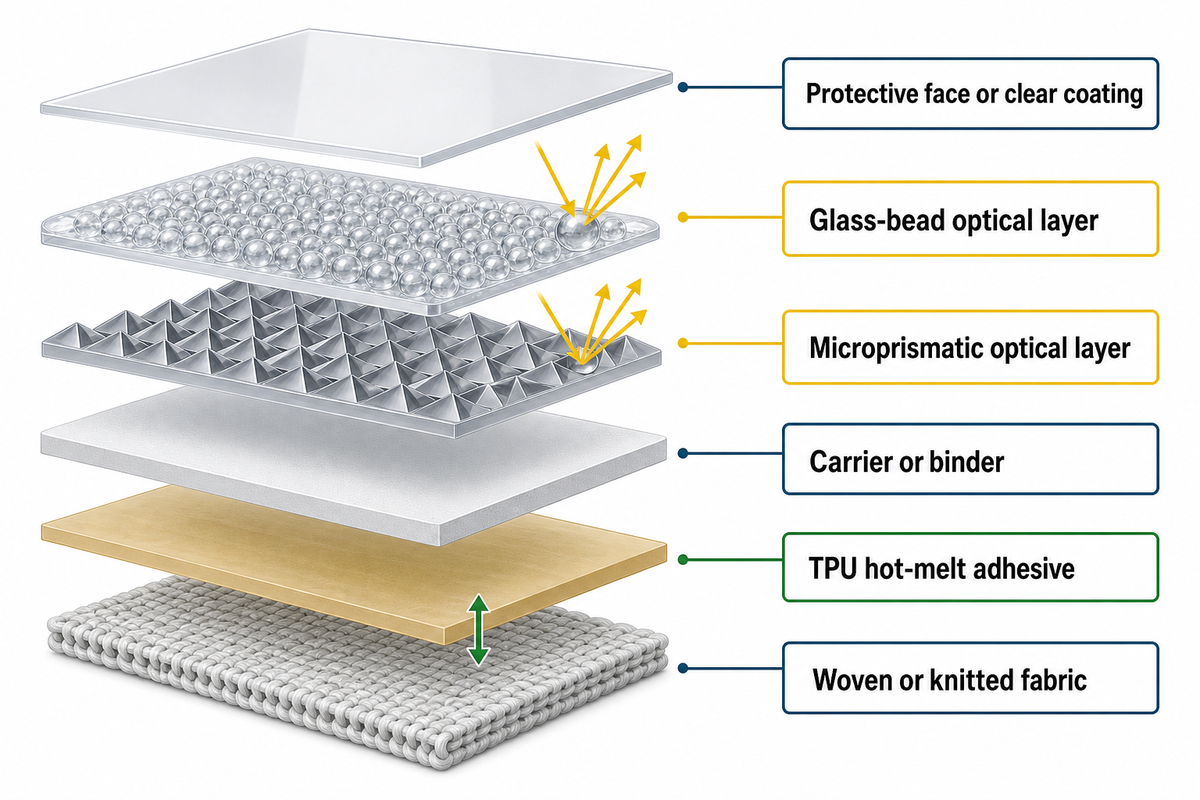

Which Layer Creates the Reflection, and Which Layer Holds It Together?

Glass beads or microprismatic geometry create the retroreflective return. The TPU layer may protect that structure, carry it, or bond it to fabric, depending on the laminate. Transparent TPU faces can affect clarity and surface protection, while the TPU adhesive controls attachment. Neither role lets bond data replace optical evidence.

The U.S. Federal Highway Administration separates glass-bead and microprismatic sheeting structures and reports coefficient of retroreflection in cd/lx/m² at stated angles. That unit belongs to the optical path. Peel testing records a different property, under a different geometry, on a defined specimen.

What Is TPU Film in a Reflective Construction?

TPU film is a flexible thermoplastic polyurethane layer. In a reflective construction, it may be a clear protective skin, an elastic carrier, a hot-melt adhesive, or another support layer. The layer’s location and interface determine the test. TPU’s elasticity can support stretch, but the full stack still controls optical and bond results.

Layer or feature	Primary job	Evidence family	What it cannot prove alone
Protective face or clear coating	Shield the optical structure from contact	Clarity, abrasion, scratch, and environmental exposure	Bond strength at the textile interface
Glass-bead optical layer	Return light near its source	Photometry at stated geometry	Microprismatic behavior or adhesion
Microprismatic optical layer	Return light through prism geometry	Photometry and surface inspection	Garment detection under every background
Carrier or binder	Hold reflective elements in position	Flex, heat, and cohesive-damage inspection	Substrate-interface strength
TPU hot-melt adhesive	Bond the reflective construction to a substrate	Peel, wash conditioning, and failure surface	Retroreflective coefficient
Woven or knitted fabric	Carry the finished assembly in use	Rupture, stretch, dimensional change, and care route	Optical-layer integrity

“Retroreflection is reflection in which the reflected rays are preferentially returned in directions close to the opposite.”

National Institute of Standards and Technology, CHARM

Measurement note: one published glass-bead study used a 0.2° observation angle. Angle, orientation, specimen construction, and instrument state must travel with the reading. Bare “brightness” values cannot.

Choose Exposure and Construction Before TPU Chemistry

Exposure and construction should lead chemistry selection because a polymer-family name doesn’t describe the finished laminate. Outdoor UV, humid washing, abrasion, stretch, substrate weave, heat, and chemical contact can change which layer fails first. Verify the exact TPU material after lamination instead of treating aliphatic, aromatic, polyether, or polyester labels as guarantees.

Clear TPU layers may be selected for transparency, while another grade may be chosen for wet exposure or elasticity. Those choices still sit inside a structure with a reflective face, carrier, adhesive interface, and fabric. “Waterproof” can describe a film barrier while water still reaches an edge or weak interface.

Service question	Construction detail to freeze	Conditioned endpoint	Do not infer from chemistry alone
Outdoor colour and UV exposure	Face layer, colour, thickness, substrate, and exposed side	Colour/clarity and optical change after exposure	That every aliphatic stack has the same life
Repeated wet care and humidity	TPU formulation, edge design, substrate, and wash route	Peel, edge lift, optical change, and fabric damage	That every polyether construction is washproof
Dry heat during lamination	Full layer stack and measured interface temperature	Face distortion, bond, and dimensional change	That adhesive activation protects the optical face
Stretch at a garment panel or seam	Knit direction, pre-strain, trim geometry, and layer width	Crack, recovery, edge lift, and optical continuity	That TPU flexibility makes the whole stack flexible
Surface abrasion or corner contact	Protective face and exposed reflective geometry	Scratch, bead loss, prism damage, and optical reading	That a durable bond prevents face wear
Oil, detergent, or other chemical contact	Fluid, concentration, time, temperature, and exposed edge	Swelling, clarity, mass, bond, and optical change	That a family-level resistant claim covers the mixture

One peer-reviewed textile comparison tested transfer film and screen printing at 25% and 85% coverage. In that sample set, the screen-printed route produced 27% of the transfer-film retroreflection factor, while permeability and abrasion results exposed a trade-off. That’s why a single “best chemistry” table can’t settle the finished-product decision.

Use the aliphatic TPU film evidence and polyether TPU film pages only after the service conditions are defined. For a condition-led protocol, the polyether TPU validation guide shows why family-level claims need an exact construction and endpoint.

Evidence boundary: chemistry narrows the candidate set. Calling a TPU grade versatile does not release a reflective laminate. At high temperatures or after wet exposure, the conditioned finished stack supplies the decision evidence.

Reflectivity Is Not Adhesion: The 2-Metric Failure Split

Retroreflection and adhesion answer different questions. Optical photometry measures how the reflective structure returns light under stated geometry; peel or delamination testing examines an interface under stated mechanical conditions. Both are subsystem results. Real-world visibility can still change with trim pattern, placement, motion, background, illumination, and the observer.

The 2-Metric Failure Split separates optical return from bond integrity before either result is used to release a laminate. No reflective technology label removes that measurement boundary.

Illustration of reflective optical layers, TPU adhesive and textile substrate — Material construction, laboratory metrics, and garment-level conspicuity are related but non-interchangeable evidence layers.

The NIST CHARM page, last updated 15 November 2019, reports relative expanded uncertainty near 2% (k=2) for white encapsulated-bead sheeting, up to 3% (k=2) for microprismatic or coloured material, and 4% (k=2) for its stated white or yellow pavement-marking class. The figures are calibration examples, not generic TPU-film tolerances. Use the current certificate and uncertainty statement for the instrument that performs the actual test.

Question	Method family	Record with result	What a pass proves	Limitation / not suitable for
How much light returns?	Retroreflection photometry	cd/lx/m², geometry, orientation, colour, instrument	Optical performance for that specimen and setup	Does not prove bond strength or field detection
Did the face change visibly?	Controlled visual/microscope inspection	Lighting, magnification, location, image	Observed scratch, bead loss, prism damage, soil, or crack	Visual inspection is not a calibrated optical value
How much force separates layers?	Method-defined peel test	Force/width, angle, rate, temperature, peel arm	Interface response under that geometry	Cannot be compared across methods without normalization
Where did separation occur?	Failure-surface classification	Clean release, cohesive residue, fabric rupture, face damage	Changed layer or interface	Peel numbers without this record can mislead
What changed after washing?	Named wash conditioning plus retest	Method, cycles, detergent, drying, specimen	Post-care change against a control	One wash route cannot prove every care claim
What changed after abrasion?	Named abrasion method plus optical/bond retest	Cycles, load, abradant, face orientation	Wear response for that method	Cycle count is not service life
What changed after flexing?	Bending/flex conditioning	Cycles, radius, direction, temperature	Crack or delamination response under the named flex	Does not cover every garment movement
What changed after heat/cold exposure?	Temperature conditioning plus retest	°C, hours, ramp/transfer, humidity, control	Response to the stated sequence	Not a universal outdoor-life forecast
Does colour remain in scope?	Colour/fluorescence measurement	Illuminant, observer, coordinates, conditioned area	Colour response under the named method	Does not establish nighttime retroreflection
Will a driver detect the wearer?	Scenario-based conspicuity study	Pattern, placement, motion, background, lighting, observer	Detection in the defined scenario	Cannot be inferred from material intensity alone

The closed-track work-zone study found that trim configuration, colour, placement, and driver age affected nighttime conspicuity, while trim intensity and amount didn’t in the reported comparisons. The result has a boundary: it doesn’t predict every road, garment, motion cue, background, or observer group. It does prove that material metrics are only part of the visibility decision.

Field-conspicuity warning: a higher retroreflection result does not by itself prove better detection. Validate pattern, placement, colour, motion, background, illumination geometry, and observer conditions separately.

What Material Reflects Like a Mirror?

Mirrors give specular reflection, sending light in a geometry set by the incident angle. Retroreflective material sends light back near its source through glass beads or microprisms. Metallic, glossy, or silver faces may look bright without meeting a retroreflection method. The TPU adhesive can hold the structure but doesn’t create the optical path by itself.

Single brightness values can’t travel between test geometries. Peel values without the failure surface can also hide fabric rupture, cohesive adhesive failure, or clean interface release. Keep both result families tied to the same labelled specimen.

Build a Qualification Grid Before Production

Production qualification should cross a bounded manufacturing process window with the conditioning routes and endpoints that matter to the finished laminate. Keep an unconditioned control, label every specimen, and approve the decision rule before testing. The grid finds a stable region; it doesn’t copy a supplier setting or declare one condition correct for every substrate.

Pre-production qualification illustration with three process levels and four conditioning routes — The 3-by-4 sample grid keeps process levels, conditioning routes, and endpoints traceable before release.

One peer-reviewed textile study gives a useful example of method-bound conditioning. Its four sample types were read at 0.2° observation and 5° incidence after 5,000 abrasion cycles, 7,500 bends, a −20°C low-temperature bend, a 50°C for 12 h to −30°C for 20 h sequence, and five washes at 60 ± 3°C. Those are study conditions, not recommended acceptance limits for a new product.

Peeling after one wash isn’t a diagnosis without press, cooling, and wash records. More heat and pressure can add buckling or face distortion. A bounded grid shows whether bond gain is accompanied by optical loss, fabric damage, or a narrower process margin.

Cell	Process level	Conditioning route	Measure after conditioning	Release rule
1	Low trial level	Unconditioned control	Optical, peel, appearance	Compare only with pre-set criteria
2	Reference trial level	Unconditioned control	Optical, peel, appearance	Keep specimen as baseline
3	High trial level	Unconditioned control	Optical, peel, appearance	Reject face distortion even if peel rises
4	Low trial level	Named wash route	Optical, edge lift, peel, fabric	Apply the same threshold to all three levels
5	Reference trial level	Named wash route	Optical, edge lift, peel, fabric	Record drying route and failure surface
6	High trial level	Named wash route	Optical, edge lift, peel, fabric	Do not accept heat damage as bond strength
7	Low trial level	Named abrasion route	Face wear, optical change, edge state	Separate wear from interface failure
8	Reference trial level	Named abrasion route	Face wear, optical change, edge state	Photograph the same marked locations
9	High trial level	Named abrasion route	Face wear, optical change, edge state	Reject a narrowed margin before scale-up
10	Low trial level	Named flex route	Crack, recovery, optical continuity	Record bend direction and radius
11	Reference trial level	Named flex route	Crack, recovery, optical continuity	Compare to the unconditioned control
12	High trial level	Named flex route	Crack, recovery, optical continuity	Reject corner crack or permanent buckle

1. Freeze the stack. Assign one specimen code to the reflective face, carrier, TPU film, substrate, and orientation.

2. Bound the process. Choose low, reference, and high trial levels from machine and material evidence; do not publish them as universal settings.

3. Condition controls and trials. Keep an unconditioned reference beside each named exposure route.

4. Apply the pre-set rule. Judge optical, bond, appearance, and failure surface together; record the internal release owner.

Worked calculation: if a control specimen measures 420 cd/lx/m² and its conditioned pair measures 336 cd/lx/m² under identical geometry, optical retention is 336 ÷ 420 × 100 = 80%. That calculation doesn’t pass or fail the part. The project’s pre-approved threshold and bond result still control the decision.

Illustrative record format, not a prescribed method: a lab note could identify a 100 mm × 25 mm coupon, a 50 mm bonded length, 24 hours at 23°C and 50% RH, then a 100 mm/min peel rate. Replace every placeholder with the selected method and project requirement.

Qualification note: a stable process region matters more than the single coupon with the highest peel force. Production variation needs room on both sides of the chosen setting.

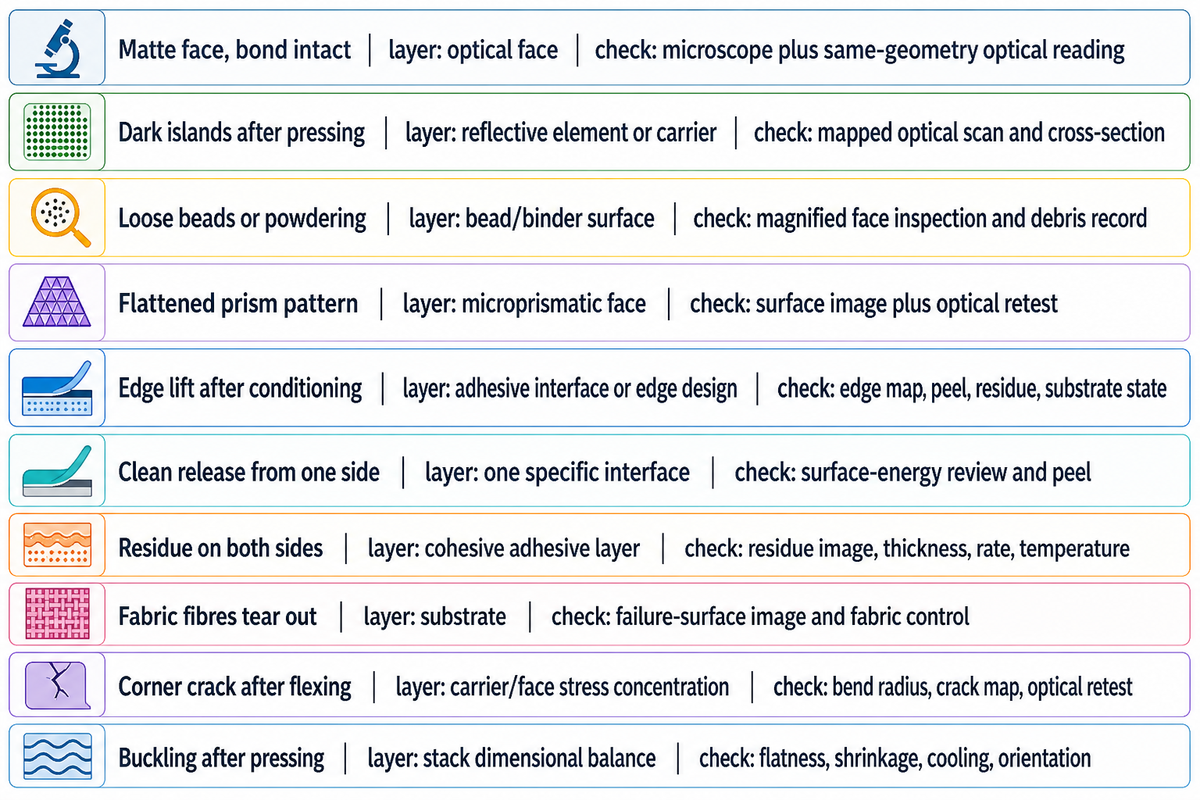

Diagnose the Layer That Changed, Not the Symptom Name

Dull, cracked, or peeling laminates don’t identify their own cause. Start with the observed location and failure surface, then select a confirming optical, bond, surface, or substrate test. Changing heat or pressure before that check can move the failure to another layer and make the next production trial harder to interpret.

A firefighter-trim study examined 44 garments in 2–3 year, 5–7 year, and 9–10 year groups. Its field check used a flashlight at 40 ft (12 m); instrument readings used 0.2° observation, 5° entrance, and a 1.27 cm aperture. Coat and trouser averages were 337 cd/lx/m² and 310 cd/lx/m². Local wear still mattered: 83% of coat spots below 100 cd/lx/m² sat at cuffs or the lower front, although those areas represented 35% of sample locations.

Study age group	Coat average	Trouser average
2–3 years	320 cd/lx/m²	308 cd/lx/m²
5–7 years	378 cd/lx/m²	303 cd/lx/m²
9–10 years	308 cd/lx/m²	306 cd/lx/m²
Retired group	325 cd/lx/m²	233 cd/lx/m²

Those figures belong to used firefighter garments in that study. They aren’t acceptance values for a new reflective TPU laminate; the location pattern is the useful lesson.

The reflective face turned matte before the transfer later cracked in one operator’s symptom sequence. That order is useful as a question, not proof of a cause. Inspect the face, compare optical readings, and check whether the interface is still intact before changing the adhesive cycle.

Observed signature	Likely changed layer	Confirming check	First action	Do not assume
Matte face, bond intact	Protective or optical face	Microscope plus same-geometry optical reading	Review face contact and thermal history	More adhesive will restore brightness
Dark islands after pressing	Reflective element or carrier	Mapped optical scan and cross-section	Check local pressure/temperature distribution	The whole roll has low reflectivity
Loose beads or powdering	Bead/binder surface	Magnified face inspection and debris record	Review abrasion and surface contact	Peel force explains the wear
Flattened prism pattern	Microprismatic face	Surface image plus optical retest	Check direct platen contact and stack order	A stronger bond fixes geometry
Edge lift after conditioning	Adhesive interface or edge design	Edge map, peel, residue, and substrate state	Separate wet ingress from weak activation	Every lifted edge needs more heat
Clean release from one side	Specific interface	Surface energy/contamination review and peel	Check substrate preparation and contact	TPU chemistry alone caused it
Residue on both sides	Cohesive adhesive layer	Residue image, thickness, rate, and temperature	Review adhesive state and test geometry	The interface was the weakest point
Fabric fibres tear out	Substrate	Failure-surface image and fabric control	Report substrate rupture separately	A higher peel value means a better laminate
Corner crack after flexing	Carrier/face at a stress concentration	Bend direction, radius, crack map, optical retest	Change geometry before chemistry	The flat coupon predicts the corner
Buckling after pressing	Stack dimensional balance	Flatness, shrinkage, cooling, and layer orientation	Review heating and cooling balance	Extra pressure will flatten it safely

Photograph the failure surface.
Retest the optical face under identical geometry.
Keep the fabric control and process record.

Do not

Call every separation “delamination.”
Raise heat before locating the failed layer.
Use one strong peel result to close an optical complaint.

The TPU film for garment-accessory production guide adds converting context. Keep its process examples separate from the release criteria for the present reflective construction.

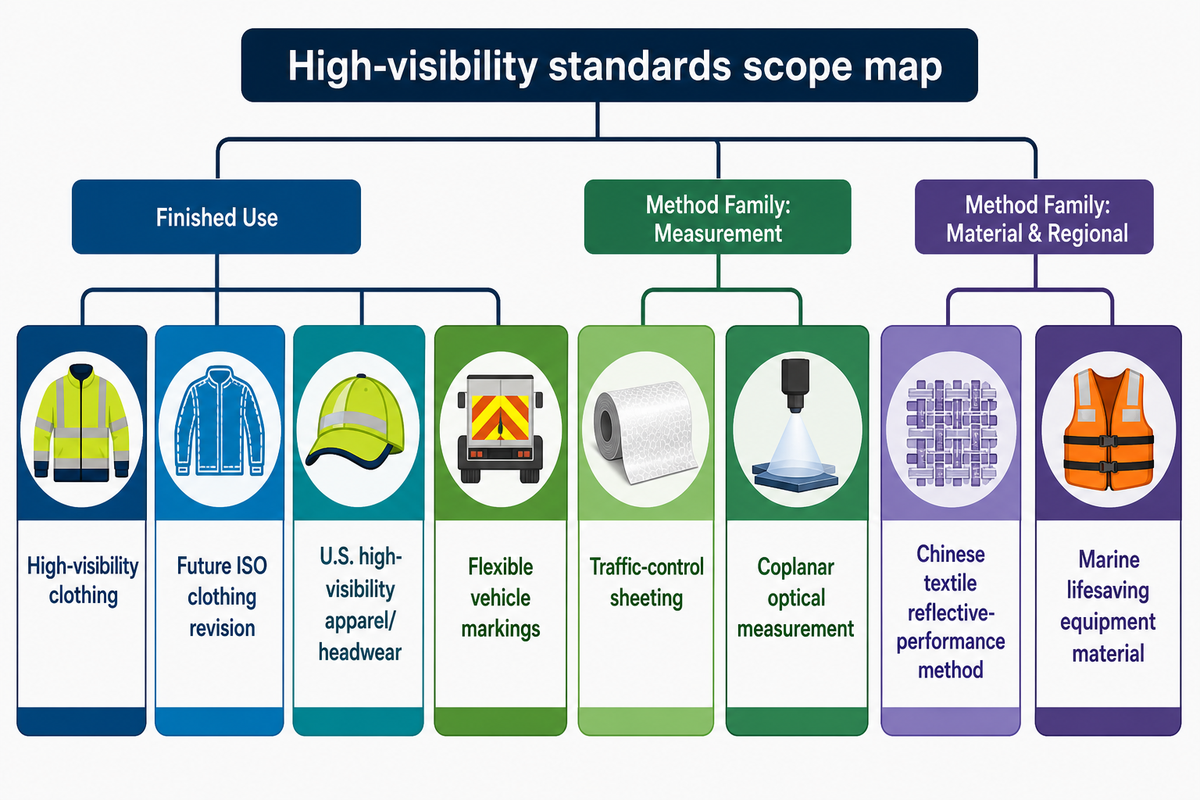

Read High-Visibility Standards at the Finished-Assembly Level

Choose a safety standard by end use and tested specimen, not by the words “reflective TPU.” High-visibility yellow clothing, flexible vehicle markings, traffic-control sheeting, textile test methods, and marine lifesaving material have separate scopes. A result for one finished article can’t be transferred to a loose TPU adhesive component without a stated component method.

Use case / record	Public scope signal	Status to record	What it does not certify
High-visibility clothing	ISO 20471:2013	Published edition; Amendment 1:2016 listed	A generic hot-melt adhesive film by itself
Future ISO clothing revision	ISO/DIS 20471 Edition 2	Draft under development	A published replacement before release
U.S. high-visibility apparel/headwear	ANSI/ISEA 107-2020 in CDC PPE-Info	Current public record reviewed	Every component or another market’s garment
Flexible vehicle markings	ASTM D8514/D8514M-23	Official vehicle-marking sheeting scope	Apparel or traffic-sign compliance
Traffic-control sheeting	ASTM D4956-26	Active traffic-control sheeting record	Minimum in-service sign/device performance
Coplanar optical measurement	ASTM E810-20R25	Reapproved 2025 record	Peel, wash durability, or garment detection
Chinese textile reflective-performance method	GB/T 46542-2025	Published 2025-10-31; effective 2026-05-01	Full method details or adhesive acceptance limits from the catalog alone
Marine lifesaving equipment material	46 CFR 164.018-9 and 164.018-11	Separate adhesion, optical, and conditioning provisions	Apparel or generic TPU-film approval

QA Condition-to-Evidence Matrix

An independent source review converted the scope findings into seven questions. Each row states what a release team should record, the matching evidence family, and the conclusion that remains outside the result.

Condition or question	Record before test	Evidence family	Result still does not prove
What is the finished use case?	Article, stack, substrate, environment, standard edition	Use-case scope check	Compliance of another end use or loose adhesive
Does the face meet photometric needs?	Construction, colour, geometry, instrument, calibration	Controlled photometry	Field conspicuity or bond life
Will the bond survive the specified route?	Stack, process, conditioning, wash chemistry, failure mode	Finished-stack adhesion/durability test	Retained optical return or garment compliance
Will a driver detect the wearer?	Pattern, colour, placement, motion, background, observer	Scenario conspicuity evidence	Every road, garment, or population
Which ISO status belongs in the record?	Edition, amendment, status date, contractual basis	Published-versus-draft lifecycle check	That a draft has replaced the published edition
Does the Chinese textile method apply?	Market, product class, standard number, lab revision	Official GB/T status record	Full method or pass limits from the catalog page
Is traffic-control scope being overextended?	Sheeting versus completed device, overlays, exposure, maintenance	ASTM D4956 scope check	Minimum performance of an in-service sign/device

Scope rule: the test report should name the finished article, standard edition, specimen construction, conditioning, endpoint, and excluded claims. A certificate title alone is not the evidence package.

The 6-Field Test-to-Release Record

An internal release record should preserve the exact construction, specimen, process window, conditioning route, measured endpoint, and acceptance criterion before a reflective laminate moves beyond trial status. That record belongs to engineering and QA. Commercial grade selection, price, minimum order, lead time, samples, and quotations remain a separate decision.

The 6-Field Test-to-Release Record is an internal QA note that makes each trial traceable before commercial sourcing begins.

Construction: reflective face, carrier, TPU layer role, substrate, orientation, and specimen code.
Specimen: dimensions, conditioned area, edge design, batch, sample count, and control.
Process window: measured interface temperature, pressure or force, dwell, cooling, machine, and stack order.
Conditioning: named wash, abrasion, flex, temperature, humidity, chemical, or outdoor route.
Endpoint: optical geometry and unit, peel method, failure surface, appearance, dimensional change, and fabric state.
Acceptance and owner: criterion fixed before test, exception rule, reviewer, release date, and revalidation trigger.

The record should allow another engineer to reproduce the comparison without guessing what “sample A” meant. If the result changes after a new substrate, colour, edge, batch, or process route, reopen the relevant field rather than carrying the old approval forward.

After internal release, the Reflective-Material TPU Film solution page is the correct place to compare Tengyang’s commercial options. The TPU film specification sheet guide can help the team check whether a supplier record actually describes the tested construction.

Bring Tengyang a released test record, not a vague material name

Share the material stack, substrate, process, temperature evidence, width, thickness, conditioning route, and acceptance target. Shanghai Tengyang can then discuss a hot-melt adhesive material for that defined production requirement.

Discuss the application

What Changes in 2026: Test Methods, Not Marketing Claims

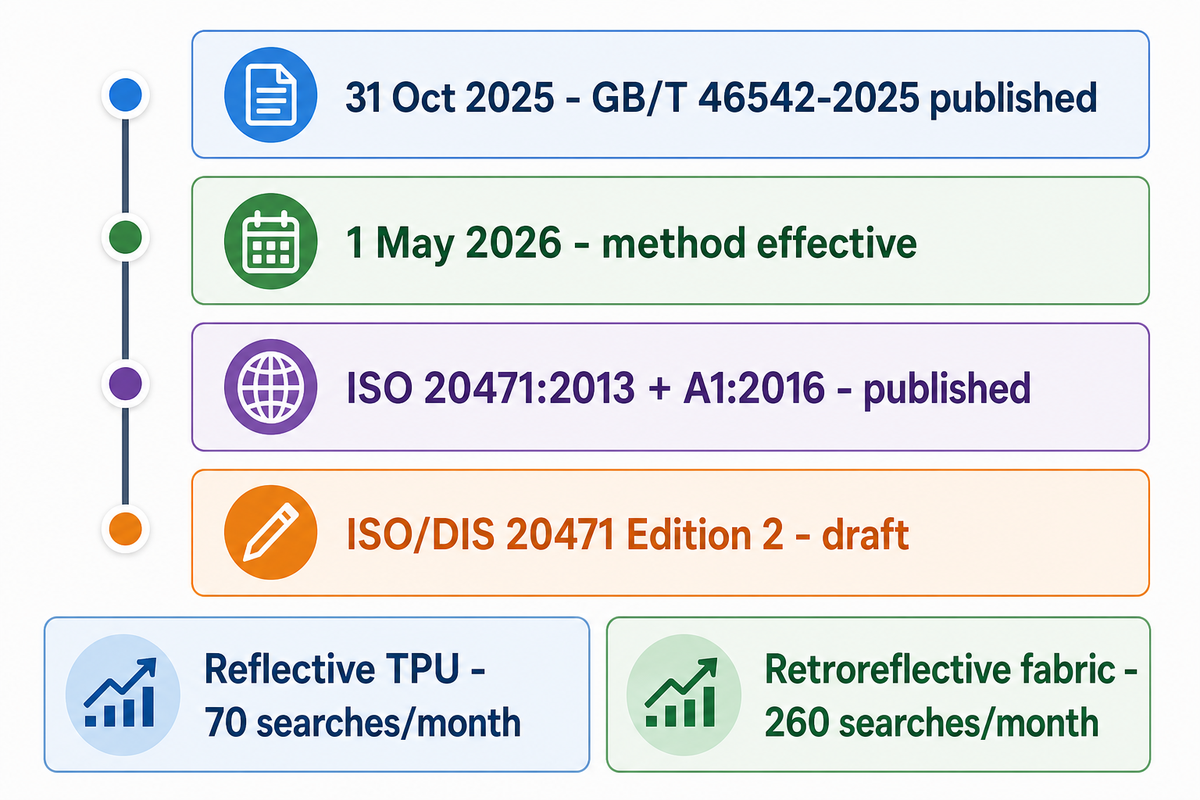

Two dated standards signals matter in 2026. GB/T 46542-2025 became effective as a Chinese textile reflective-performance test method on 1 May 2026. ISO 20471:2013 with Amendment 1:2016 remains the published ISO baseline in the reviewed record, while ISO/DIS 20471 Edition 2 is still under development.

31 October 2025: the Chinese National Standards platform lists GB/T 46542-2025 as published.

1 May 2026: the same official record gives the effective date for the textile reflective-performance test method.

August 2026 status check: ISO 20471:2013 plus Amendment 1:2016 is published; Edition 2 appears as a draft under development.

A catalog record does not contain the full GB/T method, specimen preparation, or acceptance limits. Likewise, a draft ISO page is not permission to claim a new published edition. Put the exact edition and amendment into the test request, then ask the laboratory which revision it used.

Current-run search data gives directional context rather than a market forecast: “reflective TPU” registered 70 searches/month, while “retroreflective fabric” registered 260 searches/month in the selected market dataset. The practical action for a 2026 project is to audit undated standard names, map each method to the intended finished article, and create a revalidation trigger for the day a replacement edition is actually published.

2026 release check: current does not mean universal. A current standard can still be the wrong scope for the product in front of you.

Frequently Asked Questions

What is reflective-material TPU film?

Short answer

The phrase can describe a TPU film inside a reflective textile or transfer, or a TPU hot-melt adhesive layer used to bond that construction. The reflective geometry creates the optical return; the TPU can protect, carry, or bond the stack. Automotive PPF, screen protectors, and TPU filament share words but require different evidence.

What material creates the mirror-like reflective effect?

Short answer

Glass beads or microprismatic geometry create retroreflection by returning light near its source. Metallic or glossy surfaces can give a mirror-like appearance through specular reflection without meeting a retroreflection method. Transparent TPU, a carrier, and adhesive may sit in the structure, but none should be credited with the optical result without a layer drawing and test geometry.

What disadvantages of TPU matter in a reflective construction?

Short answer

Potential concerns include colour change under UV for some constructions, wet-aging limits, heat sensitivity elsewhere in the stack, surface abrasion, creep, edge lift, or bond loss outside the tested process window. None is a universal defect of every TPU film. Freeze the formulation, thickness, substrate, exposure, and endpoint, then test the finished laminate.

Which test proves a reflective bond will survive washing?

Short answer

No single wash test proves every claim. Define the method, cycles, drying route, specimen, optical endpoint, adhesion endpoint, and threshold. Compare the conditioned sample with a control and record the failure surface.

Can an adhesive component be certified to a high-visibility apparel standard?

Short answer

Components may have their own tests or support a compliant construction, but a finished-garment result does not automatically transfer to loose adhesive film. Read the standard’s scope, edition, specimen, conditioning, classification, and destination market. The report should say whether it tested adhesive, reflective transfer, applied trim, vehicle sheeting, traffic-control sheeting, or the finished article. It should also name the measured endpoint and the claims excluded by scope.

Why can brightness drop after heat pressing when the bond stays intact?

Short answer

Heat, pressure, face contact, or contamination can disturb beads, deform microprisms, or change a carrier while the bond remains attached. Compare optical readings and inspect the surface before increasing bond severity.

How this guide was prepared

The reflective-material TPU film guide separates search-result observations from source-backed facts. Numeric conditions are tied to named studies or marked as worked examples. Standards are described from public scope/status records, not copied from paywalled clauses. Tengyang’s first-party Page is used only for product and commercial boundaries, never as independent proof of universal performance.
