Hot Melt Adhesive Melting Point & Spec Guide [2026]

Updated August 2026 · Industrial buyer guide

Hot Melt Adhesive Melting Point & Spec Guide is a buyer-facing framework for separating material transitions, process settings, and finished-bond limits. Hot melt adhesive doesn’t have one universal melting point. A supplier may be reporting a differential scanning calorimetry melting peak, a ring-and-ball softening point, a recommended activation temperature, or a viscosity measured at a chosen temperature. Those values answer different questions. Industrial buyers should compare a named property, a stated test method, and complete test conditions, not isolated numbers.

Direct answer: Ask “which temperature, measured how?” before asking whether one grade has a higher melting point than another. Use thermal data to shortlist materials, use a controlled line trial to establish the process window, and use finished-assembly tests to approve production.

Hot Melt Adhesive Melting Point & Spec Guide — TL;DR: Melting enables an adhesive to flow, but it doesn’t by itself prove wet-out, bond strength, or heat resistance. Decision-grade hot melt adhesive specifications identify the property, method, specimen, conditions, tolerance, grade, product form, process window, substrate pair, and finished-part acceptance test.

Scope: This guide focuses on conventional thermoplastic hot melt adhesive films that set by cooling. Reactive, curing, or dynamically crosslinked hot melts need a separate review of cure state, residual chemistry, reversibility, and process-safety controls.

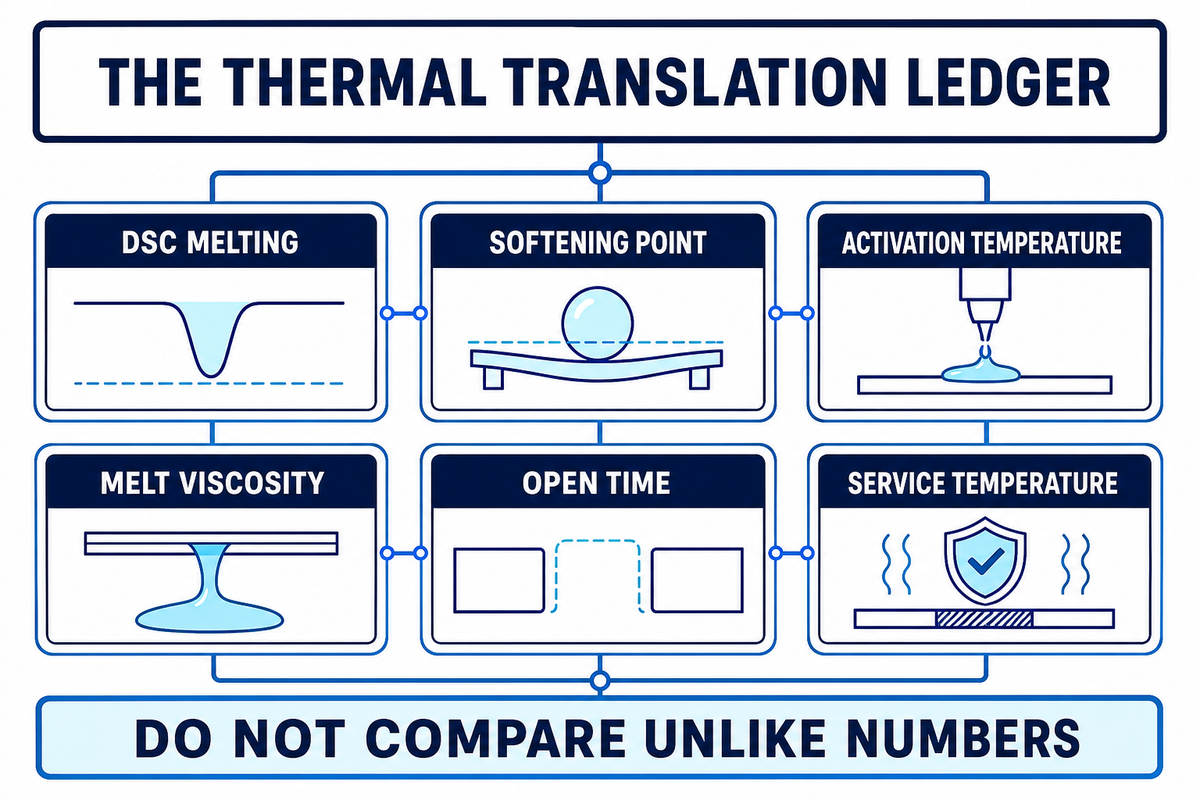

The 6-Property Thermal Translation Ledger

Industry searches often use melting point as shorthand for several thermal or processing values. That shorthand becomes risky in an industrial request for quotation because two apparently comparable temperatures may come from different phenomena. This ledger translates the common labels into purchasing and engineering questions.

Supplier label	What it usually means	Method or evidence	Conditions to record	Useful for	Does not prove
DSC melting onset, peak, or endset	Thermal transition observed by differential scanning calorimetry	ISO 11357-3 or ASTM D3418	Specimen history, heating rate, atmosphere, cycle, and reported point	Grade characterization and lot comparison	Correct press setting or durable bond
Softening point	Method-defined response as a material softens gradually	ASTM E28 where the material is within scope	Method version, apparatus, bath, heating rate, and specimen preparation	Comparing applicable resins under one defined method	Crystalline melting peak or service limit
Application or activation temperature	Recommended machine or bonding window	Supplier recommendation plus line trial	Setpoint, interface temperature, dwell, pressure, adhesive mass, and substrate	Starting a process trial	Long-term service temperature
Apparent viscosity	Resistance to flow at a stated test condition	ASTM D3236 or a disclosed supplier method	Temperature, spindle or geometry, speed, conditioning, and units	Estimating flow and comparing grade behavior	High-shear line behavior or adhesion
Open time	Interval during which the applied adhesive can form an acceptable bond	Supplier or application-specific method	Deposit, substrates, ambient conditions, pressure, and pass criterion	Line timing and assembly sequence	Universal working time on every substrate
Service temperature or heat resistance	Finished-bond behavior under a defined thermal exposure	Application-specific assembly test	Load, time, temperature, joint, conditioning, and failure criterion	End-use qualification	The adhesive’s DSC melting point

These distinctions change work for every buyer role. Procurement needs equivalent fields before comparing quotations. Quality needs a repeatable method and tolerance. Process engineers need a viable temperature, dwell–pressure window. Plant management needs proof that the window tolerates normal variation without damaging substrates or slowing output.

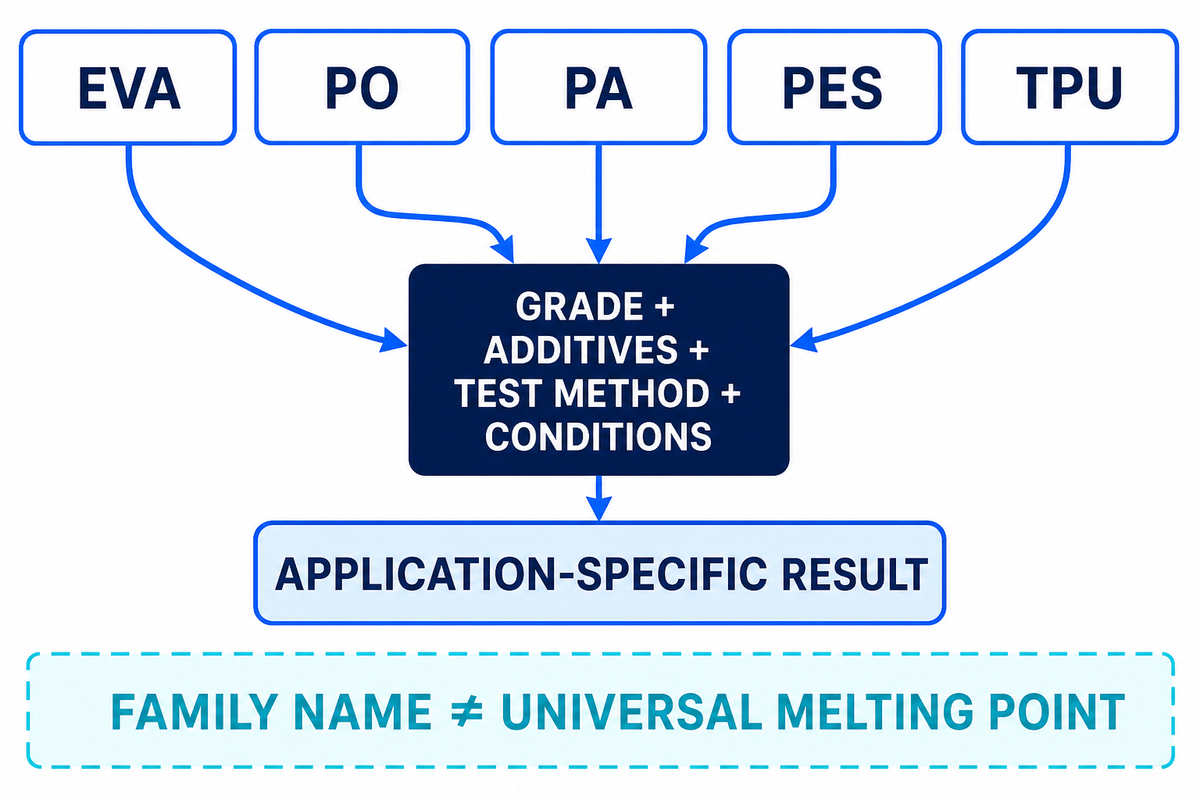

Why Polymer Families Do Not Produce a Universal Melting-Point Chart

EVA, polyolefin (PO), polyamide (PA), polyester (PES), and thermoplastic polyurethane (TPU) are useful starting families, but each contains multiple grades and formulations. Molecular design, crystallinity, additives, copolymer ratio, molecular weight distribution, and previous heating can shift a thermal trace. Film thickness, liner, and contact with the substrate also affect how quickly the bond line reaches the needed state.

Differential scanning calorimetry traces can contain an onset, one or more peaks, and an endset rather than one self-explanatory number. Report writers may choose different points from that trace. Ring-and-ball softening is different again: ASTM E28-18(2022) explains that applicable resins soften gradually, so comparable results depend on a fixed, closely defined procedure.

Bounded example, not a chemistry-wide range: Teng Yang’s PA melting-point and durability planner cites 100–125°C for particular clothing-grade formulation examples and explicitly says the zones do not replace a trial on the actual substrate. That number must not be copied into a general statement about all PA hot melts.

Use chemistry as a routing decision. Then request the actual grade’s data and confirm whether the reported value is a melting transition, softening point, process recommendation, or finished-bond result. Any chart that hides that distinction creates false precision.

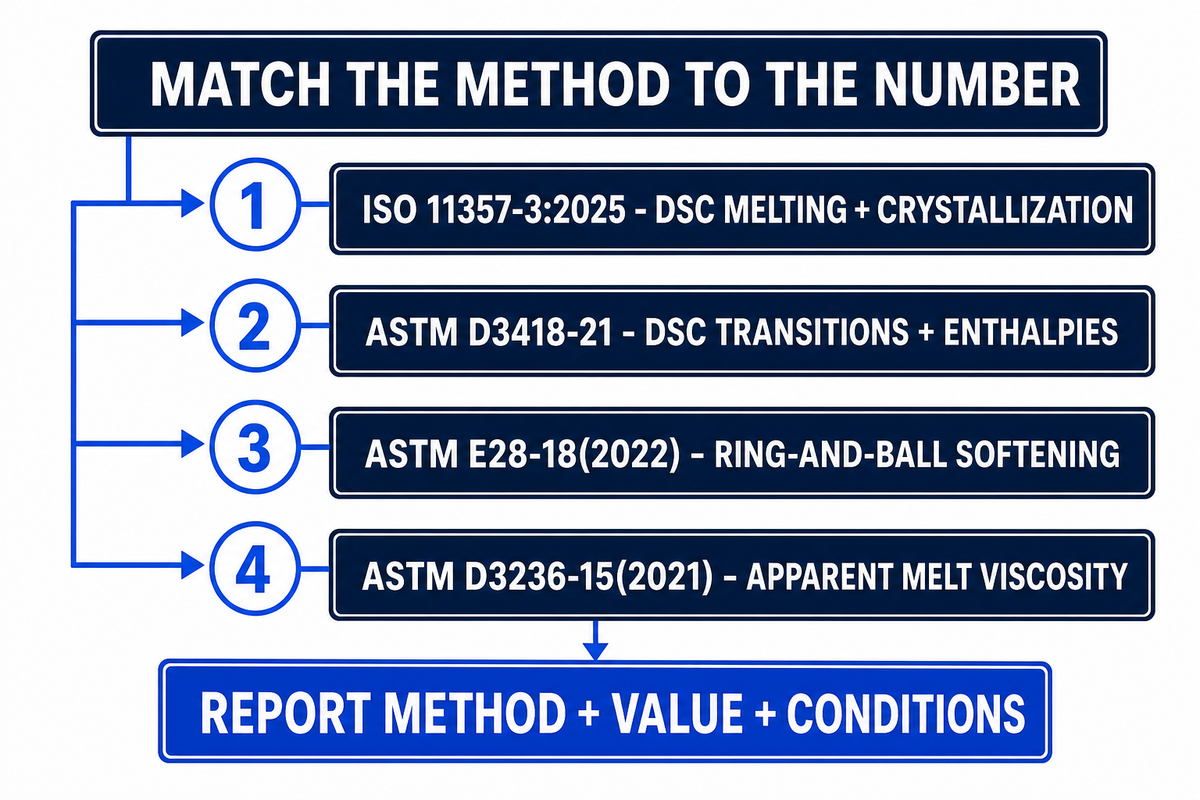

Which Test Method Belongs Beside Each Number?

For a thermal transition in a crystalline or partly crystalline polymer, the current ISO 11357-3:2025 record covers melting and crystallization temperatures and enthalpies by differential scanning calorimetry. ASTM D3418-21 also addresses transition temperatures and enthalpies of fusion and crystallization. Its Scope notes that the method does not apply to every polymer as written; its Significance and Use section identifies specification acceptance, process control, and research as uses.

ASTM E28 is intended for the ring-and-ball softening point of resins, including rosin and terpene resins, and similar materials. Use it only when the tested material falls within that scope. It is method-defined precisely because softening is gradual. Do not relabel this value as a differential scanning calorimetry melt peak.

For melt flow, ASTM D3236-15(2021) covers apparent viscosity of hot-melt adhesives and coating materials. Its Significance and Use section says the low-shear measurement may not correlate well with end-use applications that encounter high shear rates. That limitation is commercially important: a data sheet must show the test temperature and method, and a production trial still needs to confirm pumping, coating, or wet-out behavior.

Temperature becomes comparable data only when the property, method, specimen, conditions, and reported point travel with it.

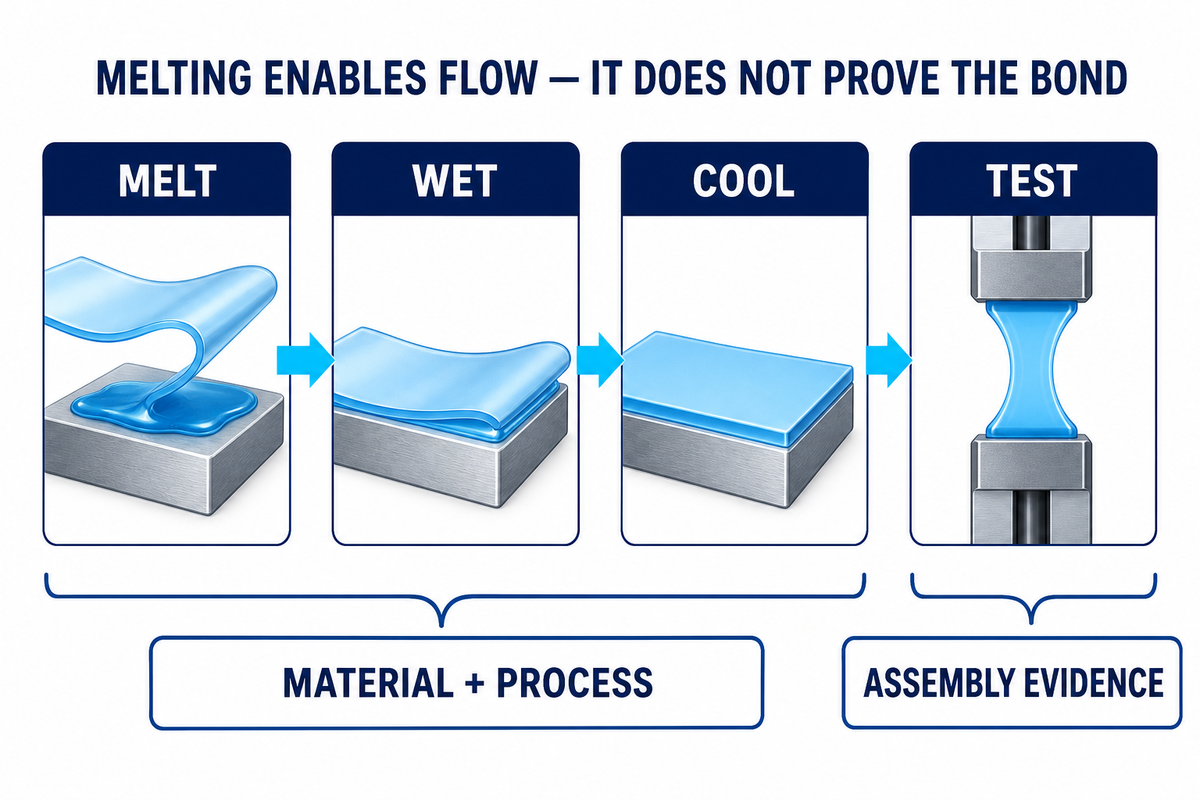

Melting Enables Flow, but It Does Not Prove a Durable Bond

Hot-melt bonding involves more than crossing a thermal transition. Heat must reach the adhesive, substrate interface. Adhesive must flow enough to wet the available surface. Pressure must create contact without squeezing out too much material. Assembly must remain controlled while the adhesive cools and develops handling strength.

Machine setpoints on a platen, roller, oven, or hot-air unit aren’t necessarily the interface temperature. Thick textiles, foams, metal parts, coated films, and multilayer stacks absorb and transfer heat differently. Short dwell may leave the center of the bond line cooler than the display suggests, while excessive dwell can overheat a sensitive substrate even when the adhesive itself is stable.

Signs of insufficient heat or flow

Patchy transfer, poor wet-out, low initial strength, adhesive remaining on one face, or strong sensitivity to small dwell changes. These are diagnostic clues, not proof of a single root cause.

Risks of excessive thermal input

Substrate distortion, discoloration, adhesive squeeze-out, long cooling time, liner problems, oxidation or unwanted thermal history. The safe limit is grade- and construction-specific.

Higher melting or softening values don’t automatically produce bonds with higher service-temperature resistance. Finished-joint performance also depends on load, geometry, adhesive thickness, substrate stiffness, surface condition, exposure time, and the failure criterion. Approve heat resistance with a test of the bonded assembly under the expected service condition.

This does not mean a hot-melt bond cannot be durable. It means durability is a separate result to prove with the selected formulation, substrate pair, joint geometry, and relevant heat, moisture, load, and aging exposure—not a conclusion to infer from a melt value alone.

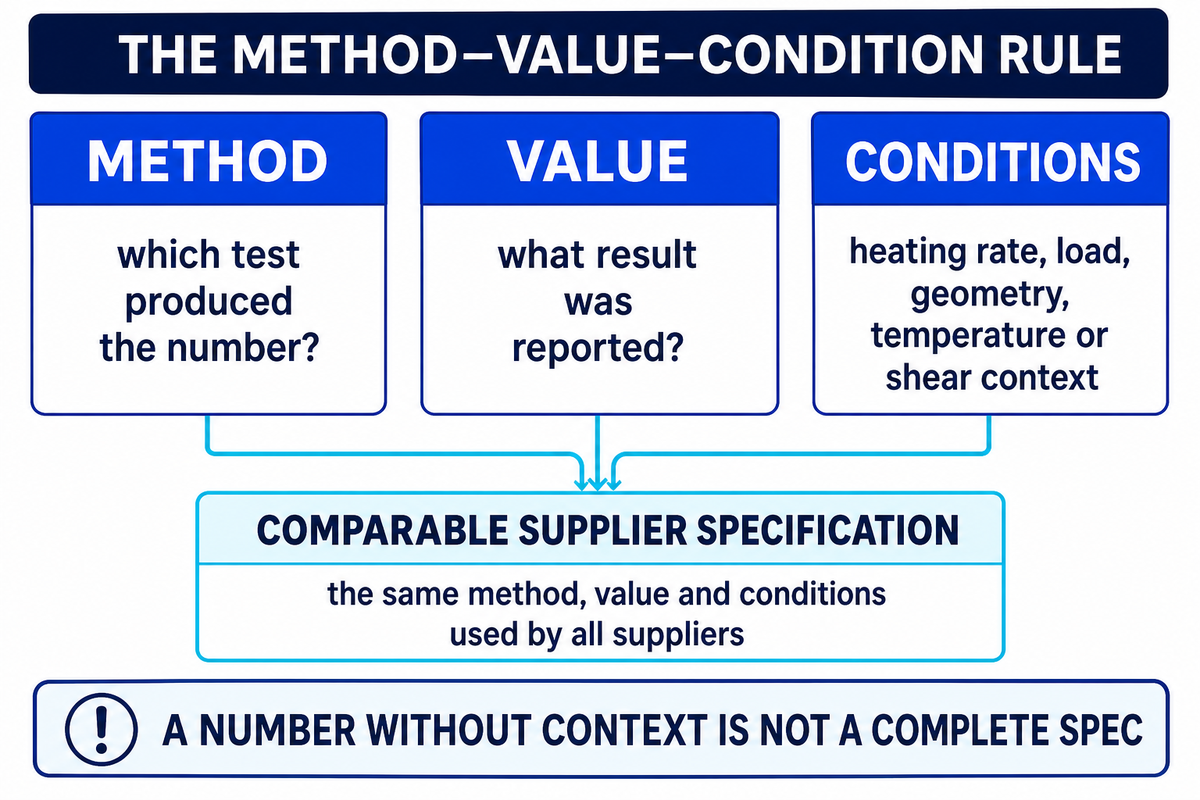

The Method-Value-Condition Rule for Supplier Specifications

Use one simple rule: don’t accept an isolated temperature. Every thermal or rheological claim should arrive as a three-part record: the named method, the value or range, and the conditions that produced it. Teng Yang’s hot melt adhesive film spec-sheet builder applies the same principle by asking for application context instead of returning a context-free number.

Specification type	What to request	Why it changes the decision
1. Grade identity	Commercial grade, polymer family, product form, and revision-controlled data sheet	Prevents a family average from replacing grade data
2. Film construction	Thickness or coat weight, width, liner, winding, and tolerances	Controls adhesive mass, handling, and heating time
3. Thermal property	Exact name and units; for DSC, identify onset, peak, or endset	Stops unlike values from being compared
4. Test method	Standard and edition, or a fully described supplier method	Makes retesting and supplier comparison possible
5. Test conditions	Conditioning, specimen history, heating rate, atmosphere, and measurement cycle	Thermal history can change the result
6. Viscosity profile	Values at two or more relevant temperatures, method, geometry, speed, and units	One point cannot describe the useful flow window
7. Process window	Activation temperature, pressure, dwell or speed, cooling, and substrate pair	Turns a material into a trial starting point
8. Service requirement	Temperature, load, duration, chemicals, washing, humidity, flexing, or aging	Defines the actual end-use challenge
9. Acceptance system	Tolerance, lot traceability, certificate fields, sampling, and failure criteria	Makes ongoing supply controllable

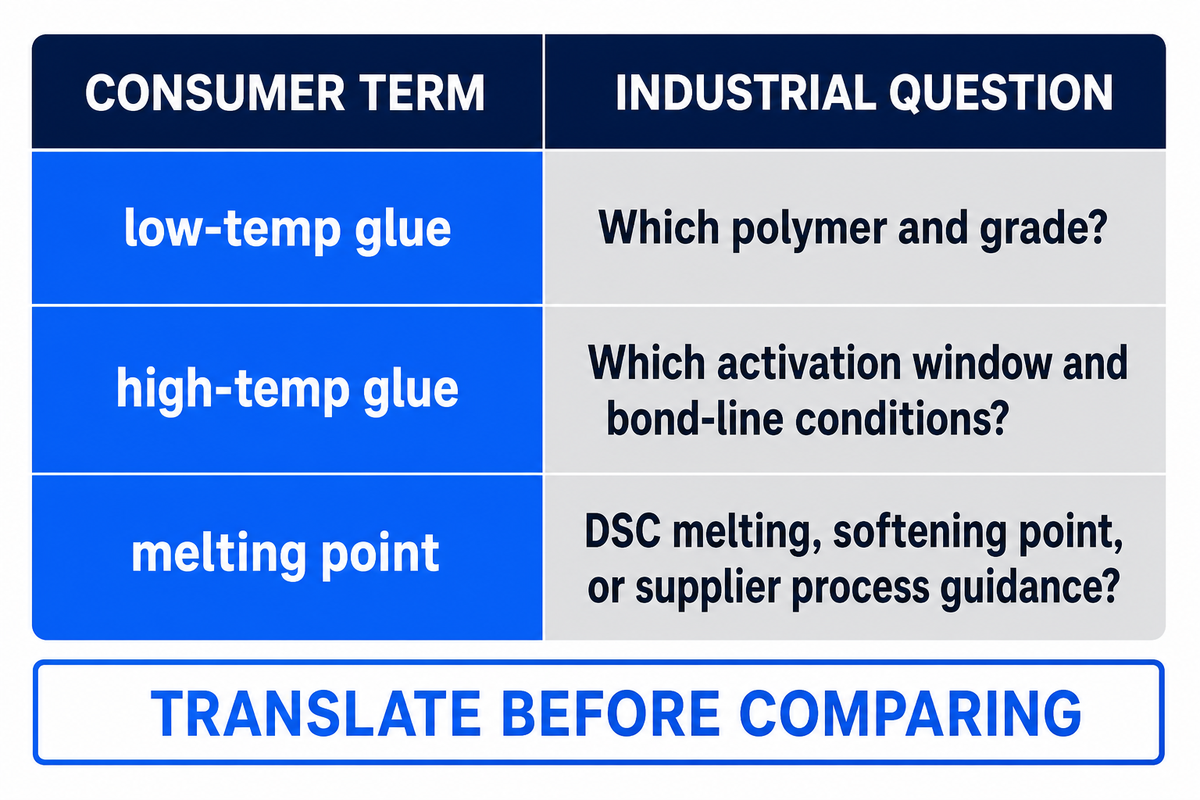

Consumer Hot Melt Glue Terms vs Industrial Film Specifications

Search results often use hot melt glue, melt glue, glue stick, and glue gun language. Those phrases may help a maintenance buyer find a handheld product, but they don’t define an industrial adhesive film grade. Woodworking glue applications, for example, can involve a different form, deposit, substrate, and production method from a textile or foam laminate. Keep the application name in the brief, then specify the material and test fields separately.

Chemistry labels also need unpacking. EVA commonly refers to an ethylene, vinyl acetate family; a buyer shouldn’t reduce that to the word vinyl or acetate and assume compatibility. Polyolefin grades aren’t automatically the same as polyethylene hot melts. Likewise, “solvent free,” “high strength,” or “high temperature” is positioning language until the supplier identifies the grade, conditions, and acceptance test.

Temperature wording needs the same discipline. Low-temperature processing may protect a sensitive substrate, while higher temperature can lower melt viscosity; neither statement defines the approved temperature range. Record whether the value is in degrees Celsius or degrees Fahrenheit, whether testing began at room temperature, and how long the adhesive remained in a molten state. These details turn a loose search phrase into a reproducible industrial specification.

Consumer labels are therefore useful application cues rather than empty words: “low temperature” may signal reduced risk to a heat-sensitive substrate, for example. The limit is comparability. Without a named grade, measured location, method, and acceptance condition, the label is not a standardized industrial film specification.

Engineering record example, not a recommended setting: “0.10 mm film; interface 145°C (293°F); pressure 0.50 MPa; dwell 10 s; viscosity reported in mPa·s at 140°C and 160°C; specimen conditioned 24 h at 23°C and fifty percent relative humidity.” A real trial must replace every illustrative value with limits that are safe for the selected grade and substrates.

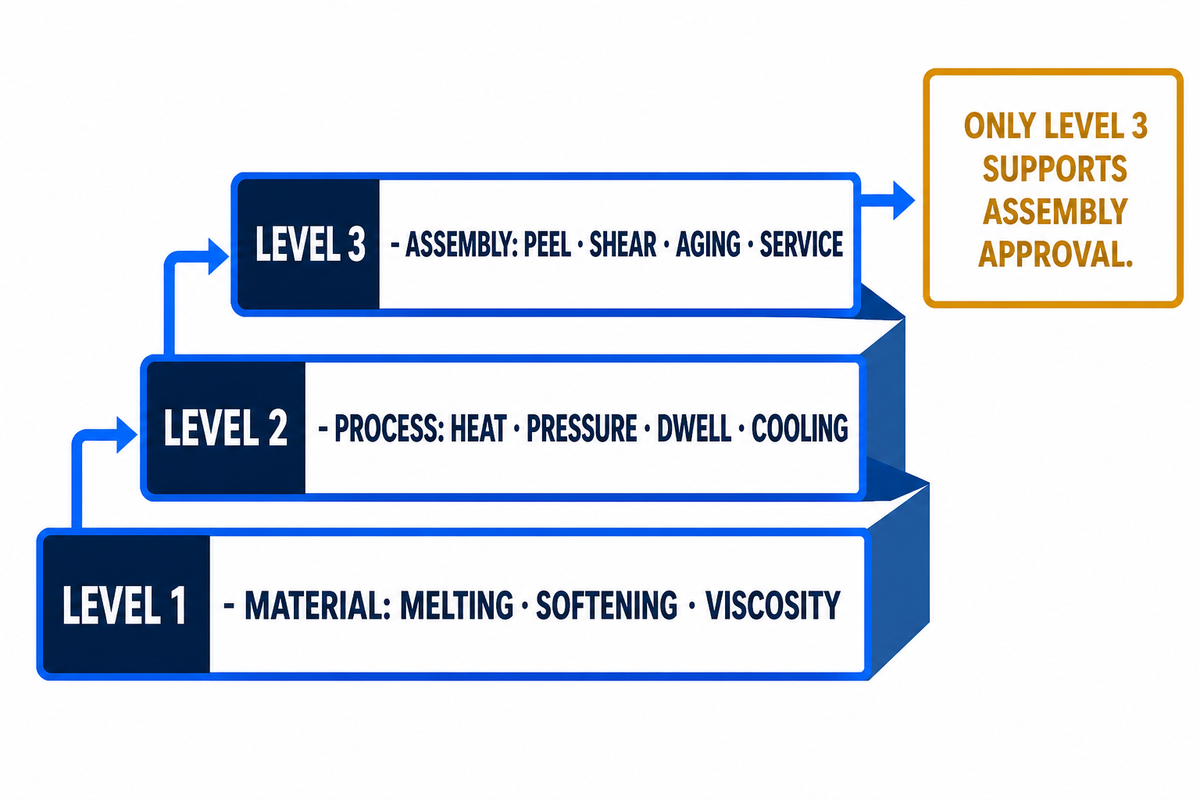

The 3-Level Material–Process–Assembly Evidence Chain

Strong data sheets are necessary, but approval should move through three evidence levels. Skipping a level often produces expensive arguments later: the supplier points to a thermal report, the plant points to a failed run, and neither record answers the same question.

Level 1: Characterize the material

Confirm grade identity, chemistry family, film thickness or coat weight, liner, relevant differential scanning calorimetry or softening data, viscosity profile, tolerances, and lot traceability. This level answers, “Did we receive the material we specified?”

Level 2: Establish the process window

Use actual substrates and run a controlled matrix across temperature, dwell, and pressure within safe material limits. Hold adhesive construction and specimen preparation constant. Where thermal lag is plausible, measure at or near the interface rather than treating the machine display as the bond-line temperature. This level answers, “Can our equipment activate and control this grade consistently?”

Level 3: Validate the finished assembly

Test the failure modes the product will encounter: peel or shear where relevant, sustained load at temperature, washing or chemical exposure, humidity, aging, flexing, or other application-specific stress. Predefine specimen conditioning, test method, sample count, acceptance threshold, and failure classification. This level answers, “Does the finished construction meet its real requirement?”

Practical approval rule: Level 1 can release a lot for trial. Level 2 can release a process window for validation. Only Level 3 can support a finished-assembly approval.

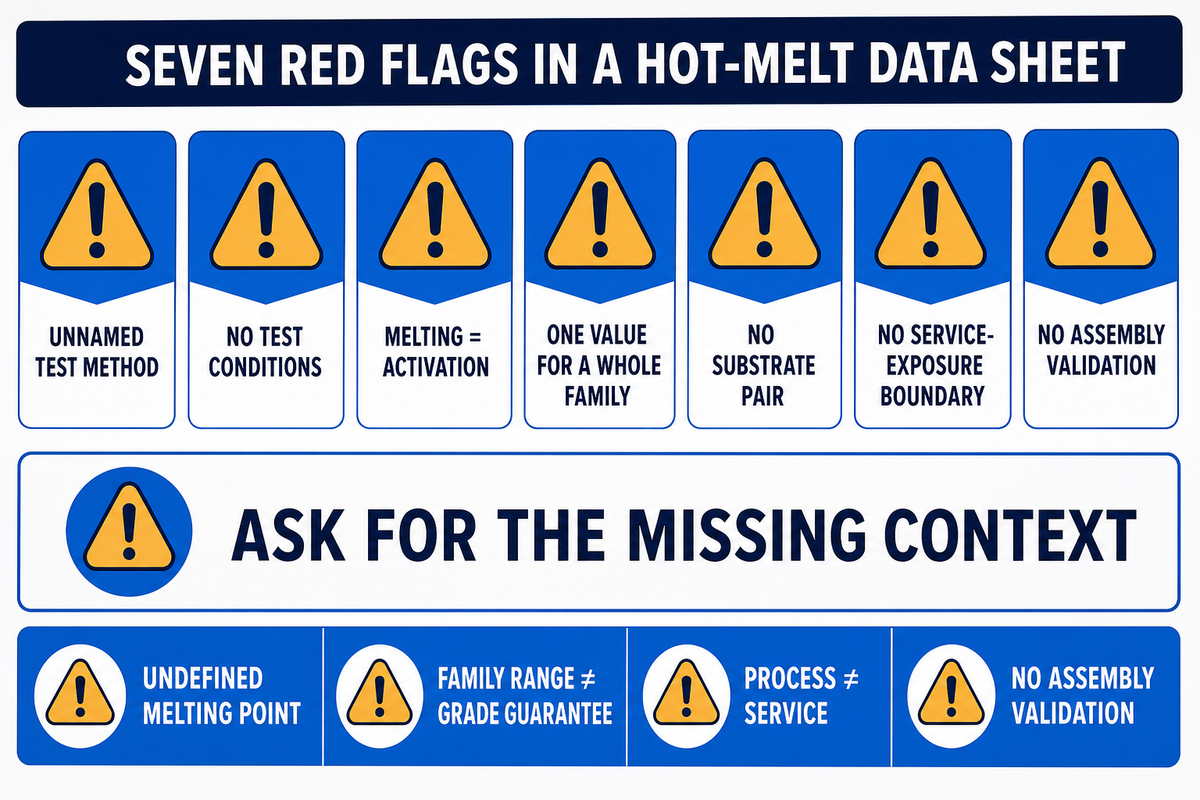

Seven Red Flags in a Hot Melt Adhesive Data Sheet

“Melting point” appears with no definition. Ask whether it’s a differential scanning calorimetry result, softening point, or process recommendation.
Polymer-family range is presented as a grade guarantee. Request the exact grade result and tolerance.
Application temperature is used as service temperature. One describes processing; the other requires a finished-bond exposure test.
Viscosity has no test temperature. The number isn’t useful for comparing flow without its condition and method.
“Heat resistant” has no load, time, joint, or failure criterion. Convert the claim into a testable requirement.
No specimen conditioning or thermal history is given. A result may not be reproducible across laboratories or lots.
Thermal data is offered as the only production evidence. Require a controlled trial and finished-assembly validation.

How to Start Film Grade Selection With Teng Yang

Teng Yang supplies hot melt adhesive film in TPU, EVA, PA, PES, and PO families. Treat those families as routing options. The useful recommendation comes after the supplier knows the substrate pair, construction, existing equipment, target cycle, dimensions, service exposure, and validation method.

Send both the material request and the acceptance plan. Include film thickness or coat weight, width, liner, winding, annual demand, and lot-document requirements. For the process, include available heating method, maximum safe substrate temperature, pressure, dwell or line speed, cooling restraint, and whether the interface temperature can be measured. For the finished part, include the required test, conditioning, load, exposure, and failure criterion.

If you’re still comparing delivery formats, read the hot melt adhesive web buyer’s guide. Web and film are physical formats, while TPU, EVA, PA, PES, and PO are chemistry families. Keeping those two decisions separate avoids another common specification mismatch.

Ready to request a grade and sample plan?
Send Teng Yang your substrate pair, layer stack, film dimensions, installed bonding equipment, safe process limits, target service exposure, and acceptance method. Ask for the relevant grade data with the method, value, conditions, and tolerance together.

Frequently Asked Questions

At what temperature does hot melt adhesive melt?

There’s no single temperature for all hot melt adhesives. The answer depends on the exact grade, formulation, product form, and what “melt” means in the data sheet. Ask whether the number is a differential scanning calorimetry onset or peak, a ring-and-ball softening point, or a recommended activation temperature. Compare only values measured and reported on the same basis.

Is softening point the same as melting point?

No. A ring-and-ball softening point is a method-defined response for applicable resins and similar materials that soften gradually. A differential scanning calorimetry melting result describes a thermal transition and may be reported as an onset, peak, or endset. The two values shouldn’t be relabeled or compared as synonyms, and the chosen method must remain attached to the supplier value.

Is application temperature the same as service temperature?

No. Application or activation temperature is a process recommendation used to create flow and wet-out during bonding. Service temperature concerns how the finished joint performs during use. It must be tied to a defined load, duration, construction, conditioning, and failure criterion. A press setting therefore can’t be copied into the finished-product specification as a heat-resistance guarantee.

Does a higher melting point mean better heat resistance?

Not necessarily. Finished-bond heat resistance also depends on formulation, joint geometry, adhesive quantity, substrates, load, duration, and the selected failure criterion. Use thermal data to characterize the grade, then test the actual bonded assembly under its expected heat and load.

Why does a viscosity value need a temperature?

Hot-melt viscosity changes strongly with temperature. A number without its test temperature, method, geometry or spindle, speed, and units cannot support a reliable comparison. ASTM D3236’s Significance and Use section also says that its low-shear result may not correlate well with end-use applications that encounter high shear rates.

Which test method should a supplier cite?

It depends on the claimed property. ISO 11357-3 or ASTM D3418 may support differential scanning calorimetry transition data. ASTM E28 applies to ring-and-ball softening of materials within its scope. ASTM D3236 addresses apparent viscosity of hot-melt adhesives at stated conditions. A finished-bond performance claim needs an application-relevant assembly test.

Can one supplier data sheet predict bonding on every substrate?

No. A data sheet characterizes a grade and gives a process starting point. Surface chemistry, contamination, porosity, thermal mass, joint design, adhesive mass, pressure, dwell, cooling, and service exposure all affect the finished bond. Validate the exact substrate construction on the intended equipment.

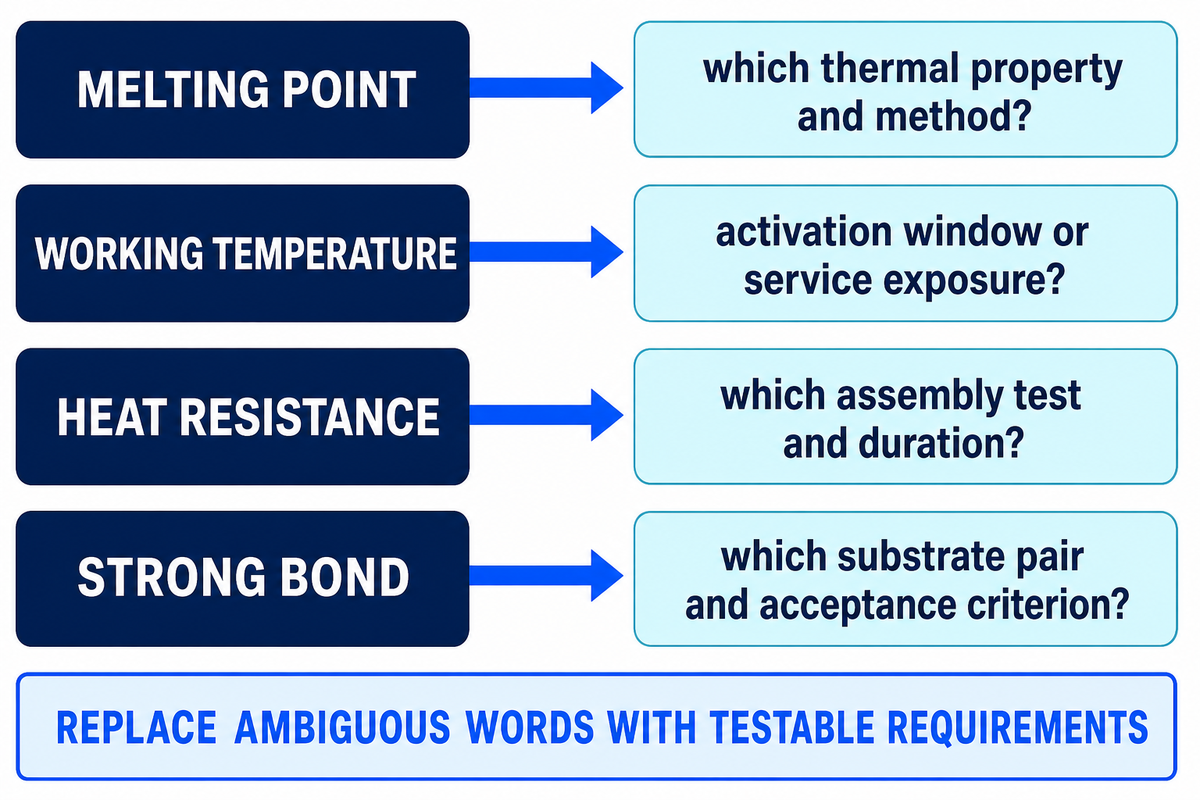

Buyer Terminology Crosswalk

Catalogs, search results, and legacy data sheets don’t always use the same vocabulary. The following crosswalk keeps related phrases discoverable without treating them as equivalent specifications. Each phrase still needs a grade, method, conditions, and acceptance criterion.

Common search wording includes hot melt adhesive melting point chart, hot melt adhesive temperature, hot melt adhesive melting point in Celsius, hot melt adhesive temperature chart, and hot glue temperature resistance. Use these phrases to locate candidates, then translate them into the controlled fields below.

Phrase group	Buyer interpretation
hot glue gun; hot-melt glue; packaging hot melt	These name equipment, consumer terminology, or an application segment. None identifies a film grade.
melt temperature; bonding temperature; low temp; high temp	Ask which temperature is meant and whether it is measured at the machine, interface, or specimen.
low temperature hot melt; reactive hot melt; thermoplastic adhesive; solvent-based adhesives	These describe different chemistry or processing routes. Confirm whether the grade sets only by cooling or continues to react.
glass transition temperature; melt index; high crystallinity; high molecular weight	These properties may help characterize a polymer, but they don’t replace grade-specific activation and assembly tests.
ethylene-vinyl acetate; ethylene vinyl acetate; hot melt formulations; various types of hot melt	Family and formulation language narrows the search. The exact commercial grade remains the purchasing unit.
adhesive properties; adhesive performance; high performance; general purpose	Replace broad positioning with named properties, measured results, tolerances, and service conditions.
high heat resistance; strength and heat resistance; high tensile strength; produce a stronger bond	Specify the bonded construction, load, duration, temperature, conditioning, and failure criterion.
longer open time; flexibility and toughness; resistance against polar solvents; wide range of applications	These claims require an application-specific method and shouldn’t be inferred from chemistry alone.
solid materials melt; solid at room temperature; molten state during application; achieve a solid state	This describes the basic thermoplastic cycle, not the complete mechanism of bond qualification.
thermoplastic bonding materials applied; bonding materials applied as melts; resultant strength on cooling; adhesive layer	Legacy phrasing should be translated into product form, applied quantity, thermal history, cooling restraint, and test result.
hot melt products	Confirm whether the supplier means film, web, powder, pellets, glue sticks, or another delivery form before comparing data.

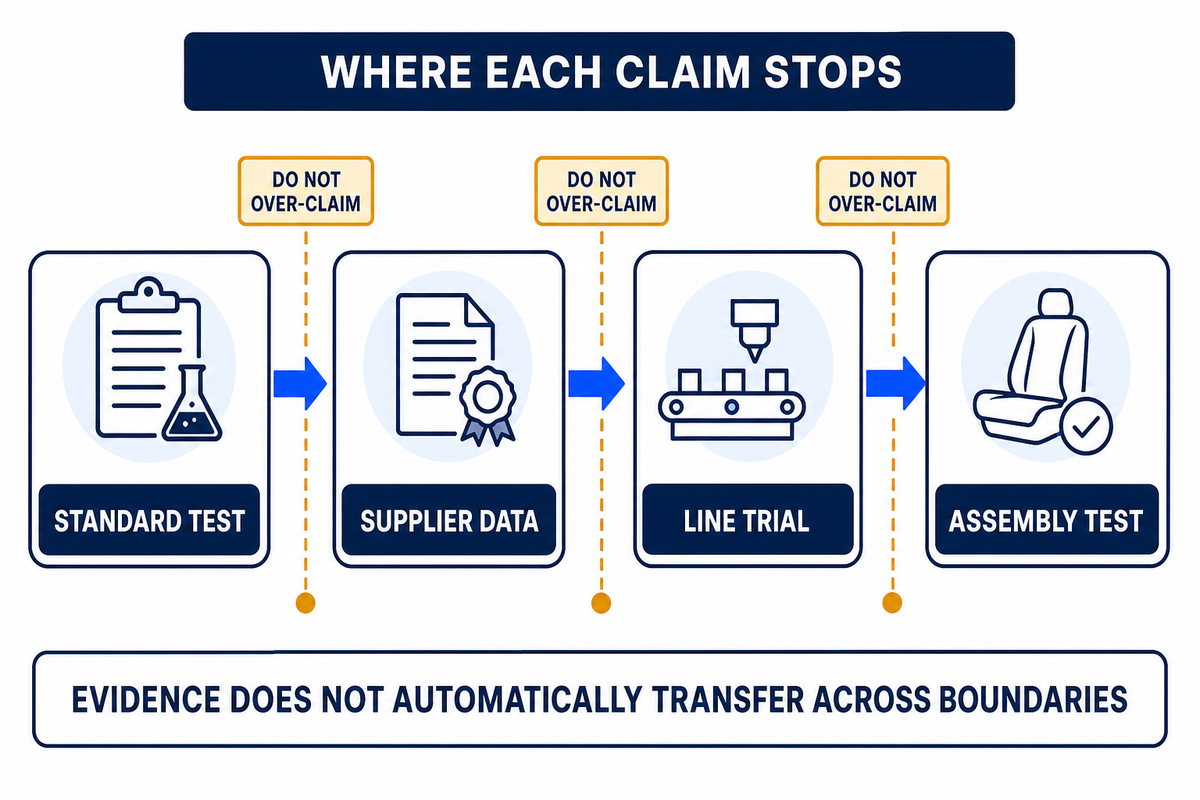

Evidence Boundary

This guide separates standardized material characterization from supplier process recommendations and application-specific performance tests. It doesn’t claim a universal melting range for a chemistry family, a universal activation setting, or a universal heat-resistance limit. Teng Yang pages are cited as first-party supplier information; they aren’t presented as independent certification. A thermal specification also doesn’t establish regulatory authorization or occupational safety for a particular use; review the exact formulation, safety data sheet, jurisdiction, and heated operation. Final grade selection requires current supplier documents and validation on the buyer’s actual construction and line.
