Thermal Bonding Film Explained: 3M vs. Hot-Melt Guide

Updated July 2026 · Thermal bonding film buyer’s guide

Reviewed by the Shanghai Tengyang New Materials Technology Co., Ltd. technical team

Thermal bonding film is a heat-activated adhesive film that joins two substrates when pressed under heat — but the phrase covers two very different chemistry families that behave nothing alike once the heat comes off.

Direct answer: “Thermal bonding film” splits into thermosetting film (like 3M’s 583 and its 406/588/AF42 siblings — 583’s own datasheet documents nitrile-phenolic chemistry, permanent cure and refrigerated storage) and thermoplastic hot-melt film (TPU, EVA, PA, PES or PO chemistry that simply melts, re-melts and needs no refrigeration). Neither one is a universal upgrade over the other; the right choice depends on your operating-temperature ceiling, storage setup and whether the bond ever needs to be reworked.

TL;DR: 3M’s thermal bonding film 583 is a specific thermosetting product (225-300°F bonding/activation, an optional 350°F post-heat step for full permanent crosslink cure, roughly 2.93 MPa (about 425 psi) uncured overlap shear per 3M’s own test data, refrigerated storage) designed for electronics and structural bonding. Thermoplastic hot-melt film (TPU/EVA/PA/PES/PO) needs no refrigeration and can be reheated and reprocessed — TPU and EVA activate cooler than 3M 583, PA and PO run hotter — which is why the category dominates textile, footwear and general industrial lamination, but it isn’t a drop-in replacement for printed circuit board (PCB) glass-fabric splicing or aerospace-spec bonds that require 3M’s specific thermoset performance.

3M 583 max operating temp 150°C / 300°F continuous, per 3M’s own published datasheet.

Thermoplastic melt rangeRoughly 65-170°C for TPU/EVA/PES/PO; PA’s standard grade applies hotter, above 200°C — no single number applies to all five.

StorageThermoset needs refrigeration (0-4°C); thermoplastic does not.

ReworkThermoplastic re-melts and can be repositioned; cured thermoset cannot.

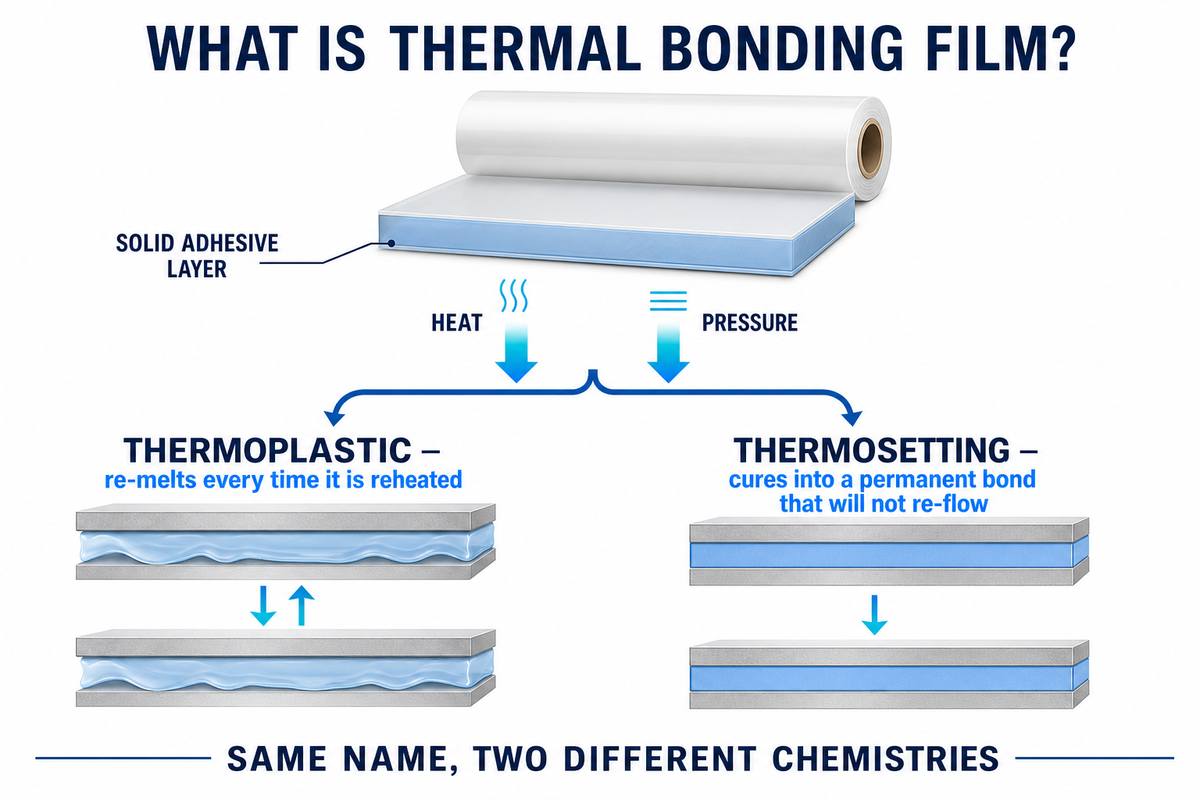

What Is Thermal Bonding Film?

A thermal bonding film is a solid adhesive layer, supplied on a roll, that heat and pressure melt or activate into both substrates; on cooling (or, for one chemistry family, on curing) it solidifies and carries the load. The single definition hides an important fork.

Some thermal bonding films are thermoplastic and will re-melt every time they’re reheated; others are thermosetting and set into a permanent bond that won’t re-flow no matter how much heat is applied afterward. Which family a particular roll belongs to determines storage, rework and maximum service temperature — and most “thermal bonding film” product pages don’t specify which one you’re viewing.

This guide explores that fork in detail. If you’d like a step-by-step explanation of the melt-wet-cool mechanism, Teng Yang’s companion article on what hot-melt adhesive film is and how it works covers that area; this article continues from there, comparing the differences and selecting between the two.

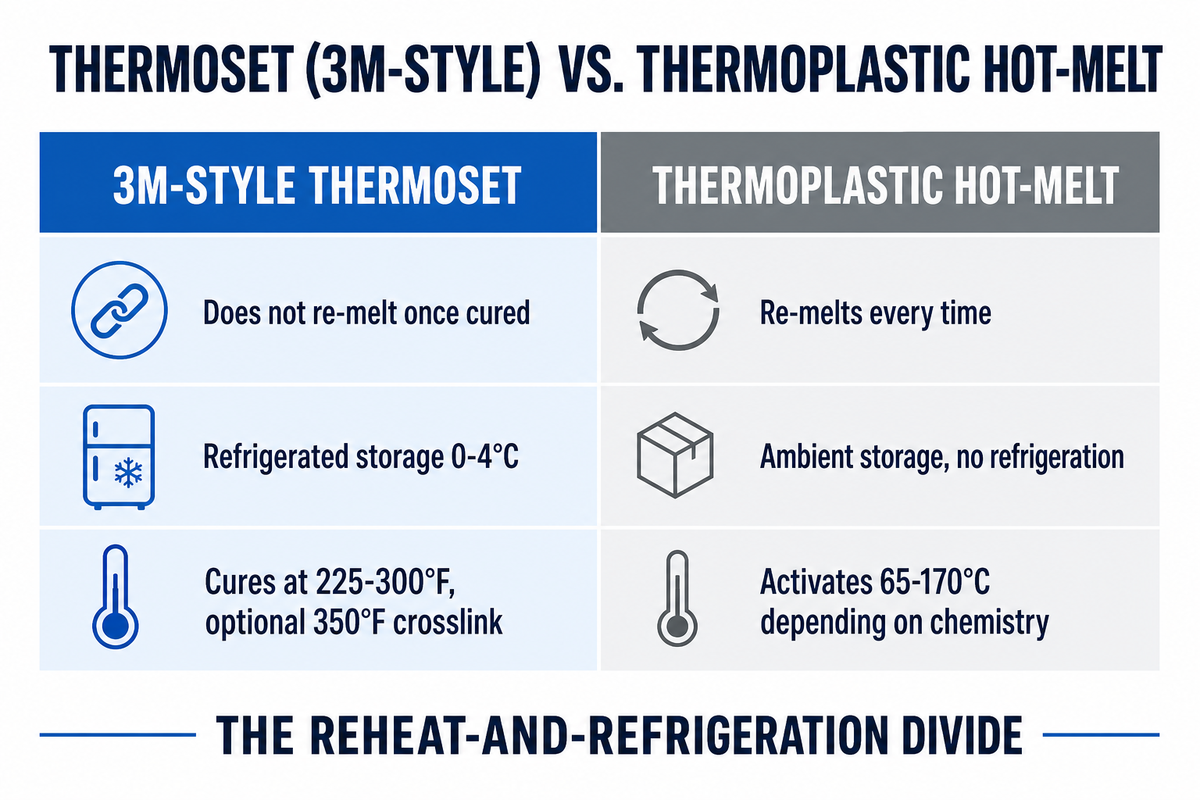

Thermoset Bonding Film (3M-Style) vs. Thermoplastic Bonding Film: What Actually Differs

Search “thermal bonding film” on Google and the results are almost entirely one product: 3M’s Thermal Bonding Film 583 (and its 406/588/AF42 siblings), sold through dozens of resellers. That’s not a coincidence — “Thermal Bonding Film” functions as 3M’s own product-family name for a nitrile-phenolic thermosetting adhesive film. Per 3M’s own published technical data sheet, the 583 grade is heat-activated for bonding at 107-150°C (225-300°F) — with a separate, optional post-heat crosslink step at up to 177°C (350°F) for full permanent cure — reaches roughly 2.93 MPa (about 425 psi) uncured overlap shear strength on etched aluminum (ASTM D1002), requires refrigerated storage at 0-4°C, and is rated for a 150°C/300°F maximum continuous operating temperature. It’s built for electronics, general industrial and transportation bonding — one stated use is splicing of glass fabric during PCB board manufacturing.

3M’s own datasheet specifies this 583 grade’s key features: flexible, heat or solvent activation, can be die-cut, slight surface tack, a heat-crosslinkable option, and lower-temperature lamination within the nitrile-phenolic based thermosetting adhesive film range. That crosslinkable choice is significant — it means the film can also be lightly crosslinked using a post heat exposure step after initial bond, adding high strength and permanence beyond what solvent activation can do alone. 3M™ Thermal Bonding Film 583 isn’t the only product in this family; siblings like 3M thermal bonding film AF42 exist for customers who don’t require the precise 583 spec — check each grade’s own datasheet rather than assuming they share identical numbers. Match any “3M products” entry to your own service-temperature requirement before deciding whether one grade fits every application.

A thermoplastic hot-melt bonding film — TPU, EVA, PA, PES or PO chemistry — follows an entirely different mechanism. It doesn’t cure; it melts when heated, wets the substrate, and re-hardens when cooled, and it will melt once more the next time it’s reheated. Non-thermoset thermoplastic thermal bonding films from other suppliers span a melt-point band from about 65°C for the lowest TPU grade up to 170°C for PO processing — PA’s standard grade needs even more heat, applied above 200°C — depending on chemistry family and grade; none of them require refrigerated storage, and the category as a whole is sold to medical device, electronics, automotive and textile assembly markets.

The 4-Question Reheat-and-Refrigeration Fork

Four questions will actually let you know which chemistry belongs on your line, before you’ve even looked at one price: (1) must the bond be reheated/repositioned, (2) does your site have refrigerated storage, (3) what’s the actual continuous temperature (including seasonal and dark-surface heat load), and (4) must the application use a specific named thermoset performance envelope (as in, the classic PCB glass-fabric splicing that defines your part’s rigid structure). A “yes, no, moderate, no” run — needing rework, no refrigerated storage, a moderate service temperature and no specific thermoset requirement — points firmly at the thermoplastic hot-melt film camp; “yes” on questions 2 and 4 points just as firmly at the 3M-style thermoset family.

3M-style thermoset vs. thermoplastic hot-melt thermal bonding film — the reheat-and-refrigeration divide that decides which one fits your line.
Parameter	3M-style thermoset (nitrile-phenolic)	Thermoplastic hot-melt (TPU/EVA/PA/PES/PO)
Behaviour on reheat	Does not re-melt once the optional crosslink step is done; still heat-softens if left uncrosslinked	Re-melts every time
Rework / reposition	Not possible once crosslinked	Possible
Storage	Refrigerated, 0-4°C (3M 583)	Ambient, no refrigeration
Activation / cure	225-300°F heat/solvent activation; separate optional 350°F post-heat step for full crosslink cure	Heat only, ~65-170°C for TPU/EVA/PES/PO; PA applies above 200°C
Max continuous operating temp	150°C / 300°F (3M 583)	Set by the polymer’s own softening band, generally lower
Typical use case	PCB glass-fabric splicing, electronics, structural/transportation bonding	Textile, footwear, leather, general industrial lamination
Crosslinking option	Optional post-heat crosslink adds strength/permanence beyond baseline activation (per 3M datasheet)	No crosslinking option — chemistry stays fully reversible by design
Format customization	Standard catalog widths and lengths (0.5-48 in, 3-180 yd rolls)	Suppliers like Teng Yang customize width, thickness, color and liner per order
Regulatory disclosure example	No OEKO-TEX STANDARD 100 claim found on the public datasheet	Teng Yang explicitly discloses it does not currently hold OEKO-TEX STANDARD 100 certification

One honest correction before you assume every thermoset film behaves like 3M’s exact numbers: thermoset itself isn’t a single performance point. H.B. Fuller’s Flexel family, another thermosetting film adhesive that cures into a crosslinked polymer network, is explicitly marketed with a lower activation temperature than the typical thermoset product — precisely because that lower-temperature activation is “gentle on temperature sensitive components and substrates like batteries, plastics, leather and fine textiles.” Treat 3M’s 583 datasheet as one representative, well-documented thermoset product — not the ceiling or floor of what thermoset chemistry can do.

Teng Yang’s own hot-melt adhesive film hub page independently draws this same distinction, without needing to reference 3M by name:

“…a large part of what the market calls heat-activated adhesive film is thermoset, not thermoplastic. Those products cure. Once cured, they don’t re-melt, can’t be repositioned, and won’t release your part back.”

If a supplier’s product page uses the words “high-temperature” or “heat-activated” without saying which chemistry class it is, that ambiguity is the first thing to resolve before you specify anything else — because the two families fail in opposite ways: thermoplastic softens under service heat, and thermoset’s failure mode is that the bonded part becomes the scrap unit.

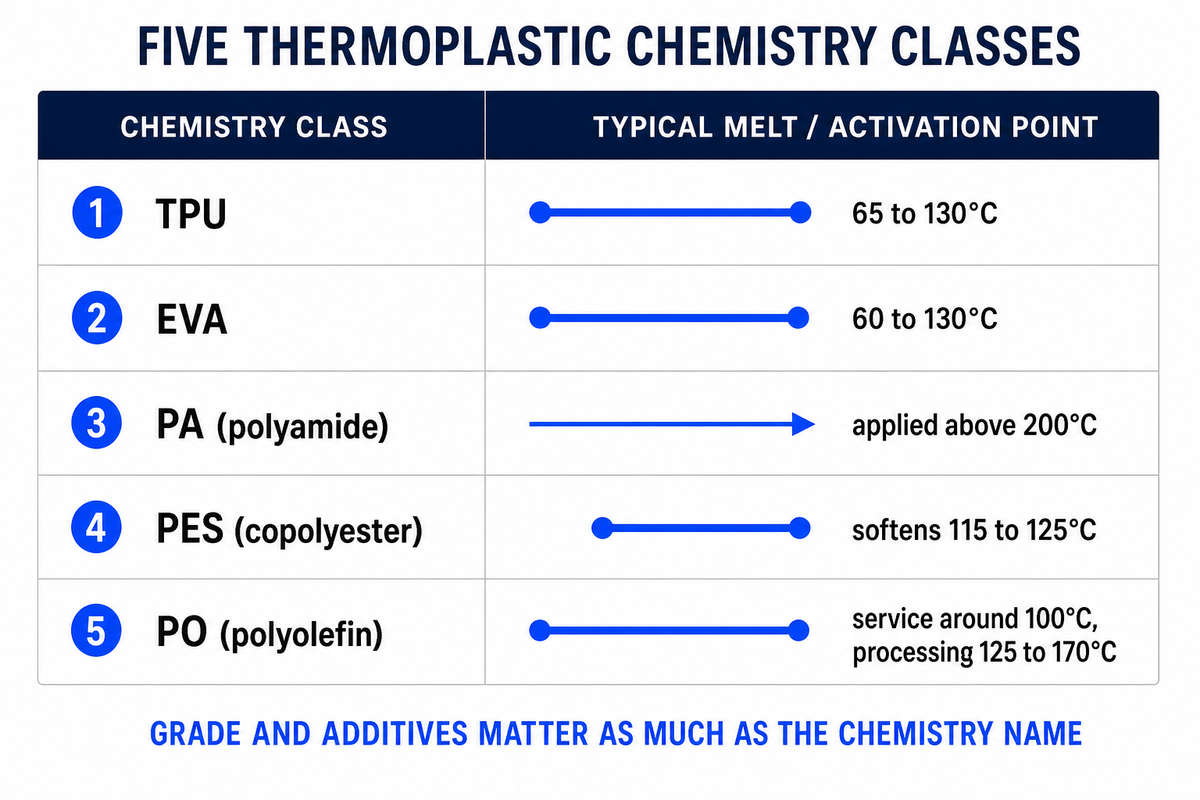

Bonding Film Chemistries and Melt Points: TPU, EVA, PA, PES, PO Compared

Chemistry-family labels — TPU, EVA, PA, PES or PO — are only the beginning of a film specification. The specific grade, thickness, composition and additives within any given family also affect the true number on your line, an observation the Adhesive and Sealant Council’s own technology overview of hot-melt adhesives also addresses. Between them, the five families cover a genuinely wide range of substrates — from delicate stretch fabric that leans on TPU hot-melt film grades‘ flexibility to the low-surface-energy plastics only PO chemistry bonds well — and each grade ships in various roll-width and release-liner combinations. With that said, here’s what actual data — published by individual grade manufacturers rather than averaged together — shows across the five families of thermoplastic chemistry:

Thermoplastic thermal bonding film chemistry classes by grade — melt point, typical substrates and where each one is the wrong choice.
Chemistry class	Grade / band	Typical melt point / activation	Best-fit substrates	Not this one when
TPU	Low-melt (e.g. TB65/TBE65/TBL65)	65°C	Delicate stretch fabric, elastane	Part sits in sustained heat above the low-melt band
TPU	Textile grade (e.g. TB95)	95°C	General textile lamination, leather	Fabric can’t tolerate 95°C press contact
TPU	High-melt (e.g. TB115/TBK115)	115°C	Footwear midsole/outsole, technical gear	Substrate needs the lowest-heat TPU band instead
TPU	Highest-melt (e.g. TB130)	130°C	Automotive-adjacent stretch bonding	Part sits in sustained heat; TPU is chosen for stretch recovery, not a temperature ceiling
EVA	Low-melt band	60-80°C softening / 90-110°C press	Heat-sensitive fabric, delicate laminates	Bond must hold above ~80°C or a sustained static load
EVA	Medium-melt band	80-95°C softening / 110-130°C press	General textile lamination, paper, foam	Low creep resistance is still the ceiling — cheapest family
PA (polyamide)	Standard grade	Applied >200°C; serves -40 to 70°C (185°C unloaded)	Textile, embroidery, badges — needs the hottest press and the highest unloaded thermal tolerance of the five, though its loaded continuous-service ceiling is modest	Press can’t reach/hold application temperature, or stock sat in humid storage without pre-drying (hydrogen bonding absorbs moisture and can foam)
PES (copolyester)	Standard grade	Softens 115-125°C; applied 130-160°C, 20-30s, 2-3 kgf/cm²	Wash-fast garment and technical textile work	You need PA’s absolute maximum strength and your storage is dry
PO (polyolefin/APAO)	Standard grade	Service ~100°C; processing/melt 125-170°C; activates above ~100°C	PP, PE, metal, glass, rubber — low-surface-energy plastics other families struggle with	You’re bonding polar substrates and PP/PE is nowhere in the stack

Two standards notes to get right before you specify a test method: EN ISO 527-2:2025 (approved by CEN 28th December 2024) specifically states that its tensile-testing methods “are not suitable for flexible films and sheets” — ISO 527-3 is the correct citation for film adhesive, not ISO 527-2. And for shear and peel numbers in general: ASTM D1002 states in its own Significance and Use section that the method is primarily comparative, and warns that using apparent shear values as design-allowable stress can lead to failure because results vary with the joint and the bonding process. Peel or shear numbers thrown out without their substrate, specimen construction and test conditions aren’t something you can compare across two suppliers’ spec sheets — it’s two different numbers sharing a unit.

There’s also a real mechanism behind why high-temperature applications favor thermoset. The DOT/FAA-funded thick-bondline adhesive study at Wichita State University found that apparent shear strength drops sharply as service temperature rises from 160°F to 200°F. That’s why a chemistry with a higher cure ceiling — like 3M’s 583 thermoset — exists as its own category rather than a footnote on a generic hot-melt spec sheet.

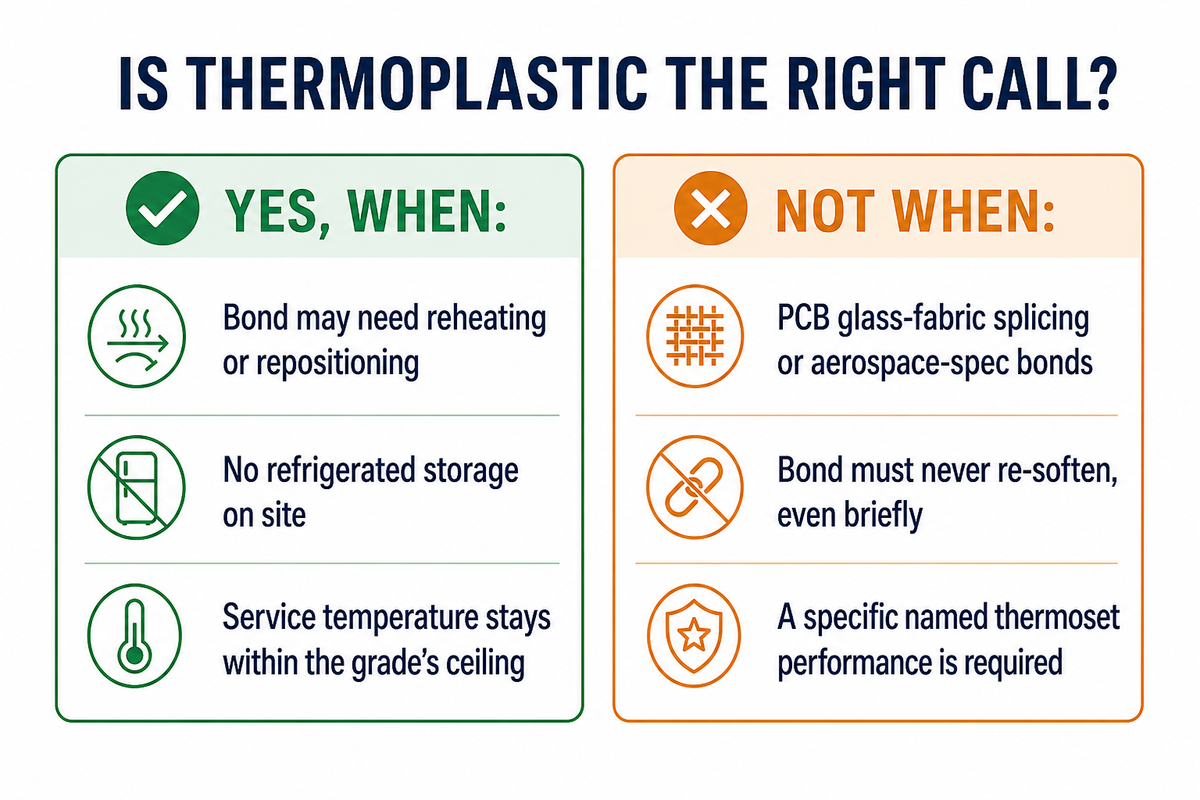

When a Thermoplastic Bonding Film Is (and Isn’t) the Right Alternative

✔ When thermoplastic is the right call

Textile, footwear or leather lamination where the bond may need reheating or repositioning
No refrigerated storage capacity on site — ambient shelf life matters
General industrial lamination within each grade’s own continuous-service ceiling — typically 70-100°C loaded, well under any grade’s melt/activation point
Cost-sensitive runs where EVA or PO chemistry covers the substrate

⚠ When it isn’t

PCB glass-fabric splicing or other electronics work that specifies 3M’s exact thermoset performance
Aerospace or structural bonds with a specified thermoset cure and 150°C+ continuous service rating
Any assembly where the bond must never re-soften, even briefly, in a hot environment
Dark-colored automotive interior panels in sustained high cabin heat without re-checking the polymer’s softening band against real dashboard temperatures

That last point isn’t hypothetical. Nagase ChemteX has reported field complaints of automotive interior parts bonded with hot-melt adhesive to black-coated panels delaminating, blamed specifically on high dashboard surface temperatures during summer months (as cited on a supplier reference page) — the adhesive did its job at assembly, and a dark dashboard in August was a load case nobody had written into the specification. A thermoplastic film that tests fine on the press can still fail in the field if the real service temperature was never checked against its softening band. This kind of hot-melt film adhesive can form a genuinely strong, even high-strength bond within its own temperature window; the failure isn’t weak adhesive, it’s the wrong window for the job. Any grade that’s ideal for one dashboard color and climate can behave differently across other regions and seasons — match the grade to the hottest real condition the part will see, not the average one, and confirm the film adhesive can seal the bondline under that specific load before it ships.

If a thermoplastic bond does fail, resist the instinct to blame the chemistry family before you’ve diagnosed which failure mode you’re looking at. Sort bond failures into adhesive, cohesive or substrate failure before anyone changes the film or the process. That triage is rooted in peer-reviewed failure-analysis practice — not a universal root-cause ranking, but a genuinely useful first step even though this article has no separate troubleshooting section to cover it in depth. An adhesive that transfers cleanly to only one surface, for example, usually points at incomplete wet-out on the other side — a process-window clue, not proof that the whole chemistry choice was wrong.

Another honest caveat, since sustainability is thrown around so loosely as an excuse for thermoplastic hot-melt film: it’s not always the “greener” alternative all things considered. To quote an industry practitioner discussing corrugated packaging adhesives, hot-melt adhesive (EVA or TPU-based) delivers fast, clean bonding, “but it is not always the most sustainable choice” — contrary to the common shop-floor assumption. Solvent-free offers a concrete, measurable advantage over solvent-based adhesives; it doesn’t represent a blanket statement about the environmental profile.

Selecting a Thermal Bonding Film Manufacturer: RFQ Checklist

Useful sample requests name the substrate pair being laminated, the layer stack material, the equipment and process the supplier will use, the desired service exposure, the validation method and the regulated-end-use requirements — not just chemistry and a dollar value. If you plan to request quotes, here’s a table you can cut and paste into your own RFQ:

Thermal bonding film RFQ checklist — copy these six fields into your quote request before asking for a price.
Parameter	Recommended range / detail	Why it matters	How to verify
Substrate pair	Both materials named exactly (e.g. “PP foam midsole to synthetic leather”)	Chemistry family (PO for low-surface-energy plastics, PA for coarse textile) is decided by the substrate, not the price list	Ask the supplier which chemistry family they’d route this pairing to, and why
Chemistry class: thermoset or thermoplastic	State explicitly which one you need	The single biggest cause of a wrong-product order is not resolving this before quoting	If the supplier’s answer doesn’t distinguish the two, ask again before proceeding
Service temperature (continuous)	Real-world max, including seasonal/dark-surface heat load, not just assembly temperature	Thermoplastic softens under service heat; a dark automotive panel can run far hotter than ambient	Ask for the polymer’s softening band, not just a “high-temperature” adjective
Storage and shelf life	Refrigerated (thermoset) vs. ambient (thermoplastic) capacity on your site	3M-style thermoset needs 0-4°C storage; most facilities aren’t set up for that by default	Confirm cold-chain capability before you commit to a thermoset product
Test method and conditions for any quoted number	ASTM/ISO standard number, substrate, specimen construction	ASTM D1002/D1876 numbers are comparative only and not transferable across untested substrate pairs	Reject any peel/shear figure that arrives with no test conditions attached
Regulated end-use	Name the specific regulation, e.g. 16 CFR Part 1610/1615 (US apparel flammability), OEKO-TEX STANDARD 100	A generic “compliant” claim isn’t the same as a named certificate for your specific market	Ask directly whether the supplier holds the specific certificate your program requires — and expect an honest “no” as a valid answer

That last row matters more than it looks. Teng Yang’s own spec pages disclose plainly that the company does not currently hold an OEKO-TEX STANDARD 100 certificate: “if your programme is gated on that certificate, we’re the wrong supplier and we’ll say so at the first email rather than at the audit.” That’s the honest answer an RFQ regulated-end-use field is designed to surface — a real supplier disqualifying itself for a real reason, rather than a vague “compliant” claim that collapses at customs. Once you’ve got matching answers on all six rows, request samples of the candidate grade and test them on your own press and substrates before committing to a bulk order; a family reference range only tells you where a polymer sits, not where your specific grade sits.

Most manufacturers in this space, Teng Yang included, will customize thickness, width, melt point, color and release-liner format to fit your line rather than expecting you to fit a pre-existing spec sheet — available formats typically cover dozens of substrate and roll-width combinations, with or without release paper, die cut or supplied as continuous film form. That variety is a genuine feature of this category, not a sales pitch: a versatile format catalog only becomes a solution once it’s matched to your actual substrate pair and service temperature, and different jobs call for different combinations of the same underlying chemistry. Delivery lead time and minimum order quantity should be the last two questions you ask, after the technical fields above are answered, not the first.

FAQ

What is thermal bonding?

Thermal bonding is the process of joining two materials by applying heat — and often pressure — to a bonding agent placed between them until it either melts and re-solidifies (thermoplastic hot-melt film) or cures into a permanent crosslinked structure (thermosetting film adhesive like 3M’s 583 and its sibling grades). The heat activates the adhesive layer so it wets both substrate surfaces; cooling or curing then locks the bond in place. Which chemistry family is used changes storage, reheat behavior and maximum service temperature.

Does heat activate adhesive?

Yes — both major thermal bonding film families are heat-activated, but they behave differently once heated. A thermoplastic hot-melt film (TPU, EVA, PA, PES or PO based) simply flows when heated to its melt point and can be reheated later, since it never chemically changes. A thermosetting film like 3M’s nitrile-phenolic 583 line uses heat (225-300°F) to bond, then a separate, higher-temperature post-heat step (up to 350°F) to permanently crosslink it; once that crosslink step is done, it will not re-melt the way a thermoplastic film does.

Does 3M adhesive melt?

Not in the way a thermoplastic hot-melt film does. 3M’s Thermal Bonding Film 583 is a nitrile-phenolic thermosetting adhesive: it’s heat or solvent activated so it flows briefly and wets the substrate, and a separate, hotter post-heat step crosslinks it into a permanent, chemically cured bond that will not re-flow on reheating. That is the opposite behavior of a thermoplastic hot-melt film, which melts every time it is reheated — the key practical difference buyers need to understand before assuming one type is a drop-in substitute for the other.

What’s the maximum temperature a thermal bonding film can handle?

It depends on the chemistry family. 3M’s nitrile-phenolic 583 thermosetting film is rated to roughly 150°C (300°F) continuous operating temperature once its optional post-heat crosslink step is done. Thermoplastic hot-melt films (TPU/EVA/PA/PES/PO) activate across a 65-170°C range for TPU/EVA/PES/PO — PA’s standard grade needs even more heat, applied above 200°C — which is an advantage for reheat and rework, but even PA’s highest-temperature grade will eventually re-melt in a way 3M’s cured thermoset will not.

Can a thermoplastic bonding film replace 3M Thermal Bonding Film 583?

Sometimes: yes for textile and footwear lamination; no for PCB glass-fabric splicing.

About This Comparison

This guide sets out to contrast thermosetting and thermoplastic thermal bonding film chemistries so that anyone shopping for “thermal bonding film” — a phrase dominated by one supplier’s product listings — can find the alternative that actually fits their substrate and service temperature, not just the first search result. The comparison draws on 3M’s own published 583 technical data sheet and Teng Yang’s own per-grade product specifications for its five chemistry families, cross-checked against peer-reviewed materials research, an industry-association technology overview, federally-funded adhesive-bondline research and current ASTM/ISO standard scopes. Where a number couldn’t be verified against a primary source, we said so rather than filling the gap with a rounder-sounding figure.

References & Sources

3M and H.B. Fuller product specifications referenced above are from the manufacturers’ own published datasheets and are cited as identified comparison subjects, not as independent third-party sources. EN ISO 527-2:2025 (CEN-approved 28 December 2024) is cited by standard number only. One transparency note: 3M’s own current product page describes 583 as “thermosetting,” while at least two revisions of its technical data sheet PDF (including the current 2024 edition) open with the summary line “thermoplastic bonding film” before going on to describe a post-heat crosslinking cure step — a thermoset behavior. We’ve followed the product page and the crosslinking mechanism description (the behavior that matches how the product is actually specified and used) rather than that inconsistent PDF summary line. One more related caveat: the 150°C/300°F continuous-service rating and permanent non-re-melt behavior described here apply once that optional post-heat crosslink step is done; 3M’s own data shows the base heat/solvent-activated bond, before crosslinking, is still strong at room temperature but loses much of its strength well below that ceiling.
